ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES ON THE AUSTRALIAN MARKET

Equipped with an exclusive advanced, next generation solid state Battery Management System (BMS) that protects your battery from damage due to extremes of Current, Voltage and Temperature and ensures correctly balanced cells.  Designed to handle high vibrations experienced in the Aussie outback corrugations or marine environments.

We use only the highest quality new internal components and new large format prismatic cells, ensuring optimal balancing of each cell for maximum longevity and ultimate performance.



BATTERY

  • Ultra Slimline Powdercoated Aluminiun Case with fold out carry handles for ease of installation
  • Optional lightweight powder coast aluminium tie down tray & cam buckles straps made specifically for your AllSpark battery



CELLS

AllSpark Batteries are only manufactured using brand new, premium quality A-Grade large format prismatic cells.  The have market leading high current ratings and very long life expectancy.  All AllSpark Battery LiFePO4 cells are 3.2V connected in series in banks of 4, 6, 12 or 16 to achieve 12, 24, 36 or 48V.  With cell continuous discharge ratings of 2-3C and peak output of up to 5C, you can be assured of a high performing battery to meet your high current demands.

Cell interconnecting Busbars are multi pass lazer welded with more than 1" of weld per busbar connection to make them bullet proof on corrugations

Each AllSpark Prismatic cell has integrated safety mechanism to protect your vehicle in the extremely unlikely event of a cell fault

  • High Pressure safety release vents that will open to release excess energy
  • Internal Cell fusing
  • Flame retardant Electrolyte



BATTERY MANAGEMENT SYSTEM (BMS)

Extensive Protection Systems to ensure the highest performance, longevity and reliability to keep you powered offroad longer

  • Low Voltage Protection
  • High Voltage Protection
  • Over Current Discharge Protection
  • Over Current Charge Protection
  • Low Temperature Protection
  • High Temperature Protection
  • Automatic Cell Balancing
  • Short Circuit Protection
  • Reverse Polarity Protection



WHATS IN THE BOX

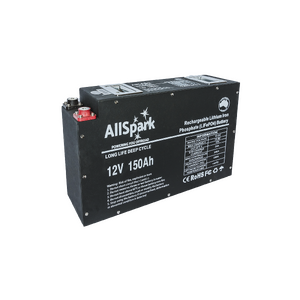

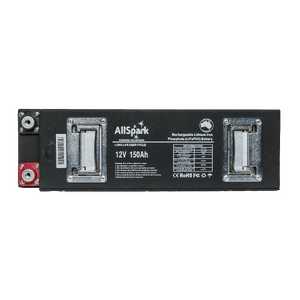

  • 1 X 12 Volt 150ah Slimline LiFePO4 battery - Aluminium powdercoated case
  • Fixing kit - 2 lengths of M8 bolts, flat and spring washers
  • Red/Black Terminal caps











5 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

  • Exclusive Solid state BMS designed and developed by Offroad Living
  • Highest quality premium grade prismatic cells - resistance matched, long battery life and no voltage sag with a 20 year design life
  • Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
  • Power a 2500W Inverter from a SINGLE BATTERY - for high power devices including coffee machines, air conditioners, toasters and kettles
  • Rapid charge - ability to charge in one hour
  • Unlimited Parallel connection or series to 24v max
  • Equivalent usable capacity to a 160ah AGM but weighs only 12kg
  • Jump start capability up to 500A
  • Designed to handle high vibration environments
  • 5 Year Warranty

PRODUCT SPECIFICATIONS - SLIMLINE ALUMINIUM CASE BATTERIES

SKU

AS-10012BATLI200500USG2

AS-10012BATLI200500SLIM AS-15012BATLI200500SLIMG2 AS-20012BATLI200500SLIMG2 AS-10024BATLI200500SLIMG1
Battery Level Specifications
Capacity Amp Hours (C5) 100 100 150 200 100
Watt Hours 1,280 1,280 1,920 2,560 2,560
Rated Voltage (V) 12.8 12.8 12.8 12.8 25.6
Max Charge Voltage (V) 14.6 14.6 14.6 14.6 29.2
Recommended Float Voltage (V) 13.6 13.6 13.6 13.6 27.2
Low Voltage Cutoff (V) 10 10 10 10 20
Rapid Charge Current (1C) for 30 mins 100 100 100 100 100
Recommeded Charge Current (A)* 30-50 30-50 30-50 50 50
Charge Profile CC/CV CC/CV CC/CV CC/CV CC/CV
Max Inverter Size (Watts - per single battery)  2500 2500 2500 2500 4000
Max Continuous Discharge (A) 200 200 200 200 200
Peak Discharge - 5 secs (A) 500 500 500 500 500

Charge Cycles @ 80% Depth of Discharge #(with residual capacity of 85%)

@ 60% Depth of Discharge

@ 40% Depth of Discharge

> 3200+#

> 4200+

> 5000+

> 3200+#

> 4200+

> 5000+

> 3200+#

> 4200+

> 5000+

> 3200+#

> 4200+

> 5000+

> 3200+#

> 4200+

> 5000+

Optimum Temperature During Charging (˚C) < 45 < 45 < 45 < 45 < 45
Operating Temperature Range (˚C) -20 to +60 -20 to +60 -20 to +60 -20 to +60 -20 to +60
Storage Temperature Range (˚C) -40 to +125 -40 to +125 -40 to +125 -40 to +125 -40 to +125
Max Series Voltage (V) 24 24 24 24 48
Max Batteries in Parallel Unlimited Unlimited Unlimited Unlimited Unlimited
Dimensions (inc Handles mm)  635 x 60 x260 400 x 120 x 200 400 x 120 x 250 400 x 120 x 300 400 x 120 x300
Case Material Ultraslim Aluminium Slimline Aluminium Slimline Aluminium Slimline Aluminium Slimline Aluminium
Weight (kg) 13 12 18 21 21
IP Rating SLIMLINE CASES ARE NOT WATERPROOF - FOR INTERNAL USE ONLY
Cell Level Specification
Cell Type Prismatic Prismatic Prismatic Prismatic Prismatic
Cell Connection 4S1P 4S1P 4S1P 4S1P 8S1P
Cell Capacity 3.2V @ 100ah 3.2V @ 100ah 3.2V @ 150ah 3.2V @ 200ah 3.2V @ 100ah
Cell Casing Nickel Plated steel Nickel Plated steel Nickel Plated steel Nickel Plated steel Nickel Plated steel
Cell Balancing target 3.65 +/- 0.025 3.65 +/- 0.025 3.65 +/- 0.025 3.65 +/- 0.025 3.65 +/- 0.025
Cell Balance Current (mA) 35 +/- 5 35 +/- 5 35 +/- 5 35 +/- 5 35 +/- 5
Cell Over Discharge LV protection (V) 2.5 +/- 0.025V 2.5 +/- 0.025V 2.5 +/- 0.025V 2.5 +/- 0.025V 2.5 +/- 0.025V
Over Discharge Release Apply Charge 10.5V+ & 1A+ Apply Charge 10.5V+ & 1A+ Apply Charge 10.5V+ & 1A+ Apply Charge 10.5V+ & 1A+ Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V) 3.75 +/- 0.025 3.75 +/- 0.025 3.75 +/- 0.025 3.75 +/- 0.025 3.75 +/- 0.025
Over Charge Detection Delay (Secs) 1-1.6 1-1.6 1-1.6 1-1.6 1-1.6
Over Charge Release (V) 3.6 +/- 0.0625V 3.6 +/- 0.0625V 3.6 +/- 0.0625V 3.6 +/- 0.0625V 3.6 +/- 0.0625V
Over Charge Release Auto below Release Voltage Auto below Release Voltage Auto below Release Voltage Auto below Release Voltage Auto below Release Voltage
Over Current Detection (1) (A) 220 220 220 220 220
Over Curent Detection Delay (1) (Secs) 10 10 10 10 10
Over Current Detection (2) (A) 500 500 500 500 500
Over Curent Detection Delay (2) (Secs) 5 5 5 5 5
Over Current Release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release
Short Circuit Protection External Short External Short External Short External Short External Short
Short Circuit Detection Delay (uS) 200-400 200-400 200-400 200-400 200-400
Short Circuit Recovery Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release
Internal Resistance (MOSFET PROTECTION) ≤20mΩ ≤20mΩ ≤20mΩ ≤20mΩ ≤20mΩ

* For best cell longevity

*** AllSpark Slimline Alumimium Case Batteries are not fully sealed or waterproof and are for internal use only ***

Special Notes about AllSpark LiFePO4 batteries Cycle Life:

Independantly Laboratory tested with 0.2C5 Discharge rate and 0.2C Charge rate up to 5000 cycles at a controlled temperature of 25°C.  Electronic logs record during testing show a residual capacity in excess of 85% of name plate C5 capacity after 3000 cycles.  In real world conditions, the user will experience a range of temperature, current and voltage conditions which may effect the actual performance of the battery over its life.  Lower depths of discharge % and high continuous charge and discharge rates will reduce overall cycle life.  It is feasible to reach end of battery life within the warranty period should the battery be exposed to daily extremes of high current and or high temperature every cycle. Think of this type of scenerio like driving your car at 5,000rpm in first gear everywhere you drive.  It can do it, but it is not good for longevity and ultimate performance and will wear out pre-maturely.



Specifications

SKU AS-15012BATLI200500SLIMG2
Barcode # 0745178224291
Brand AllSpark
Shipping Weight 16.5000kg
Shipping Width 0.465m
Shipping Height 0.245m
Shipping Length 0.300m
Shipping Cubic 0.034177500m3
Unit Of Measure ea

Download

MANUAL

Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.



Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 10.0V, it will go into Low voltage protection mode.  This will disconnect all loads and the battery voltage will show as 0V.  When in LV protection, the BMS disconnects power to the battery terminals.  To release it from protection, you must provide 10.5V+ and 1A to the battery to "Wake up" the BMS.  Special note - many DCDC chargers and Solar controllers cannot wake up a LiFePO4 battery from LV protection if they don't have a power supply mode.  To overcome this, most AC to DC chargers have a power supply mode or you can use a portable jump starter pack or any other battery connected in parallel for a few secs to wake it up.  Then you normal chargers can take over the charging funtion.
