Introducing the AllSpark Chassis/Underbody Lithium Battery Modules – where durability meets power in the toughest terrains. Engineered for off-road enthusiasts and adventure seekers, these IP67-rated modules are built to thrive beneath your vehicle, ensuring a reliable and rugged energy source for your journey.



Extreme Protection: With an impressive IP67 rating, our lithium battery modules are dust-tight and waterproof, ready to withstand the harshest elements. From muddy trails to river crossings, trust in the resilience of AllSpark.



Unleash the Power: Don't let the compact size fool you – these modules pack a punch. Experience a high-energy density that ensures your vehicle stays powered up for extended expeditions, giving you the freedom to explore without limits.



Easy Integration: Engineered for hassle-free installation, the chassis/underbody design seamlessly integrates into your vehicle, optimizing space without compromising on performance. Get ready to elevate your off-road experience with a power solution that works as hard as you do.



 Smart Technology: Stay in control with smart battery management systems that monitor and protect your power source. Maximize efficiency, prevent overcharging, and enjoy peace of mind knowing your energy supply is in expert hands.



Adventure awaits, and so does reliable power. Equip your vehicle with the AllSpark Chassis/Underbody Lithium Battery Modules – the driving force behind your off-road escapades. Where will your journey take you?

5 Year replacement warranty

SKU AS-20012BATLI200500CM  AS-30012BATLI300600CM AS-40012BATLI300600CM AS-20024BATLI300600CM AS-10048BATLI200500CM
Battery Level Specifications
Capacity Amp Hours (C5) 200 300 400 200 100
Watt Hours 2,560 3,840 5,120 5,120 5,120
Rated Voltage (V) 12.8 12.8 12.8 25.6 51.2
Max Charge Voltage (V) 14.6 14.6 14.6 29.2 58.4
Recommended Float Voltage (V) 13.6 13.6 13.6 27.2 54.4
Low Voltage Cutoff (V) 10 10 10 20 40
Rapid Charge Current (1C) for 30 mins 100 100 100 100 100
Recommeded Charge Current (A)* 50-80     50-80
Charge Profile CC/CV CC/CV CC/CV CC/CV CC/CV
Max Inverter Size (Watts - per single battery)  2500 3000 3000 4000 5000
Max Continuous Discharge (A) 200 300 300 300 200
Peak Discharge - 10 secs (A) 500 600 600 600 500
Charge Cycles @ 80% Depth of Discharge #(with residual capacity of 85%) > 3200+# > 3200+# > 3200+# > 3200+# > 3200+#
@ 60% Depth of Discharge > 4200+ > 4200+ > 4200+ > 4200+ > 4200+
@ 40% Depth of Discharge > 5000+ > 5000+ > 5000+ > 5000+ > 5000+
Optimum Temperature During Charging (˚C) < 45 < 45 < 45 < 45 < 45
Operating Temperature Range (˚C) -20 to +60 -20 to +60 -20 to +60 -20 to +60 -20 to +60
Storage Temperature Range (˚C) -40 to +125 -40 to +125 -40 to +125 -40 to +125 -40 to +125
Max Series Voltage (V) Parallel connection only, series not permitted
Max Batteries in Parallel 4 3 2 3 3
Dimensions (inc Handles mm, LxWxH)  350 x 300 x 200 400 x 300 x 200 550 x 300 x 200 550 x 300 x 200 550 x 300 x 200
Case Material Powder coated Stainless steel construction Powder coated Stainless steel construction Powder coated Stainless steel construction Powder coated Stainless steel construction Powder coated Stainless steel construction
Weight (kg) 25 36.5 51.3 51.3 51.3
IP Rating IP67 IP67 IP67 IP67 IP67
Cell Level Specification
Cell Type Prismatic Prismatic Prismatic Prismatic Prismatic
Cell Connection 4S1P     8S1P
Cell Capacity 3.2V @ 200ah     3.2V @ 200ah
Cell Casing Nickel Plated steel Nickel Plated steel Nickel Plated steel Nickel Plated steel Nickel Plated steel
Cell Balancing target 3.65 +/- 0.025 3.65 +/- 0.025 3.65 +/- 0.025 3.65 +/- 0.025 3.65 +/- 0.025
Cell Balance Current (mA) 35 +/- 5 35 +/- 5 35 +/- 5 35 +/- 5 35 +/- 5
Cell Over Discharge LV protection (V) 2.5 +/- 0.025V 2.5 +/- 0.025V 2.5 +/- 0.025V 2.5 +/- 0.025V 2.5 +/- 0.025V
Over Discharge Release Apply Charge 10.5V+ & 1A+ Apply Charge 10.5V+ & 1A+ Apply Charge 10.5V+ & 1A+ Apply Charge 10.5V+ & 1A+ Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V) 3.75 +/- 0.025 3.75 +/- 0.025 3.75 +/- 0.025 3.75 +/- 0.025 3.75 +/- 0.025
Over Charge Detection Delay (Secs) 1-1.6 1-1.6 1-1.6 1-1.6 1-1.6
Over Charge Release (V) 3.6 +/- 0.0625V 3.6 +/- 0.0625V 3.6 +/- 0.0625V 3.6 +/- 0.0625V 3.6 +/- 0.0625V
Over Charge Release Auto below Release Voltage Auto below Release Voltage Auto below Release Voltage Auto below Release Voltage Auto below Release Voltage
Over Current Detection (1) (A) 220     200
Over Curent Detection Delay (1) (Secs) 10     10
Over Current Detection (2) (A) 500     500
Over Curent Detection Delay (2) (Secs) 5     5
Over Current Release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release
Short Circuit Protection External Short External Short External Short External Short External Short
Short Circuit Detection Delay (uS) 200-400 200-400 200-400 200-400 200-400
Short Circuit Recovery Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release Remove Load - Auto release
Internal Resistance (MOSFET PROTECTION) ≤20mΩ ≤20mΩ ≤20mΩ ≤20mΩ ≤20mΩ

Specifications

SKU AS-30012BATLI300600CM
Barcode # 0745178224499
Brand AllSpark
Shipping Weight 45.9500kg
Shipping Width 0.370m
Shipping Height 0.420m
Shipping Length 0.600m
Shipping Cubic 0.093240000m3
Unit Of Measure ea

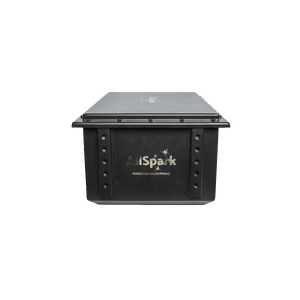

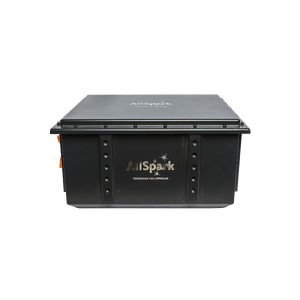

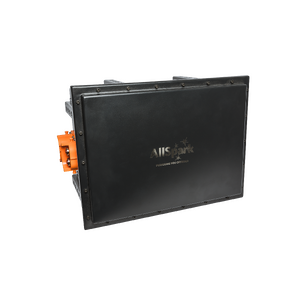

AllSpark - 12V 300Ah LiFePO4 battery (Water proof chassis mount case IP67)
Powder coated Stainless steel construction

Each Battery contains:
300 Amp Continuous output/600 Amp Peak rating (5 secs)

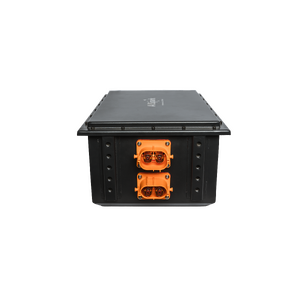

2 x parallel 250A EV plugs and 2x matching sockets
5 year warranty
400L x 300W x 200H
36.5kg
Maximum of 12v only up to 3 in parallel
