Description

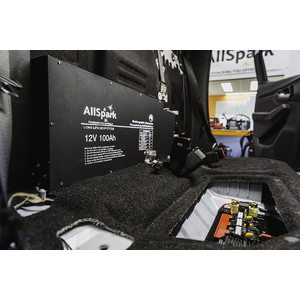

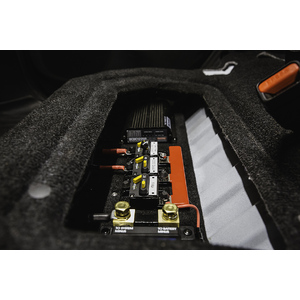

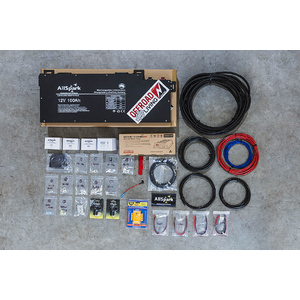

Loose components for DIY installation for behind the seat installation in current model DMAX:
1. AllSpark 12v 100ah Ultra slim LiFePO4 battery
2. Redarc BCDC Core 1225 DCDC charger
3. Victron Smart shunt Bluetooth battery monitor
4. 40A circuit breaker in engine bay feeding BCDC red wire with 6B&S cable using 16-10 reducing link
5. 40A circuit breaker under seat on output from BCDC brown wire - CB is bolted to insulated busbar
6. 20A circuit breaker under seat for feed to sockets bolted to insulated busbar
6a. 2 tab busbar to connect 40A & 20A CB's
7. Cig socket + Dual 2.4A USB socket in 2 hole surface mount hosing - use 6mm twin and flag terminals
8. Solar anderson plug mounted in yellow trailer vision cover under tray at rear - use 8B&S cable (red wire connects to yellow on BCDC, black wire to shunt load side)
9. Ignition trigger wire (tap in fuse - Micro II) to connect to BCDC blue wire via 4mm blue single core cable
10. 6B&S cable (red from start battery to BCDC, black chassis earth to load side of shunt).  Busbar to battery and shunt to battery connections made with 6B&S cables
11. Carpeted marine ply panel to mount BCDC, shunt, CB's etc
