000B&S Single Core Black Battery Cable
  • 000B&S Single Core Black Battery Cable

Frequently Bought Together:

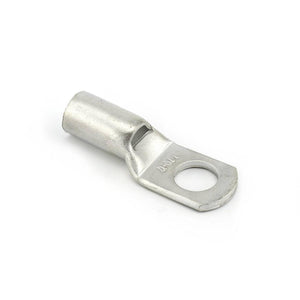

Copper Crimp Lugs 95-08
Copper Crimp Lugs 95-08
$11.00
000B&S Single Core Black Battery Cable

000B&S Single Core Black Battery Cable

SKU CODE: CABLESCA000BSBLACK
In Stock
$55.00
$55.00 $0.00

Tycab Australia is the major manufacturer of automotive cables in Australia. Tycab has been at the forefront of manufacturing automotive aftermarket and OEM cables for 25+ years. Every Tycab cable is renowned for its reliability, quality and durability.

  • Produced from the highest quality Oxygen Free Plain Copper Wire in Australia
  • 3mm to 6mm auto cables - single red or black or twin core
  • 8B&S to 4B&S in Single core Red or Black and Twin core options
  • 2B&S to 000B&S in Single core Red or Black
  • Sold by the meter (bulk rolls also available - contact us for pricing)

Description

Tycab 000 B&S Battery and Starter Cable

Click on Specifications Tab to see full cable specs

Sold by the meter up to 29m (or in 30m rolls)

Features

  • Applications - Battery and Starter Cable
  • Produced from the highest quality Oxygen Free Plain Copper Wire in Australia
  • 3mm to 6mm auto cables - single red or black or twin core
  • 8B&S to 4B&S in Single core Red or Black and Twin core options
  • 2B&S to 000B&S in Single core Red or Black
  • V90 PVC Insulation to AX/NZS 3808
  • Sold by the meter up to 29m (or in 30m rolls)

Specifications

CABLE, CONDUITS AND LUG SIZING CHART

AWG/B&S Twin Core Single Core Copper Diameter (mm) per core Surface Area (mm2) per core Lug size (mm2)
Current Rating (Amps) Circuit Protection Max (Amps) Conduit Size (mm) Heat Shrink (mm) Current Rating (Amps) Circuit Protection Max (Amps) Conduit Size (mm) Heat Shrink (mm)
Without Conduit With Conduit Without Conduit With Conduit
2mm Auto Industry Equivalent 10 7.5 5 5 10 N/A 1.1 0.56 Red crimps
3mm Auto Industry Equivalent 16 10 5 5 10 20 15 5 2.5 10 1.40 1.13 Red/Blue crimps
4mm Auto Industry Equivalent 22 15 7 7 10 28 25 5 2.5 10 1.30 1.84 Blue crimps
6mm Auto Industry Equivalent 38 30 10 10 13 48 40 7 5 10 3.10 4.59 Yellow crimp/6mm lug
8 B&S 59 50 13 13 20 74 60 7 7 10 3.70 7.71 10
6 B&S 82 70 16 16 25 103 80 7 10 10 5.00 13.50 16
4 B&S 108 100 20 20 25 135 100 10 10 13 6.10 20.26 25
2 B&S Single core only 188 150 13 13 20 7.90 32.07 35
0 B&S 246 200 13 16 20 9.30 49.00 50
00 B&S 292 250 16 16 25 11.10 64.15 70
000 B&S 335 300 16 20 25 12.40 83.19 95
This cable chart is provided for information purposes only. It is based on the published information for Tycab Australia Automotive cables which we use soley.
