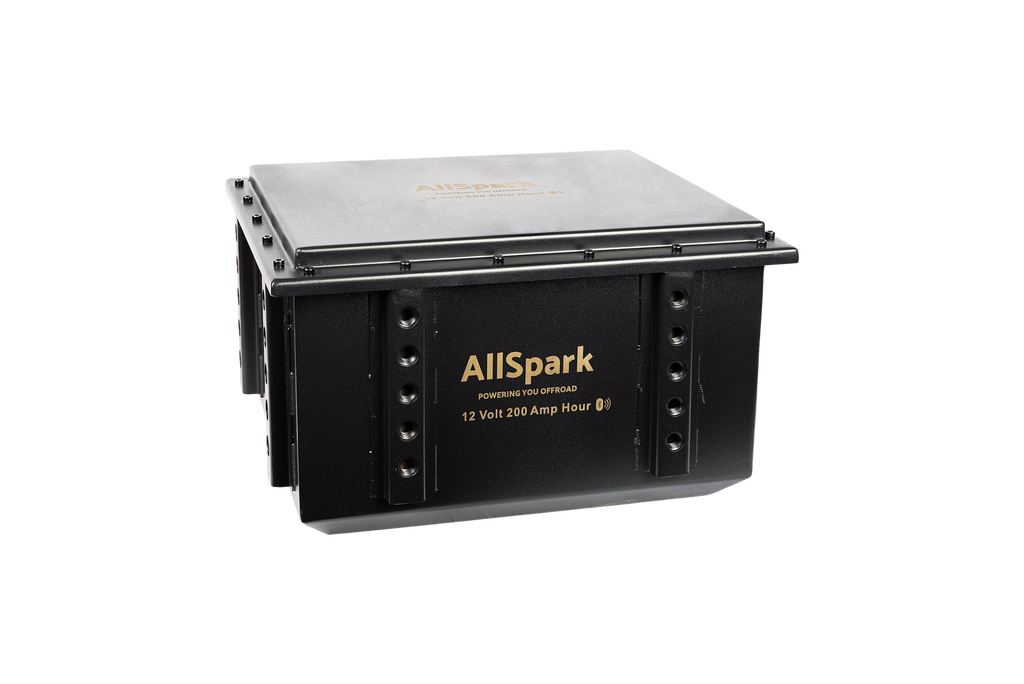

Name: 200Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)
Brand: AllSpark
SKU: AS-20012LICMBT
Price: 2895.00 AUD
Availability: InStock

200Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

$2,895.00

$2,895.00 $0.00

Frequently Bought Together:

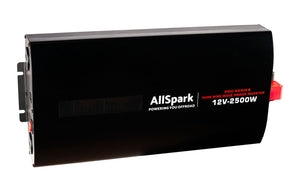

12V 2500 Watt Pure Sine Wave Inverter AllSpark PRO Series

$839.00

Victron Blue Smart IP22 12/30A Single Output with bluetooth

$249.00

200Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

SKU CODE: AS-20012LICMBT

In Stock

$2,895.00

$2,895.00 $0.00

ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES IN AUSTRALIA

New 2025 cell technology with compact cells and casing
Bluetooth Integration
Water proof chassis mount case IP67
Exclusive Solid state BMS
Highest quality premium A grade prismatic cells
Greater than 3000 cycles @ 80% DoD
Power a 2500W Inverter from a SINGLE BATTERY
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Description

THE ALLSPARK 200AH CHASSIS MOUNT - SERIOUS OFF-GRID POWER WITHOUT LOSING YOUR STORAGE SPACE

The AllSpark 200Ah 12V is a purpose-built caravan lithium battery box that mounts directly to your chassis - freeing up your under-bed storage, meeting compliance requirements, and delivering serious off-grid power without compromise.

Designed and developed in Australia by Offroad Living, it's IP67 sealed, IEC 62619 certified as a complete battery unit, and built from powder-coated stainless steel to handle corrugated outback roads, creek crossings, and 40°C summer heat. Bluetooth monitoring is included at no extra cost, so you can check your exact state of charge, individual cell voltages, and full charge history - right from your phone.

If you want a sealed lithium battery box for your caravan that keeps your internal storage intact and your compliance worries off the table, the AllSpark 200Ah delivers.

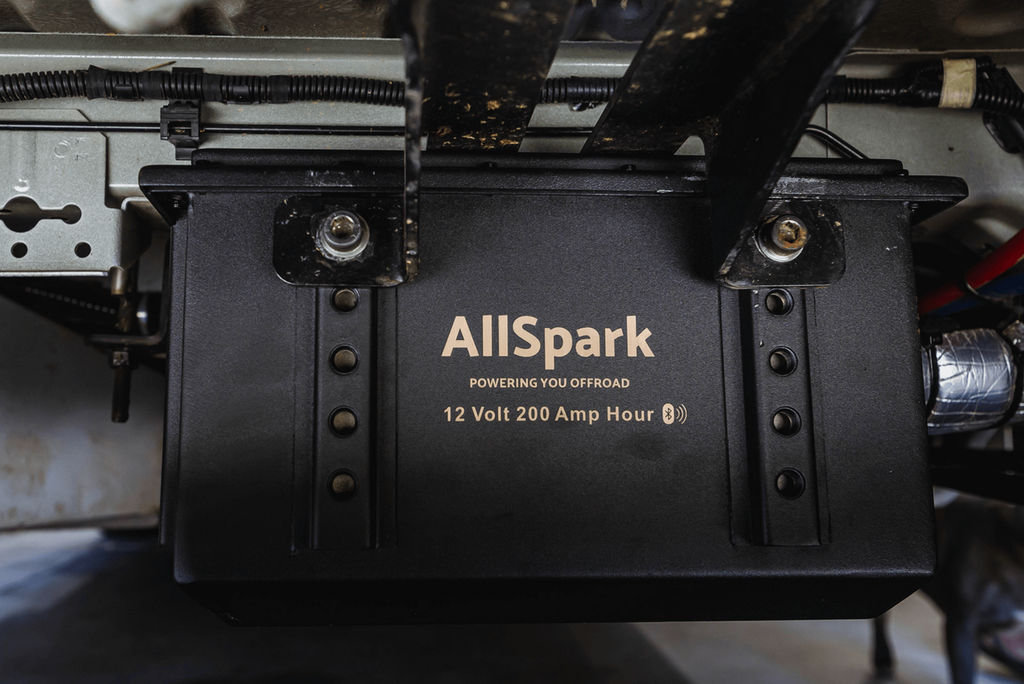

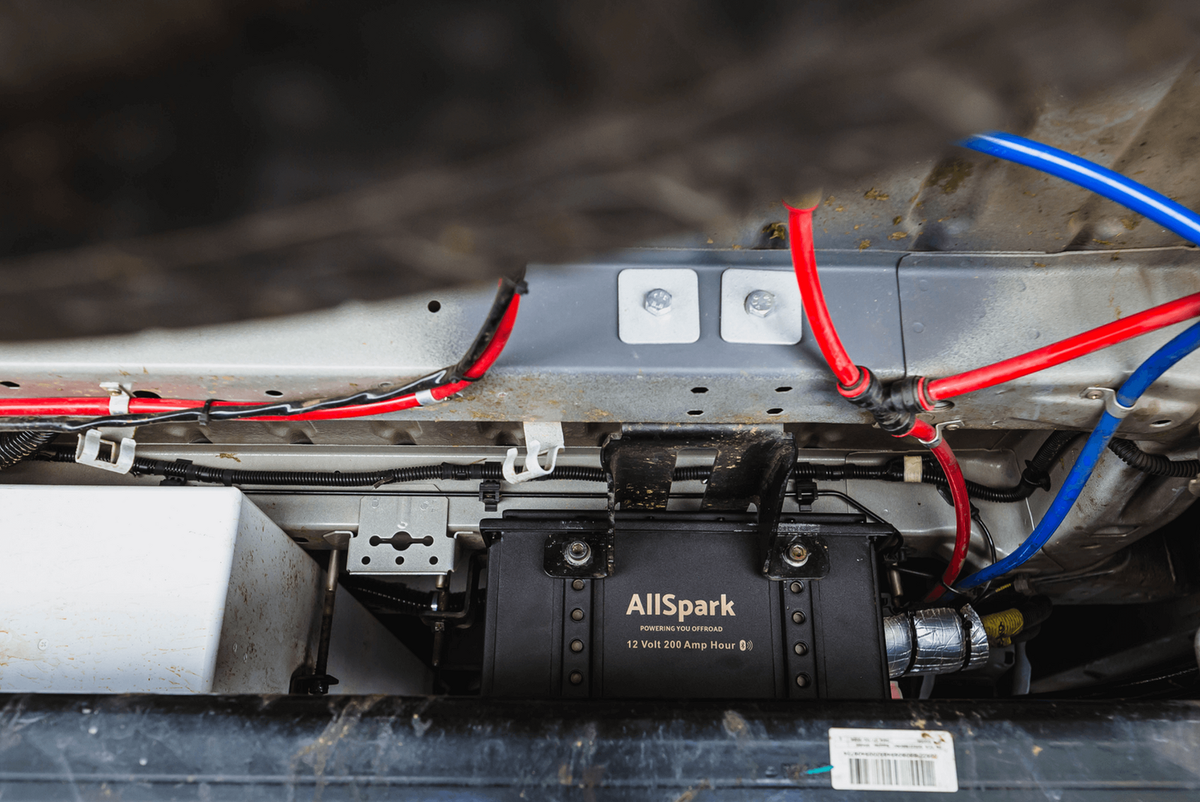

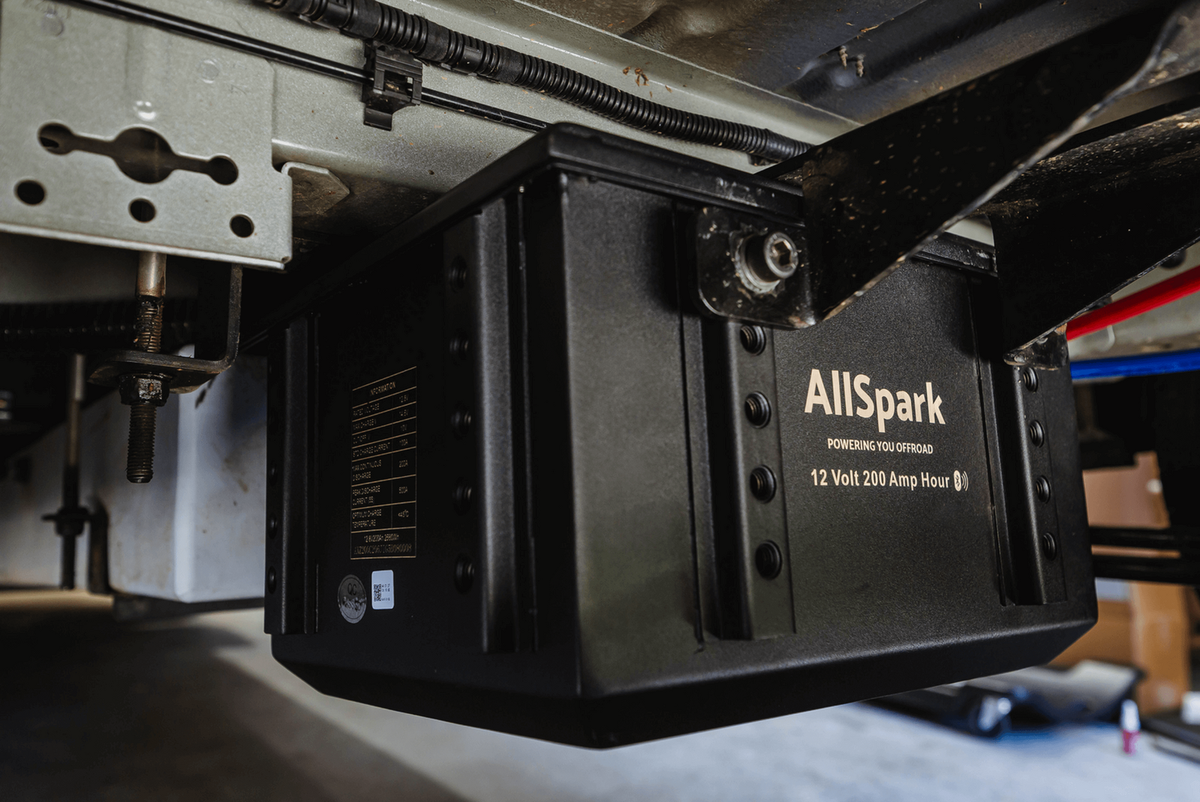

Mounts Above the Frame - Zero Clearance Lost

Most caravan external battery boxes hang below the chassis rail, reducing ground clearance and making them a target every time you hit a corrugation or cross a creek. The AllSpark chassis has in built mounting points, allowing for it to be installed securely above the frames lowest point - so your ground clearance stays exactly where it was before.

Built for the tracks you actually want to drive.

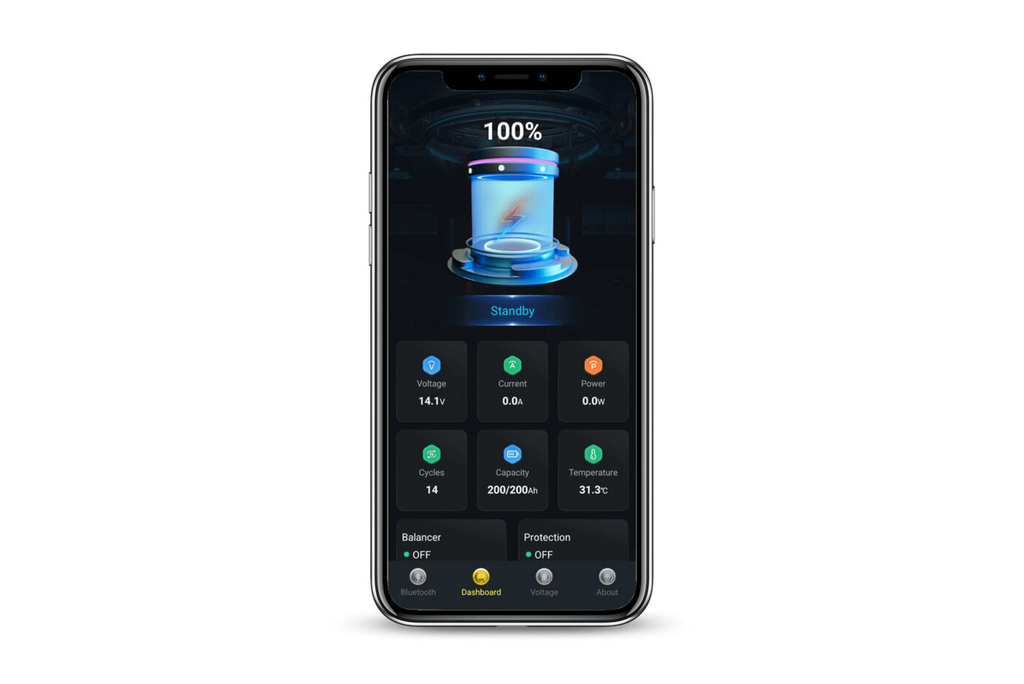

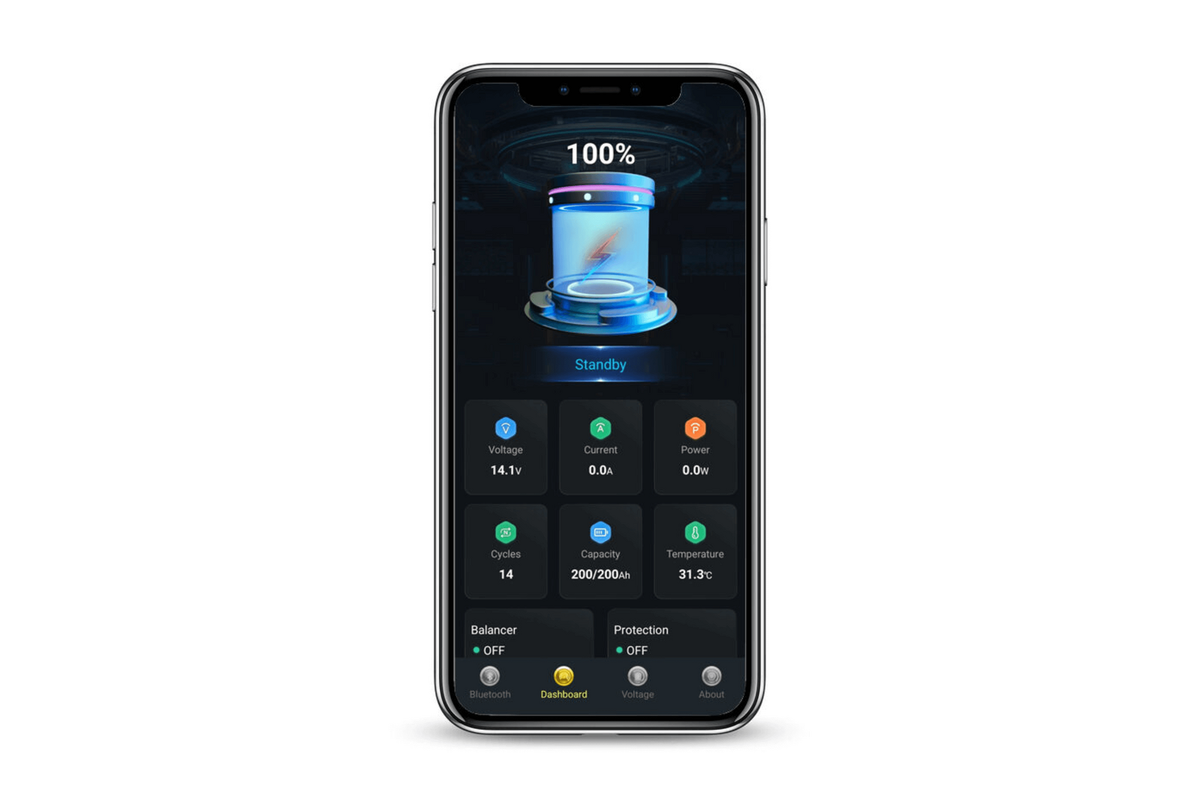

Bluetooth Monitoring Included - Save $400+

Other setups require a separate battery monitor and a battery box, adding $400 or more to your install (plus installation costs if you're not the DIY-type). The AllSpark 200Ah includes full Bluetooth monitoring built directly into the BMS - state of charge, individual cell voltages, cycle history, charge and discharge status, and more.

In addition, it also has an inbuilt on/off switch, removing the need for a master switch, and allowing you to "wake up" your battery (should you discharge it too low).

Accurate, direct BMS data. No extra hardware. No messy wiring. Just open the app.

Certified as a Complete Battery - Not Just the Cells

Some suppliers might show you a cell certificate when you ask about IEC 62619 compliance. That's not the same thing. AllSpark batteries are tested and certified as complete assembled units - build workmanship, components, BMS, the lot.

If you're concerned about insurance compliance or have been given conflicting advice, this is the certification that counts.

Engineered for Australian Heat from -20°C to +60°C

The AllSpark BMS is engineered for the extremes of Australian touring - from cold alpine mornings to outback afternoons.

Automatic protection across temperature, voltage, over-current, short circuit, and reverse polarity keeps the system safe and balanced without any input from you.

Run a 2500W Inverter Off a Single Battery

Kettle, toaster, induction cooktop, or caravan aircon - a single AllSpark 200Ah 12V battery has the peak current delivery to run a 2500W inverter without shutting down.

High-draw appliances demand a battery that doesn't sag under load. Premium A-Grade prismatic cells with a 200A continuous and 500A peak rating means your power doesn't drop away at the worst moment.

WHATS IN THE BOX

1 x AllSpark Bluetooth 200ah powder coated stainless steel cased LiFePO4 battery with vent

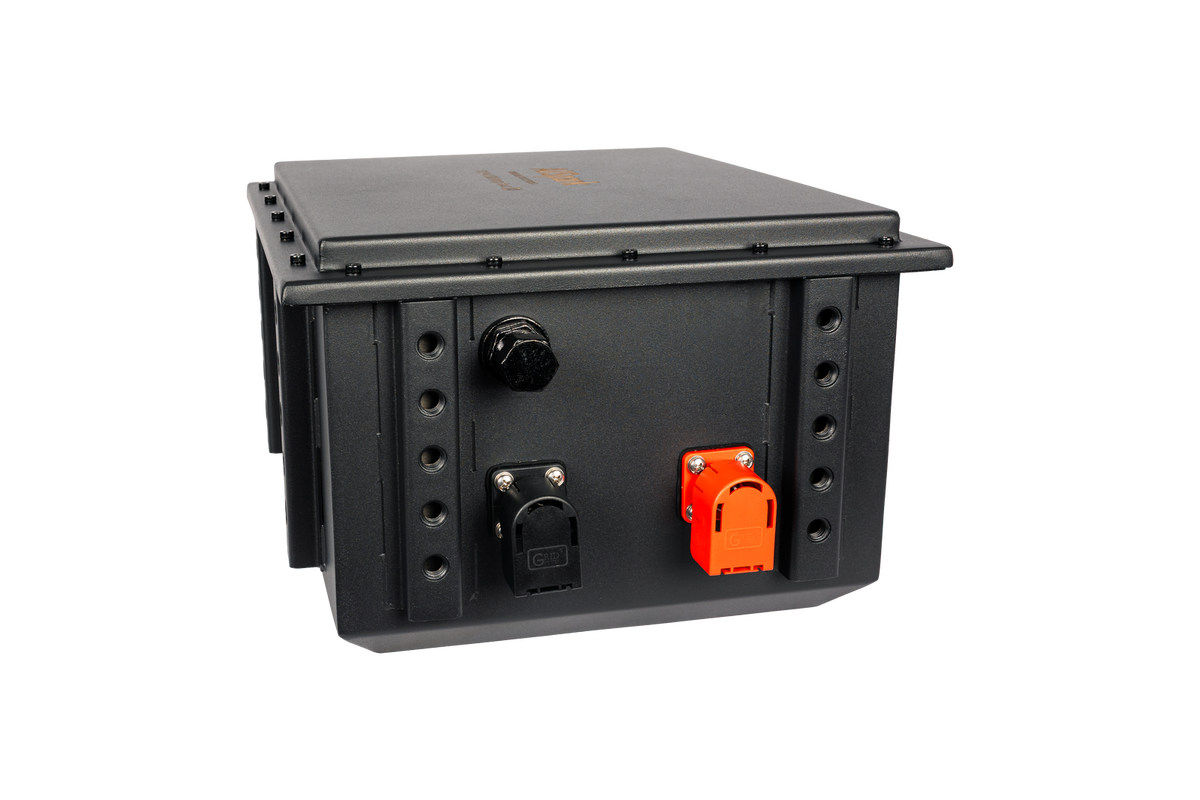

1 x 250A Orange EV connector (if connecting multiple batteries in parallel, please order extra Orange EV connector)
1 x blanking cover

Warranty

7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

Advanced cell technology with compact cells and casing
Bluetooth Integration: Connect to a smart device to monitor performance, track usage data, and receive alerts.
Water proof IP67 chassis mount case
Powder coated stainless steel construction
Exclusive Solid state BMS designed and developed by Offroad Living
Highest quality premium grade prismatic cells resistance matched, long battery life and no voltage sag with a 20 year design life
Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
Power a 2500W Inverter from a SINGLE BATTERY for high power devices including coffee machines, air conditioners, toasters and kettles
Rapid charge
Designed to handle high vibration, dusty and wet environments
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Specifications

SKU	AS-20012LICMBT	AS-30012LICMBT	AS-40012LICMBT	AS-20024LICMBT	AS-10048BATLI200500CM
Battery Level Specifications
Capacity Amp Hours (C5)	200	300	400	200	100
Watt Hours	2560	3840	5120
Rated Voltage (V)	12.8			25.6	51.2
Max Charge Voltage (V)	14.6			29.2	58.4
Recommended Float Voltage (V)	13.6			27.2	54.4
Low Voltage Cutoff (V)	10			20	40
Rapid Charge Current (1C) for 30 mins (A)	200	300	400	200	100
Recommended Charge Current (A)*	50–80	50–120	80–150	50–80	30–50
Charge Profile	CC/CV
Max Inverter Size (W — per single battery)	2500	3000		4000	5000
Max Continuous Discharge (A)	200	300		200	200
Peak Discharge — 10 secs (A)	500	600		500	500
Charge Cycles @ 80% DoD^# (≥85% residual capacity) @ 60% DoD @ 40% DoD	> 3200+^# > 4200+ > 5000+
Optimum Charge Temperature (˚C)	< 45
Operating Temperature Range (˚C)	−20 to +60
Storage Temperature Range (˚C)	−40 to +125
Max Series Voltage	Parallel connection only — series not permitted
Max Batteries in Parallel	4
Dimensions incl. Mounts (mm)	350 × 300 × 200	400 × 300 × 200	550 × 300 × 200
Case Material	Powder coated stainless steel — with threaded vent pipe fitting and cap
Terminals	2 × M8 Bolted Terminals (1 × Red Positive, 1 × Black Negative)
Weight (kg)	25	36.5	51.3
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P		4S2P	8S1P	16S1P
Cell Capacity	3.2V @ 200Ah	3.2V @ 300Ah	3.2V @ 200Ah		3.2V @ 100Ah
Cell Casing	Nickel plated steel
Cell Balancing Target (V)	3.65 ±0.025
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025
Over Discharge Release	Apply charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025		3.65 ±0.025	3.75 ±0.025	3.65 ±0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625
Over Charge Release Method	Auto below release voltage
Over Current Detection (1) (A)	220	330		220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500	600		500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove load — auto release
Short Circuit Protection	External short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove load — auto release
Internal Resistance (MOSFET Protection)	≤20mΩ

Notes* Recommended charge current is for best cell longevity. ^# Cycle life independently laboratory tested at 0.25C discharge and 0.25C charge rate to 5000 cycles at 25°C controlled temperature. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3000 cycles. In real-world conditions, users will experience a range of temperature, current, and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

SKUAS-20012LICMBT

Battery Level Specifications
Capacity (C5)	200Ah
Watt Hours	2560Wh
Rated Voltage	12.8V
Max Charge Voltage	14.6V
Recommended Float	13.6V
Low Voltage Cutoff	10V
Rapid Charge (1C/30min)	200A
Recommended Charge*	50–80A
Charge Profile	CC/CV
Max Inverter Size	2500W
Max Continuous Discharge	200A
Peak Discharge (10s)	500A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	350 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	25kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.75 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	220A
OCD Delay (1)	10s
Over Current Det. (2)	500A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

SKUAS-30012LICMBT

Battery Level Specifications
Capacity (C5)	300Ah
Watt Hours	3840Wh
Rated Voltage	12.8V
Max Charge Voltage	14.6V
Recommended Float	13.6V
Low Voltage Cutoff	10V
Rapid Charge (1C/30min)	300A
Recommended Charge*	50–120A
Charge Profile	CC/CV
Max Inverter Size	3000W
Max Continuous Discharge	300A
Peak Discharge (10s)	600A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	400 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	36.5kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 300Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.75 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	330A
OCD Delay (1)	10s
Over Current Det. (2)	600A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

SKUAS-40012LICMBT

Battery Level Specifications
Capacity (C5)	400Ah
Watt Hours	5120Wh
Rated Voltage	12.8V
Max Charge Voltage	14.6V
Recommended Float	13.6V
Low Voltage Cutoff	10V
Rapid Charge (1C/30min)	400A
Recommended Charge*	80–150A
Charge Profile	CC/CV
Max Inverter Size	3000W
Max Continuous Discharge	300A
Peak Discharge (10s)	600A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	550 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	51.3kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S2P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.65 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	330A
OCD Delay (1)	10s
Over Current Det. (2)	600A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

SKUAS-20024LICMBT

Battery Level Specifications
Capacity (C5)	200Ah
Watt Hours	5120Wh
Rated Voltage	25.6V
Max Charge Voltage	29.2V
Recommended Float	27.2V
Low Voltage Cutoff	20V
Rapid Charge (1C/30min)	200A
Recommended Charge*	50–80A
Charge Profile	CC/CV
Max Inverter Size	4000W
Max Continuous Discharge	200A
Peak Discharge (10s)	500A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	550 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	51.3kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	8S1P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.75 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	220A
OCD Delay (1)	10s
Over Current Det. (2)	500A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

SKUAS-10048BATLI200500CM

Battery Level Specifications
Capacity (C5)	100Ah
Watt Hours	5120Wh
Rated Voltage	51.2V
Max Charge Voltage	58.4V
Recommended Float	54.4V
Low Voltage Cutoff	40V
Rapid Charge (1C/30min)	100A
Recommended Charge*	30–50A
Charge Profile	CC/CV
Max Inverter Size	5000W
Max Continuous Discharge	200A
Peak Discharge (10s)	500A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	550 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	51.3kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	16S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.65 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	220A
OCD Delay (1)	10s
Over Current Det. (2)	500A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

Downloads

Android App on Google Play Store

Apple App on Apple App Store

IEC 62619 Certification

FAQS

Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.

Q: What is Current In/Out Net Value?

A: The Net Value is all the charge sources minus all the loads

Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 0% (10.5V or less), it will enter Low voltage protection mode. This will disconnect all loads and the battery and terminal voltage will show as 0-3V. When in LV protection mode, the BMS disconnects power to the battery terminals. To release it you simply open the AllSpark Bluetooth App on your smart device, turn the discharge function back to ON and let your charger take over. Most other brands need a "jump start" or external charger input or parallel connection to wake it up. AllSpark Lithium batteries are much smarter and simpler to wake up for charging. Note: if you don't have a charge source ready, it will go back to sleep again after a short time to protect the cells until you are ready to re-charge.

Q: Can I link another 200ah to give me 400ah? Or more?

A: Yes - these batteries can be connected in parallel using the second connector to double your amp hour capacity. The maximum that can be connected in parallel is 4 batteries. The batteries should be within a few months of each other in age to ensure optimal performance and longevity.

Q: Is this battery certifed for use in Caravans?

A: Yes - AllSpark batteries are not only compliant, but are actually "Tested" and "Certified" for compliance with IEC 62616 standards (see downloads for certificate). Many sellers of LiFePO4 batteries in Australia claim to be "compliant" with the IEC 62616 standards, but have never actually had them tested or hold any certification for this compliance. Self claiming compliance with a standard without 3rd party certification is not only misleading, but is fraudulant advertising practises.
