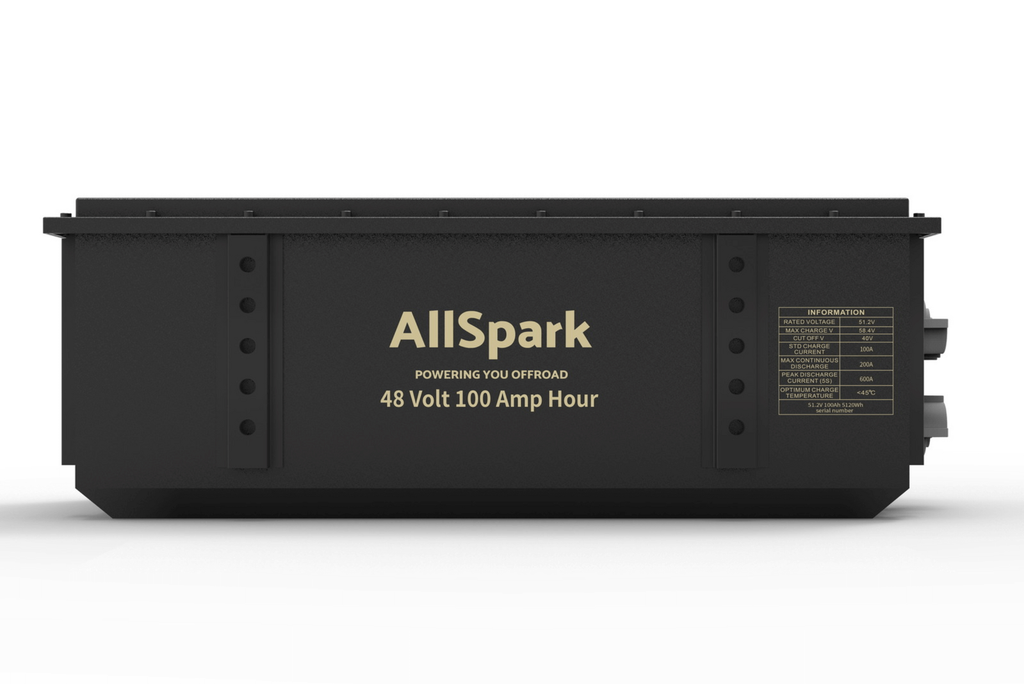

100Ah 48V Lithium Battery Waterproof Chassis Mount IP67

100Ah 48V Lithium Battery Waterproof Chassis Mount IP67

$4,339.00
Sale price  $4,339.00 Regular price  $0.00
Skip to product information
100Ah 48V Lithium Battery Waterproof Chassis Mount IP67

100Ah 48V Lithium Battery Waterproof Chassis Mount IP67

SKU CODE: AS-10048BATLI200500CM
$4,339.00
Sale price  $4,339.00 Regular price  $0.00

ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES IN AUSTRALIA

  • Water proof chassis mount case IP67
  • Exclusive Solid state BMS
  • Highest quality premium A grade prismatic cells
  • Greater than 3000 cycles @ 80% DoD
  • Power a 5000W Inverter from a SINGLE BATTERY
  • 7 Year Warranty

Description

48V CARAVAN POWER, DONE PROPERLY — MORE EFFICIENCY, ZERO EXCUSES TO STAY ON THE GRID



A 48V caravan system delivers advantages that lower voltage setups simply can't match - higher inverter efficiency, lower cable current draw, reduced power losses over longer runs, and the ability to run serious loads without the weight and complexity of parallel battery banks.



The AllSpark 100Ah 48V chassis mount is designed and developed in Australia by Offroad Living specifically for 48V caravans and motorhome builds that demand efficiency, compliance, and long-term reliability.



IP67 rated and IEC 62619 certified as a complete battery unit, it's built from powder-coated stainless steel and mounts above the chassis rail - preserving your ground clearance on corrugated tracks and creek crossings. Full Bluetooth monitoring is integrated into the BMS at no extra cost, giving you precise 48V caravan power data on your phone in real time.



If you're building or upgrading to a 48V system, the AllSpark 100Ah 48V is built for exactly that purpose.





100Ah 48V Lithium Battery Waterproof Chassis Mount IP67

48V Chassis Mount - Clearance Preserved, Power Maximised

Purpose-built 48V caravan power should not come at the cost of your ground clearance. The AllSpark 100Ah 48V chassis mount has in built mounting points, allowing for it to be installed securely above the frames lowest point - so the frame remains the lowest point, keeping your vehicle's original clearance for the tracks that make a 48V build worthwhile.

No hanging below the chassis. No compromise on capability.

100Ah 48V Lithium Battery Waterproof Chassis Mount IP67

Certified to Australian Standards - Complete Battery

IEC 62619 certification on the cells alone doesn't mean the complete battery is safe or compliant. AllSpark batteries are independently tested and certified as complete assembled units - cells, BMS, housing, workmanship - the lot.

For piece of mind and reliability - it's the stamp of approval you've been looking for.

100Ah 48V Lithium Battery Waterproof Chassis Mount IP67

48V System Monitoring - Built Into the Battery

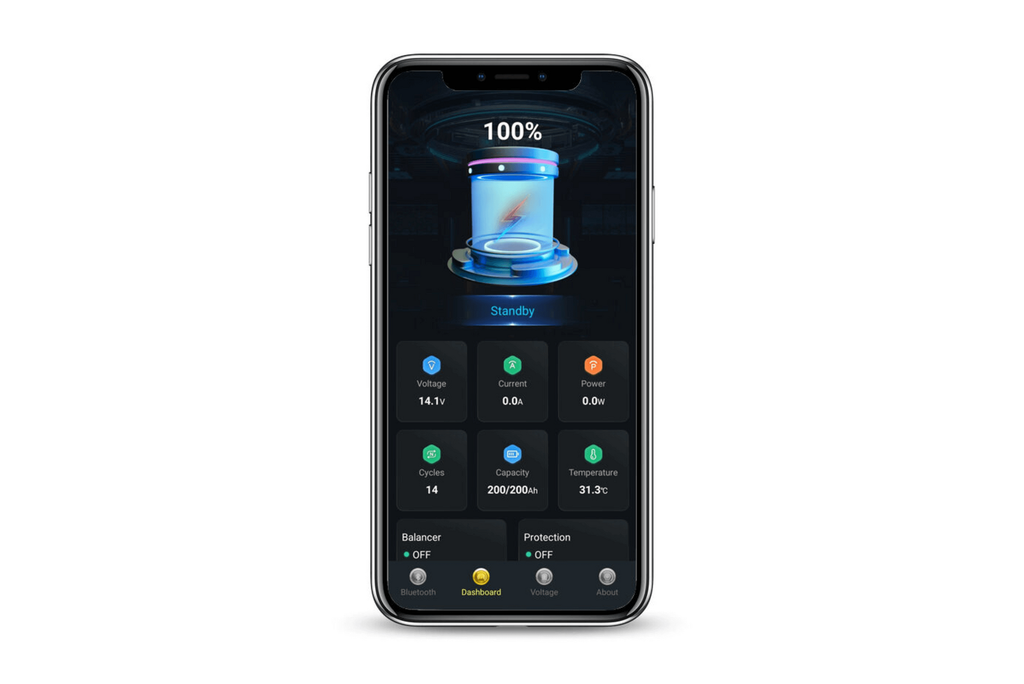

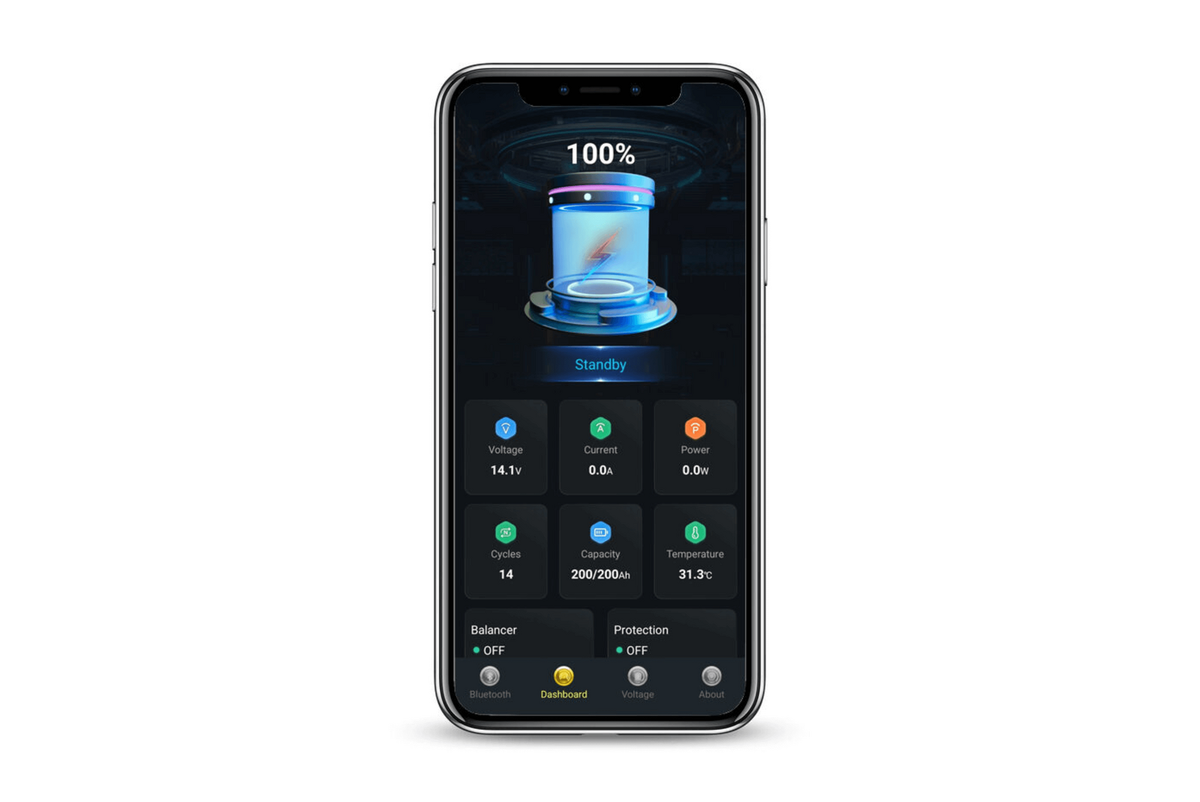

Monitoring a 48V caravan power system accurately requires data from inside the BMS, not a shunt bolted on externally. AllSpark's integrated Bluetooth monitoring gives you individual cell voltages, state of charge, current in and out, cycle count, and full charge history - direct from the source.

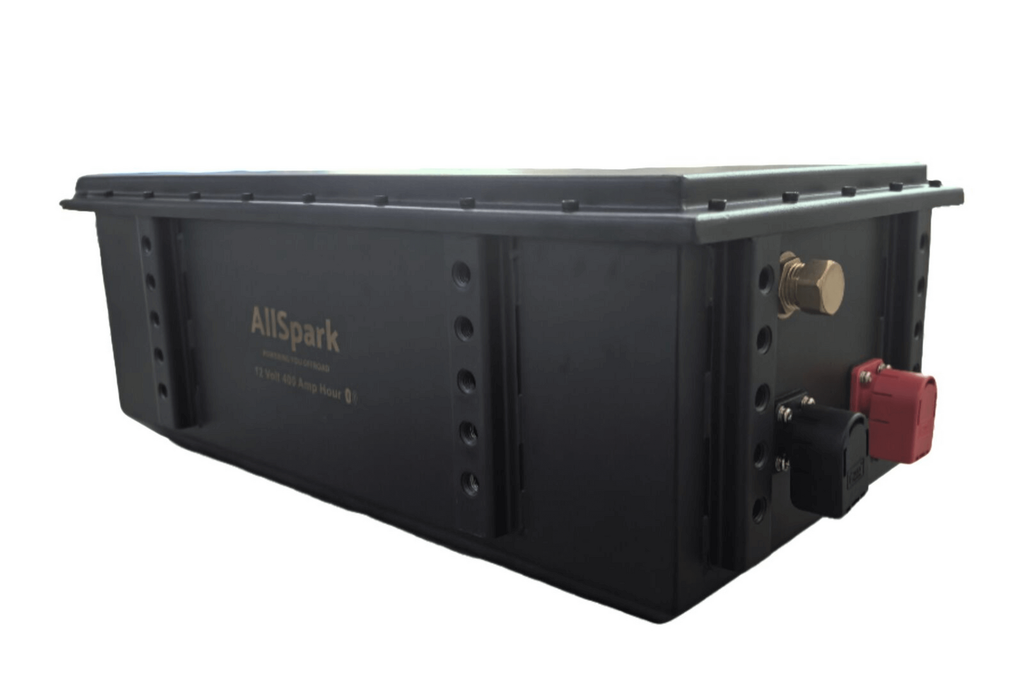

This chassis mount battery comes fully enclosed in a tough stainless steel casing, meaning you also don't have to fork out for a flimsy caravan battery box, adding another $100+.

Included in the battery price, with no extra hardware required.

100Ah 48V Lithium Battery Waterproof Chassis Mount IP67

48V BMS - Protection You Can Rely On Offroad

At 48V, a BMS failure isn't just an inconvenience - it can shut down your entire caravan system in a remote location.

The AllSpark BMS is engineered to give you piece of mind - protecting against high and low temperature (-20°C to +60°C), over-voltage, under-voltage, short circuit, reverse polarity, and over-current.

Automatic cell balancing maintains performance across the full 48V cell stack throughout the battery's life.

48V Efficiency - Run a 5000W Inverter on One Battery

A 48V system's key advantage is the ability to deliver high power output at lower current draw, which means your inverter runs more efficiently and your cabling handles the load more effectively. The AllSpark 100Ah 48V delivers the output to run a 5000W inverter on a single battery - kettle, aircon, induction cooktop, and more, all at the same time.

With A-Grade prismatic cells rated to handle the peak demand without voltage sag, you can run your appliances with confidence.

WHATS IN THE BOX

  • 1 X 48 Volt 100ah powder coated stainless steel cased LiFePO4 battery with vent
  • M8 terminal bolts (2 length bolts) + nut covers

Warranty

7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

  • Water proof IP67 chassis mount case
  • Powder coated stainless steel construction
  • Exclusive Solid state BMS designed and developed by Offroad Living
  • Highest quality premium grade prismatic cells resistance matched, long battery life and no voltage sag with a 20 year design life
  • Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
  • Power a 5000W Inverter from a SINGLE BATTERY for high power devices including coffee machines, air conditioners, toasters and kettles
  • Rapid charge
  • Designed to handle high vibration, dusty and wet environments
  • 7 Year Warranty

Specifications

SKUAS-20012LICMBTAS-30012LICMBTAS-40012LICMBTAS-20024LICMBTAS-10048BATLI200500CM
Battery Level Specifications
Capacity Amp Hours (C5)200300400200100
Watt Hours256038405120
Rated Voltage (V)12.825.651.2
Max Charge Voltage (V)14.629.258.4
Recommended Float Voltage (V)13.627.254.4
Low Voltage Cutoff (V)102040
Rapid Charge Current (1C) for 30 mins (A)200300400200100
Recommended Charge Current (A)*50–8050–12080–15050–8030–50
Charge ProfileCC/CV
Max Inverter Size (W — per single battery)2500300050005000
Max Continuous Discharge (A)200300200200
Peak Discharge — 10 secs (A)500600500500
Charge Cycles
@ 80% DoD# (≥85% residual capacity)
@ 60% DoD
@ 40% DoD
> 3200+#
> 4200+
> 5000+
Optimum Charge Temperature (˚C)< 45
Operating Temperature Range (˚C)−20 to +60
Storage Temperature Range (˚C)−40 to +125
Max Series VoltageParallel connection only — series not permitted
Max Batteries in ParallelUp to 6 (specialised fusing, cabling and busbar design needed when more than 3 are in parallel)
Dimensions incl. Mounts (mm)350 × 300 × 200400 × 300 × 200550 × 300 × 200
Case MaterialPowder coated stainless steel — with threaded vent pipe fitting and cap
Terminals2 × M8 Bolted Terminals (1 × Red Positive, 1 × Black Negative)
Weight (kg)2536.551.3
IP RatingIP67
Cell Level Specification
Cell TypePrismatic
Cell Connection4S1P4S2P8S1P16S1P
Cell Capacity3.2V @ 200Ah3.2V @ 300Ah3.2V @ 200Ah3.2V @ 100Ah
Cell CasingNickel plated steel
Cell Balancing Target (V)3.65 ±0.025
Cell Balance Current (mA)35 ±5
Cell Over Discharge LV Protection (V)2.5 ±0.025
Over Discharge ReleaseApply charge 10.5V+ & 1A+Apply charge 10.5V+ & 1A+Apply charge 10.5V+ & 1A+Apply charge 21V+ & 1A+Apply charge 42V+ & 1A+
Over Charge Cutoff (V)3.75 ±0.0253.65 ±0.0253.75 ±0.0253.65 ±0.025
Over Charge Detection Delay (secs)1–1.6
Over Charge Release (V)3.6 ±0.0625
Over Charge Release MethodAuto below release voltage
Over Current Detection (1) (A)220330220
Over Current Detection Delay (1) (secs)10
Over Current Detection (2) (A)500600500
Over Current Detection Delay (2) (secs)5
Over Current ReleaseRemove load — auto release
Short Circuit ProtectionExternal short
Short Circuit Detection Delay (µS)200–400
Short Circuit RecoveryRemove load — auto release
Internal Resistance (MOSFET Protection)≤20mΩ
Notes* Recommended charge current is for best cell longevity. # Cycle life independently laboratory tested at 0.25C discharge and 0.25C charge rate to 5000 cycles at 25°C controlled temperature. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3000 cycles. In real-world conditions, users will experience a range of temperature, current, and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.
SKUAS-10048BATLI200500CM
Battery Level Specifications
Capacity (C5)100Ah
Watt Hours5120Wh
Rated Voltage51.2V
Max Charge Voltage58.4V
Recommended Float54.4V
Low Voltage Cutoff40V
Rapid Charge (1C/30min)100A
Recommended Charge*30–50A
Charge ProfileCC/CV
Max Inverter Size5000W
Max Continuous Discharge200A
Peak Discharge (10s)500A
Cycles @ 80% DoD#> 3200+
Cycles @ 60% DoD> 4200+
Cycles @ 40% DoD> 5000+
Optimum Charge Temp< 45˚C
Operating Temp Range−20 to +60˚C
Storage Temp Range−40 to +125˚C
Max Series VoltageParallel only
Max Batteries in ParallelUp to 6 (specialised fusing, cabling and busbar design needed when more than 3 are in parallel)
Dimensions incl. Handles550 × 300 × 200mm
Case MaterialPowder coated stainless steel
Terminals2 × M8 Bolted
Weight51.3kg
IP RatingIP67
Cell Level Specification
Cell TypePrismatic
Cell Connection16S1P
Cell Capacity3.2V @ 100Ah
Cell CasingNickel plated steel
Cell Balancing Target3.65 ±0.025V
Cell Balance Current35 ±5mA
OD LV Protection2.5 ±0.025V
Over Discharge ReleaseApply 42V+ & 1A+
Over Charge Cutoff3.65 ±0.025V
OC Detection Delay1–1.6s
Over Charge Release3.6 ±0.0625V
OC Release MethodAuto below release voltage
Over Current Det. (1)220A
OCD Delay (1)10s
Over Current Det. (2)500A
OCD Delay (2)5s
Over Current ReleaseRemove load — auto
Short Circuit ProtectionExternal short
SC Detection Delay200–400µS
SC RecoveryRemove load — auto
Internal Resistance≤20mΩ
Notes* Recommended charge current is for best cell longevity. # Cycle life independently laboratory tested at 0.25C discharge and 0.25C charge rate to 5000 cycles at 25°C controlled temperature. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3000 cycles. In real-world conditions, users will experience a range of temperature, current, and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

FAQS

Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.



Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 0% (42V or less), it will enter Low voltage protection mode. This will disconnect all loads and the battery and terminal voltage will show as 0-3V. When in LV protection mode, the BMS disconnects power to the battery terminals. To release it you simply open the AllSpark Bluetooth App on your smart device, turn the discharge function back to ON and let your charger take over. Most other brands need a "jump start" or external charger input or parallel connection to wake it up. AllSpark Lithium batteries are much smarter and simpler to wake up for charging. Note: if you don't have a charge source ready, it will go back to sleep again after a short time to protect the cells until you are ready to re-charge.



Q: Can I link another 100ah to give me 200ah? Or more?

A: Yes - these batteries can be connected in parallel, terminal to terminal, using the positive and negative M8 terminals. Up to 6 batteries can be connected in parallel. If you are connecting more than 3 in parallel, specialised fusing, cabling and busbar design must be applied, so please contact us first. The batteries should be within a few months of each other in age to ensure optimal performance and longevity.
