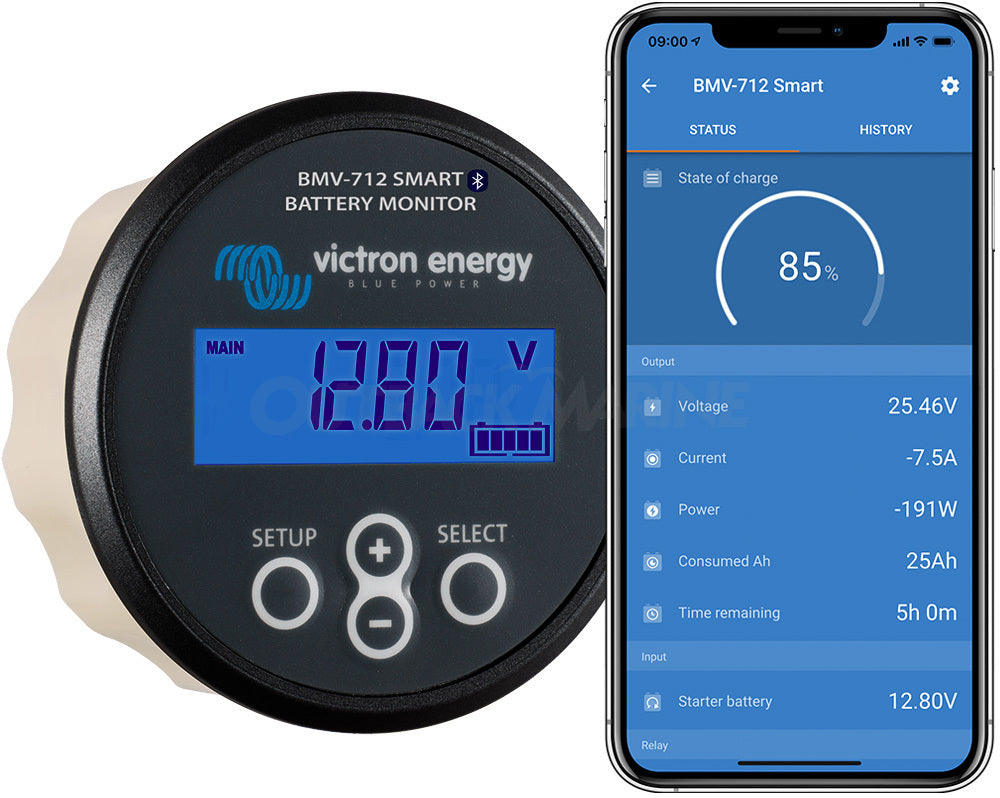

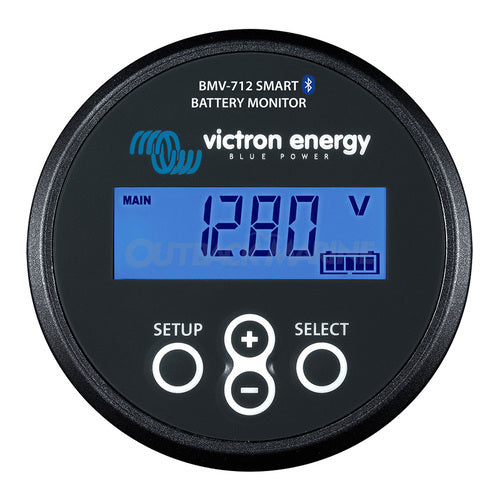

Victron BMV-712 Black Battery Monitor with Bluetooth

$235.00

$235.00 $0.00

Victron BMV-712 Black Battery Monitor with Bluetooth

Name: Victron BMV-712 Black Battery Monitor with Bluetooth
Brand: Victron
SKU: BAM030712200R
Price: 235.00 AUD
Availability: InStock

SKU CODE: BAM030712200R

Pre-Order

$235.00

$235.00 $0.00

ALL IN ONE, BLUETOOTH BATTERY MONITOR WITH DIGITAL DISPLAY

Bluetooth compatible
Digital Display
View historical data
Monitor your battery
GX Device compatible via a DE direct cable

Description

ALL IN ONE, BLUETOOTH BATTERY MONITOR WITH DIGITAL DISPLAY

The BMV-712 is Victrons latest evolution of their ever popular BMV range of battery monitors. The BMV-712 has the added benefit of integrated Victron Smart technology; which implements Bluetooth (as in many other Victron Energy products) – giving wireless communication between various products.

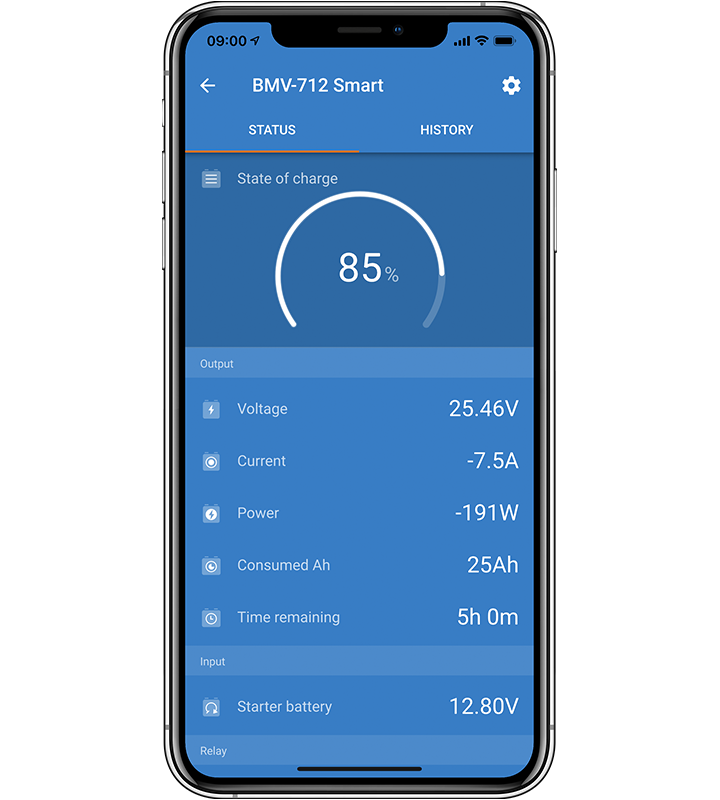

Victron Smart technology simplifies system setup, monitoring and firmware updates using the free VictronConnect app.

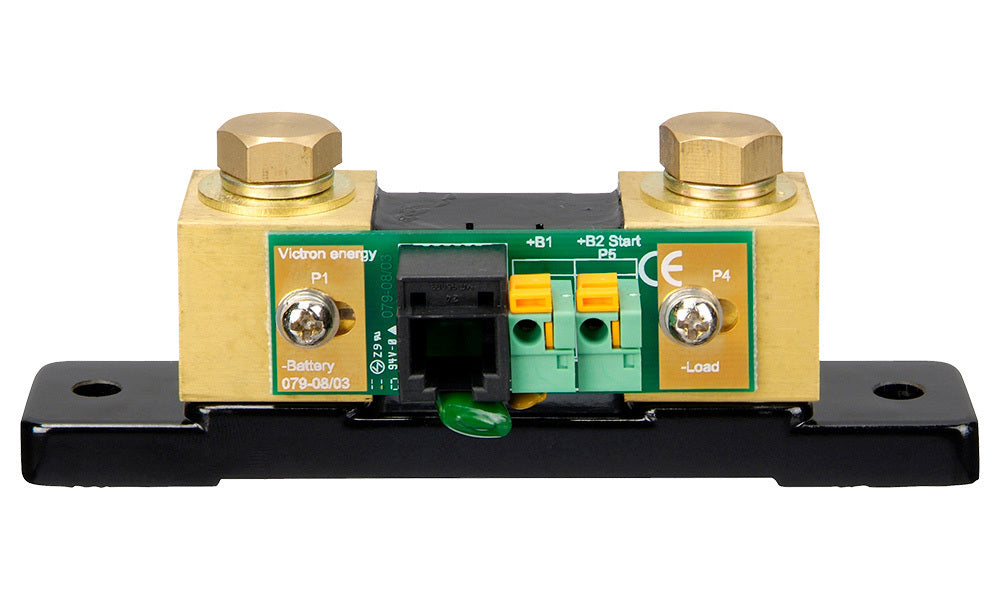

The shunt is equipped with a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

*For VictronConnect settings, go to the FAQ tab under "What settings do I need for a lithium battery?"

WHATS IN THE BOX

1 x Victron BMV-712 Black Battery Monitor with Bluetooth
10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection

Warranty

5 YEAR MANUFACTURERS WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

Bluetooth compatible - monitor via your smart device using VictronConnect
Digital Display - monitor all important information easily
View historical data - kept for up to 46 days
Monitor your battery - measures battery voltage and current, calculates state of charge and time to go
GX Device compatible via a DE direct cable

Specifications

PRODUCT SPECIFICATIONS - VICTRON BMV-712

SKU	VICT-BMV712 / VICT-BMV712B
Supply voltage range (VDC)	6.5 - 70
Current Draw	<1mA
Input voltage range, auxillary battery (VDC)	6.5 - 70
Battery capacity (Ah)	1 - 9999
Operating Temperature Range (^oC)	-40 to 50
Measures coltage of second battery, or temperature, or midpoint	Yes
Temperature measurement range (^oC)	-20 to 50
VE. Direct communication Port	Yes
Bistable Relay	60V / 1A normally open (function can be inverted)
Resolution and Accuracy
Current (A)	±0.01
Voltage (V)	±0.01
Amp hours (Ah)	±0.1
State of charge (0-100%) (%)	±0.1
Time to go (min)	±1
Temperature (^oC)	±1 (0-50)
Accuracy of current measurement (%)	±0.4
Installation & Dimensions
Installation	Flush Mount
Front	63mm diameter
Front bezel	69 x 69mm
Shunt connection bolts	M10
Body diameter and depth	52 mm (2.0 inch) and 31 mm (1.2 inch)
Protection Category	IP55 (not intended for outdoor use)
Standards
Safety		EN 60335-1
Emission / Immunity		EN 55014-1 / EN 55014-2
Automotive		ECE R10-4 / EN 50498
Accessories
Shunt (included)		500 A / 50 mV
Cables (included)		10 meter 6 core UTP with RJ12 connectors, and cable with 1Amp slow blow fuse for ‘+’ connection
Temperature sensor		Optional (ASS000100000)
Stored Trends
Data Stored	Battery voltage, current, state of charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage)
Number of days trends data is stored	46

Downloads

Product data sheet Battery Settings

FAQS

Q: What settings do I need for a lithium battery?

A: The "Battery Capacity" section is variable depending on what size battery you have, but all other settings should be as displayed in the settings sheet in the downloads section, unless advised otherwise.

If you have any questions about the setup or need help with the app, please give us a call on 08 6205 6868.
