AllSpark White QC3 USB + QC4 USB Type C PD 60W Charging Socket

AllSpark White QC3 USB + QC4 USB Type C PD 60W Charging Socket

$29.00
Sale price  $29.00 Regular price  $0.00
Skip to product information
AllSpark White QC3 USB + QC4 USB Type C PD 60W Charging Socket

Frequently Bought Together:

AllSpark White QC3 USB + QC4 USB Type C PD 60W Charging Socket

SKU CODE: AS-QC3QC4WHNL
In Stock
$29.00
Sale price  $29.00 Regular price  $0.00

HIGH QUALITY USB SOCKET SUITABLE FOR 12V AND 24V DC INSTALLATIONS

  • Rubber dust cover
  • No backlight - perfect for beside beds
  • IP65 rated
  • 1 x Quick Charge 3.0 socket
  • 1 x Quick Charge 4.0 socket - USB Type C PD 60W

Description

HIGH QUALITY USB SOCKET SUITABLE FOR 12V AND 24V DC INSTALLATIONS

*** Please note this product can be problematic with new charge algorithym for Iphone 17.  If you have this device, our PD100w listings (link below) are a perfect match ***

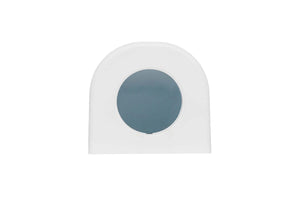

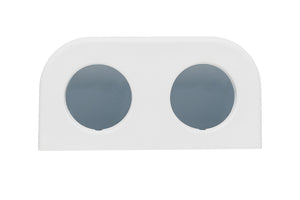

Featuring a dustproof, IP65 rubber cover and high quality construction, this AllSpark USB socket is perfect for your 4WD, caravan or camper, especially designed without a backlight for use next to a sleeping area. Use with or without our AllSpark surface or flush mount housing and get power to where you need it!



WE ALSO HAVE A LARGE SELECTION OF HIGH QUALITY AND RELIABLE 12V/24V SOCKETS & CHARGERS BELOW



WHATS IN THE BOX

  • 1 X AllSpark White QC3 USB + QC4 USB Type C PD 60W Charging Socket

Need to Power Starlink mini, laptop or drone chargers or IPhone 17 by USB C PD100w?  Check out our brand new upgraded PD100W models here:

AllSpark PD100W Dual USB Black - no backlight

AllSpark PD100W Dual USB Black - with Blue LED backlight

AllSpark PD100W Dual USB White - no backlight

Warranty

5 YEAR WARRANTY

Features

  • Rubber dust cover - keep out dust to ensure reliable power
  • No backlight - perfect for next to beds
  • IP65 rated - water resistant
  • 1 x Quick Charge 3.0 socket - USB A
  • 1 x Quick Charge 4.0 type C PD 60W socket - USB type C PD

Specifications

SKU AS-QC3QC4WHNL
Specifications
USB Type Type A QC 3.0 + Type C PD60
Number of USB Ports 2
Nominal Voltage 12V / 24V DC
Operating Voltage 8V–32V DC (max)
Peak Voltage 36V DC max (3–4s)
USB Type-A Output QC 3.0 (5V–12V, 30W max)
USB Type-C PD Output QC 4.0 (5V–20V, 60W max)
Idle Power Current 5mA
Life 5,000 operating cycles
Sealing IP65
Terminals Copper / nickel-plated 1/4" (6.3mm)
Operating Temperature −20°C to +80°C
Panel Opening 29.2 Ă— 26.2 mm
Over Voltage Protection Yes
Over Current Protection Yes
Over Temperature Protection Yes
Short Circuit Protection Yes
Reverse Polarity Protection Yes
SKUAS-QC3QC4WHNL
Specifications
USB Type Type A QC 3.0 + Type C PD60
Number of USB Ports 2
Nominal Voltage 12V / 24V DC
Operating Voltage 8V–32V DC (max)
Peak Voltage 36V DC max (3–4s)
USB Type-A Output QC 3.0 (5V–12V, 30W max)
USB Type-C PD Output QC 4.0 (5V–20V, 60W max)
Idle Power Current 5mA
Life 5,000 operating cycles
Sealing IP65
Terminals Copper / nickel-plated 1/4" (6.3mm)
Operating Temperature −20°C to +80°C
Panel Opening 29.2 Ă— 26.2 mm
Over Voltage Protection Yes
Over Current Protection Yes
Over Temperature Protection Yes
Short Circuit Protection Yes
Reverse Polarity Protection Yes
