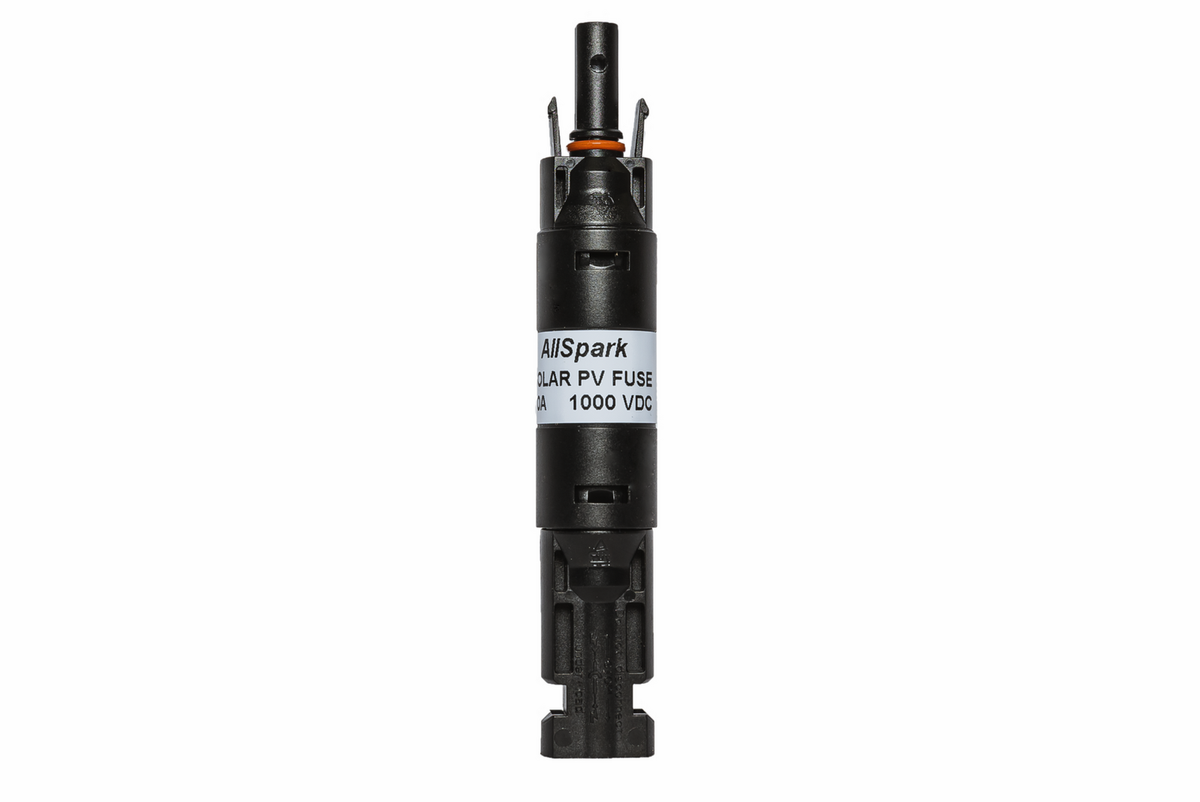

Inline MC4 Fuse 30A
  • Inline MC4 Fuse 30A
Inline MC4 Fuse 30A

Inline MC4 Fuse 30A

SKU CODE: CPA-MC4FUSE30A
Pre-Order

Sold out due to popular demand, new stock expected early October. Preorder Now

$16.50
$16.50 $0.00

PROTECT YOUR OFFGRID POWER SYSTEM

  • Option between 8A, 10A, 15A, 20A or 30A max current rating and 1000V
  • Easy fuse replacement
  • Standard MC4 male/female plug connections
  • IP67 waterproof


Description

PROTECT YOUR OFFGRID POWER SYSTEM



Easy fuse placement to protect your solar panels. Using standard MC4 male/female plug connections, these inline fuses are IP67 waterproof, perfect for use for permanently mounted solar panels.



Install one on each positive cable before connecting to another panel in series or parallel.



WHATS IN THE BOX:

  • 1 x Inline MC4 Fuse 30A

Features

  • Option between 8A, 10A, 15A, 20A or 30A max current rating and 1000V
  • Easy fuse replacement
  • Standard MC4 male/female plug connections
  • IP67 waterproof - perfect for installation on permanenly mounted solar panels

Specifications

PRODUCT SPECIFICATIONS - ALLSPARK MC4 INLINE FUSES

MODEL Inline MC4 Fuse 8A Inline MC4 Fuse 10A Inline MC4 Fuse 15A Inline MC4 Fuse 20A Inline MC4 Fuse 30A
Insulation Material PPO
Rated Current (A) 8 10 15 20 30
Rated Voltage (V) 1000
Test Voltage (kV) 6 (50Hz, 1min)
Contact Resistance (mΩ) <5
Contact Material Copper, Tin Plated
Degree of Protection IP67
Safety Class II
Flame Class UL94-V0
Insertion Force Max. 50N
Withdrawal Force Min. 50N
Ambient Temperature Range -40oC to +85oC (IEC)
Suitable Cable Size (AWG) 14/12/10/8
