LED Strip Light - Canopy 4 Light Pack | Dual Colour Red & White Dimmable | AllSpark

Name: LED Strip Light - Canopy 4 Light Pack | Dual Colour Red & White Dimmable | AllSpark
Brand: Offroad Living
SKU: AS-LEDCANOPY4PK
Price: 219.00 AUD
Availability: InStock

SKU CODE: AS-LEDCANOPY4PK

In Stock

$219.00

$219.00 $239.00 Save 8%!

ALL YOU NEED FOR YOUR 4WD CANOPY LIGHTING IN ONE DISCOUNTED PACK

Perfect for Camp lighting
White and Red lighting - dimmable
1200mm extended length cable length
Rigid black aluminium housing
IP67 - waterproof
Owned & run by an Aussie Family
Manufactured for Australian conditions

Description

4 x LIGHT 4WD CANOPY VALUE PACK

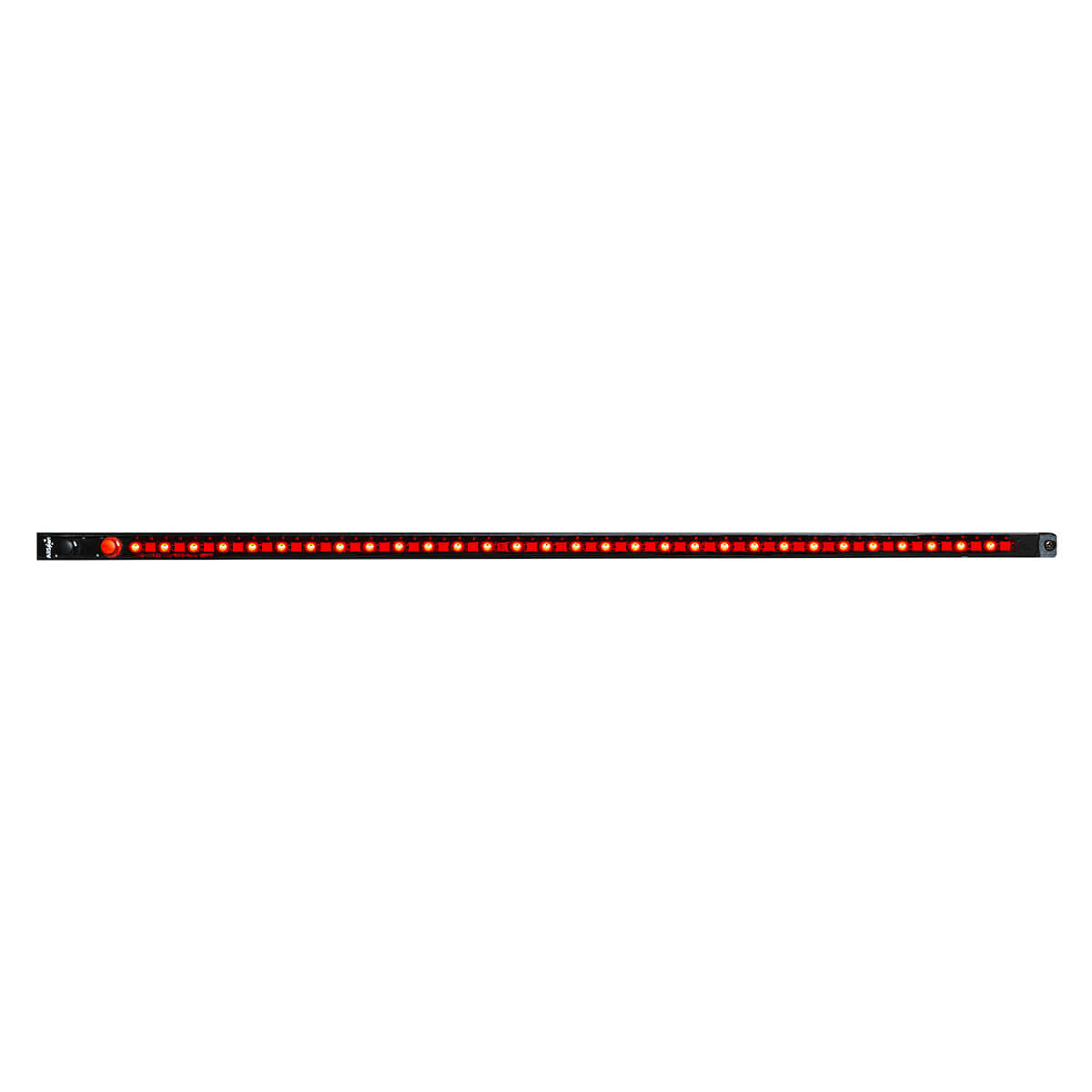

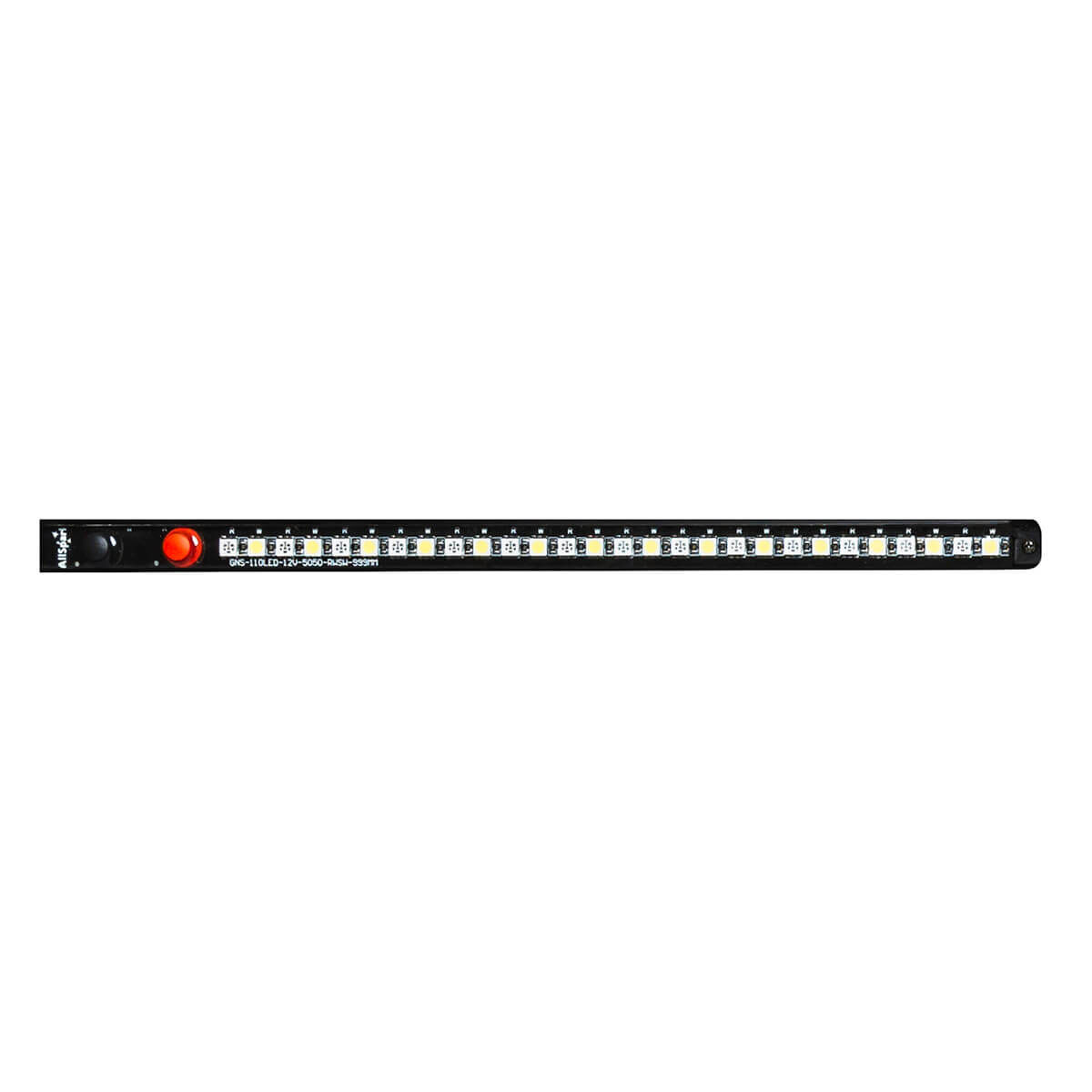

Our AllSpark LED strip lights have been designed for a wide range of applications & vehicles such as 4WD's, camper trailers, caravans, boats and more! Each LED strip has two colour options, white and red (black button for white LED, red button for red LED), with the red LED being specifically chosen after extensive real-world testing showed that it is the ONLY light that doesn't attract our Aussie bugs!

Each light comes complete with 1200mm of cable with red/black cores and bare ends for soldering or DT plugs, along with black 3M VHB tape for easy, sturdy installation. The rigid, black aluminium housing is IP67 rated, meaning it is waterproof and suitable for both internal and external fitting.

WHATS IN THE BOX

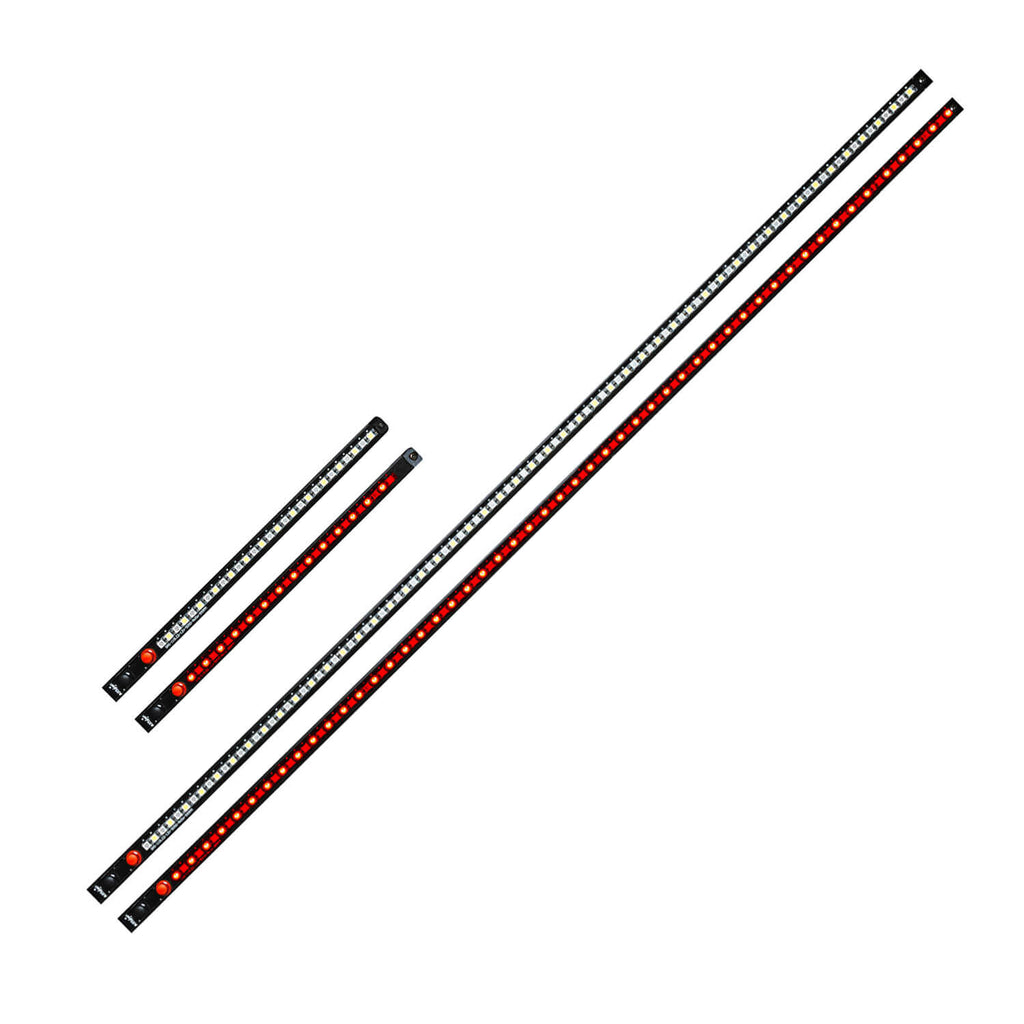

2 x 90cm Pro-series Dimmable lights for the canopy doors
2 x 30cm Pro-series Dimmable lights for smaller areas
All lights have black PCB and and integrated aluminium L brackets
Black coloured 3M VHB Tape for easy stick on Install (where holes cannot be drilled)
Black button for white LED, Red button for red LED
1200mm cable length 20AWG Red/black cores bare ends

Warranty

5 YEAR WARRANTY

Features

Perfect for Camp lighting - Red light keeps the bugs away
Built in dimmer
1200mm cable length - red/black cores bare ends for soldering or DT plugs
Rigid black aluminium housing
Black 3M VHB Tape for easy stick on installation
IP67 - waterproof for internal or external use
6000K colour rating (white)
Black button for white led, Red button for red led
Owned & run by an Aussie Family
Manufactured for Australian conditions

Specifications

SKU	AS-LED30PSD	AS-LED90PSD
Common
Length (mm)	300	900
Height & Width (mm)	6H (+2 for buttons) & 11W
Voltage (V)	12
White
Qty (LED)	15	53
Max Current (A)	0.29	0.88
Max Power (W)	3.48	10.56
Min Current (A)	0.03	0.08
Min Power (W)	0.36	0.96
Max Lumens	348	1056
Red
Qty (LED)	16	54
Max Current (A)	0.26	0.79
Max Power (W)	3.12	9.48
Min Current (A)	0.03	0.06
Min Power (W)	0.36	0.72
Max Lumens	312	948
Mix (White + Red)
Qty (LED)	31	107
Max Current (A)	0.29	0.88
Max Power (W)	3.48	10.56
Min Current (A)	0.01	0.04
Min Power (W)	0.12	0.48

SKUAS-LED30PSD

Common
Length (mm)	300
Height & Width (mm)	6H (+2 for buttons) & 11W
Voltage (V)	12
White
Qty (LED)	15
Max Current (A)	0.29
Max Power (W)	3.48
Min Current (A)	0.03
Min Power (W)	0.36
Max Lumens	348
Red
Qty (LED)	16
Max Current (A)	0.26
Max Power (W)	3.12
Min Current (A)	0.03
Min Power (W)	0.36
Max Lumens	312
Mix (White + Red)
Qty (LED)	31
Max Current (A)	0.29
Max Power (W)	3.48
Min Current (A)	0.01
Min Power (W)	0.12

SKUAS-LED90PSD

Common
Length (mm)	900
Height & Width (mm)	6H (+2 for buttons) & 11W
Voltage (V)	12
White
Qty (LED)	53
Max Current (A)	0.88
Max Power (W)	10.56
Min Current (A)	0.08
Min Power (W)	0.96
Max Lumens	1056
Red
Qty (LED)	54
Max Current (A)	0.79
Max Power (W)	9.48
Min Current (A)	0.06
Min Power (W)	0.72
Max Lumens	948
Mix (White + Red)
Qty (LED)	107
Max Current (A)	0.88
Max Power (W)	10.56
Min Current (A)	0.04
Min Power (W)	0.48

FAQS

Q: Can I install a separate switch in a different location to turn these on and off as a master switch?

A: Yes, you can install an external switch. This switch can turn power to the LED lights on and off. The LED lights will maintain the previously set light selection/dimmer setting as you turn the external switch on/off.

Q: Can I daisy chain multiple lights together?

A: No. But...you can install multiple lights in parallel using the same supply cable. Join all the positive cables together, and then separately join all the negatives together to one source up to 4 lights together in parallel and with up to a 10A fuse max using at least 3mm auto cable. A daisy chain wiring would normally have a power feed in at one end of the strip light and output power connection at the other end to daisy chain the next light. This is not possible with AllSpark Rigid LED strip lights, but parallel connection certainly is.
