LED Strip Light - Canopy 4 Light Pack | Tri-Colour Red, White & Blue | AllSpark

Name: LED Strip Light - Canopy 4 Light Pack | Tri-Colour Red, White & Blue | AllSpark
Brand: AllSpark
SKU: AS-LEDCANOPYTRI4PK
Price: 236.55 AUD
Availability: InStock

SKU CODE: AS-LEDCANOPYTRI4PK

In Stock

$236.55

$236.55 $249.00 Save 5%!

NOW WITH BUILT IN DIMMER - SIMPLY PRESS AND HOLD TO DIM TO YOUR DESIRED LEVEL

Dimmable red, white and blue LEDs (or any combination of each)
1200mm cable length
Rigid black aluminium housing
Black 3M VHB Tape
IP67 - waterproof
Extended tabs
6000K colour rating (white)
Colour matches buttons

Description

AUSTRALIA'S FIRST - RED, WHITE AND BLUE LED STRIP LIGHTS WITH BUILT IN DIMMER

4 x LIGHT 4WD CANOPY VALUE PACK

- SIMPLY PRESS AND HOLD TO DIM TO YOUR DESIRED LEVEL -

Our AllSpark LED strip lights have been designed for a wide range of applications & vehicles such as 4WD's, camper trailers, caravans, boats and more! Each LED strip has three dimmable colour options, red, white and blue, with the red LED being specifically chosen after extensive real-world testing showed that it is the ONLY light that doesn't attract our Aussie bugs, and now blue for marine environments.

Each light comes complete with 1200mm of cable with red/black cores and bare ends for soldering or DT plugs, along with black 3M VHB tape for easy, sturdy installation. The rigid, black aluminium housing is IP67 rated, meaning it is waterproof and suitable for both internal and external fitting.

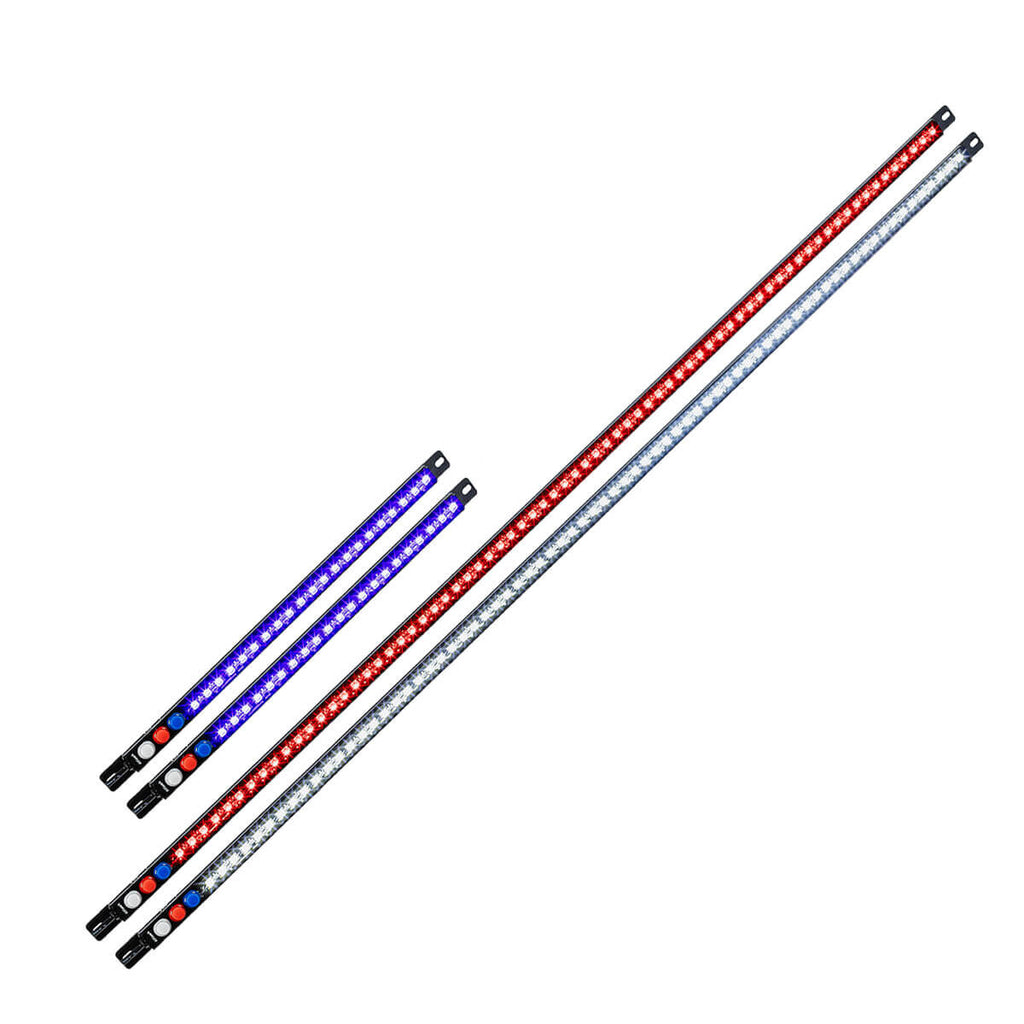

WHAT'S IN THE BOX

2 x 90cm AllSpark Pro-Series Tri Colour LED Strip light with Built in Dimmer
2 x 30cm AllSpark Pro-Series Tri Colour LED Strip light with Built in Dimmer

Warranty

5 YEAR WARRANTY

Features

Dimmable red, white and blue LEDs - Red light keeps the bugs away, blue is perfect for marine environments
1200mm cable length - red/black cores bare ends for soldering or DT plugs
Rigid black aluminium housing
Black 3M VHB Tape for easy stick on installation
IP67 - waterproof for internal or external use
Extended tabs - for easy installation
6000K colour rating (white)
Colour matches buttons

Specifications

SKU	AS-LED30PSDRWB (×2)	AS-LED90PSDRWB (×2)
Common
Length (mm)	300	900
Height & Width (mm)	6H (+2 for buttons) & 11W
Qty (LED)	21	72
Voltage (V)	12
White
Max Current (A)	0.26	0.79
Max Power (W)	3.12	9.48
Min Current (A)	0.03	0.06
Min Power (W)	0.36	0.72
Max Lumens	312	948
Blue
Max Current (A)	0.25	0.78
Max Power (W)	3.00	9.36
Min Current (A)	0.03	0.06
Min Power (W)	0.36	0.72
Max Lumens	300	936
Red
Max Current (A)	0.25	0.79
Max Power (W)	3.00	9.48
Min Current (A)	0.03	0.06
Min Power (W)	0.36	0.72
Max Lumens	300	948
Mix (White + Blue + Red)
Max Current (A)	0.29	0.85
Max Power (W)	3.48	10.20
Min Current (A)	0.01	0.01
Min Power (W)	0.12	0.12
Max Lumens	365	1056

SKU — ×2 includedAS-LED30PSDRWB

Common
Length (mm)	300
Height & Width (mm)	6H (+2 for buttons) & 11W
Qty (LED)	21
Voltage (V)	12
White
Max Current (A)	0.26
Max Power (W)	3.12
Min Current (A)	0.03
Min Power (W)	0.36
Max Lumens	312
Blue
Max Current (A)	0.25
Max Power (W)	3.00
Min Current (A)	0.03
Min Power (W)	0.36
Max Lumens	300
Red
Max Current (A)	0.25
Max Power (W)	3.00
Min Current (A)	0.03
Min Power (W)	0.36
Max Lumens	300
Mix (White + Blue + Red)
Max Current (A)	0.29
Max Power (W)	3.48
Min Current (A)	0.01
Min Power (W)	0.12
Max Lumens	365

SKU — ×2 includedAS-LED90PSDRWB

Common
Length (mm)	900
Height & Width (mm)	6H (+2 for buttons) & 11W
Qty (LED)	72
Voltage (V)	12
White
Max Current (A)	0.79
Max Power (W)	9.48
Min Current (A)	0.06
Min Power (W)	0.72
Max Lumens	948
Blue
Max Current (A)	0.78
Max Power (W)	9.36
Min Current (A)	0.06
Min Power (W)	0.72
Max Lumens	936
Red
Max Current (A)	0.79
Max Power (W)	9.48
Min Current (A)	0.06
Min Power (W)	0.72
Max Lumens	948
Mix (White + Blue + Red)
Max Current (A)	0.85
Max Power (W)	10.20
Min Current (A)	0.01
Min Power (W)	0.12
Max Lumens	1056

FAQS

Q: Can I install a separate switch in a different location to turn these on and off as a master switch?

A: Yes, you can install an external switch. This switch can turn power to the LED lights on and off. The LED lights will maintain the previously set light selection/dimmer setting as you turn the external switch on/off.

Q: Can I daisy chain multiple lights together?

A: No. But...you can install multiple lights in parallel using the same supply cable. Join all the positive cables together, and then separately join all the negatives together to one source up to 4 lights together in parallel and with up to a 10A fuse max using at least 3mm auto cable. A daisy chain wiring would normally have a power feed in at one end of the strip light and output power connection at the other end to daisy chain the next light. This is not possible with AllSpark Rigid LED strip lights, but parallel connection certainly is.
