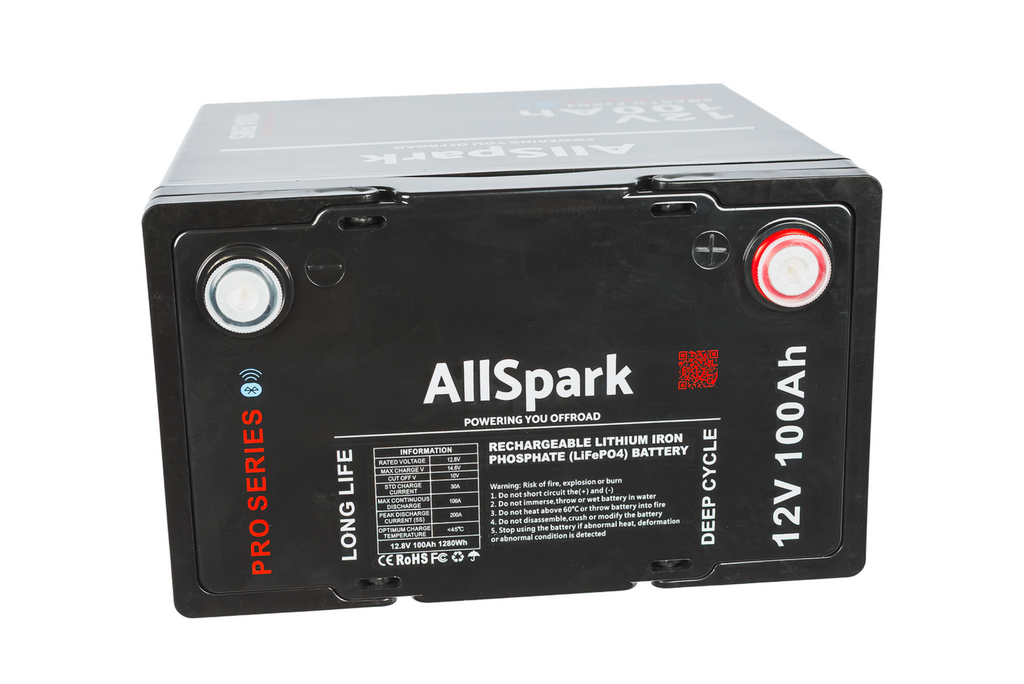

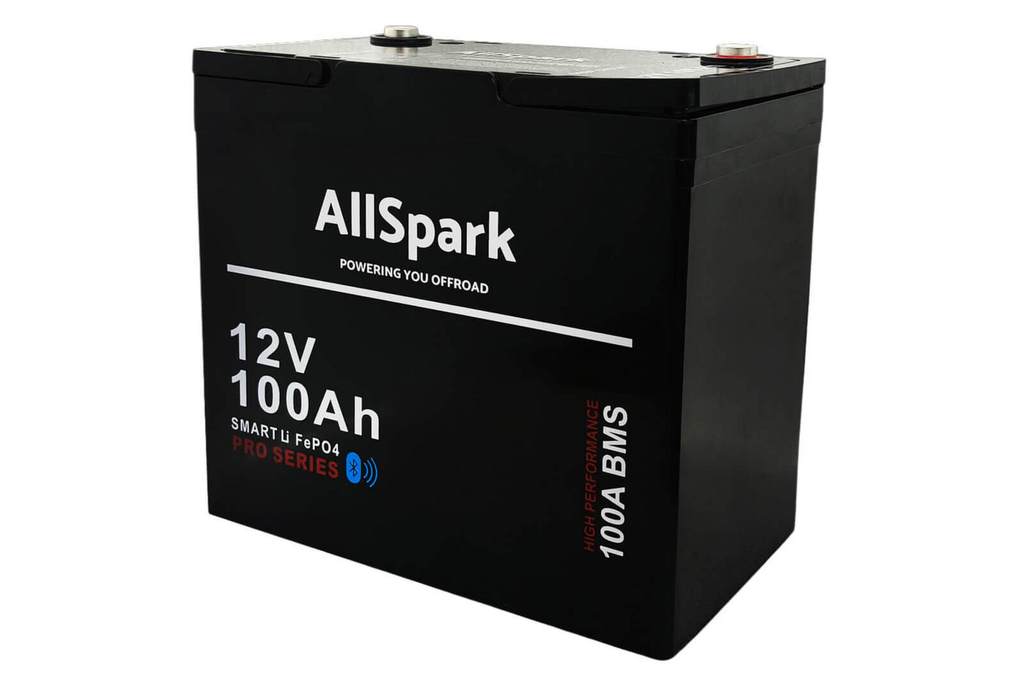

Name: 100ah Lithium Battery 12V AllSpark with Bluetooth IP65
Brand: AllSpark
SKU: AS-12100PRIMEBT
Price: 795.00 AUD
Availability: InStock

100ah Lithium Battery 12V AllSpark with Bluetooth IP65

$795.00

$795.00 $0.00

Frequently Bought Together:

Victron Blue Smart IP22 12/30A Single Output with bluetooth

$249.00

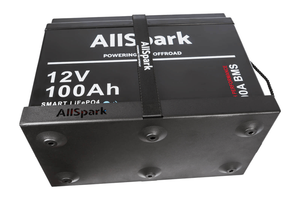

AllSpark Battery Tray - 100ah | Ultra Compact | ABS

$49.00

100ah Lithium Battery 12V AllSpark with Bluetooth IP65

SKU CODE: AS-12100PRIMEBT

In Stock

$795.00

$795.00 $0.00

ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES IN AUSTRALIA

The most compact ABS Case 100Ah Lithium battery on the market

Exclusive Solid state BMS
Highest quality premium A grade prismatic cells
Greater than 3200 cycles @ 80% DoD
Power a 1000W Inverter from a SINGLE BATTERY
Unlimited Parallel connection
7 Year Warranty

Description

THE ALLSPARK 100AH LITHIUM BATTERY IS BUILT FOR AUSSIE CONDITIONS

The 100Ah lithium battery 12V AllSpark with Bluetooth IP65 is built for serious off-grid touring in Australian conditions. If you’re chasing a dependable lithium battery 100Ah that can handle corrugations, heat and real camping loads without extra gear, this is it.

With a exclusive solid state BMS, BRAND NEW* premium A-grade prismatic cells and built-in Bluetooth monitoring, you get accurate data straight from the battery - no external shunts, no added cost. Rated for 3200+ cycles at 80% DoD and backed by a 7-year warranty, this 12V 100Ah lithium battery is designed to outlast and outperform standard setups.

Whether you’re running a fridge, lights or a 1000W inverter, this is a serious contender for the best 100Ah lithium battery Australia has to offer.

(* yes, it's true! Second hand cells are used in "new", cheap battery brands - this is why warranties are lower and inconsistency between batches can be significant)

Built-In Bluetooth Monitoring

No external monitor required. No extra cabling. No extra installation costs.

Direct BMS integration for accurate, real-time data - no waiting for "syncing"
Individual cell monitoring - active cell balancing to ensure longevity
Lifetime history tracking - not limited to ~30 days
Saves $200+ on an external monitor, cables, lugs & installation
Switch on & off in the App - without the need for an external Master Switch

Sized to Run Your Fridge Properly

Worried about keeping food cold off-grid? We recommend a minimum 100Ah lithium battery for up to a 75L dual zone fridge. This allows for two days running without solar (for those ineviitable cloudy days!), along with typical camping loads like LED lights and phone charging. Need to run a freezer too? Or a larger fridge? The AllSpark 100ah Lithium Battery allows for unlimited parallel connections.

Heat-Resistant Smart BMS Protection

Australian summers aren’t forgiving. Your battery shouldn’t be either.

Operates from -20°C to +60°C
High/low temp protection
Over/under voltage protection
Short circuit & reverse polarity protection
Automatic cell balancing

Built to protect itself when conditions push limits.

Built for the Australian Outback

Corrugations. Dust. Vibration. Long distances.

Vibration tested - every AllSpark battery undergoes multi-frequency prolonged vibration testing, designed to simulate the effects of driving thousands of kilometres of corrugated roads.
Laser welded construction - long lasting precision welding
IP65 dust & water resistant - suitable for use in external caravan and tool boxes

Designed specifically for harsh touring conditions.

Run a 1000W Inverter from One Battery

Need real usable power? Power a 1000W Pure Sine Wave Inverter from a single battery, perfect for charging laptops, drones, camperas and tools. Can't do without your coffee machine? Add in a second to run a 2000W Inverter, or a third to go up to a 3000W.

With unlimited parallel extension, you can add more power with confidence.

We put them to the test - Fully IEC 62619 Certified

With lithium battery caravan regulations in Australia tightening, certification claims matter more than ever. Many batteries are either uncertified, tested only at the component level, or labelled "compliant" - meaning they believe they meet the standard, but haven't actually proven it.

All AllSpark batteries are IEC 62619 certified as complete, assembled units — cells, BMS, and build quality included — independently verified.

Certified. Not just compliant.

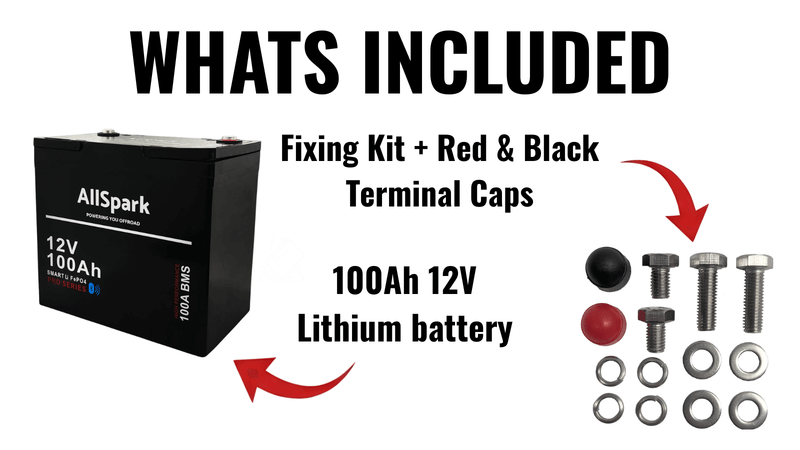

What's in the box:

12V 100Ah lithium battery
M8 bolts & washers fixing kit
Red/black terminal caps

Warranty

7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

Advanced cell technology with compact cells and casing
Exclusive Solid state Bluetooth BMS designed and developed by Offroad Living
Highest quality premium grade prismatic cells - resistance matched, long battery life and no voltage sag with a 20 year design life
Greater than 3200 cycles @ 80% DoD before reaching 85% of original capacity
Power a 1000W Inverter from a SINGLE BATTERY - for lower power devices including laptops, cameras, drones, cordless tool charging
Rapid charge - ability to charge in one hour
Unlimited Parallel connection or series to 24v max
Equivalent usable capacity to a 160ah AGM but weighs only 9.5kg
Designed to handle high vibration environments
7 Year Warranty

Specifications

SKU	AS-12100PRIMEBT	AS-20012LIABSBT	AS-30012LIABSBT
Battery Level Specifications
Capacity Amp Hours (C5)	100	200	300
Watt Hours	1,280	2,560	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	100	200	300
Recommended Charge Current (A)*	20–40	50–80	50–150
Charge Profile	CC/CV
Max Inverter Size (W — per single battery)	1,000	2,500	3,000
Max Continuous Discharge (A)	100	200	300
Peak Discharge — 10 secs (A)	200	500	600
Charge Cycles @ 80% DoD# (residual capacity ≥85%) @ 60% DoD @ 40% DoD	> 3,200+# > 4,200+ > 5,000+
Optimum Temperature During Charging (°C)	< 45
Operating Temperature Range (°C)	−20 to +60
Storage Temperature Range (°C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (L × W × H mm)	229 × 138 × 208 (+4mm for terminals)	340 × 190 × 247 (+5mm for terminals)	340 × 190 × 247 (+5mm for terminals)
Case Footprint Dimensions (L × W × H mm)	224 × 134 × 208	340 × 183 × 247
Case Material	ABS Plastic
Weight (kg)	9.5	21	26
IP Rating	IP65
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah	3.2V @ 200Ah	3.2V @ 300Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	N/A	220	330
Over Current Detection Delay (1) (secs)	N/A	10
Over Current Detection (2) (A)	200	500
Over Current Detection Delay (2) (secs)	10	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET Protection)	≤20mΩ

Notes* Recommended charge current is for best cell longevity. # Cycle life independently laboratory tested at 0.25C discharge and 0.25C charge rate, up to 5,000 cycles at 25°C controlled temperature. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3,200 cycles. In real-world conditions, users will experience a range of temperature, current and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

SKUAS-12100PRIMEBT

Battery Level Specifications
Capacity Amp Hours (C5)	100
Watt Hours	1,280
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	100
Recommended Charge Current (A)*	20–40
Charge Profile	CC/CV
Max Inverter Size (W)	1,000
Max Continuous Discharge (A)	100
Peak Discharge — 10 secs (A)	200
Charge Cycles @ 80% DoD#	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	−20 to +60
Storage Temp Range (°C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (mm)	229 × 138 × 208 (+4mm terminals)
Case Footprint (mm)	224 × 134 × 208
Case Material	ABS Plastic
Weight (kg)	9.5
IP Rating	IP65
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	N/A
Over Current Detection Delay (1) (secs)	N/A
Over Current Detection (2) (A)	200
Over Current Detection Delay (2) (secs)	10
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

SKUAS-20012LIABSBT

Battery Level Specifications
Capacity Amp Hours (C5)	200
Watt Hours	2,560
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	200
Recommended Charge Current (A)*	50–80
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 10 secs (A)	500
Charge Cycles @ 80% DoD#	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	−20 to +60
Storage Temp Range (°C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (mm)	340 × 190 × 247 (+5mm terminals)
Case Footprint (mm)	340 × 183 × 247
Case Material	ABS Plastic
Weight (kg)	21
IP Rating	—
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

SKUAS-30012LIABSBT

Battery Level Specifications
Capacity Amp Hours (C5)	300
Watt Hours	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	300
Recommended Charge Current (A)*	50–150
Charge Profile	CC/CV
Max Inverter Size (W)	3,000
Max Continuous Discharge (A)	300
Peak Discharge — 10 secs (A)	600
Charge Cycles @ 80% DoD#	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	−20 to +60
Storage Temp Range (°C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (mm)	340 × 190 × 247 (+5mm terminals)
Case Footprint (mm)	340 × 183 × 247
Case Material	ABS Plastic
Weight (kg)	—
IP Rating	—
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 300Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	330
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

FAQS

Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.

Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 0% (10.5V or less), it will enter Low voltage protection mode. This will disconnect all loads and the battery and terminal voltage will show as 0-3V. When in LV protection mode, the BMS disconnects power to the battery terminals. To release it you simply open the AllSpark Bluetooth App on your smart device, turn the discharge function back to ON and let your charger take over. Most other brands need a "jump start" or external charger input or parallel connection to wake it up. AllSpark Lithium batteries are much smarter and simpler to wake up for charging. Note: if you don't have a charge source ready, it will go back to sleep again after a short time to protect the cells until you are ready to re-charge.

Q: Does this battery comply with Australia/New Zealand Standards? Can I install them inside my caravan?

A: Yes and yes! Please see here for all the information you need to know about complying with the updated AS/NZS 3001.2:2022 standards.
