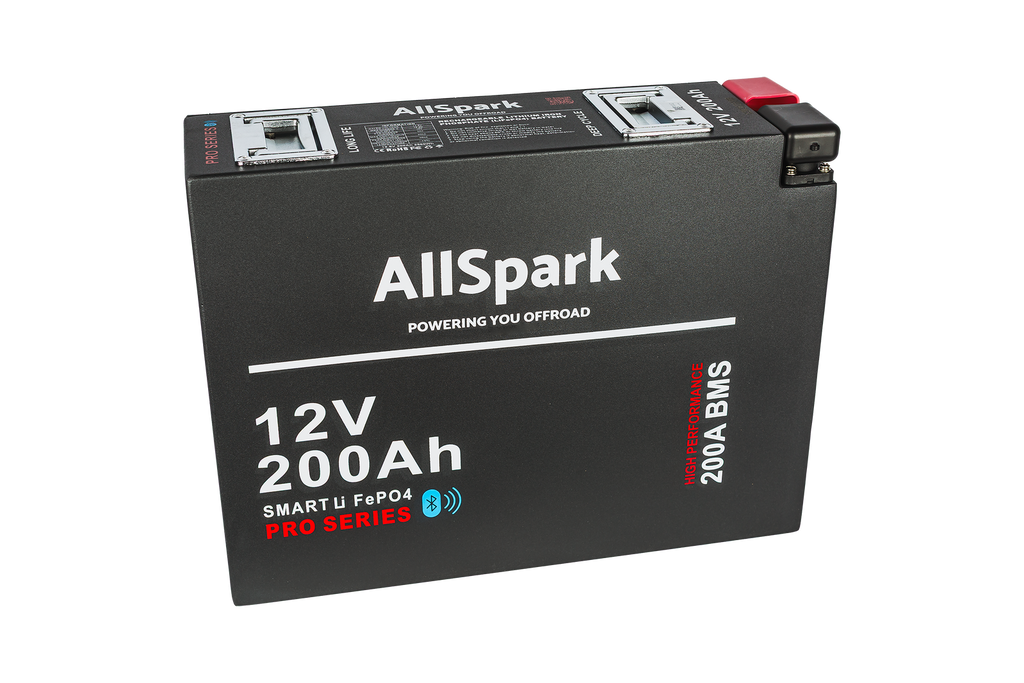

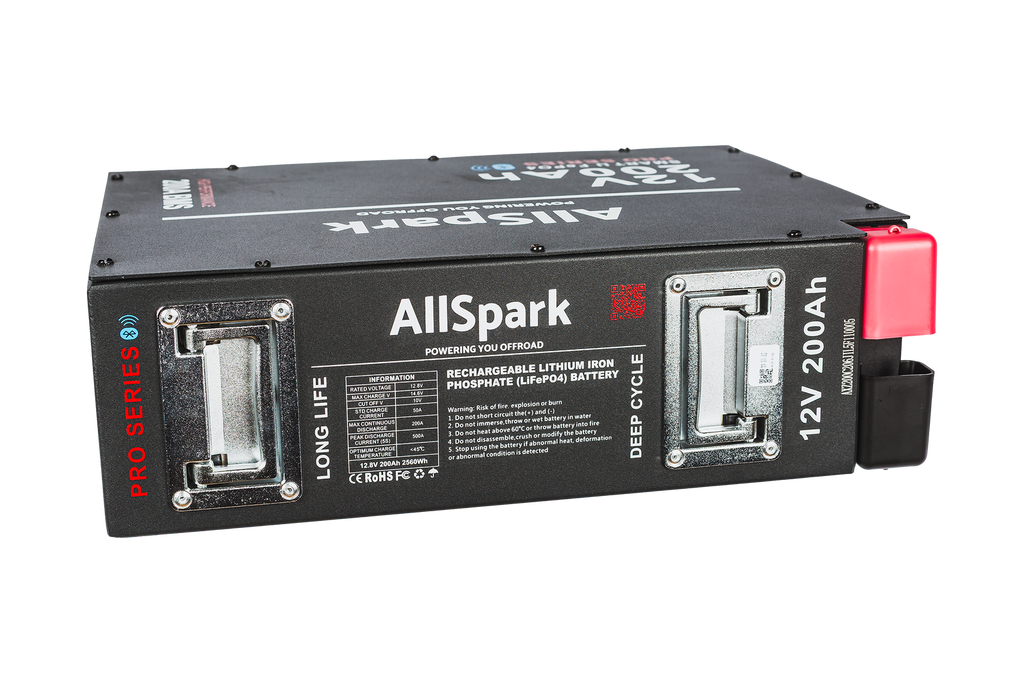

Name: 200Ah Slimline Lithium battery with Bluetooth 12V AllSpark
Brand: AllSpark
SKU: AS-12200SLIMBT
Price: 2299.00 AUD
Availability: InStock

200Ah Slimline Lithium battery with Bluetooth 12V AllSpark

$2,299.00

$2,299.00 $0.00

Frequently Bought Together:

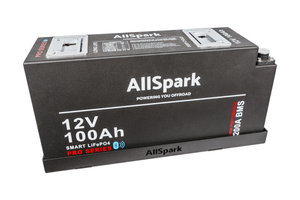

AllSpark Battery Tray - Suits Slimline 100ah 150ah & 200ah sizes

$59.00

200Ah Slimline Lithium battery with Bluetooth 12V AllSpark

SKU CODE: AS-12200SLIMBT

In Stock

$2,299.00

$2,299.00 $0.00

REVOLUTIONIZE YOUR POWER MANAGEMENT WITH BLUETOOTH TECHNOLOGY

New 2025 cell technology with compact cells and casing
Bluetooth Integration
High Current Output - 200A
Advanced BMS
Slimline Aluminum Case
Prismatic Cells
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Description

SERIOUS POWER, SERIOUS CONTROL, SERIOUS ADVENTURES

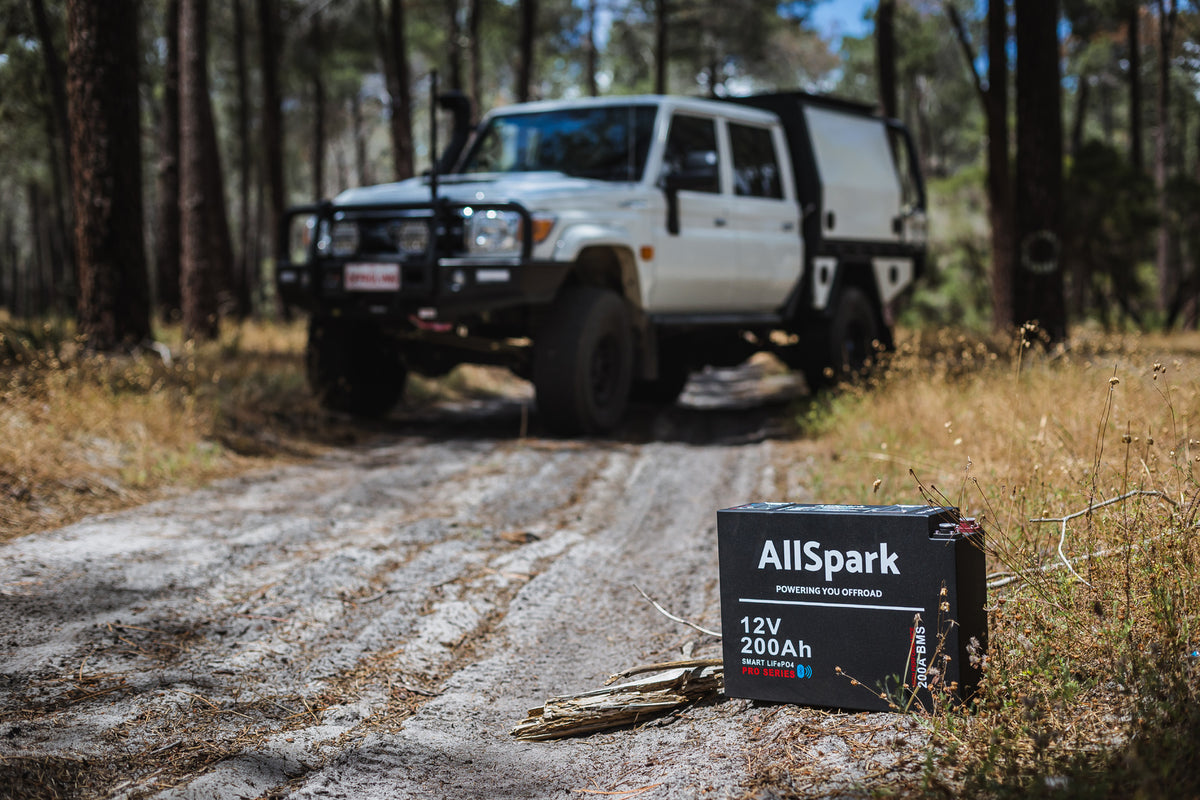

The AllSpark 12V 200Ah slimline lithium battery is built for adventurers who stay out longer - extended trips, serious free camping and week-plus getaways where running out of power isn't an option.

Built with brand-new A-Grade prismatic cells (not recycled or second-hand cells often found in cheaper batteries), a 200A continuous discharge and Bluetooth monitoring included as standard.it fits the tight spaces standard batteries can't — without compromising on the capacity that longer trips demand.

IEC 62619 certified. 7-year warranty. Designed and developed in Australia by Offroad Living.

Bluetooth monitoring included - saves $200+

When you're a week into a free camping trip, knowing exactly how much power you have left isn't a nice-to-have, it's essential.

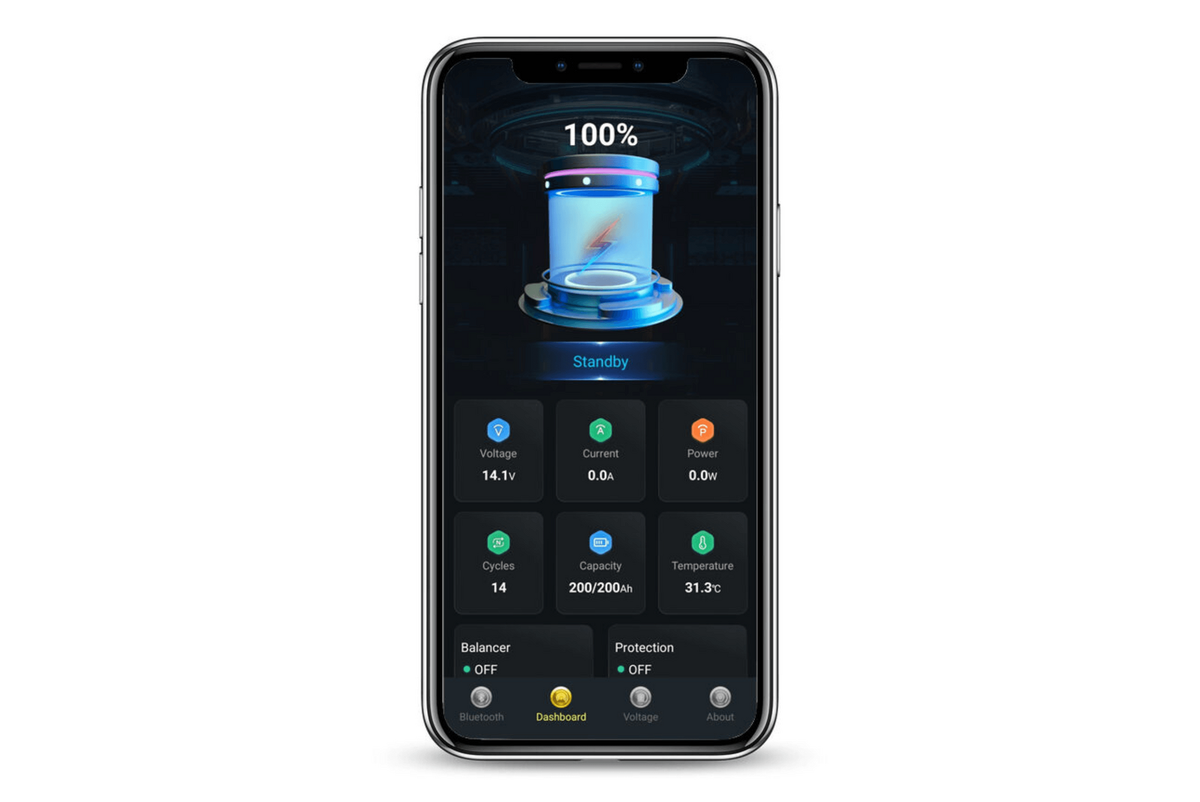

The AllSpark 200Ah Slimline Lithium Battery has Bluetooth built in, with direct BMS integration giving you accurate state of charge, individual cell voltages, current in/out, cycle count and full history (not just 30 days), right on your phone.

No shunt to wire. No extra gear to buy. No guessing.

Protected from -20°C to +60°C - automatically

Extended trips mean more exposure to whatever conditions Australia throws at you.

The AllSpark's built-in exclusive BMS provides:

high and low temperature protection
active cell balancing
reverse polairty protection
slimline powder-coated aluminium case
IEC 62619 Certified

Working in the background so you don't have to think about it. Five protection systems, all automatic, all included as standard in your 200Ah slimline lithium battery.

Built for our harsh Aussie red dirt roads

Corrugated outback roads - they're the one's you loathe but also the ones your stories are built around - they shake loose connections, crack cases and kill batteries that aren't built for it.

The AllSpark 200Ah slimline lithium battery is engineered to handle our outback Aussie roads. Using multi-pass laser welded cell interconnects, with more than 1" of weld per busbar, then vibration tested to ensure nothing works loose on the rough stuff.

Built to go where you go, for as long as you go.

One Battery To Run Them All

A slimline lithium battery 200Ah should do more than keep the fridge cold. The AllSpark 200Ah Slimline Lithium Battery can run a full 2500W inverter:

Power kettles, toasters, induction cooktops
No need for dual batteries for short bursts
Premium prismatic cells built for load spikes

All your favourite household appliances can be confidently run from a single battery - running your caravan air conditioner? With the highest quality lithium cells, you can safely join an unliited number of 200Ah Slimline LIthium Batteries in parallel for the ultimate battery bank.

Is 200ah enough for what I want to run?

At Offroad Living, we recommend having two days of capacity in your batteries without relying on solar or DCDC input, because cloudy days and non-driving days happen.

With the AllSpark 200Ah Slimline Lithium Battery you can confidently run a couple of fridges (making it perfect for a long trip with frozen meals in one and plenty of room for bevvy's in the other). along with your favourite household appliances - coffee machine, air fryer, induction cooktop etc, plus your usual charging of phones/tablets and running some LED lights at night.

Unlike a budget slimline lithium battery, AllSpark's 200Ah is genuine - meaning you're not running out of power faster than expected - and if you need more capacity, add to your batterty bank by joining multiple together in parallel.

We put them to the test - Fully IEC 62619 Certified

With lithium battery caravan regulations in Australia tightening, certification claims matter more than ever. Many batteries are either uncertified, tested only at the component level, or labelled "compliant" - meaning they believe they meet the standard, but haven't actually proven it.

All AllSpark batteries are IEC 62619 certified as complete, assembled units — cells, BMS, and build quality included — independently verified.

Certified. Not just compliant.

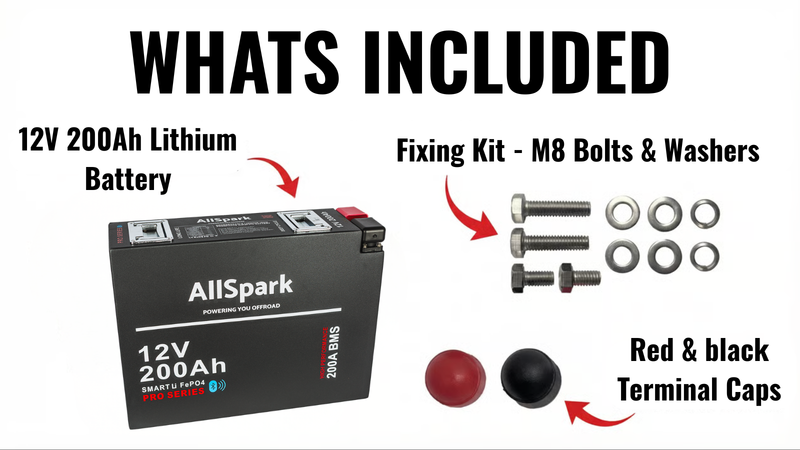

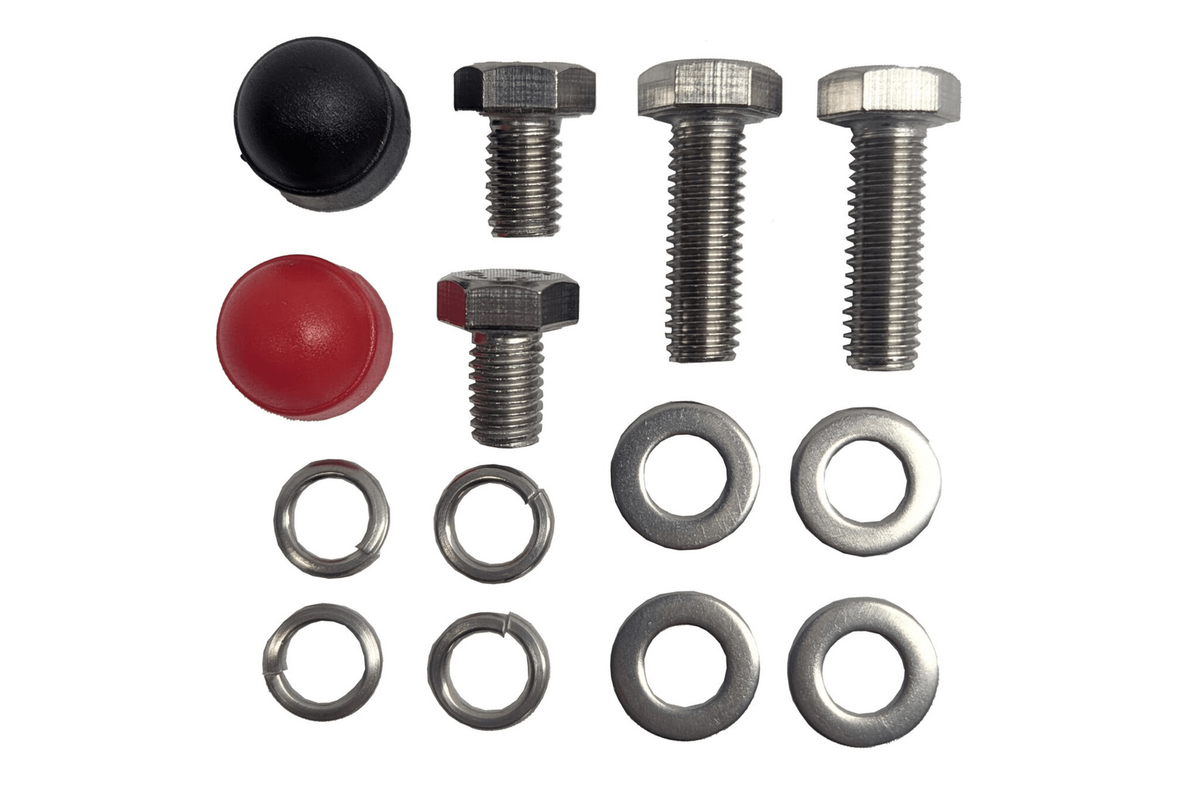

What's in the box:

200Ah Slimline Lithium Battery
M8 bolts & washers fixing kit
Red & black terminal caps

Warranty

7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

Advanced cell technology with compact cells and casing
Bluetooth Integration: Connect to a smart device to monitor performance, track usage data, and receive alerts.
High Current Output: Provides 200 Amps continuous and 500 Amps peak for high-demand applications.
Advanced BMS: Offers comprehensive protections ensuring unmatched reliability and long lifespan.
Slimline Aluminium Case: Features a durable, easy-to-install design suitable for rugged conditions.
Prismatic Cells: Guarantees superior performance and longevity.
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Specifications

SKU	AS-10012LTUSBT	AS-12100SLIMBT	AS-12150SLIMBT	AS-12200SLIMBT	AS-30012LISLBT	AS-30012LIUSLBT
Battery Level Specifications
Capacity Amp Hours (C5)	100		150	200	300
Watt Hours	1,280		1,920	2,560	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	100		150	200	300
Recommended Charge Current (A)*	30–50			50	100
Charge Profile	CC/CV
Max Inverter Size (W — per single battery)	2,500				3,000
Max Continuous Discharge (A)	200				300
Peak Discharge — 5 secs (A)	500				600
Charge Cycles¹ (residual capacity ≥85%) @ 80% Depth of Discharge @ 60% Depth of Discharge @ 40% Depth of Discharge	> 3,200+¹ > 4,200+ > 5,000+
Optimum Charge Temperature (°C)	< 45
Operating Temperature Range (°C)	-20 to +60
Storage Temperature Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	635 x 60 x 260	400 x 120 x 200	400 x 120 x 250	400 x 120 x 300	400 x 160 x 300	767 x 112 x 260
Case Material	Ultraslim Aluminium	Slimline Aluminium				Ultraslim Aluminium
Weight (kg)	13	12	18	21	31	31
IP Rating	NOT WATERPROOF — INTERNAL USE ONLY
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Cell Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET Protection)	≤20mΩ

Notes* Recommended charge current for best cell longevity. ¹ Cycle life independently laboratory tested at 0.2C₅ discharge rate and 0.2C charge rate up to 5,000 cycles at a controlled temperature of 25°C. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3,000 cycles. In real-world conditions, users will experience a range of temperature, current and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

SKUAS-10012LTUSBT

Battery Level Specifications
Capacity Amp Hours (C5)	100
Watt Hours	1,280
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	100
Recommended Charge Current (A)*	30–50
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 5 secs (A)	500
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	635 x 60 x 260
Case Material	Ultraslim Aluminium
Weight (kg)	13
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-12100SLIMBT

Battery Level Specifications
Capacity Amp Hours (C5)	100
Watt Hours	1,280
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	100
Recommended Charge Current (A)*	30–50
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 5 secs (A)	500
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	400 x 120 x 200
Case Material	Slimline Aluminium
Weight (kg)	12
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-12150SLIMBT

Battery Level Specifications
Capacity Amp Hours (C5)	150
Watt Hours	1,920
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	150
Recommended Charge Current (A)*	30–50
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 5 secs (A)	500
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	400 x 120 x 250
Case Material	Slimline Aluminium
Weight (kg)	18
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-12200SLIMBT

Battery Level Specifications
Capacity Amp Hours (C5)	200
Watt Hours	2,560
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	200
Recommended Charge Current (A)*	50
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 5 secs (A)	500
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	400 x 120 x 300
Case Material	Slimline Aluminium
Weight (kg)	21
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-30012LISLBT

Battery Level Specifications
Capacity Amp Hours (C5)	300
Watt Hours	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	300
Recommended Charge Current (A)*	100
Charge Profile	CC/CV
Max Inverter Size (W)	3,000
Max Continuous Discharge (A)	300
Peak Discharge — 5 secs (A)	600
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	400 x 160 x 300
Case Material	Slimline Aluminium
Weight (kg)	31
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-30012LIUSLBT

Battery Level Specifications
Capacity Amp Hours (C5)	300
Watt Hours	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	300
Recommended Charge Current (A)*	100
Charge Profile	CC/CV
Max Inverter Size (W)	3,000
Max Continuous Discharge (A)	300
Peak Discharge — 5 secs (A)	600
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	767 x 112 x 260
Case Material	Ultraslim Aluminium
Weight (kg)	31
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

Downloads

Android App on Google Play Store

Apple App on Apple App Store

IEC 62619 Certification

FAQS

Q: I have received my battery, how do I turn it on and connect the Bluetooth?

A: Download the AllSpark App (see the Downloads section in your battery's listing, or enter "AllSpark" into the Google Play Store or the Apple App Store), then ensure your "location services" and bluetooth is turned on. You will see your battery appear in the list under "Bluetooth" - click on here, this will take you to the Dashboard screen. Scroll to the bottom and turn the Charge Switch and Discharge Switch on as required.

Q: Can I install my AllSpark Slimline Battery on it's side?

A: es, you can install all slimlines batteries on their side.

Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.

Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 0% (10.5V or less), it will enter Low voltage protection mode. This will disconnect all loads and the battery and terminal voltage will show as 0-3V. When in LV protection mode, the BMS disconnects power to the battery terminals. To release it you simply open the AllSpark Bluetooth App on your smart device, turn the discharge function back to ON and let your charger take over. Most other brands need a "jump start" or external charger input or parallel connection to wake it up. AllSpark Lithium batteries are much smarter and simpler to wake up for charging. Note: if you don't have a charge source ready, it will go back to sleep again after a short time to protect the cells until you are ready to re-charge.

Q: Is this battery certifed for use in Caravans?

A: Yes - AllSpark batteries are not only compliant, but are actually "Tested" and "Certified" for compliance with IEC 62616 standards (see downloads for certificate). Many sellers of LiFePO4 batteries in Australia claim to be "compliant" with the IEC 62616 standards, but have never actually had them tested or hold any certification for this compliance. Self claiming compliance with a standard without 3rd party certification is not only misleading, but is fraudulant advertising practises.
