300Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

300Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

$3,469.00
Sale price  $3,469.00 Regular price  $0.00
Skip to product information
300Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

300Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

SKU CODE: AS-30012LICMBT
$3,469.00
Sale price  $3,469.00 Regular price  $0.00

ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES IN AUSTRALIA

  • Advanced cell technology with compact cells and casing
  • Bluetooth Integration
  • Water proof chassis mount case IP67
  • Exclusive Solid state BMS
  • Highest quality premium A grade prismatic cells
  • Greater than 3000 cycles @ 80% DoD
  • Power a 3000W Inverter from a SINGLE BATTERY
  • IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
  • 7 Year Warranty

Description

BUILT FOR THE GIBB RIVER ROAD AND EVERYTHING IN BETWEEN - THIS IS AN IP67 BATTERY THAT MEANS BUSINESS



If you're searching for a genuinely IP67 battery for your caravan or motorhome build, the AllSpark 300Ah 12V chassis mount is built to a different standard. IP67 rated and tested, powder-coated stainless steel construction, and IEC 62619 certified as a complete battery - not just the cells inside.



This caravan underbody battery box mounts directly to the chassis rail, sitting above the frame's lowest point so your ground clearance stays intact on corrugated tracks and creek crossings. Designed and developed in Australia by Offroad Living, it includes full Bluetooth monitoring at no extra cost, giving you real-time data on every cell in the pack.



With a huge 300Ah of capacity, it's the serious off-grid solution for extended touring, multiple appliances, and weeks away from a power point.



300Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

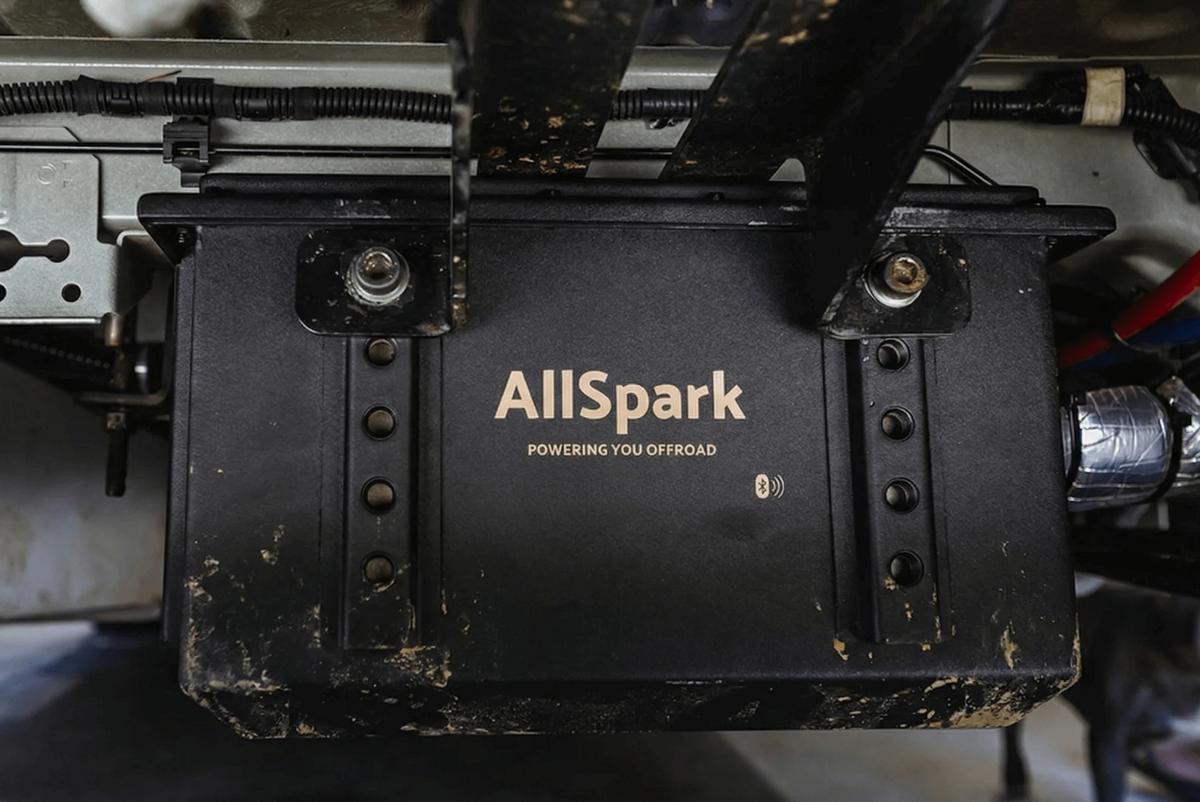

Keeps Your Ground Clearance - By Design

A caravan underbody battery box that hangs below the chassis rail is a liability on any serious track. The AllSpark 300Ah has in built mounting points, allowing for it to be installed securely above the frames lowest point, so your clearance stays identical to before installation.

No compromises for the tracks that actually matter.

300Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

The Whole Battery Is Certified - Not Just the Bits Inside

Lithium batteries can bring with them worries about fires and insurance compliance, and whilst the caravan fires you often see in the news aren't LiFEPO4 chemistry, it can still have you wondering how safe your whole system is.

AllSpark batteries are tested and certified as complete assembled units - build workmanship & BMS included - meeting the requirements to achieve full IEC 62619 certification.

If piece of mind is what you're after - we've put our batteries through their paces in every way possible.

300Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

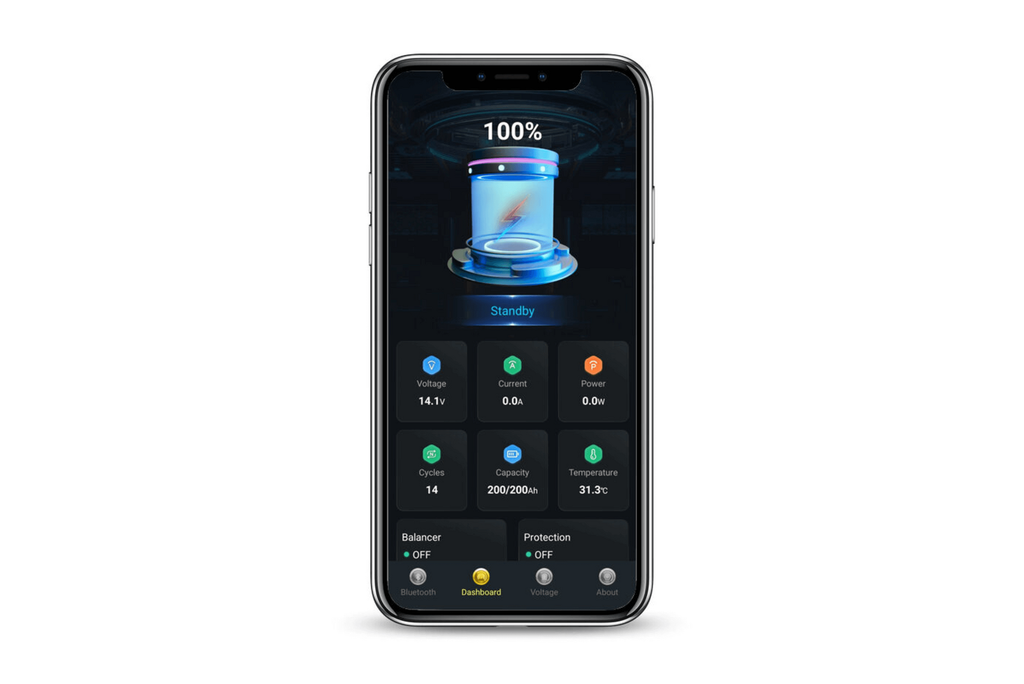

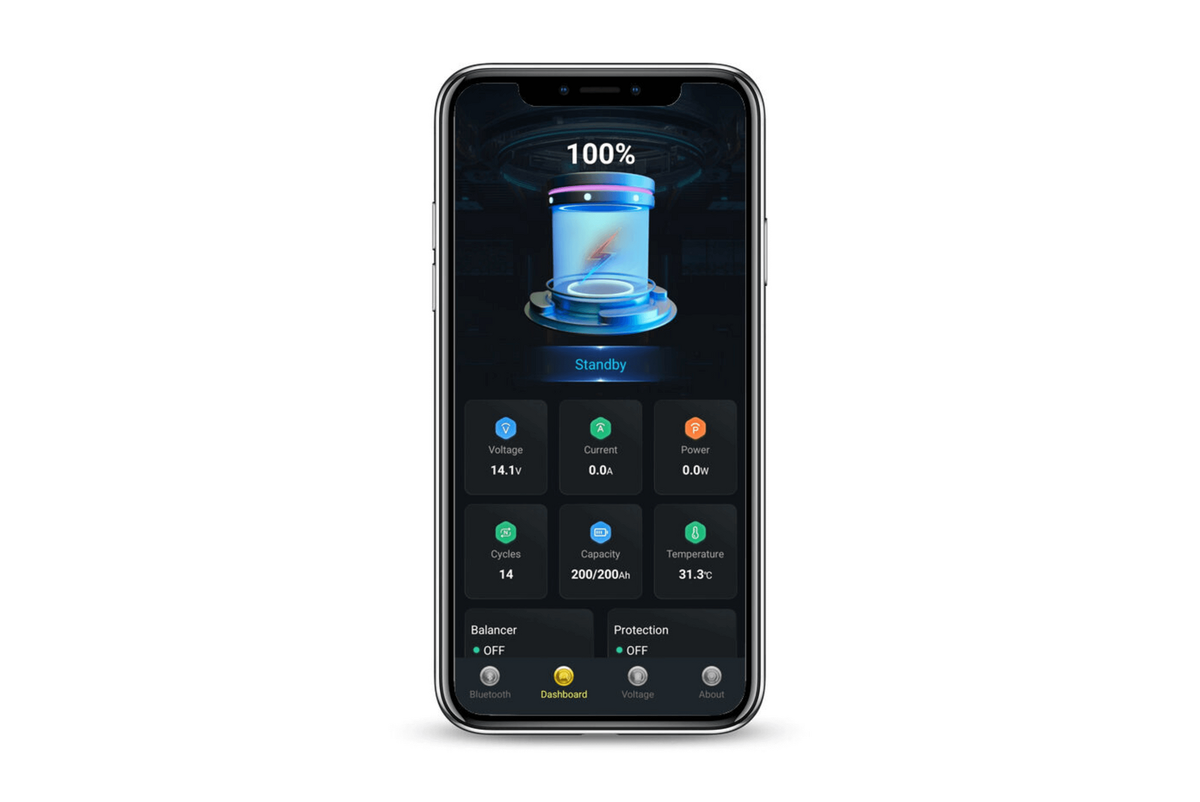

Full Battery Monitoring Built In - Zero Extra Cost

External battery monitors typically cost $200 or more, need wiring, and still only give you partial data. Then there's the cost of a battery box, a decent one setting you back another $100+. Add to both these the installation costs and you're up for a hefty bill on top of the price of the battery.

The AllSpark Bluetooth app reads directly from the BMS - delivering individual cell voltages, full charge history, state of charge, and cycle count. It also has an inbuilt on/off switch, removing the need for a master switch, and allowing you to "wake up" your battery (should you discharge it too low).

Data that external monitors simply can't match, from a system that's already included in the price.

300Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

BMS Protection Built for the Australian Outback

The AllSpark BMS is engineered for the extremes of Australian touring - from cold alpine mornings to outback afternoons.

The AllSpark BMS provides automatic protection across temperature extremes (-20°C to +60°C), voltage, current, short circuit, and reverse polarity. Laser-welded busbars and IP67 sealing mean the internals stay protected no matter what the track throws at it.

300Ah Lithium Battery 12V Bluetooth Waterproof Chassis Mount AllSpark ( IP67)

One Battery. 3000W Inverter. Real Appliances.

Kettle, toaster, induction cooktop, caravan aircon - the AllSpark 300Ah 12V delivers the peak current needed to run a 3000W inverter from a single battery. A-Grade prismatic cells with 300A continuous and 600A peak ratings mean high-draw appliances don't cause voltage sag or sudden shutdowns.

Power when you need it most.

WHATS IN THE BOX

  • 1 x AllSpark Bluetooth 300ah powder coated stainless steel cased LiFePO4 battery with vent
  • M8 terminal bolts (2 length bolts) + nut covers

Warranty

7 Year replacement warranty

Features

  • Advanced cell technology with compact cells and casing
  • Bluetooth Integration: Connect to a smart device to monitor performance, track usage data, and receive alerts.
  • Water proof IP67 chassis mount case
  • Powder coated stainless steel construction
  • Exclusive Solid state BMS designed and developed by Offroad Living
  • Highest quality premium grade prismatic cells resistance matched, long battery life and no voltage sag with a 20 year design life
  • Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
  • Power a 3000W Inverter from a SINGLE BATTERY for high power devices including coffee machines, air conditioners, toasters and kettles
  • Rapid charge
  • Designed to handle high vibration, dusty and wet environments
  • IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
  • 7 Year Warranty

Specifications

SKUAS-20012LICMBTAS-30012LICMBTAS-40012LICMBTAS-20024LICMBTAS-10048BATLI200500CM
Battery Level Specifications
Capacity Amp Hours (C5)200300400200100
Watt Hours256038405120
Rated Voltage (V)12.825.651.2
Max Charge Voltage (V)14.629.258.4
Recommended Float Voltage (V)13.627.254.4
Low Voltage Cutoff (V)102040
Rapid Charge Current (1C) for 30 mins (A)200300400200100
Recommended Charge Current (A)*50–8050–12080–15050–8030–50
Charge ProfileCC/CV
Max Inverter Size (W — per single battery)2500300050005000
Max Continuous Discharge (A)200300200200
Peak Discharge — 10 secs (A)500600500500
Charge Cycles
@ 80% DoD# (≥85% residual capacity)
@ 60% DoD
@ 40% DoD
> 3200+#
> 4200+
> 5000+
Optimum Charge Temperature (˚C)< 45
Operating Temperature Range (˚C)−20 to +60
Storage Temperature Range (˚C)−40 to +125
Max Series VoltageParallel connection only — series not permitted
Max Batteries in ParallelUp to 6 (specialised fusing, cabling and busbar design needed when more than 3 are in parallel)
Dimensions incl. Mounts (mm)350 × 300 × 200400 × 300 × 200550 × 300 × 200
Case MaterialPowder coated stainless steel — with threaded vent pipe fitting and cap
Terminals2 × M8 Bolted Terminals (1 × Red Positive, 1 × Black Negative)
Weight (kg)2536.551.3
IP RatingIP67
Cell Level Specification
Cell TypePrismatic
Cell Connection4S1P4S2P8S1P16S1P
Cell Capacity3.2V @ 200Ah3.2V @ 300Ah3.2V @ 200Ah3.2V @ 100Ah
Cell CasingNickel plated steel
Cell Balancing Target (V)3.65 ±0.025
Cell Balance Current (mA)35 ±5
Cell Over Discharge LV Protection (V)2.5 ±0.025
Over Discharge ReleaseApply charge 10.5V+ & 1A+Apply charge 10.5V+ & 1A+Apply charge 10.5V+ & 1A+Apply charge 21V+ & 1A+Apply charge 42V+ & 1A+
Over Charge Cutoff (V)3.75 ±0.0253.65 ±0.0253.75 ±0.0253.65 ±0.025
Over Charge Detection Delay (secs)1–1.6
Over Charge Release (V)3.6 ±0.0625
Over Charge Release MethodAuto below release voltage
Over Current Detection (1) (A)220330220
Over Current Detection Delay (1) (secs)10
Over Current Detection (2) (A)500600500
Over Current Detection Delay (2) (secs)5
Over Current ReleaseRemove load — auto release
Short Circuit ProtectionExternal short
Short Circuit Detection Delay (µS)200–400
Short Circuit RecoveryRemove load — auto release
Internal Resistance (MOSFET Protection)≤20mΩ
Notes* Recommended charge current is for best cell longevity. # Cycle life independently laboratory tested at 0.25C discharge and 0.25C charge rate to 5000 cycles at 25°C controlled temperature. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3000 cycles. In real-world conditions, users will experience a range of temperature, current, and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.
SKUAS-30012LICMBT
Battery Level Specifications
Capacity (C5) 300Ah
Watt Hours 3840Wh
Rated Voltage 12.8V
Max Charge Voltage 14.6V
Recommended Float 13.6V
Low Voltage Cutoff 10V
Rapid Charge (1C/30min) 100A
Recommended Charge* 50–120A
Charge Profile CC/CV
Max Inverter Size 3000W
Max Continuous Discharge 300A
Peak Discharge (10s) 600A
Cycles @ 80% DoD# > 3200+
Cycles @ 60% DoD > 4200+
Cycles @ 40% DoD > 5000+
Optimum Charge Temp < 45˚C
Operating Temp Range −20 to +60˚C
Storage Temp Range −40 to +125˚C
Max Series Voltage Parallel only
Max Batteries in Parallel 4
Dimensions incl. Handles 400 × 300 × 200mm
Case Material Powder coated stainless steel
Terminals 2 × M8 Bolted
Weight 36.5kg
IP Rating IP67
Cell Level Specification
Cell Type Prismatic
Cell Connection 4S1P
Cell Capacity 3.2V @ 300Ah
Cell Casing Nickel plated steel
Cell Balancing Target 3.65 ±0.025V
Cell Balance Current 35 ±5mA
OD LV Protection 2.5 ±0.025V
Over Discharge Release Apply 10.5V+ & 1A+
Over Charge Cutoff 3.75 ±0.025V
OC Detection Delay 1–1.6s
Over Charge Release 3.6 ±0.0625V
OC Release Method Auto below release voltage
Over Current Det. (1) 330A
OCD Delay (1) 10s
Over Current Det. (2) 600A
OCD Delay (2) 5s
Over Current Release Remove load — auto
Short Circuit Protection External short
SC Detection Delay 200–400µS
SC Recovery Remove load — auto
Internal Resistance ≤20mΩ
Notes* Recommended charge current is for best cell longevity. # Cycle life independently laboratory tested at 0.25C discharge and 0.25C charge rate to 5000 cycles at 25°C controlled temperature. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3000 cycles. In real-world conditions, users will experience a range of temperature, current, and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

Downloads

FAQS

Q: I have received my battery, how do I turn it on and connect the Bluetooth?

A: Download the AllSpark App (see the Downloads section in your battery's listing, or enter "AllSpark" into the Google Play Store or the Apple App Store), then ensure your "location services" and bluetooth is turned on. You will see your battery appear in the list under "Bluetooth" - click on here, this will take you to the Dashboard screen. Scroll to the bottom and turn the Charge Switch and Discharge Switch on as required.



Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.



Q: What is Current In/Out Net Value?

A: The Net Value is all the charge sources minus all the loads



Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 0% (10.5V or less), it will enter Low voltage protection mode. This will disconnect all loads and the battery and terminal voltage will show as 0-3V. When in LV protection mode, the BMS disconnects power to the battery terminals. To release it you simply open the AllSpark Bluetooth App on your smart device, turn the discharge function back to ON and let your charger take over. Most other brands need a "jump start" or external charger input or parallel connection to wake it up. AllSpark Lithium batteries are much smarter and simpler to wake up for charging. Note: if you don't have a charge source ready, it will go back to sleep again after a short time to protect the cells until you are ready to re-charge.



Q: Can I link another 300ah to give me 600ah? Or more?

A: Yes - these batteries can be connected in parallel, terminal to terminal, using the positive and negative M8 terminals. Up to 6 batteries can be connected in parallel. If you are connecting more than 3 in parallel, specialised fusing, cabling and busbar design must be applied. Please contact us for advice. The batteries should be within a few months of each other in age to ensure optimal performance and longevity.



Q: Is this battery certifed for use in Caravans?

A: Yes - AllSpark batteries are not only compliant, but are actually "Tested" and "Certified" for compliance with IEC 62616 standards (see downloads for certificate). Many sellers of LiFePO4 batteries in Australia claim to be "compliant" with the IEC 62616 standards, but have never actually had them tested or hold any certification for this compliance. Self claiming compliance with a standard without 3rd party certification is not only misleading, but is fraudulant advertising practises.
