Description
UPGRADE YOUR POWER GAME AND EMBARK ON WORRY-FREE ADVENTURES WITH THIS ULTIMATE CARAVAN BUNDLE
Everything you need for a reliable, efficient, and convenient power supply in one package price:
- 2 X AllSpark 200Ah Bluetooth SlimlineLithium Battery with a whopping 200A constant output and an impressive 500A peak output
- 3 x AllSpark 200w Silar panel with mounting brackets
- Redarc BCDC1250 DC-DC Charger

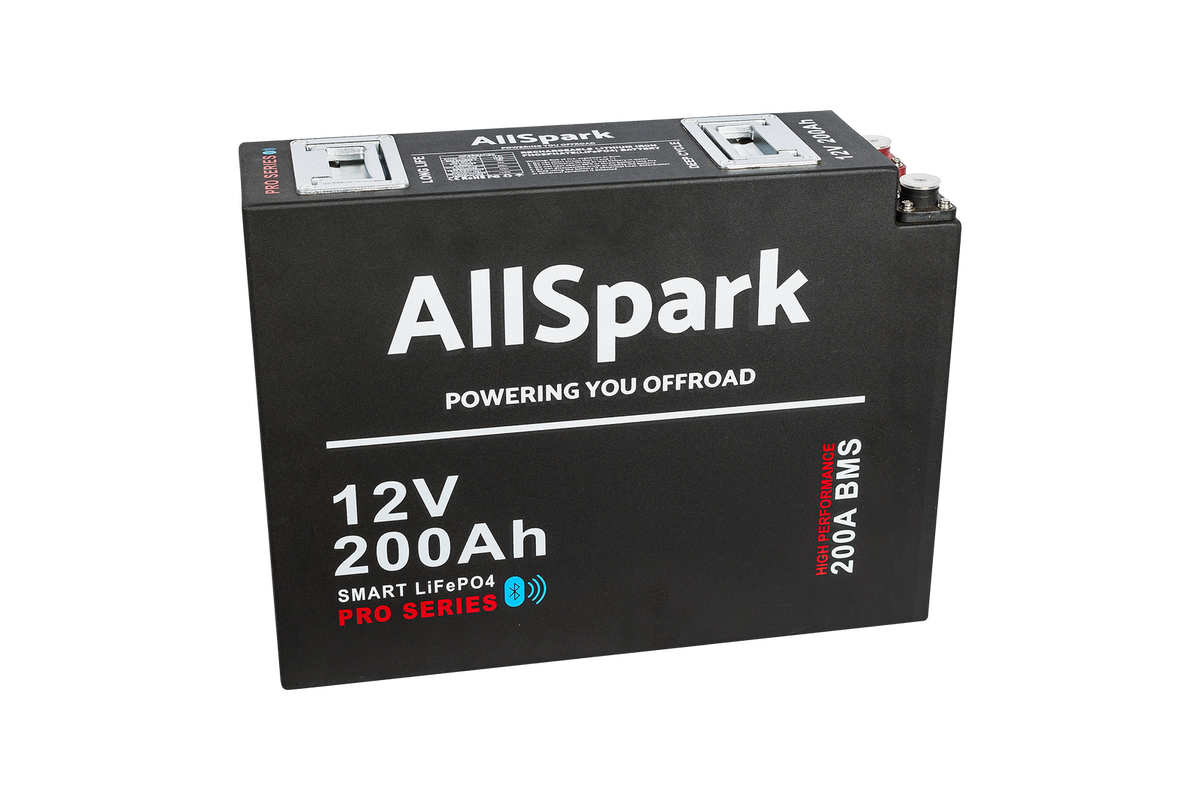

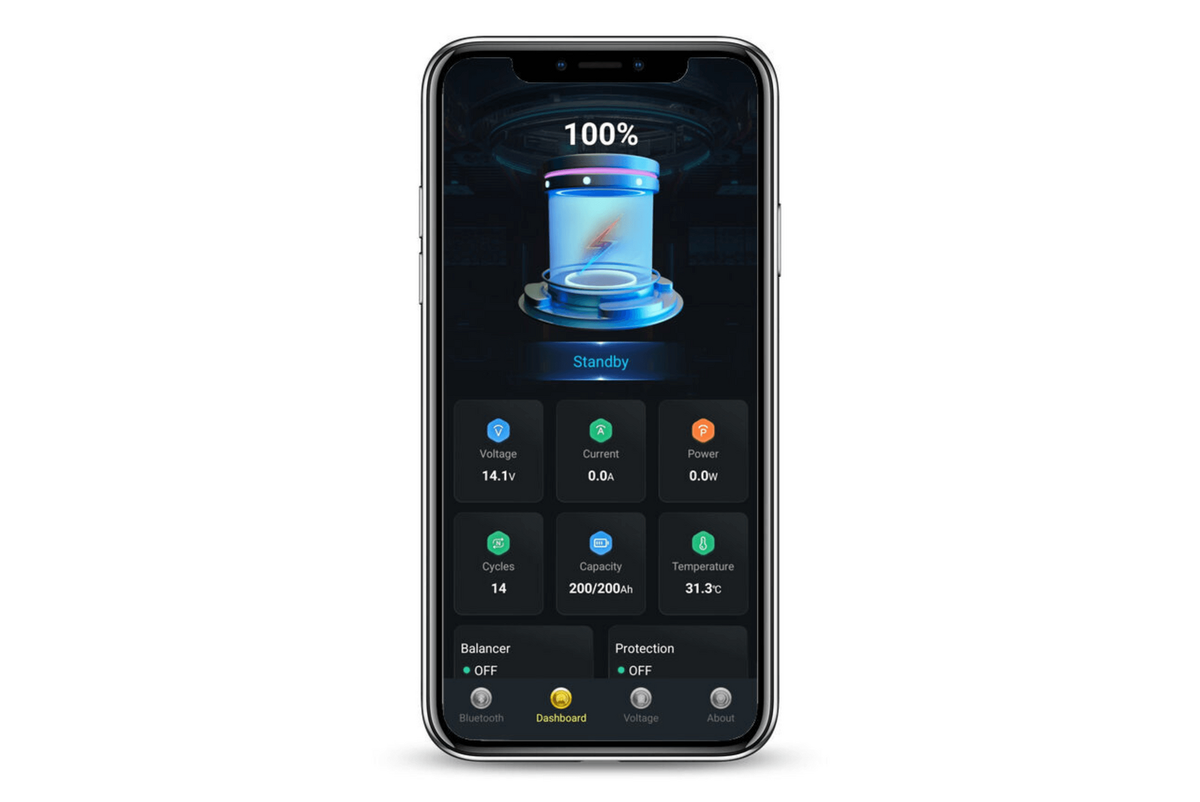

2 x AllSpark 200Ah Bluetooth Slimline Lithium Battery: Unleash the power of lithium with the Allspark 200Ah Lithium Battery. This high-performance battery offers a constant output of 200A and a peak output of 500A, ensuring you have the energy you need when you need it. Built-in bluetooth technology allows for seamless monitoring of your power system without the need for an additional battery monitor. Lightweight, compact, and with a longer lifespan than traditional batteries, the Allspark Lithium Battery is your ticket to a reliable and efficient power source. Now with a 7 YEAR WARRANTY.
Check out the AllSpark 200ah Bluetooth Slimline Lithium Battery here

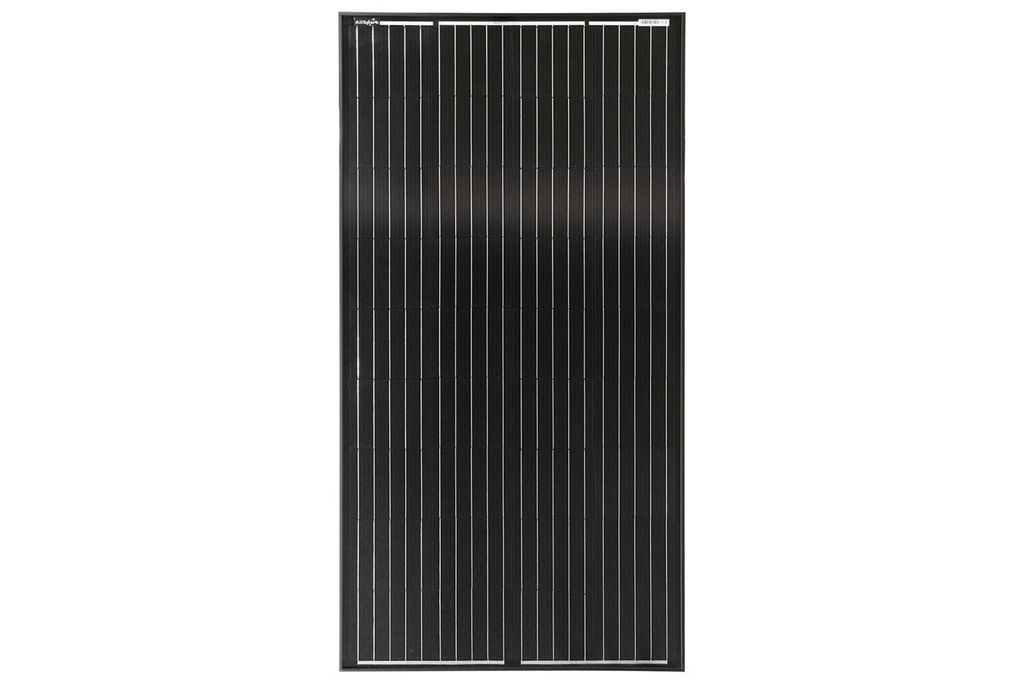

3 x AllSpark 200W Glass Solar Panel: The Allspark Glass Solar Panel range are a high quality, efficient and durable option for those in need of solar power with their impressive features and 10 YEAR MANUFACTURERS WARRANTY, they will provide reliable and long-asting solar power for years to come.
Check out the AllSpark 200W Glass Solar Panel here

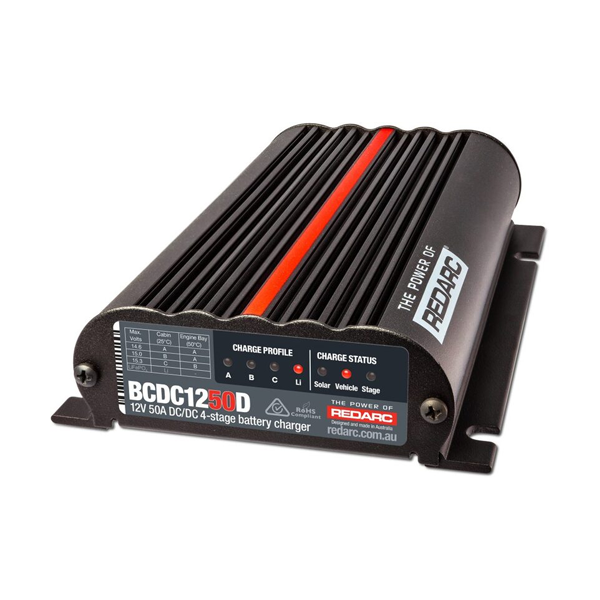

Redarc BCDC1250D DC-DC Charger: Charge your batteries efficiently and intelligently with the Redarc BCDC DC-DC Charger. This cutting-edge charger ensures a reliable power supply by optimizing the charging process, extending battery life, and adapting to various battery types. With advanced features like multi-stage charging and a maximum output of 50 amps, this charger is a powerhouse for your energy needs. The built in 600W Mppt takes care of all your Solar needs with Green priority.
Check Out the Redarc BCDC1250D here

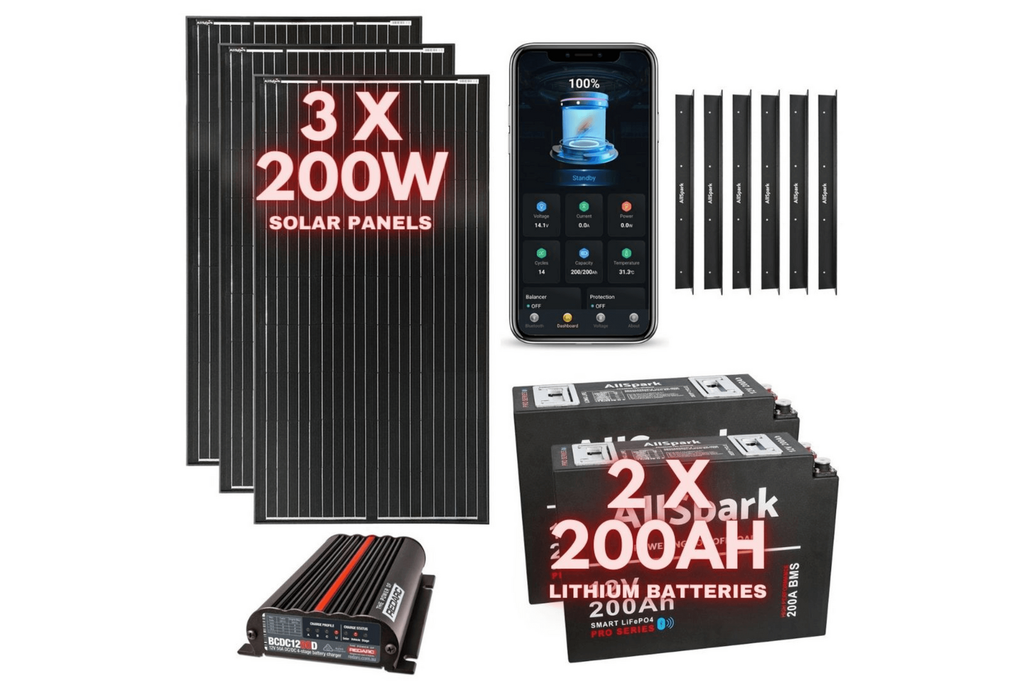

WHATS IN THE BOX
- 2 x AllSpark 200Ah Slim case Lithium Battery
- 3 x AllSpark 200W Glass Solar Panel

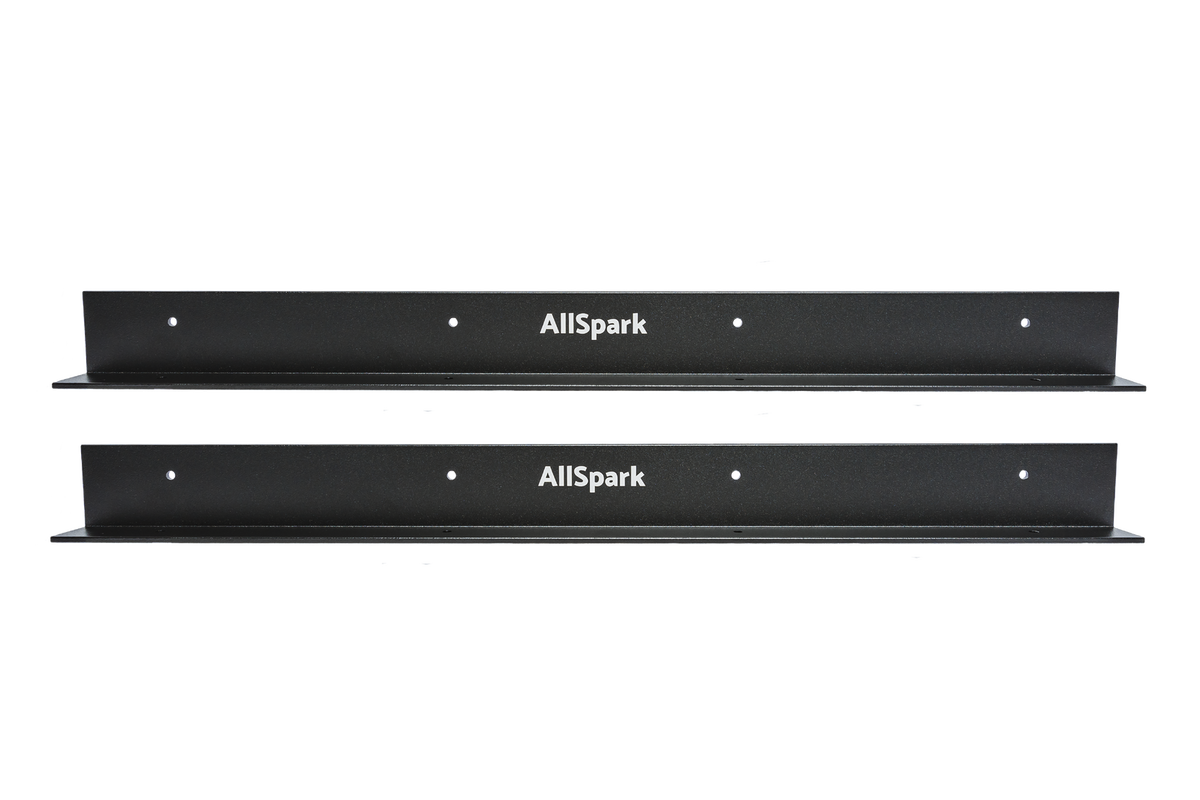

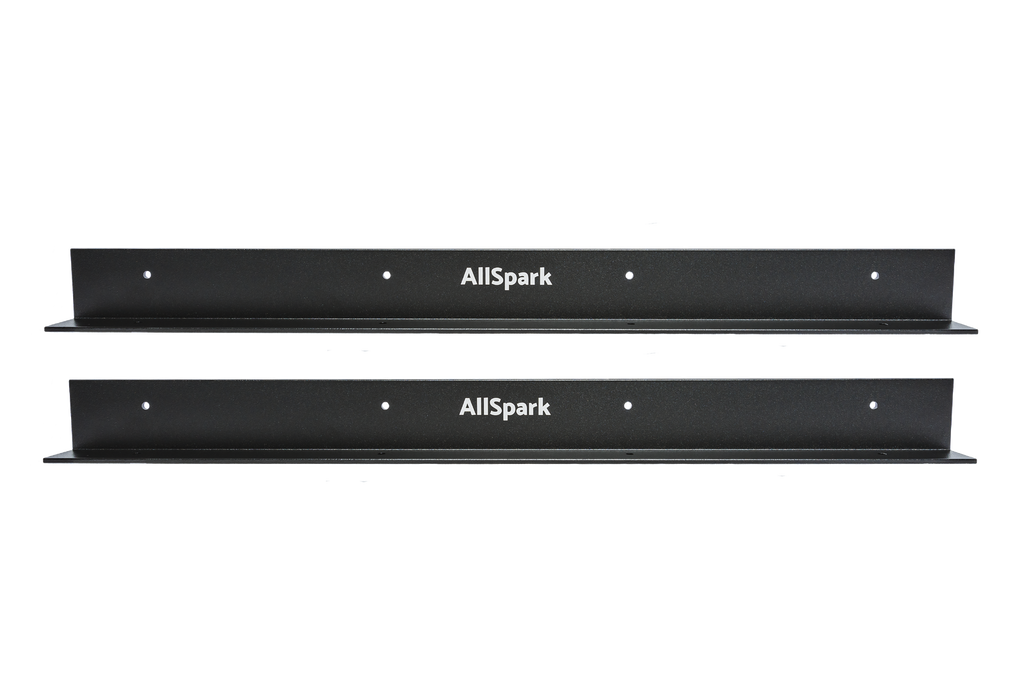

- 6 x AllSpark Mounting Brackets
- 1 x Redarc BCDC1250 DC-DC Charger
Warranty
Features
Specifications
PRODUCT SPECIFICATIONS - GLASS SOLAR PANELS
| SKU | AS-200SPGLG2 |
| Maximum power (Pmax) | 200W |
| Open-circuit voltage (Voc) | 24.0V |
| Voltage at Pmax (Vmp) | 20.5V |
| Short-circuit current (Isc) | 10.24A |
| Current at Pmax (Imp) | 9.76A |
| Cells Efficiency (%) | 22.4% |
| The maximum system voltage | 1000V DC(IEC) |
| Power temperature coefficient | -0.38%/oC |
| Voltage temperature coefficient | -0.36%/oC |
| Current temperature coefficient | 0.07%/oC |
| Output power tolerance | ±3% |
| Operating Temperature | -40oC~85oC |
| DImensions (LxWxH mm) | 1500 x 680 x 35 |
| Weight (kg) | 10.94 |
| Output cable | 2 x diodes + 900mm/4mm2 cable + MC4 compatible |
| Approvals | IP65 |
| Certifications | CE, ROHS, FCC, TUV, UL |
| Warranty | 10 Yrs (Service Life 25 Years) |
PRODUCT SPECIFICATIONS - SLIMLINE ALUMINIUM CASE BATTERIES
| SKU | AS-12200SLIMBT |
| Battery Level Specifications | |
| Capacity Amp Hours (C5) | 200 |
| Watt Hours | 2,560 |
| Rated Voltage (V) | 12.8 |
| Max Charge Voltage (V) | 14.6 |
| Recommended Float Voltage (V) | 13.6 |
| Low Voltage Cutoff (V) | 10 |
| Rapid Charge Current (1C) for 30 mins | 200 |
| Recommeded Charge Current (A)* | 50 |
| Charge Profile | CC/CV |
| Max Inverter Size (Watts - per single battery) | 2500 |
| Max Continuous Discharge (A) | 200 |
| Peak Discharge - 5 secs (A) | 500 |
| Charge Cycles @ 80% Depth of Discharge #(with residual capacity of 85%) @ 60% Depth of Discharge @ 40% Depth of Discharge | > 3200+# > 4200+ > 5000+ |
| Optimum Temperature During Charging (˚C) | < 45 |
| Operating Temperature Range (˚C) | -20 to +60 |
| Storage Temperature Range (˚C) | -40 to +125 |
| Max Series Voltage (V) | 24 |
| Max Batteries in Parallel | Unlimited |
| Dimensions (inc Handles mm) | 400 x 120 x 300 |
| Case Material | Slimline Aluminium |
| Weight (kg) | 21 |
| IP Rating | SLIMLINE CASES ARE NOT WATERPROOF - FOR INTERNAL USE ONLY |
| Cell Level Specification | |
| Cell Type | Prismatic |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 200ah |
| Cell Casing | Nickel Plated steel |
| Cell Balancing target | 3.65 +/- 0.025 |
| Cell Balance Current (mA) | 35 +/- 5 |
| Cell Over Discharge LV protection (V) | 2.5 +/- 0.025V |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 +/- 0.025 |
| Over Charge Detection Delay (Secs) | 1-1.6 |
| Over Charge Release (V) | 3.6 +/- 0.0625V |
| Over Charge Release | Auto below Release Voltage |
| Over Current Detection (1) (A) | 220 |
| Over Curent Detection Delay (1) (Secs) | 10 |
| Over Current Detection (2) (A) | 500 |
| Over Curent Detection Delay (2) (Secs) | 5 |
| Over Current Release | Remove Load - Auto release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (uS) | 200-400 |
| Short Circuit Recovery | Remove Load - Auto release |
| Internal Resistance (MOSFET PROTECTION) | ≤20mΩ |
* For best cell longevity
*** AllSpark Slimline Alumimium Case Batteries are not fully sealed or waterproof and are for internal use only ***
Special Notes about AllSpark LiFePO4 batteries Cycle Life:
Independantly Laboratory tested with 0.2C5 Discharge rate and 0.2C Charge rate up to 5000 cycles at a controlled temperature of 25°C. Electronic logs record during testing show a residual capacity in excess of 85% of name plate C5 capacity after 3000 cycles. In real world conditions, the user will experience a range of temperature, current and voltage conditions which may effect the actual performance of the battery over its life. Lower depths of discharge % and high continuous charge and discharge rates will reduce overall cycle life. It is feasible to reach end of battery life within the warranty period should the battery be exposed to daily extremes of high current and or high temperature every cycle. Think of this type of scenerio like driving your car at 5,000rpm in first gear everywhere you drive. It can do it, but it is not good for longevity and ultimate performance and will wear out pre-maturely.
PRODUCT SPECIFICATIONS - REDARC DCDC CHARGERS
| SKU | BCDC1250D |
| Battery Chemistry | Standard Lead Acid, Calcium, Gel, AGM or LiFePO4 |
| Continuous Rating | 50A |
| Power Type - AC DC | DC to DC |
| No Load Current | <100mA |
| Solar Input Voltage | 9 - 32V |
| Solar Switch on Voltage | 9V |
| Standby Current | <8mA |
| Operating Temperature | -15oC to 80oC |
| Weight | 1kg |
| Dimensions (L x W X Dmm) | 165 x 120 x 37 |
| Warranty | 2 Years |
| Connector Type | Bare wire |
| Input Voltage | 9 - 32V |
| Output Voltage | 12V DC |
| Max. Charging Voltage | 15.3V |
| Max. Rated Output Current | 50A |
| Nominal Output Power | 750W |
| Input Fuse Rating (not supplied) | 60A |
| Output Fuse Rating (not supplied) | 60A |
PRODUCT SPECIFICATIONS - REDARC SMART BATTERY MONITOR
| SKU | R-BSEN500 |
| Battery Chemistry | AGM, Gel, Lithium, Standard Lead Acid, Calcium |
| Max. Continuous Current Rating | 500A |
| Maximum Battery Capacity | 1250Ah |
| Operating Temperature | -20oC to 60oC |
| Weight (kg) | 0.35 |
| Dimensions (LxWxH mm) | 120 x 52 x 45 |
| Operating Voltage | 9-32VDC |
| Warranty | 2 Years |
