Offroad Living Lithium 4wd Package
Offroad Living Lithium 4wd Package
Description
AN ALL-IN-ONE POWER SOLUTION FEATURING THE ALLSPARK 100AH SLIMLINE LITHIUM BATTERY

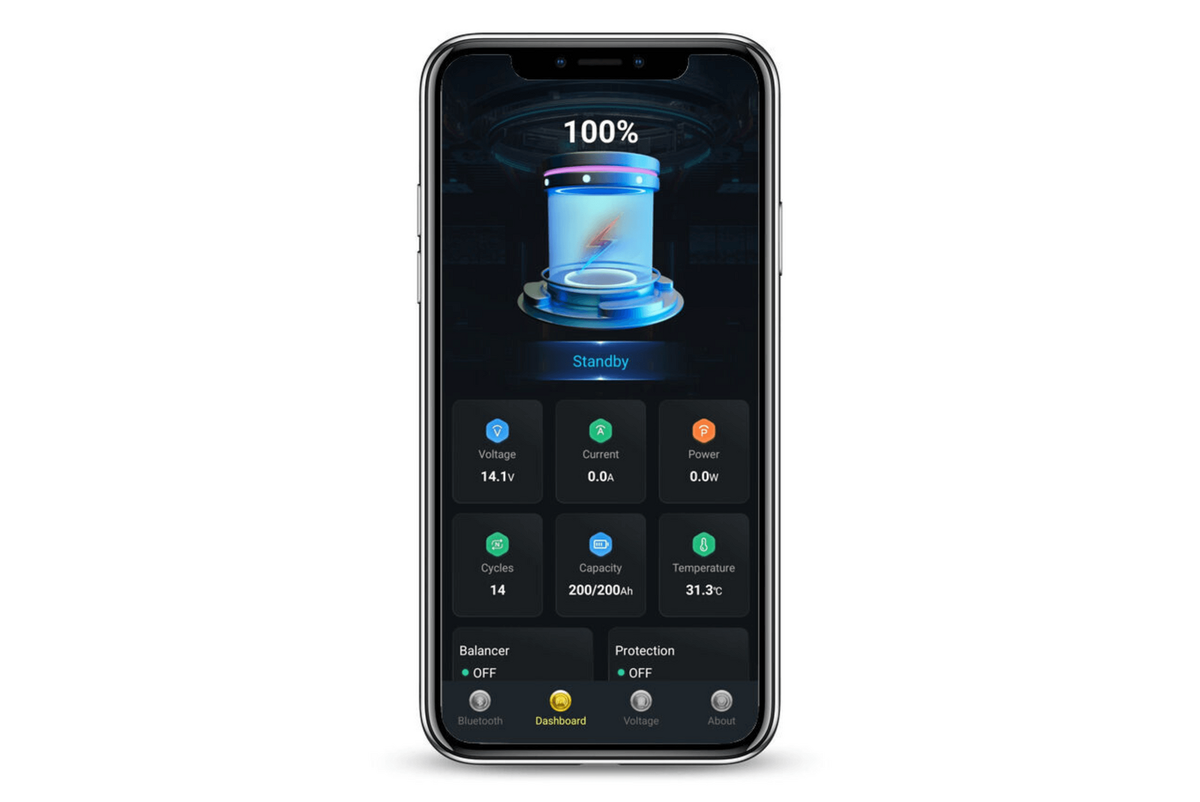

Introducing the Offroad Living Lithium 4WD Package: AllSpark 100ah Slimline Lithium Battery with Bluetooth, battery tray with straps, a Redarc BCDCN1225 DC-DC Charger and two AllSpark 40A Circuit Breakers.

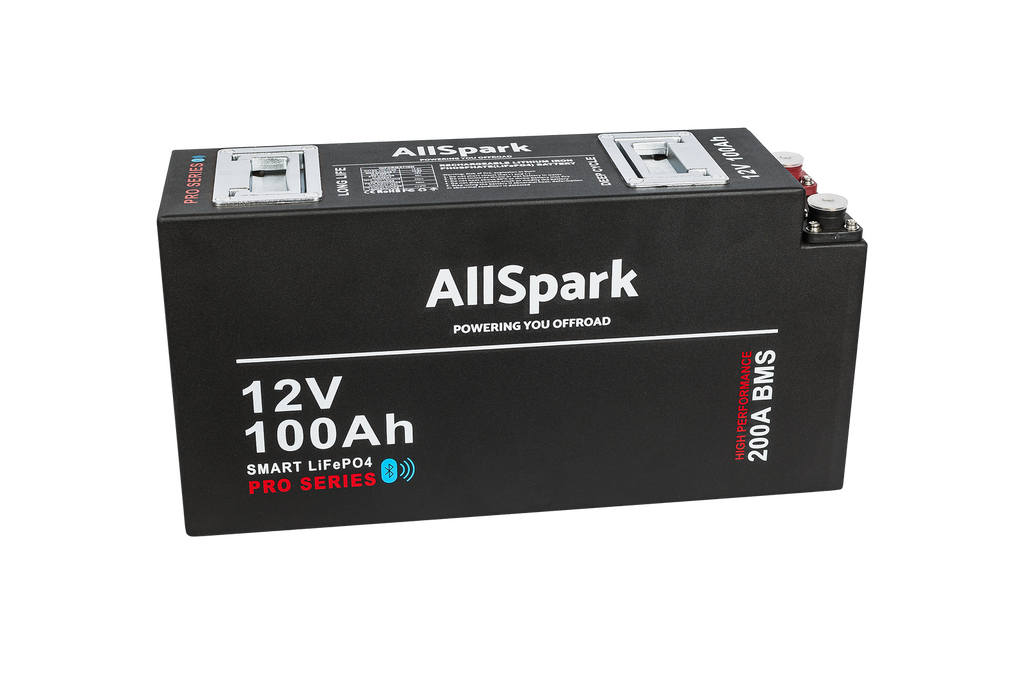

Allspark 100Ah Slimline Lithium Battery:
This high-performance battery offers a constant output of 200A and a peak output of 500A, ensuring you have the power you need when you need it. Lightweight, compact, and with a longer lifespan than traditional batteries, the Allspark Lithium Battery is your ticket to a reliable and efficient power source.

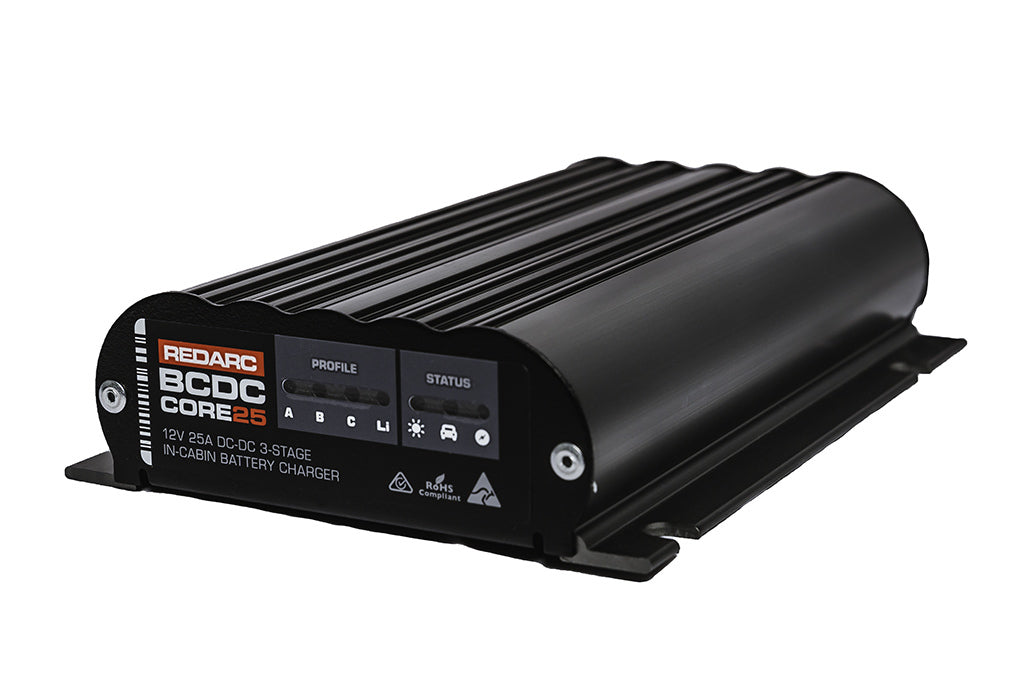

Redarc BCDCN1225 DC-DC Charger: Charge your batteries efficiently and intelligently with the Redarc BCDCN1225 DC-DC Charger.
This cutting-edge charger ensures a reliable power supply by optimizing the charging process, extending battery life, and adapting to various battery types. With advanced features like multi-stage charging and a maximum output of 25 amps, this charger is a powerhouse for your energy needs.
AllSpark 40A Surface Mount Cicruit Breakers: This package includes two AllSpark resettable Surface Mount Circuit Breakers, which are required for the installation of the RedArc Core 1225 DCDC Charger.
Battery Tray and Straps: This package includes a free battery tray and straps, making installation a breeze. Securely mount your Allspark Lithium Battery with the included accessories, ensuring a safe and tidy setup for your power system.
Upgrade your power game with the Offroad Living Lithium 4wd Packagel - Redarc Core 1225 DCDC Charger, Allspark 100Ah SLimline Lithium Battery, battery tray and straps. It's time to take your energy independence to the next level and embark on your adventures with confidence.

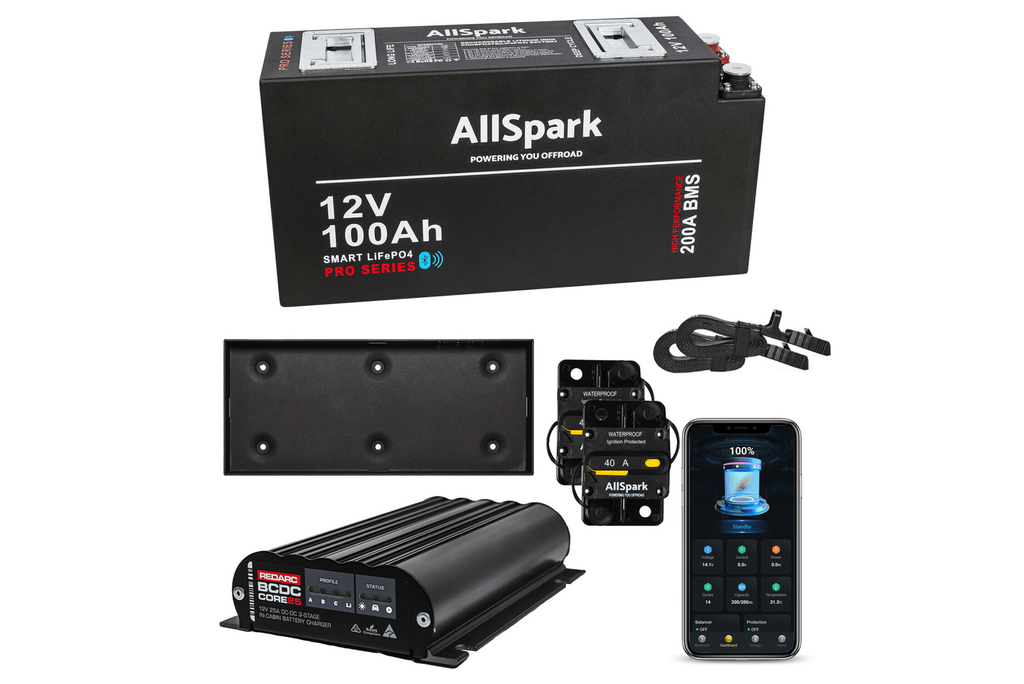

WHATS IN THE BOX
- 1 x AllSpark 100ah Slimline Lithium Battery
- 1 x RedArc BCDCN1225 Core DCDC Battery Charger
- 1 x AllSpark Battery Tray
- 2 x AllSpark 1.2m Cam Buckle Strap
- 2 x AllSpark 40A Surface Mount Circuit Breakers
Warranty
Features
Specifications
PRODUCT SPECIFICATIONS - SLIMLINE ALUMINIUM CASE BATTERIES
| SKU | AS-12100SLIMBT |
| Battery Level Specifications | |
| Capacity Amp Hours (C5) | 100 |
| Watt Hours | 1,280 |
| Rated Voltage (V) | 12.8 |
| Max Charge Voltage (V) | 14.6 |
| Recommended Float Voltage (V) | 13.6 |
| Low Voltage Cutoff (V) | 10 |
| Rapid Charge Current (1C) for 30 mins | 100 |
| Recommeded Charge Current (A)* | 30-50 |
| Charge Profile | CC/CV |
| Max Inverter Size (Watts - per single battery) | 2500 |
| Max Continuous Discharge (A) | 200 |
| Peak Discharge - 5 secs (A) | 500 |
|
Charge Cycles @ 80% Depth of Discharge #(with remaining residual capacity of 85%) @ 60% Depth of Discharge @ 40% Depth of Discharge |
> 3200+# > 4200+ > 5000+ |
| Optimum Temperature During Charging (˚C) | < 45 |
| Operating Temperature Range (˚C) | -20 to +60 |
| Storage Temperature Range (˚C) | -40 to +125 |
| Max Series Voltage (V) | 24 |
| Max Batteries in Parallel | Unlimited |
| Dimensions (inc Handles mm) | 400 x 120 x 200 |
| Case Material | Slimline Aluminium |
| Weight (kg) | 12 |
| IP Rating | SLIMLINE CASES ARE NOT WATERPROOF - FOR INTERNAL USE ONLY |
| Cell Level Specification | |
| Cell Type | Prismatic |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 100ah |
| Cell Casing | Nickel Plated steel |
| Cell Balancing target | 3.65 +/- 0.025 |
| Cell Balance Current (mA) | 35 +/- 5 |
| Cell Over Discharge LV protection (V) | 2.5 +/- 0.025V |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 +/- 0.025 |
| Over Charge Detection Delay (Secs) | 1-1.6 |
| Over Charge Release (V) | 3.6 +/- 0.0625V |
| Over Charge Release | Auto below Release Voltage |
| Over Current Detection (1) (A) | 220 |
| Over Curent Detection Delay (1) (Secs) | 10 |
| Over Current Detection (2) (A) | 500 |
| Over Curent Detection Delay (2) (Secs) | 5 |
| Over Current Release | Remove Load - Auto release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (uS) | 200-400 |
| Short Circuit Recovery | Remove Load - Auto release |
| Internal Resistance (MOSFET PROTECTION) | ≤20mΩ |
* For best cell longevity
*** AllSpark Slimline Alumimium Case Batteries are not fully sealed or waterproof and are for internal use only ***
PRODUCT SPECIFICATIONS - REDARC BCDC CORE
| SKU | BCDCN1225 |
| Solar Input Voltage | 9 - 32VDC |
| Maximum Charging Voltage: | 15.3V |
| Output System Voltage: | 12VDC |
| Continuous Rating | 25A |
| Input Fuse Rating: | 40A |
| Output Fuse Rating | 40A |
| Standby Current | <0.8mA |
| No Load Current | <100mA |
| Weatherproof rating | No |
| Output Current Rating (Cont) | 25A |
| Output Power: | 375w |
| Dimensions (LxWxH mm) | 165 x 120 x 37 |
| Weight (kg): | .9 |
| Warranty: | 2 years |
Special Notes about AllSpark LiFePO4 batteries Cycle Life:
Independantly Laboratory tested with 0.2C5 Discharge rate and 0.2C Charge rate up to 5000 cycles at a controlled temperature of 25°C. Electronic logs record during testing show a residual capacity in excess of 85% of name plate C5 capacity after 3000 cycles. In real world conditions, the user will experience a range of temperature, current and voltage conditions which may effect the actual performance of the battery over its life. Lower depths of discharge % and high continuous charge and discharge rates will reduce overall cycle life. It is feasible to reach end of battery life within the warranty period should the battery be exposed to daily extremes of high current and or high temperature every cycle. Think of this type of scenerio like driving your car at 5,000rpm in first gear everywhere you drive. It can do it, but it is not good for longevity and ultimate performance and will wear out pre-maturely.
