The Tourer Pack
SKU CODE: AS-BUNDLE25
In Stock
$3,138.00
Sale price
$3,138.00
Regular price
Description
FOR PEOPLE FOR WHOM THE JOURNEY IS OFTEN MORE IMPORTANT THAN THE DESTINATION
You're not the type to set up camp and stay put for a week. You move. A new track every day or two, a different horizon every morning, the map open on the dash and something good in the fridge for when you get there.
The problem with that lifestyle is that most off-grid power setups are built around staying in one spot with a big solar panel doing the heavy lifting. That doesn't suit you - and this bundle does.

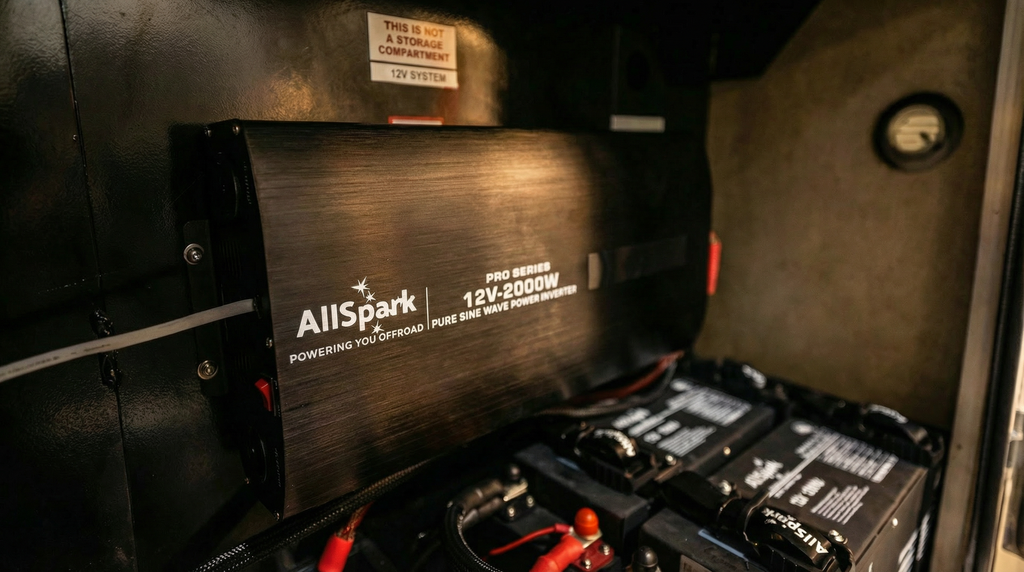

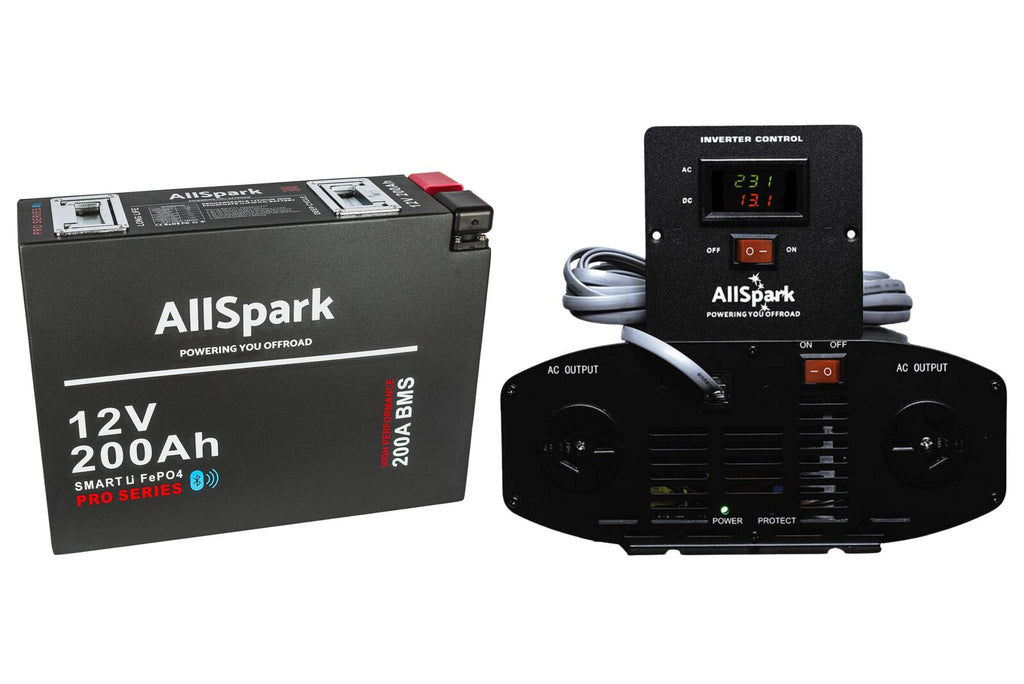

The Tourer Pack is built around your alternator as your primary power source, with a 200Ah lithium battery to store what you make on the road and a 2500W pure sine wave inverter to run the camp kitchen properly. Everything you need to run a serious setup from the road.
Warranty
Features
Specifications
| AS-12200SLIMBTAllSpark 200Ah 12V LiFePO4 Slimline BT Battery | |
| Battery Level | |
| Capacity Amp Hours (C5) | 200Ah |
| Watt Hours | 2560Wh |
| Rated Voltage (V) | 12.8V |
| Max Charge Voltage (V) | 14.6V |
| Recommended Float Voltage (V) | 13.6V |
| Low Voltage Cutoff (V) | 10V |
| Rapid Charge Current (1C) for 30 mins | 200A |
| Recommended Charge Current (A)* | 50A |
| Charge Profile | CC/CV |
| Max Inverter Size (Watts) | 2500W |
| Max Continuous Discharge (A) | 200A |
| Peak Discharge - 5 secs (A) | 500A |
| Cycle Life | |
| Charge Cycles @ 80% DoD (≥85% residual) | > 3200+ |
| @ 60% Depth of Discharge | > 4200+ |
| @ 40% Depth of Discharge | > 5000+ |
| Temperature | |
| Optimum Charging Temp (˚C) | < 45°C |
| Operating Temperature Range (˚C) | -20 to +60°C |
| Storage Temperature Range (˚C) | -40 to +125°C |
| Physical | |
| Max Series Voltage (V) | 24V |
| Max Batteries in Parallel | Unlimited |
| Dimensions (inc Handles mm) | 400 x 120 x 300 |
| Case Material | Slimline Aluminium |
| Weight (kg) | 21kg |
| IP Rating | NOT WATERPROOF – For internal use only |
| Cell Level | |
| Cell Type | Prismatic LiFePO4 |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 100Ah |
| Cell Casing | Nickel Plated Steel |
| Cell Balancing Target | 3.65 +/- 0.025V |
| Cell Balance Current (mA) | 35 +/- 5mA |
| Cell Over Discharge LV Protection (V) | 2.5 +/- 0.025V |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 +/- 0.025V |
| Over Charge Detection Delay (secs) | 1–1.6s |
| Over Charge Release (V) | 3.6 +/- 0.0625V |
| Over Charge Release | Auto below Release Voltage |
| Over Current Detection (1) (A) | 220A |
| Over Current Detection Delay (1) (secs) | 10s |
| Over Current Detection (2) (A) | 500A |
| Over Current Detection Delay (2) (secs) | 5s |
| Over Current Release | Remove Load – Auto release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (uS) | 200–400uS |
| Short Circuit Recovery | Remove Load – Auto release |
| Internal Resistance (MOSFET) | ≤20mΩ |
| Notes * For best cell longevity. AllSpark Bluetooth Slimline Aluminium Case Batteries are not fully sealed or waterproof and are for internal use only. | |
| AS-250012IPSWREMG1AllSpark 2500W 12V Pure Sine Wave Inverter with Remote | |
| Electrical | |
| Input Voltage | 12V |
| Input Voltage Range | 9.6–15V DC |
| Idle Current | 0.8A |
| Efficiency | >90% |
| Input Connector | M8 Red and Black DC Input Terminals |
| Output Voltage | 230V Australian Standard |
| Continuous Power | 2500W |
| Surge Power | 5000W |
| Output Frequency | 50Hz +/-0.2% |
| Output Receptacle | 2 x Australian Std 3 pin sockets |
| Protection | |
| DC Under Voltage Protection | 10V +/-0.5V DC |
| DC Over Voltage Protection | 15V +/-0.5V DC |
| Overload | CPU controlled auto shutdown |
| DC Polarity Reverse | Fuse Protection |
| Short Circuit | CPU controlled auto shutdown |
| Audible Alarm | Input DC under/over voltage, fault, over current, over temperature |
| Cooling | Twin intelligent brushless cooling fans |
| Display | |
| Indicator | Green LED = working; Red LED = fault/protection mode |
| LCD Display | AC Output & DC Input Voltages, Error/Fault Codes, on/off switch |
| Remote Switch Panel | Included |
| Physical | |
| Circuit Breaker (A) | 250A |
| Cable Size (B&S) | 0 B&S up to 2m; 0 B&S 2–4m |
