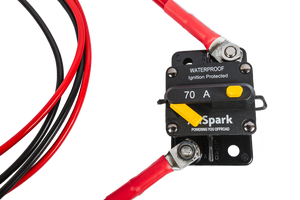

DCDC Charger Wiring Kit - Start battery to Anderson plug (Ignition protected) | AllSpark

$279.00

Portable Power Station | AllSpark 'The Grid' 200ah | with Inverter

SKU CODE: AS-GRID200INV

Pre-Order

In Stock ready for immediate dispatch

$4,799.00

$4,799.00 $5,650.00 Save 15%!

Description

PLUG IN. POWER UP. RUN 240V. NO SPARKY NEEDED.

240V power on tap. No separate inverter to buy. No second install. No trying to figure out what size inverter you need.

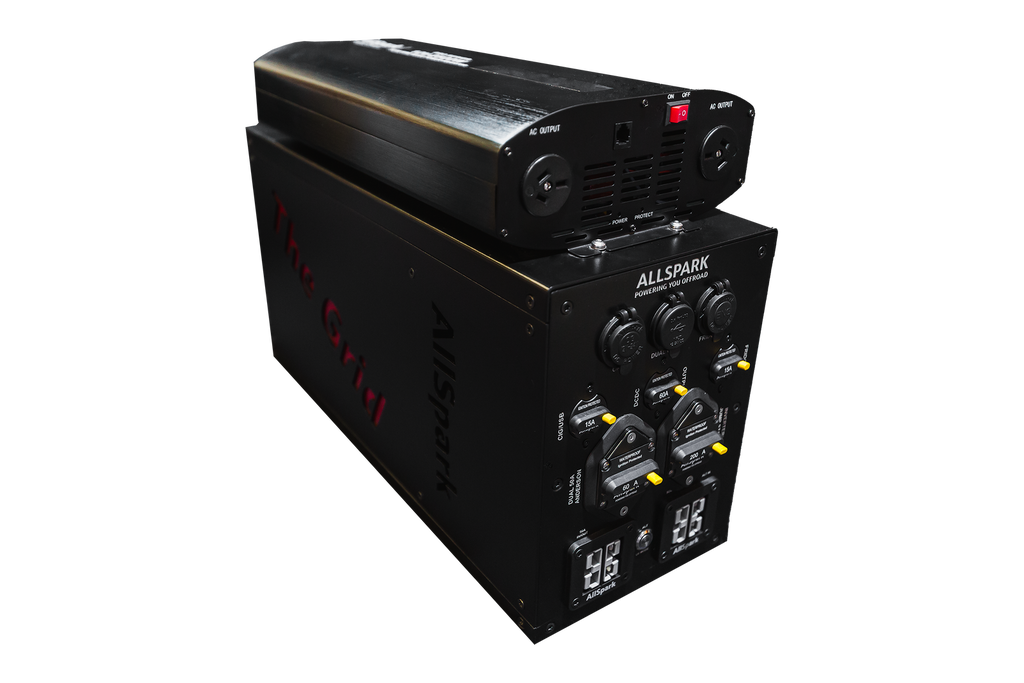

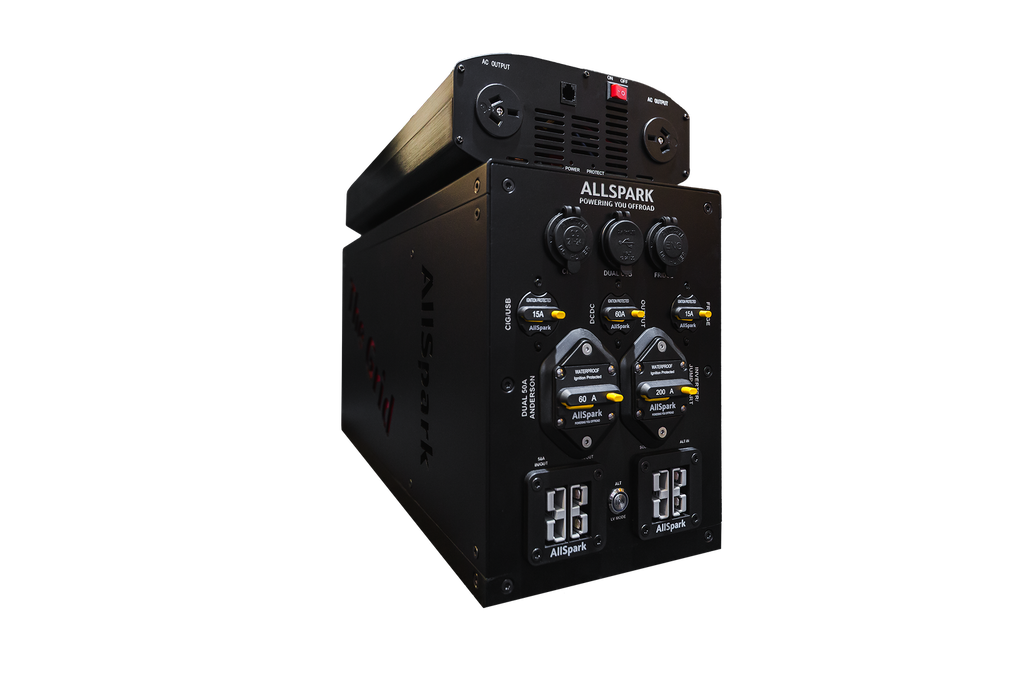

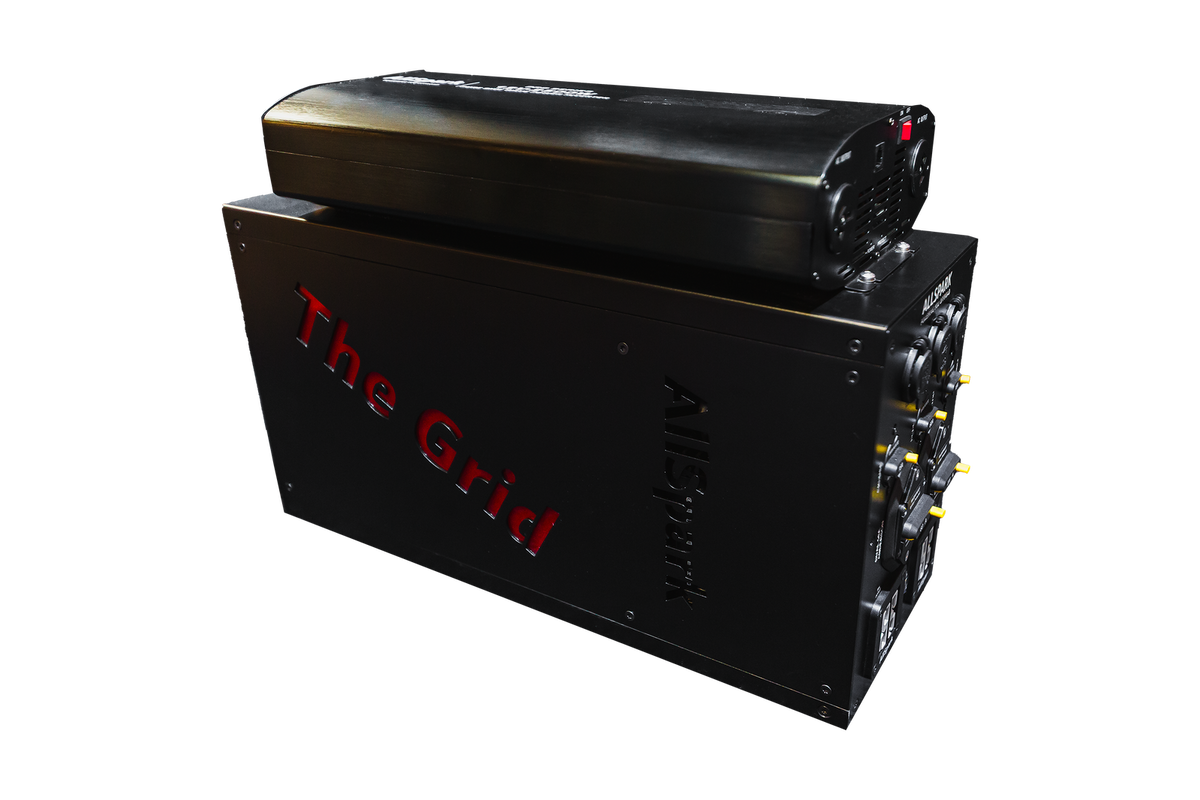

The AllSpark 200Ah portable power station with inverter is a complete all-in-one system: 200Ah of premium AllSpark LiFePO4 lithium, a built-in 2000W Pure Sine Wave inverter, a REDARC Alpha 50 DCDC charger, and every socket, breaker, and Anderson plug already in place. Plug in your start battery. Connect your solar. Run your 240V appliances straight out of the box.

No hidden costs. No second electrician visit. No wiring guesswork.

This portable power station with 240v output can be moved between vehicles if required - charging from your alternator on the road or from solar when you're parked. Perfect for caravans, camper vans, and 4WDs, where you need both 12V and 240V capability. It also makes a reliable backup for powering your home fridge during a power outage, running your coffee machine, kettle, or induction cooktop without missing a beat.

Ten Days of Fridge. Plus 240V When You Need It.

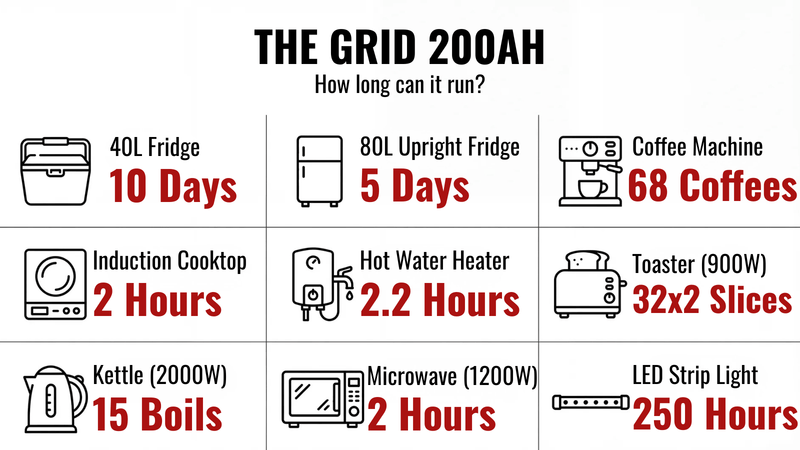

Run a 40L fridge for up to 10 days, an 80L upright fridge for 5 days. With 2,560Wh of usable energy, you have the freedom to run more, run longer, and still have power left for your 240V essentials.

Your coffee machine? 68 brews on a single charge. Your kettle? 15 boils. Toaster for breakfast? 32 slices. Microwave for heating? 2 hours of solid use. Induction cooktop? 2 hours of cooking. This 200ah portable power station with inverter delivers the capacity you need without the weight and footprint of the larger units, making it ideal for setups where space and weight matter but versatility doesn't.

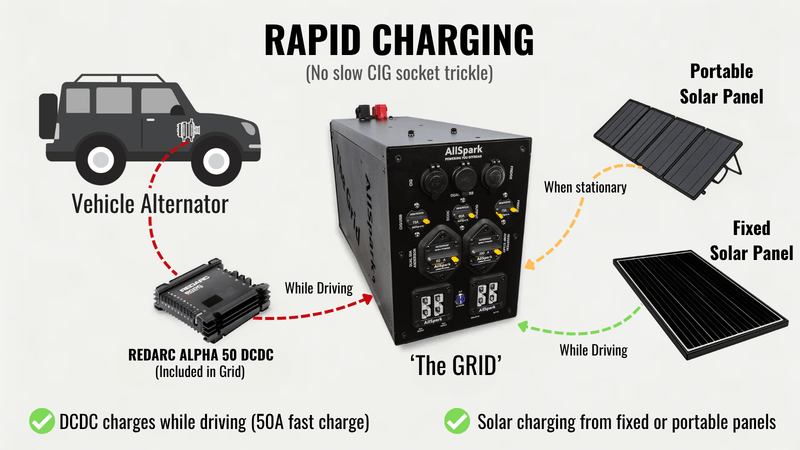

Smart Charging That Keeps Up With Your Setup

This portable power station includes a smart alternator-compatible REDARC DCDC as an integrated system - not bolted on as an afterthought. The REDARC Alpha 50 delivers 50A fast charging straight from your alternator while you drive, with rapid charge capability at 100A when you pair it with an optional ACDC charger.

It also accepts fixed or portable solar panels (9-48V input) and automatically prioritises solar first to protect your alternator. Whether you're running a single solar panel or a full array, the system adapts to what you're feeding it.

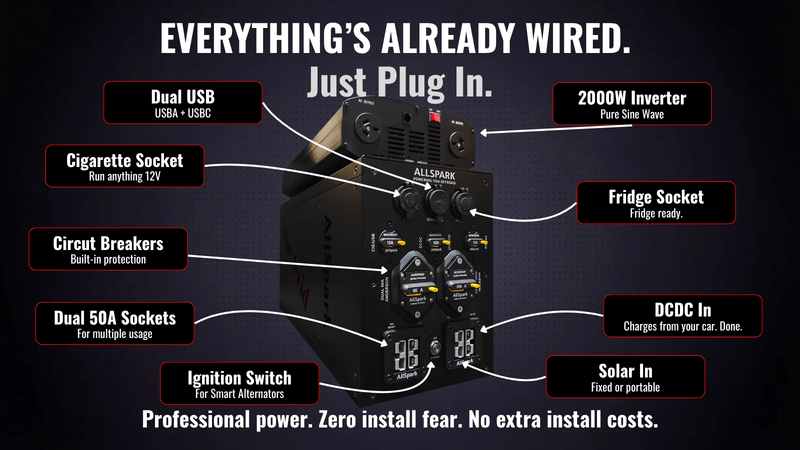

Pre-Wired. Pre-Protected. Ready to Connect.

Setting up this 200ah dual battery system with inverter is straightforward. If you have basic 12V knowledge, paired with the AllSpark Grid Wiring Kit, you can have the entire system installed in a couple of hours. The inverter is already hard-wired into the system, so there's no separate inverter wiring to run.

All connections come pre-wired and protected: dual 50A Anderson outputs, Posifit fridge socket, cig socket, QC 3.0 USB-A + PD65 USB-C, and 240V outlet with integrated surge protection ready to power your appliances. Built-in resettable circuit breakers on every circuit.

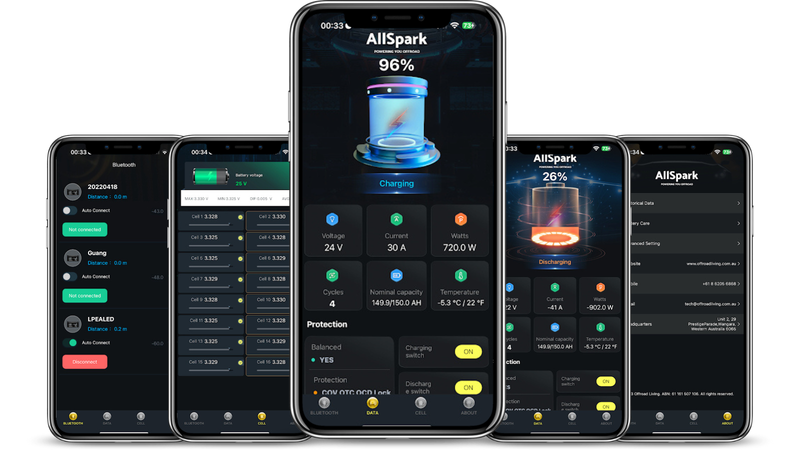

Track Your Battery and Inverter From Your Phone

A portable power station this capable deserves proper monitoring. The AllSpark App connects via Bluetooth and gives you real-time visibility over state of charge, voltage, current draw, temperature, and inverter load, all from your phone.

Monitor your 240V usage, track your battery health, and manage your power from wherever you are - no external monitor needed, no extra cost.

240V Power Included. Run Your Appliances Anywhere.

This portable power station with 240v output comes with a built-in AllSpark 2000W Pro Series Pure Sine Wave inverter - 2000W continuous output and a 4000W surge capacity. That means you can run your coffee machine, microwave, kettle, toaster, or induction cooktop straight from your battery system without hunting for an external inverter or dealing with compatibility issues.

Being a true Pure Sine Wave inverter with genuine continuous ratings, there's no "boost" mode to worry about. Some portable power packs advertise higher wattage through a boost function that modifies the output voltage to squeeze out extra power temporarily. The problem? That voltage fluctuation can damage sensitive electronics that rely on a constant, stable voltage. The AllSpark 2000W Pro Series delivers 2000W continuous at a clean, consistent output, with a genuine 4000W surge, so your laptop, CPAP, or phone charger runs safely alongside your kettle, air fryer or other high current appliance.

True 2000W continuous power. No tricks. No boost mode. Just reliable 240V.

WHAT'S IN THE BOX:

The Grid Portable Power Station (AllSpark 200Ah) with Inverter including:

200Ah AllSpark Bluetooth LiFePO4 Battery
2000W AllSpark Pure Sine Wave Inverter
REDARC Alpha 50 BCDC Charger
2 x 50A plugs
Cig & Dual Port QC 3.0 USB A + PD65 USB Type C
Posifit fridge socket
200A circuit breaker for inverter connection

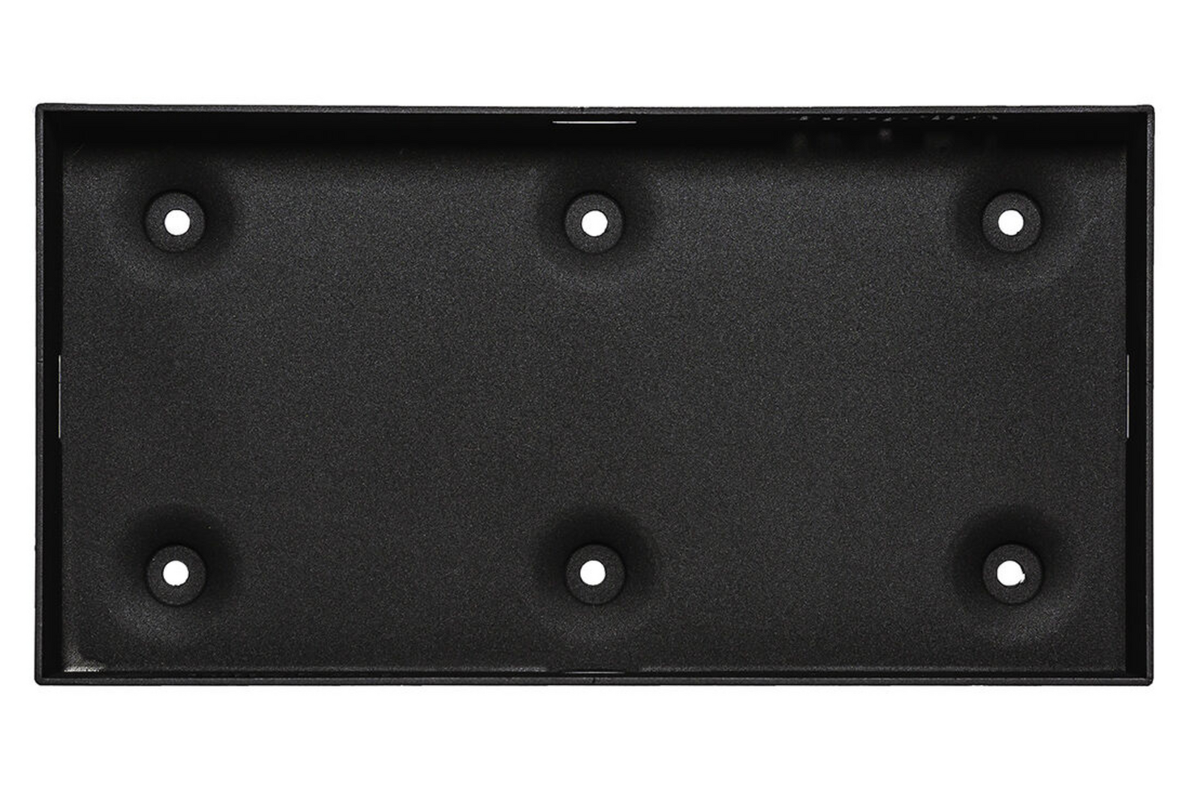

AllSpark Mounting Tray

Warranty

AllSpark 200ah Bluetooth Lithium Battery - 7 Years

AllSpark Pro Series 2000W Inverter - 3 Years

RedArc Alpha 50 - 2 Years

Features

Advanced cell technology with compact cells and casing
Bluetooth Integration with AllSpark App
Highest quality premium grade prismatic cells - resistance matched, long battery life and no voltage sag with a 20 year design life
Greater than 3200 cycles @ 80% DoD before reaching 85% of original capacity
Pro Series Inverter with 2000W continuous output (4000W surge)
RedArc Alpha 50 comes with Green Solar Priority - it will select solar charging first in an effort to reduce the load on your alternator
Anderson plugs for alternator and solar inputs to BCDC
2 x 50A plugs for input/output power with 60A resetable circuit breaker
Cig & Dual Port QC 3.0 USB A + PD65 USB Type C with 15A resetable circuit breaker protection
Posifit fridge socket with 15A resetable circuit protection
200A circuit breaker to connect the 2000w inverter

Specifications

SKU	AS-GRID200INV
The Grid — System Overview
Battery	200Ah AllSpark Bluetooth ABS Lithium (AS-20012LIABSBT)
Battery Charger	RedArc Alpha 50 (BCDC12050B)
Inverter	AllSpark 12V 2000W Pure Sine Wave Inverter
Dimensions — Base Unit (L×W×H mm)	540 × 207 × 287
Dimensions — Inc. Inverter (L×W×H mm)	540 × 220 × 383
Weight — Base Unit (kg)	26.5
Weight — Inc. Inverter (kg)	31.1
AllSpark Lithium Battery — Battery Level Specifications (AS-20012LIABSBT)
Capacity Amp Hours (C5)	200
Watt Hours	2,560
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins	100
Recommended Charge Current (A)*	50–80
Charge Profile	CC/CV
Max Inverter Size (W — per single battery)	2500
Max Continuous Discharge (A)	200
Peak Discharge — 10 secs (A)	500
Charge Cycles @ 80% DoD^# (≥85% residual capacity) @ 60% DoD @ 40% DoD	> 3200+^# > 4200+ > 5000+
Optimum Temperature During Charging (˚C)	< 45
Operating Temperature Range (˚C)	−20 to +60
Storage Temperature Range (˚C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (L×W×H mm)	367 × 190 × 247 (+5mm for terminals)
Case Footprint Dimensions (L×W×H mm)	340 × 183 × 247
Case Material	ABS Plastic
Weight (kg)	21
AllSpark Lithium Battery — Cell Level Specification (AS-20012LIABSBT)
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 +/- 0.025
Cell Balance Current (mA)	35 +/- 5
Cell Over Discharge LV Protection (V)	2.5 +/- 0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 +/- 0.025
Over Charge Detection Delay (Secs)	1–1.6
Over Charge Release (V)	3.6 +/- 0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (Secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (Secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET Protection)	≤20mΩ
AllSpark 12V 2000W Pure Sine Wave Inverter
Continuous Power Output (W)	2000
Peak Power Output (W)	4000
Input Voltage (VDC)	12
Input Voltage Range (VDC)	10–15
Output Voltage (VAC)	230
Output Frequency (Hz)	50
Waveform	Pure Sine Wave
AC Output Socket (Qty)	2 × Australian 3-Pin
USB Output	2 × 5V / 2.1A
No Load Current Draw (A)	< 0.9
Transfer Efficiency	> 90%
Low Voltage Alarm (VDC)	10.5
Low Voltage Shutdown (VDC)	10
Over Voltage Shutdown (VDC)	15.5
Over Temperature Protection	Yes — Auto Shutdown
Short Circuit Protection	Yes
Overload Protection	Yes
Display	LED — Input Voltage, Output Power, Fault Indicators
Operating Temperature (˚C)	−10 to +40
Cooling	Thermostatically Controlled Fan
Dimensions (L×W×H mm)	395 × 220 × 96
Weight (kg)	4.6
RedArc Alpha BCDC Charger (BCDC12050B)
Installation Location	External / Under Bonnet
Battery Chemistry	AGM, Gel, Calcium, Standard Lead Acid, Heated Lithium, Standard Lithium
Nominal Current Rating (A)	50
Solar Input Voltage	9–48V
Operating Temperature	−40˚C to 85˚C
Weight (kg)	0.96
Dimensions (L×W×D mm)	146 × 164 × 44
Warranty	2 Years
Connector Type	Bare Wire
Nominal Output Voltage (VDC)	12
Input Fuse Rating — not supplied (A)	60
Output Fuse Rating — not supplied (A)	60

Notes* For best cell longevity. ^# Independently laboratory tested with 0.25C discharge rate and 0.25C charge rate up to 5000 cycles at a controlled temperature of 25°C. Electronic logs recorded during testing show a residual capacity in excess of 85% of nameplate C5 capacity after 3200 cycles. In real-world conditions, the user will experience a range of temperature, current, and voltage conditions which may affect the actual performance of the battery over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

SKUAS-GRID200INV

The Grid — System Overview
Battery	200Ah AllSpark BT ABS Lithium (AS-20012LIABSBT)
Battery Charger	RedArc Alpha 50 (BCDC12050B)
Inverter	AllSpark 12V 2000W Pure Sine Wave Inverter
Dimensions — Base Unit	540 × 207 × 287mm
Dimensions — Inc. Inverter	540 × 220 × 383mm
Weight — Base Unit	26.5kg
Weight — Inc. Inverter	31.1kg

SKUAS-20012LIABSBT

Battery Level Specifications
Capacity Amp Hours (C5)	200
Watt Hours	2,560
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins	100
Recommended Charge Current (A)*	50–80
Charge Profile	CC/CV
Max Inverter Size (W — per single battery)	2500
Max Continuous Discharge (A)	200
Peak Discharge — 10 secs (A)	500
Cycles @ 80% DoD^# (≥85% residual)	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp (˚C)	< 45
Operating Temp Range (˚C)	−20 to +60
Storage Temp Range (˚C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (mm)	367 × 190 × 247 (+5mm terminals)
Case Footprint (mm)	340 × 183 × 247
Case Material	ABS Plastic
Weight (kg)	21
IP Rating	IP65
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 +/- 0.025
Cell Balance Current (mA)	35 +/- 5
Cell OD LV Protection (V)	2.5 +/- 0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 +/- 0.025
OC Detection Delay (Secs)	1–1.6
Over Charge Release (V)	3.6 +/- 0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	220
OCD Delay (1) (Secs)	10
Over Current Detection (2) (A)	500
OCD Delay (2) (Secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
SC Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

ComponentAllSpark 12V 2000W Inverter

Pure Sine Wave Inverter
Continuous Power Output (W)	2000
Peak Power Output (W)	4000
Input Voltage (VDC)	12
Input Voltage Range (VDC)	10–15
Output Voltage (VAC)	230
Output Frequency (Hz)	50
Waveform	Pure Sine Wave
AC Output Sockets	2 × Australian 3-Pin
USB Output	2 × 5V / 2.1A
No Load Current Draw (A)	< 0.9
Transfer Efficiency	> 90%
Low Voltage Alarm (VDC)	10.5
Low Voltage Shutdown (VDC)	10
Over Voltage Shutdown (VDC)	15.5
Over Temperature Protection	Yes — Auto Shutdown
Short Circuit Protection	Yes
Overload Protection	Yes
Display	LED — Input Voltage, Output Power, Fault Indicators
Operating Temperature (˚C)	−10 to +40
Cooling	Thermostatically Controlled Fan
Dimensions (L×W×H mm)	395 × 220 × 96
Weight (kg)	4.6

SKUBCDC12050B

RedArc Alpha BCDC Charger
Installation Location	External / Under Bonnet
Battery Chemistry	AGM, Gel, Calcium, Standard Lead Acid, Heated Lithium, Standard Lithium
Nominal Current Rating (A)	50
Solar Input Voltage	9–48V
Operating Temperature	−40˚C to 85˚C
Weight (kg)	0.96
Dimensions (L×W×D mm)	146 × 164 × 44
Warranty	2 Years
Connector Type	Bare Wire
Nominal Output Voltage (VDC)	12
Input Fuse Rating — not supplied (A)	60
Output Fuse Rating — not supplied (A)	60

FAQS

Q: I have received my Grid, how do I turn it on and connect the Bluetooth?

A: Download the AllSpark App (see the Downloads section in your battery's listing, or enter "AllSpark" into the Google Play Store or the Apple App Store), then ensure your "location services" and bluetooth is turned on. You will see your battery appear in the list under "Bluetooth" - click on here, this will take you to the Dashboard screen. Scroll to the bottom and turn the Charge Switch and Discharge Switch on as required.

Q: How do I store my Grid when not in use?

A: If you plan to have your Grid in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.

Q: What is Current In/Out Net Value?

A: The Net Value is all the charge sources minus all the loads

Q: What do I do if my Grid goes flat?

A: If you discharge the battery in your Grid to 10.0V, it will go into Low voltage protection mode. This will disconnect all loads and the battery voltage will show as 0V. When in LV protection, the BMS disconnects power to the battery terminals. To release it from protection, open up the app and turn the BMS back on. It will then be able to take charge.

Q: Can I use my Grid to charge my start battery if it goes flat?

A: The RedArc Alpha 50 has a battery recharge function that allows you to recover your flat start battery with the push of a button (inside the app). It also has the ability to direct excess solar to your start battery once the Grid battery is full.

Q: Do I need an auto electrician to install The Grid with Inverter?

A: If you have basic 12V electrical knowledge, you can install The Grid in a couple of hours. The inverter is pre-wired into the system, so you only need to connect the Anderson plug from your vehicle's existing DCDC wiring harness (or use the Grid Wiring Kit if you need one). If you're not comfortable with this, an auto-electrician will need to run the cable from your alternator - with the Wiring Kit this should take less than an hour, meaning a small labour cost.

Q: What appliances can the 2000W inverter run?

A: The 2000W continuous output powers most camp and caravan appliances: coffee machines, microwaves, kettles, toasters, induction cooktops, LED lighting, fridges, water pumps, and entertainment systems. Check the wattage of your appliance on the label - if it draws 2000W or less continuously, the inverter will handle it. For simultaneous use of multiple high-draw appliances, add up their wattages. The inverter also has 4000W surge capacity for short bursts (like when a fridge compressor kicks in).

Q: How do I charge The Grid with a 240V ACDC battery charger?

A: Set the charger to its lithium (LiFePO4) charging profile, then connect it one of two ways:

1. Plug it into one of The Grid's 50A Anderson plugs.

2. Clip it onto the inverter posts with alligator clips (red to positive, black to negative). Make sure the clips are firmly attached so they can't slip off and touch the case.
