REDARC RedVision Essentials Display

A FUEL GAUGE FOR YOUR BATTERY

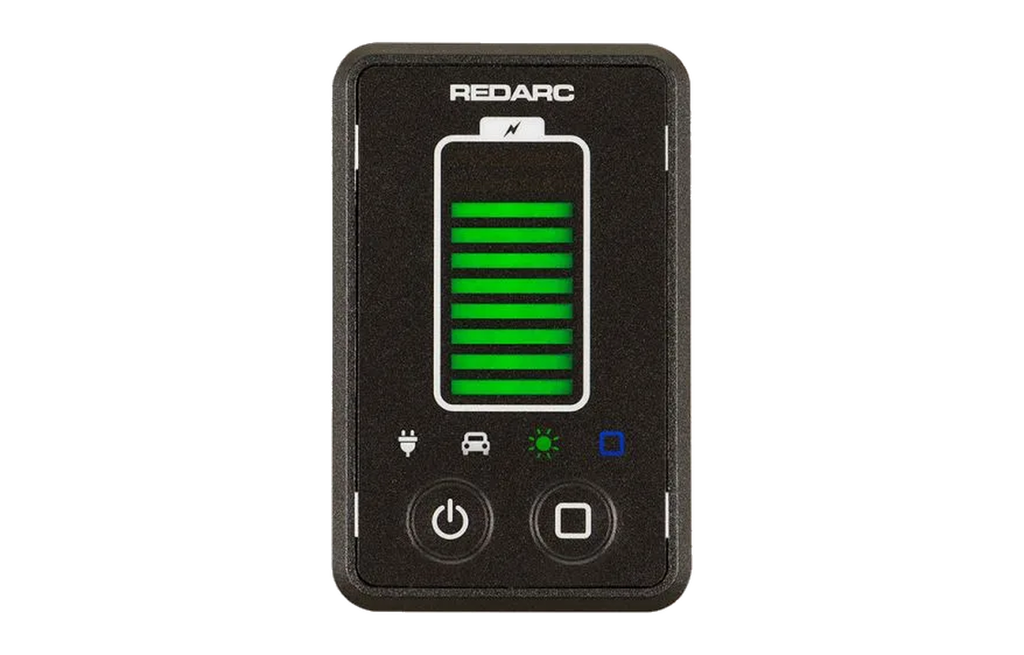

The RedVision Essentials Display gives you one clear answer to the only question that matters off-grid: how much power have I got left. State of charge reads in simple 10-bar increments on a bright, uncluttered screen. No volts to interpret, no amps to do sums on.

NO PHONE IN YOUR HAND

Glance at the wall and you know where you stand. The display also shows which power sources are connected and active, so you can see straight away whether charge is coming from the vehicle, from solar or from AC.

GOES IN WITH A HOLE SAW

Installation needs a 51mm hole saw and the two screws supplied. REDARC's R-Bus connection means it drops into an existing REDARC system as easily as it goes into a new one. Bluetooth pairing and screen brightness are both set from the display itself.

RECOVER A FLAT START BATTERY

On compatible systems, Start Battery Recovery runs from a button on the display. Useful on the mornings when the start battery has been asked to do more than it should have overnight.

MADE IN AUSTRALIA

Designed and made in Australia, and tested to hold up to corrugations, heat and dust. Backed by a 2 year warranty.

WHAT YOU NEED TO RUN IT

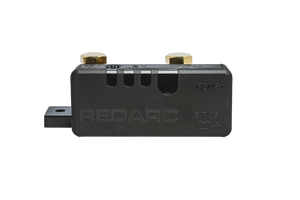

This display reads its data from the REDARC Smart Battery Monitor (BSEN500), which is sold separately and is required for the display to work. It can run as a standalone display on a new build or be added to an existing system that already has the Smart Battery Monitor fitted.

Not compatible as a standalone unit. A Smart Battery Monitor must be present in the system.

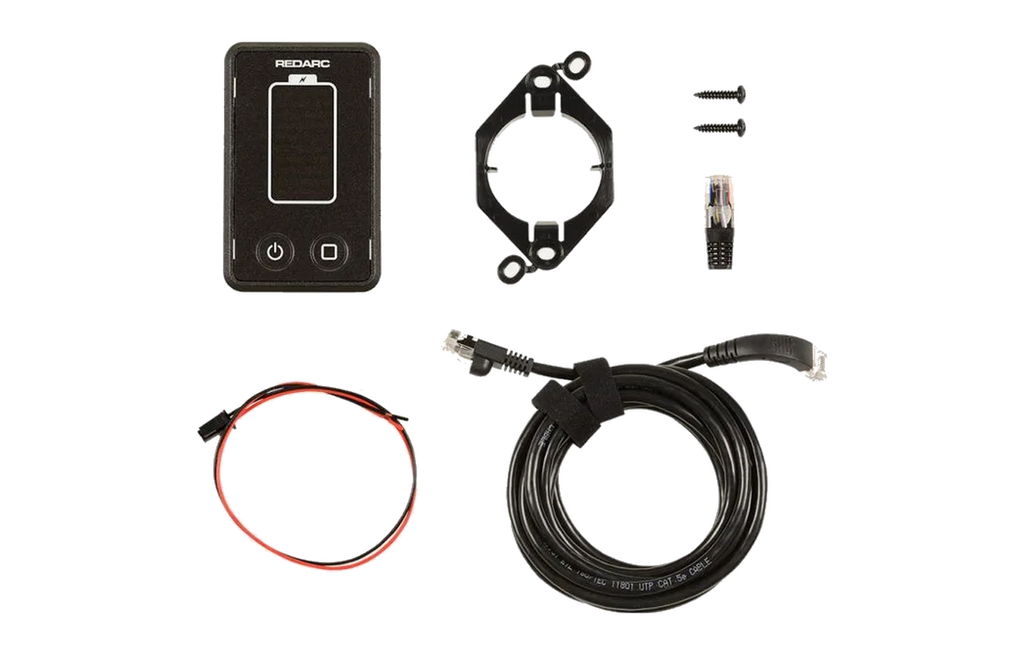

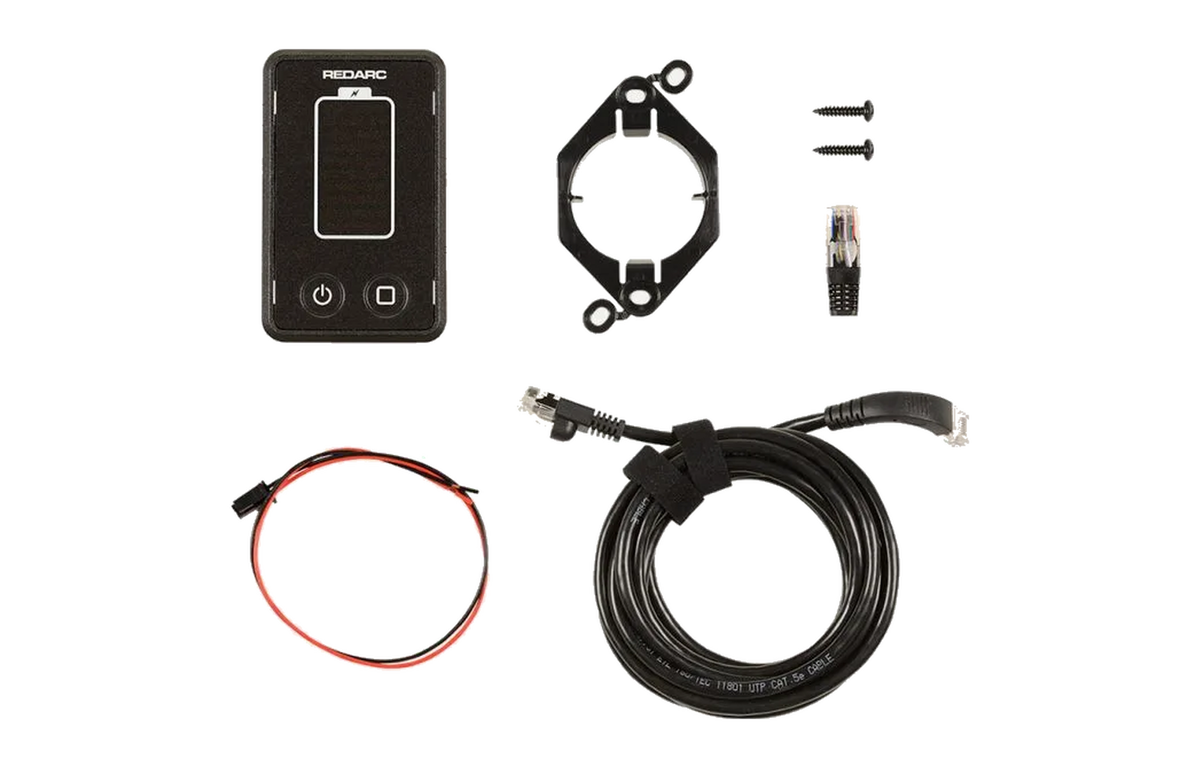

WHAT'S IN THE BOX

• 1 x RedVision Essentials Display
• 1 x Ethernet cable - straight to right angle
• 1 x plug in power cable
• 1 x blanking plug
• 2 x Mounting screws
• Instruction manual

*Smart Battery Monitor (BSEN500) sold separately and required for operation. REDARC recommends installation by a qualified auto electrician or technician.
