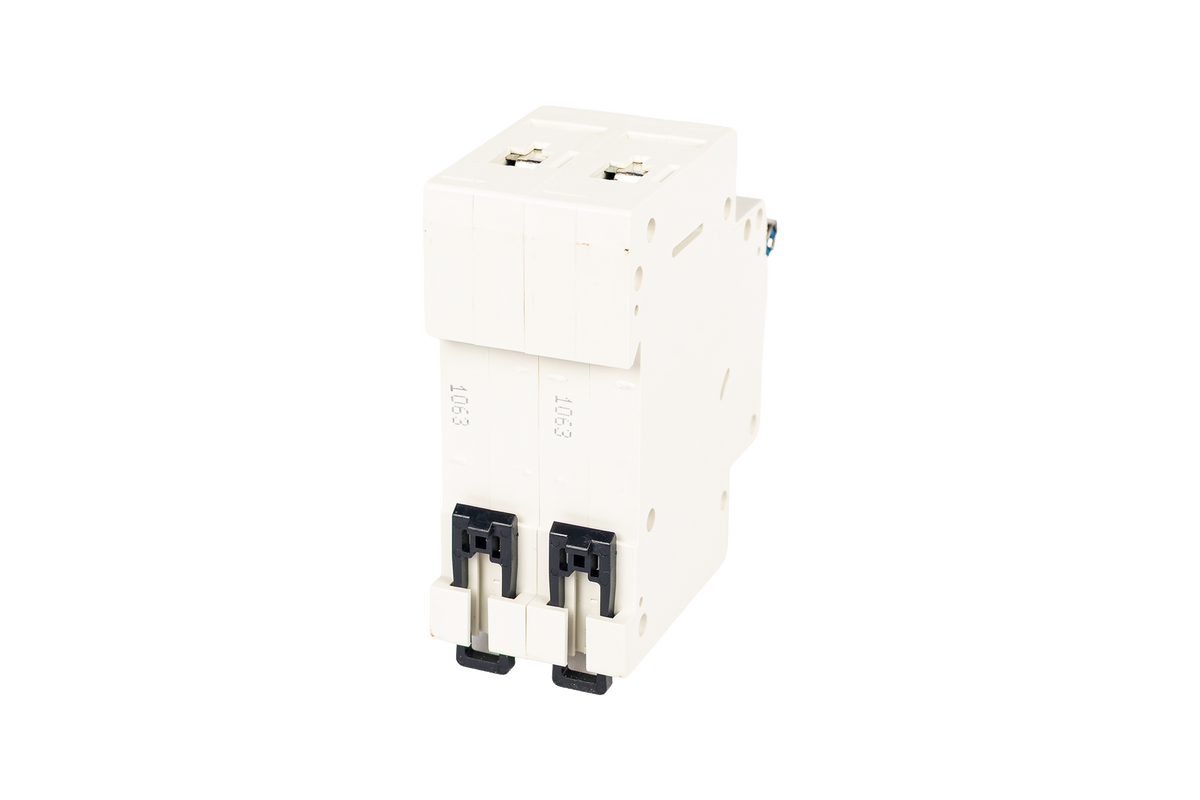

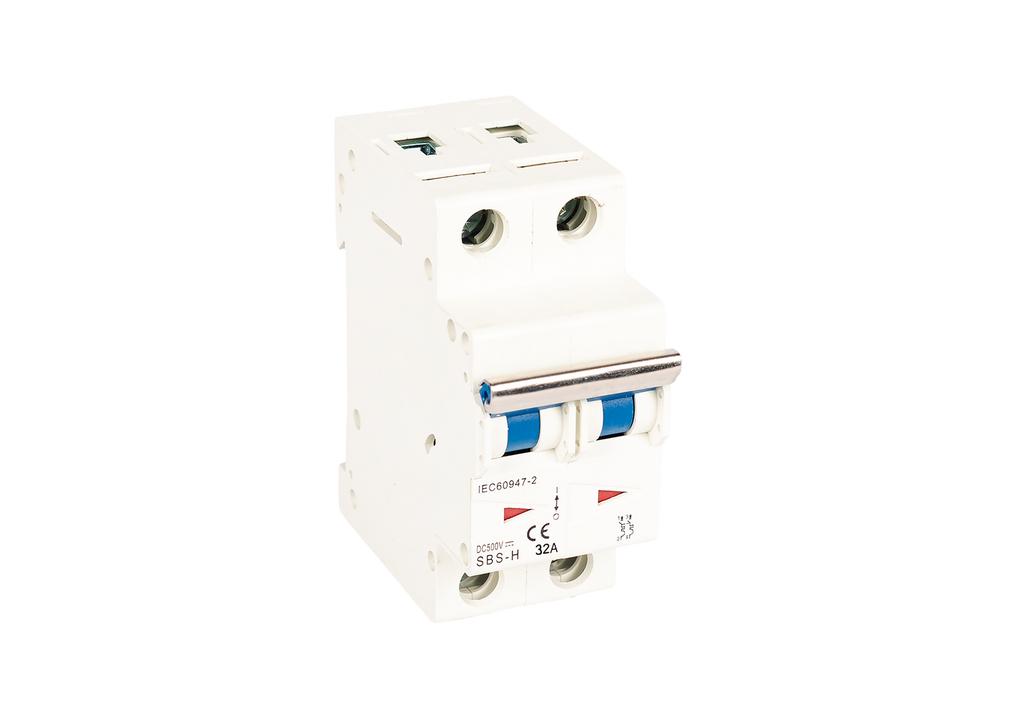

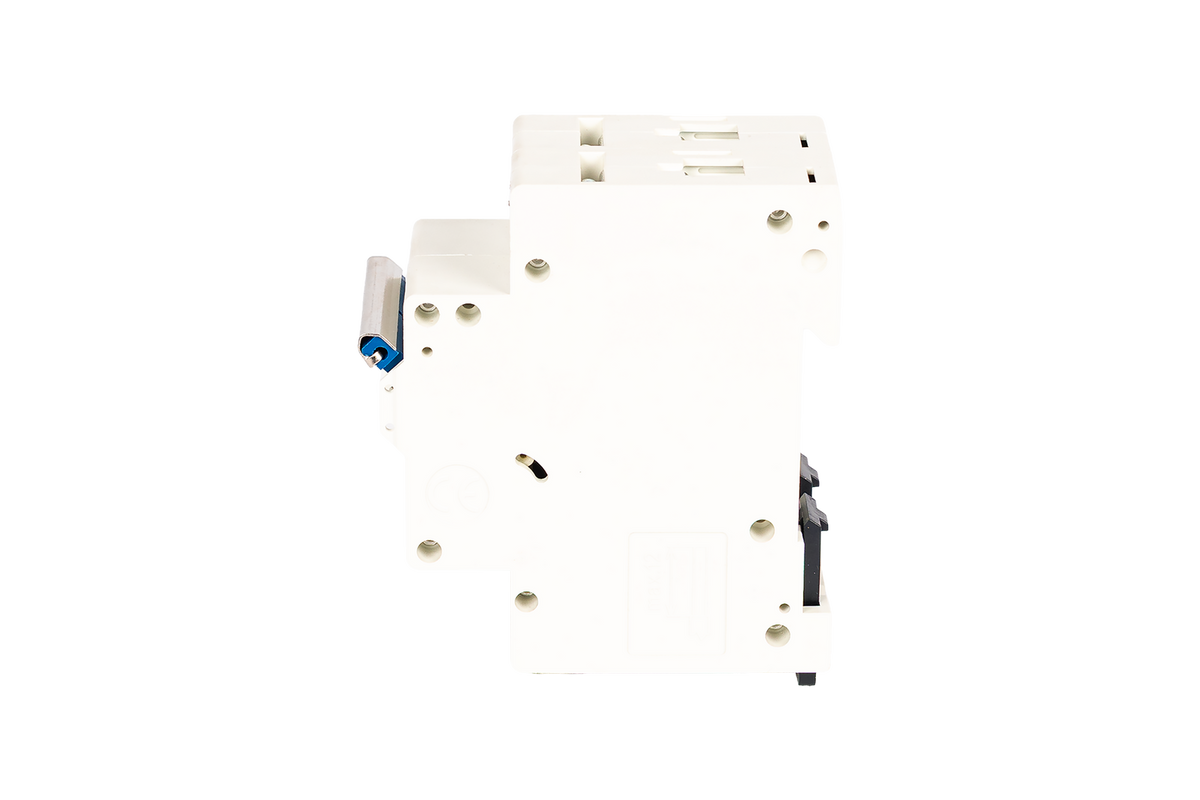

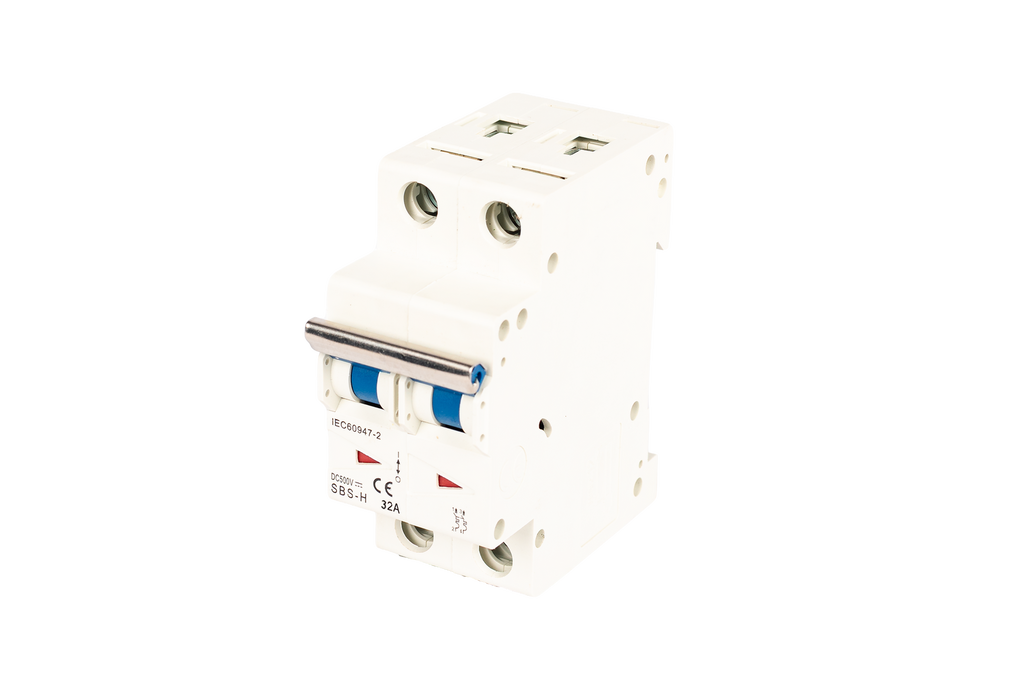

MCB 500V 2P 32A - DC Solar Isolator
Frequently Bought Together:
MCB 500V 2P 32A - DC Solar Isolator
Description
PROTECTION FOR YOUR SOLAR SYSTEM
Â
The MCB 500V 2P 32A - DC Solar Two Pole Isolator provides load isolation and overload/short circuit protection for PV (Solar) isolation. It is designed for photovoltaic & energy storage installation. The DC circuit breaker can be reset manually after tripping.

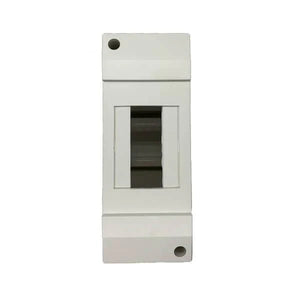

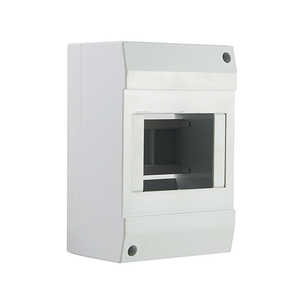

This DC MCB is DIN Rail mounted and requires an enclosure with DIN rail to securing mount the product - we have 2P and 4P options in our store.
Max voltage up to 500VDC, current up to 32A. The main designing criteria of these circuit breakers is to provide scientific arc extinguishing and flash barrier technology to fulfill quick and safe current interruption.
Â
Tested according to EN 60947-2, AS/NZS IEC 60947.2:2015.
Â
WHATS IN THE BOX
- 1 x MCB 500V 2P 32A - DC Solar Isolator
Features
Specifications
PRODUCT SPECIFICATIONS - 2 POLE DC ISOLATOR
| MODEL | MCB 500V 2P 10A | MCB 500V 2P 16A | MCB 500V 2P 20A | MCB 500V 2P 25A | MCB 500V 2P 32A | MCB 500V 2P 40A | |
| Pole | 2P | ||||||
| Rated Working Voltage | 500 V DC | ||||||
| Frame Current (A) | 63 | ||||||
| Rated Current In (A) | 10 | 16 | 20 | 25 | 32 | 40 | |
| Rated Insulation Voltage Ui | 1000V | ||||||
| Rated Impulse Withstand Voltage Uimp | 6kV | ||||||
| Tripping Characteristics | B/C | ||||||
| Tripping Type | Thermal Magnetic | ||||||
| Rated Ultimate Short-Ciruit Breaking Capacity Icu | 6kA | ||||||
| Rated Ultimate Short-Ciruit Breaking Capacity Ics | 6kA | ||||||
| Electrical Life | Actual | 500 Cycles | |||||
| Standard | 300 Cycles | ||||||
| Mechanical Life | Actual | 10000 Cycles | |||||
| Standard | 9700 Cycles | ||||||
| Overvoltage Category | III | ||||||
| Pollution Degree | 3 | ||||||
| Ingress Protection | IP40: Wiring Port IP20 | ||||||
| Resistance to humidity and heat | Class 2 | ||||||
| Relative Humidity | ≤ 95% | ||||||
| Vibration | acc. to IEC60068-2-6 | ||||||
| Shocks | acc. to IEC60068-2-27 | ||||||
| Terminal Capacity | 2.5 ~ 35mm2 | ||||||
| Fastening Torque or Terminals | 2.0 ~ 3.5Nm | ||||||
| Ambient Temperature | -30oC ~ 70oC | ||||||
| Storage Temperature | -40oC ~ 85oC | ||||||
| Installation Method | DIN | ||||||
| Elevation | ≤2000m | ||||||
| Dimension (W x H x D mm) | 72 x 83 x 72Â | ||||||
| Weight | 0.24kg | ||||||
