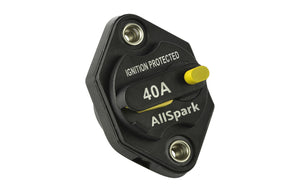

AllSpark - 40A Mini Panel Mount Circuit Breaker

$29.00

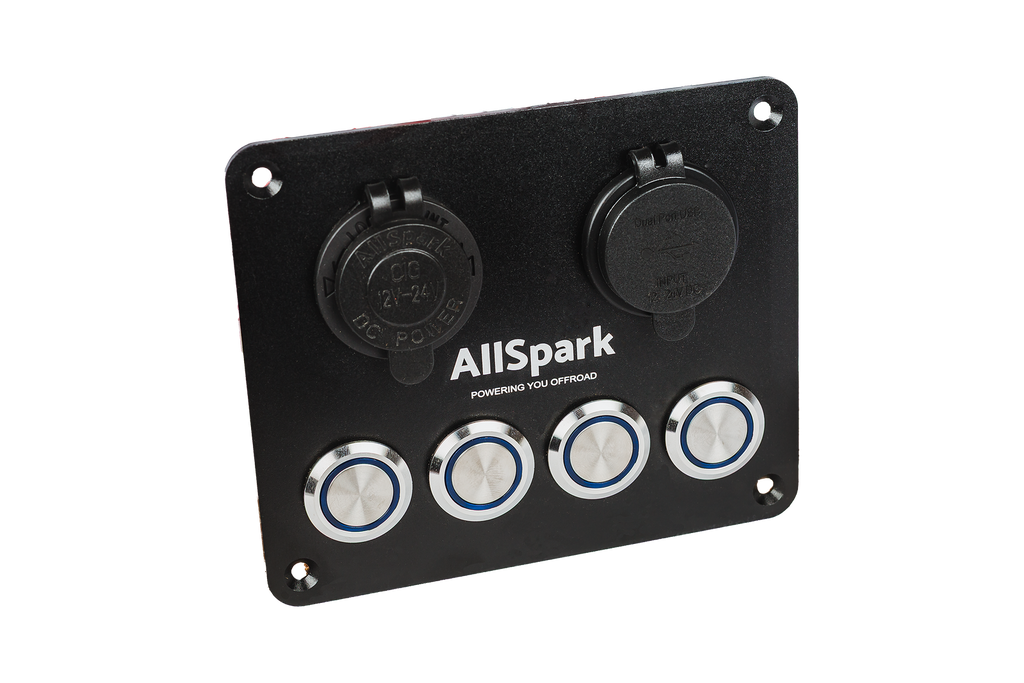

AllSpark 4 way push button switch panel

Name: AllSpark 4 way push button switch panel
Brand: AllSpark
SKU: AS-SP4G2
Price: 85.00 AUD
Availability: InStock

SKU CODE: AS-SP4G2

In Stock

$85.00

$85.00 $0.00

CONTROL YOUR DEVICES FROM A CENTRAL LOCATION

Aluminium panel
Control multiple devices
Fuse protected
Suitable for both 12v and 24v systems
1 x Cig & QC3 USB A
1 x QC4 PD USB Type C

Description

EASY ON OFF SWITCHING WITH 6 CUSTOMISABLE PUSH BUTTON SWITCHES

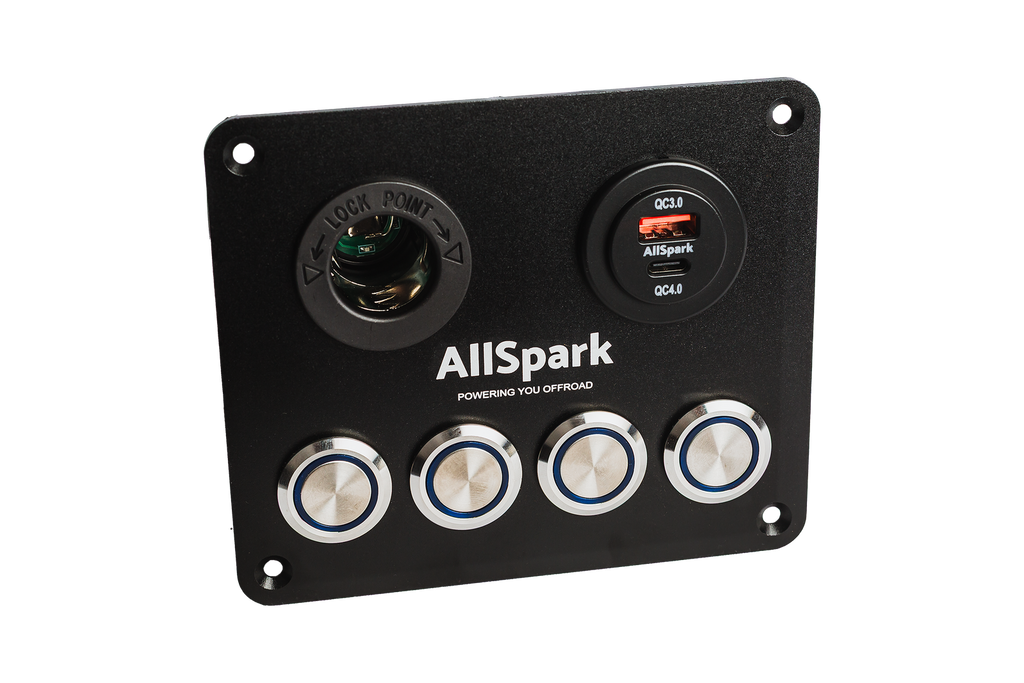

The AllSpark 4 Way Push Button Switch Panel is a conveinient, neat way to easily control your devices off-grid, features a Cig & QC3 USB A + QC4 PD USB Type C, along with 4 x customisable 15A per circuit (fuse rating) push button switches with labels (switches are 20A rated), plus 15A fuse holder for the combined sockets

Suitable for 4WD, Caravan, Marine applications, with black coated aluminium surface and short circuit/overheat and overload protection, for both 12v and 24v systems.

Also available with 3 Push Button switch panels and 6 Push Button switch panel

WHATS IN THE BOX

1 x AllSpark 4 Way Button Panel

Features

Aluminium panel
Control multiple devices - 3 x push button switches with labels
Fuse protected
Suitable for both 12v and 24v systems
1 x Cig & QC3 USB A
1xQC4 PD USB Type C

Specifications

AllSpark 4 way switch panel wiring diagram

Individual switch wiring diagram

FAQS

Q: How do I install this?

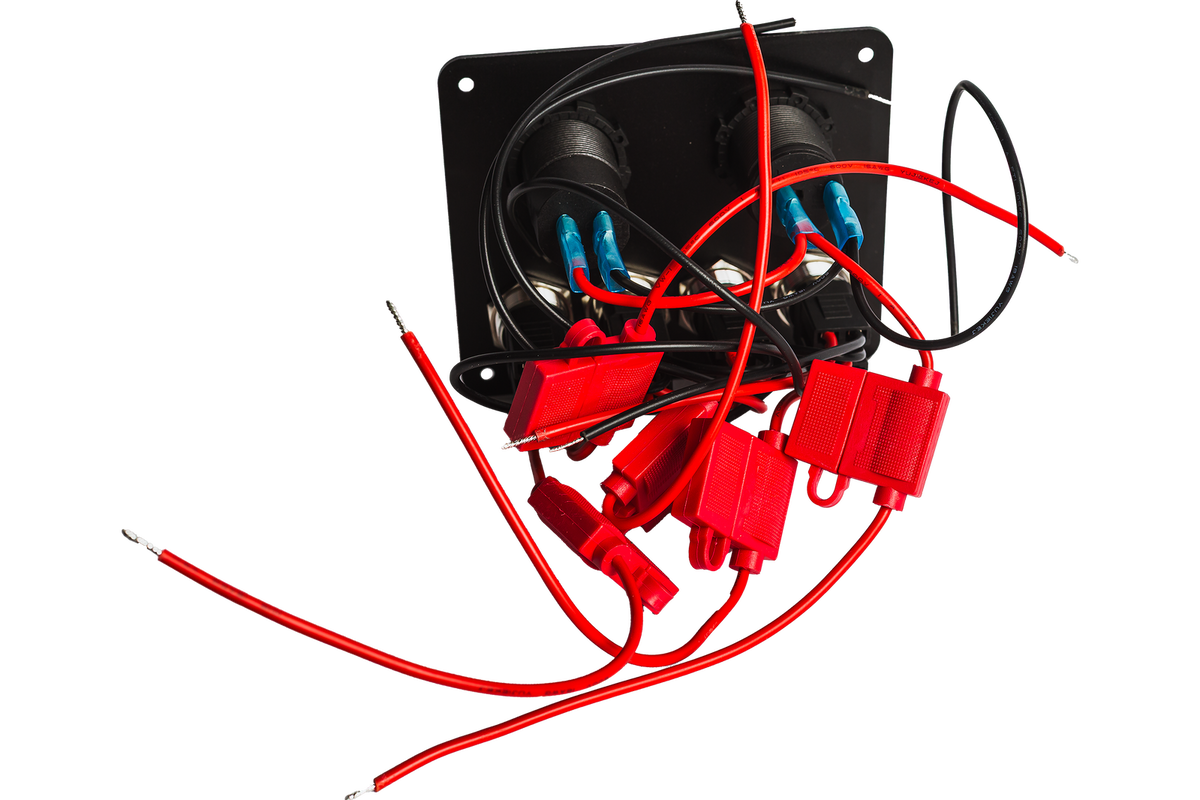

A: You will need to supply fused power from a 12v battery positive to each of the fused red input positive input wires for common power supply to the switches. Each switch has a 15A input fuse on the supply side. The input wire to the sockets has its own independent fuse. Please supply fused power from 12v battery positive to the input fuses on the switches and sockets. This can be one common "fused" parallel connection from the source (with appropriately sized cable for the full current demand) feeding all 5 fuse holders into one. Common negative connection back to battery negative, again with an appropriately sized cable for the full current demand or if using a battery monitor, then to the load terminal on the shunt.

Q: Is this waterproof?

A: No, this switch panel needs to be installed internally.
