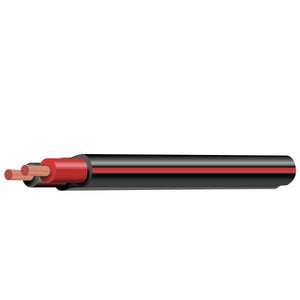

8B&S Twin Core Red & Black with black sheath

$11.00

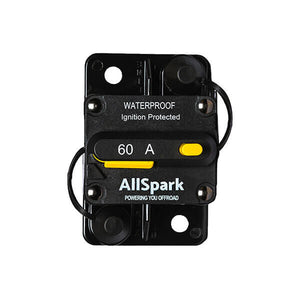

AllSpark Circuit Breakers - Surface Mount 60A

$49.00

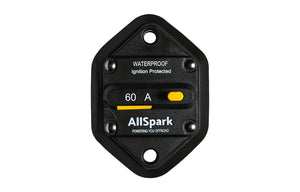

AllSpark Circuit Breakers - Flush Mount 60A

$49.00

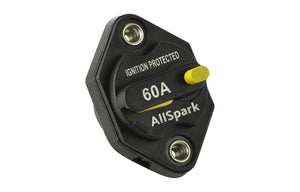

AllSpark - 60A Mini Panel Mount Circuit Breaker

$29.00

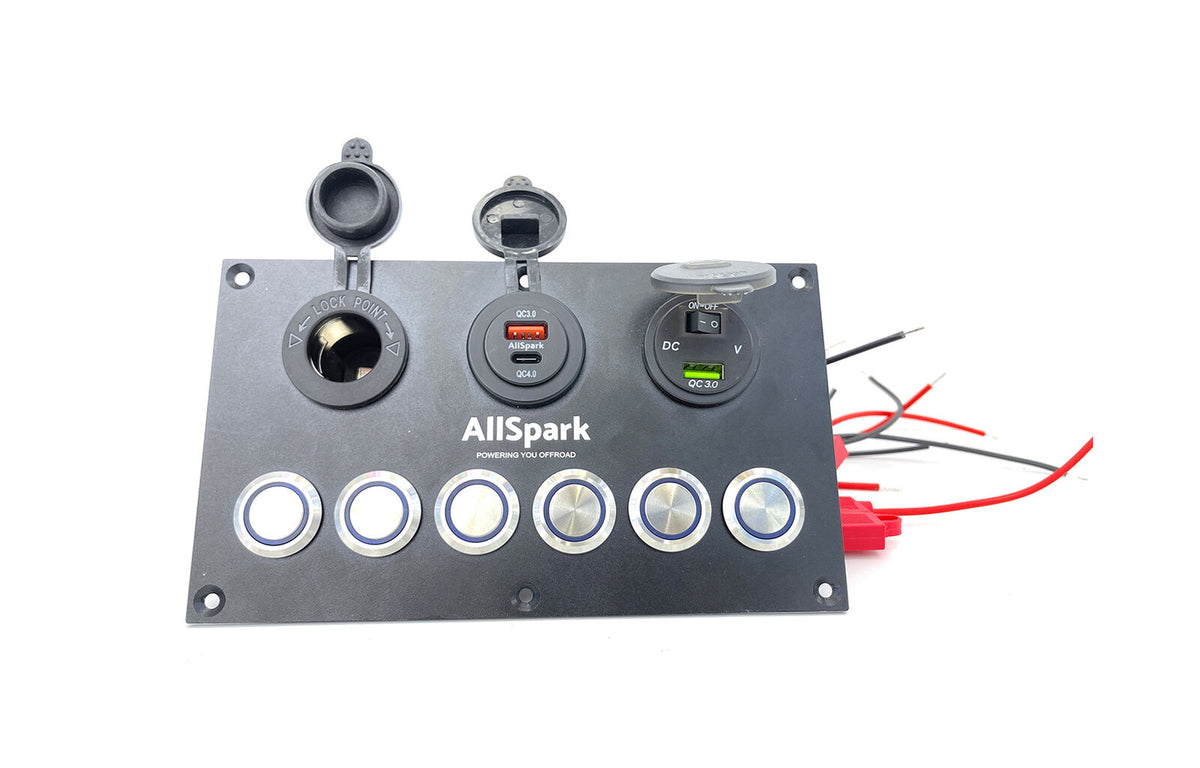

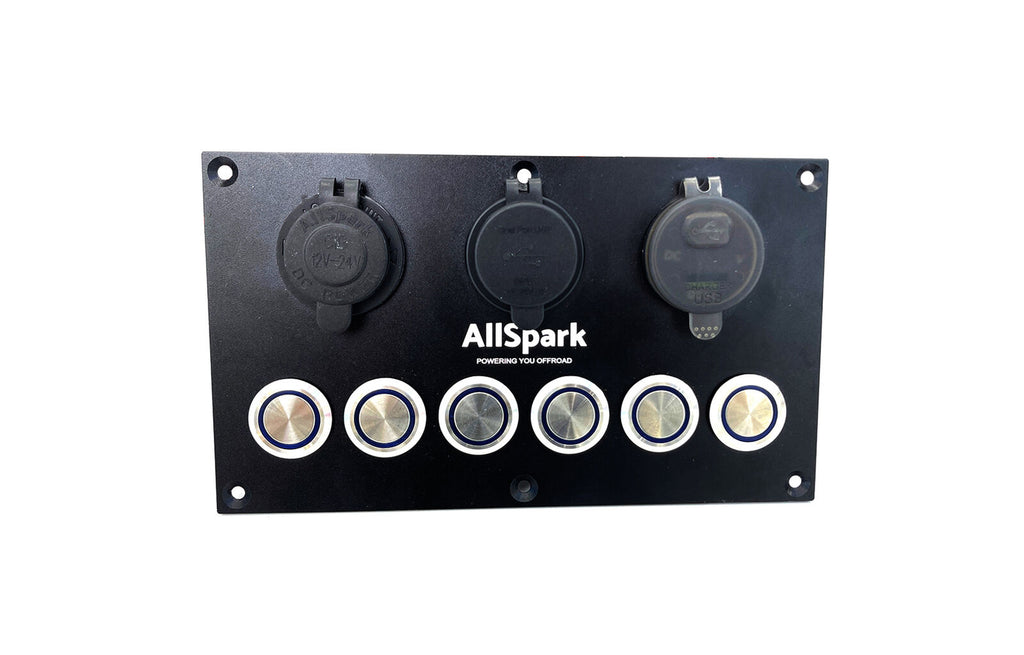

AllSpark 6 way push button switch panel

Name: AllSpark 6 way push button switch panel
Brand: AllSpark
SKU: AS-SP6G3
Price: 119.00 AUD
Availability: InStock

SKU CODE: AS-SP6G3

In Stock

$119.00

$119.00 $0.00

CONTROL YOUR DEVICES FROM A CENTRAL LOCATION

Aluminium panel
Control multiple devices
Suitable for both 12v and 24v systems
1 x PD QC4 Type C USB + QC3 Type A USB
1x Cig Socket
1 x QC 3 Type A USB with switch on/off volt meter
15A fuse holder on each switched circuit and combined fuse holder on socket circuits

Description

EASY ON OFF SWITCHING WITH 6 CUSTOMISABLE PUSH BUTTON SWITCHES

The AllSpark 6 Way Push Button Switch Panel is a conveinient, neat way to easily control your devices off-grid, features a 12V/24V Cig socket, Type C USB PD QC4 + 2 x QC3 Type A USB and a switchable volt meter, along with 6 x customisable 15A per circuit (fuse rating) push button switches with labels (switches are 20A rated), plus 15A fuse holder for the combined sockets

Suitable for 4WD, Caravan, Marine applications, with black coated aluminium surface and short circuit/overheat and overload protection, for both 12v and 24v systems.

Also available with 4 Push Button switch panels and 3 rocker switches.

WHATS IN THE BOX

1 x AllSpark 6 Way Button Panel

Features

Aluminium panel
Control multiple devices - 6 x push button switches with labels
Fuse protected - 7x Fuses (15A), 1 covers all 3 sockets + 1 x 15A fuse per switch circuit
Suitable for both 12v and 24v systems
1 x PD QC4 Type C USB + QC3 Type A USB
1x Cig Socket
1 x QC 3 Type A USB with switch on/off volt meter

Specifications

FAQS

Q: How do I install this?

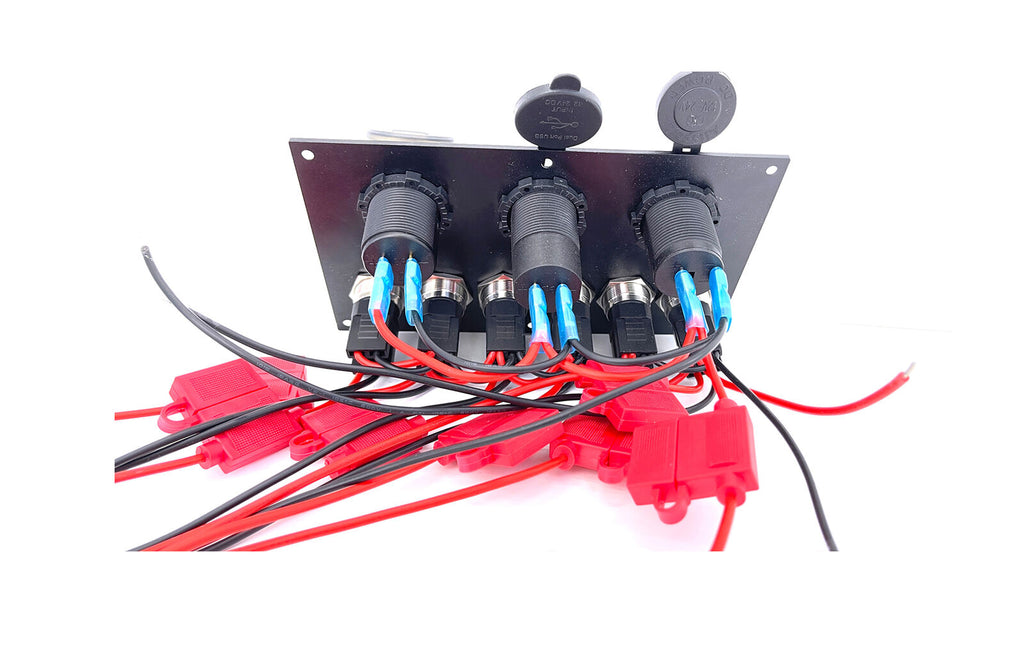

A: You will need to supply fused power from a 12v battery positive to each of the fused red input positive input wires for common power supply to the switches. Each switch has a 15A input fuse on the supply side. The input wire to the sockets has its own independent fuse. Please supply fused power from 12v battery positive to the input fuses on the switches and sockets. This can be one common "fused" parallel connection from the source (with appropriately sized cable for the full current demand) feeding all 7 fuse holders into one. Common negative connection back to battery negative, again with an appropriately sized cable for the full current demand or if using a battery monitor, then to the load terminal on the shunt.

Q: Is this waterproof?

A: No, this switch panel needs to be installed internally.
