Description

Introducing the Allspark Quad Fold Solar Blanket –  This cutting-edge solar blanket is not your average outdoor companion; it's a powerhouse of innovation designed to keep you charged up and connected wherever your journey takes you.

Boasting a HUGE 400w Output - Perfect for Caravans / 4wd / RV and portable power solutions like Our Ultimate Power pack



Quad Fold for Unmatched Portability:

Experience the freedom of movement with our Quad Fold design. This solar blanket seamlessly folds into a compact and portable size, ensuring it's a hassle-free addition to your outdoor gear. Whether you're a Grey nomad, camper, or 4wd enthusiast, the Allspark Quad Fold Solar Blanket effortlessly fits into your lifestyle, providing power on demand.



With multiple power configurations you can wire it to make 2 x 200w panels to charge your van and vehicle at the same time or Share with your camping mate and keep everyone topped up with solar

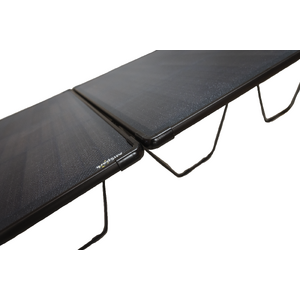

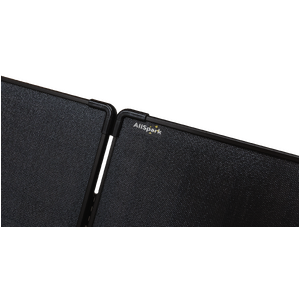

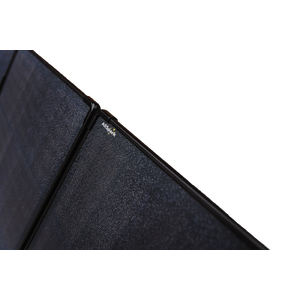

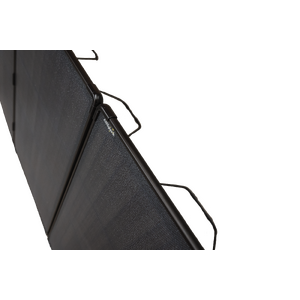

(please note- Image above is a prototype system and the Actual product has minor cosmetic updates) ( Actual Product is Full Black faced with no white boarders for a more pleasing to the eye appearence)



5 Year Allspark Warranty

AllSpark Quad fold 400w Solar panel

L*W*H: 590*900*90mm (packed)

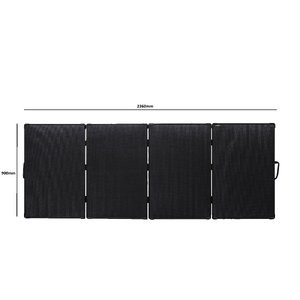

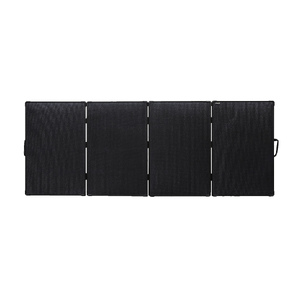

L*W*H: 2300*900*16mm (open)

ETFE surface

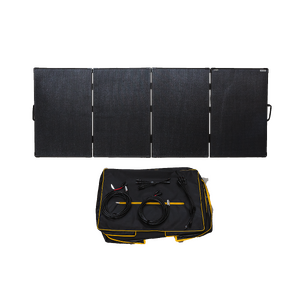

Junction box comes with 1000mm cable ends with MC4 compatible connectors

1 x MC4 4 into 1 adaptor pair

1 x MC4 2 into 1 adaptor pair

2 x MC4 to AllSpark 50A grey Anderson 5m long 8AWG cable

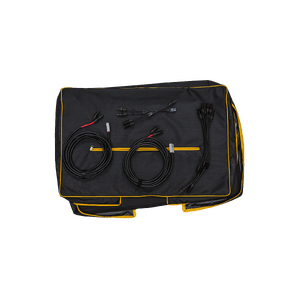

1 x padded bag - black with yellow piping and AllSpark logo



Specifications
  Single panel 4 in Parallel
into 1 x MPPT
2 in Series/2 in Parallel
into 1 x MPPT
2 in Parallel + 2 in Parallel
Split into 2 x MPPT
4 in Series
into 1 x MPPT
Maximum Power Watts (Pmax) 100W 400W 400W 200W + 200W 400W
Open-Circuit Voltage (Voc) 21.5 21.5 43 21.5 86
Voltage at Pmax (Vmp) 18.2 18.2 36.4 Voltage at Pmax (Vmp) 72.8
Short-Circuit Current (Isc) 5.8 23.3 11.6 11.6 + 11.6 5.8
Current at Pmax (Imp) 5.5 22 11 11 + 11 5.5
Cells Efficiency (%) 22 22 22 22 22
Maximum System Voltage 200V 200V 200V 200V 200V
Power Temperature Coefficient -0.38%/°C
Voltage Temperature Coefficient -0.36%/°C
Current Temperature Coefficient 0.07%/°C
Output Power Tolerance ±3%
Operating Temperature -20℃ ~ 70℃
Cell Type A Grade PERC Shingle cells 210mm
No. Cells 64 ( 4 x 16) 4 x 64
Closed Size (mm) 590 x 900 x 22.5 595 x 900 x 90
Unfolded Size (mm) 2380 x 900 x 22.5
Weight (including bag & accessories) Net weight - 15.6kg
Warranty 5 Years

Specifications

SKU AS-400SPFOLD
Brand AllSpark
Shipping Weight 19.2500kg
Shipping Width 0.970m
Shipping Height 0.160m
Shipping Length 0.680m
Shipping Cubic 0.105536000m3




FAQs

USE THE BELOW WIRING CONFIGURATIONS TO SUIT YOUR SOLAR CONTROLLERS MAXIMUM INPUT VOLTAGE





SINGLE 100W SETUP - FOR SHARING SOLAR WITH A MATE

SINGLE PANEL - PERFECT TO SHARE SOLAR WITH A MATE

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



2 X 200W SETUP - SOLAR FOR 2 SEPERATE VEHICLES - 18.2V





---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



SERIES PARALLEL - 400W - 36.4V - SUITS VICTRON/ENERDRIVE CONTROLLERS

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



SERIES HIGH VOLTAGE - 400W - 72.8V SUITS HIGH VOLTAGE CONTROLLERS



400W SERIES



Parallel - 400W - 18.2v SUITS REDARC CONTROLLERS
