Description

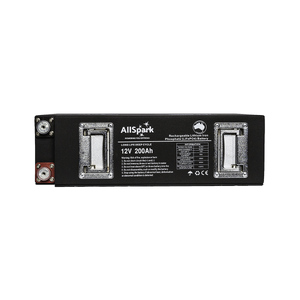

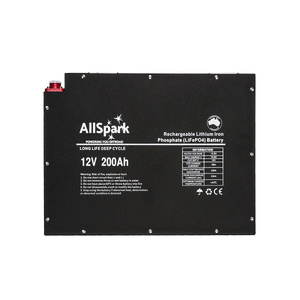

AllSpark LiFePO4 batteries have been designed and developed by Offroad Living to meet our harsh Australian conditions.

Equipped with an exclusive advanced, next generation solid state Battery Management System (BMS) that protects your battery from damage due to extremes of Current, Voltage and temperature and ensures correctly balanced cells.  Designed to handle high vibration experienced in the Aussie outback corrugations or marine environments.

FEATURES

  • Exclusive Solid state BMS designed and developed by Offroad Living
  • Highest quality premium grade prismatic cells - resistance matched, long battery life and no voltage sag
  • 400L x 120W x 300H
  • Power a 2500W Inverter from a SINGLE BATTERY - for high power devices including coffee machines, air conditioners, toasters and kettles
  • Rapid charge at 100A
  • Connect in parallel or series
  • Equivalent usable capacity to a 320ah AGM but weighs only a quarter of the weight.
  • Jump start capability up to 500A
  • Designed to handle high vibration environments
  • 5 Year Warranty

ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES ON THE AUSTRALIAN MARKET



We use only the highest quality internal components and prismatic cells, ensuring optimal balancing of each cell for maximum longevity and ultimate performance.





Equipped with an exclusive advanced, next generation solid state Battery Management System (BMS) that protects your battery from damage due to extremes of Current, Voltage and temperature and ensures correctly balanced cells.

Designed to handle high vibration experienced in the Aussie outback corrugations or marine environments.
Please note that the AllSpark slimline batteries are not waterproof.
  • Owned & run by an Aussie Family
  • Manufactured for Australian conditions





5 YEAR MANUFACTURERS REPLACEMENT WARRANTY!
30 DAY MONEY BACK GUARANTEE!

Specifications

SKU AS-20012BATLI200500SLIMG2
Barcode # 0745178224277
Brand AllSpark
Shipping Weight 21.9000kg
Shipping Width 0.540m
Shipping Height 0.240m
Shipping Length 0.365m
Shipping Cubic 0.047304000m3
RATED VOLTAGE -  12.8 VOLTS
MAX CHARGE VOLTAGE  14.6 VOLTS
CUT OFF VOLTAGE  ~10 VOLTS
RAPID CHARGE CURRENT  100A
 STANDARD CHARGE CURRENT  30A
MAX INVERTER SIZE (CONT) SINGLE BATTERY 2500W
MAX CONTINUOUS DISCHARGE  200A
PEAK DISCHARGE CURRENT  500A (5 SEC)
OPTIMUM CHARGE TEMPERATURE  <45 Deg Cel
MAXIMUM SERIES VOLTAGE  24 VOLT
MAXIMUM BATTERIES IN PARALLEL  6
DIMENSIONS  (L X W X H )  400X120X300
WEIGHT (KG)  21

Download

BROCHURE
