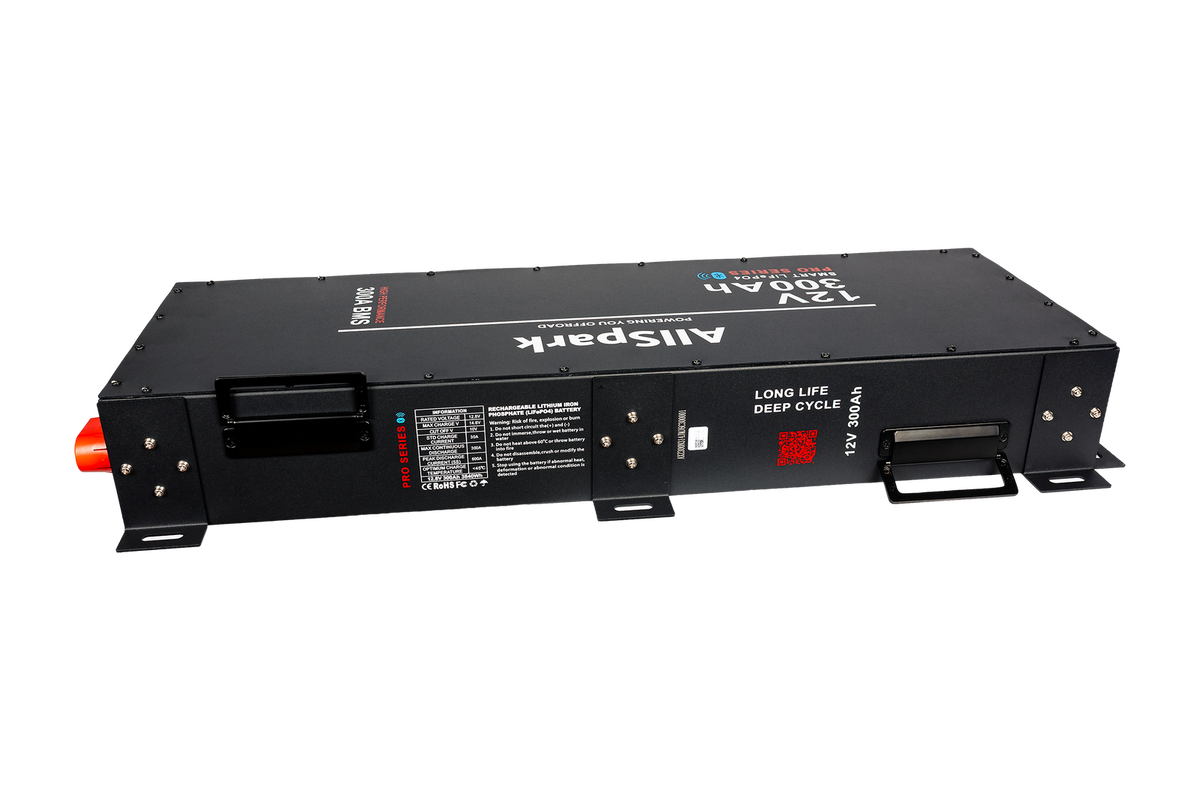

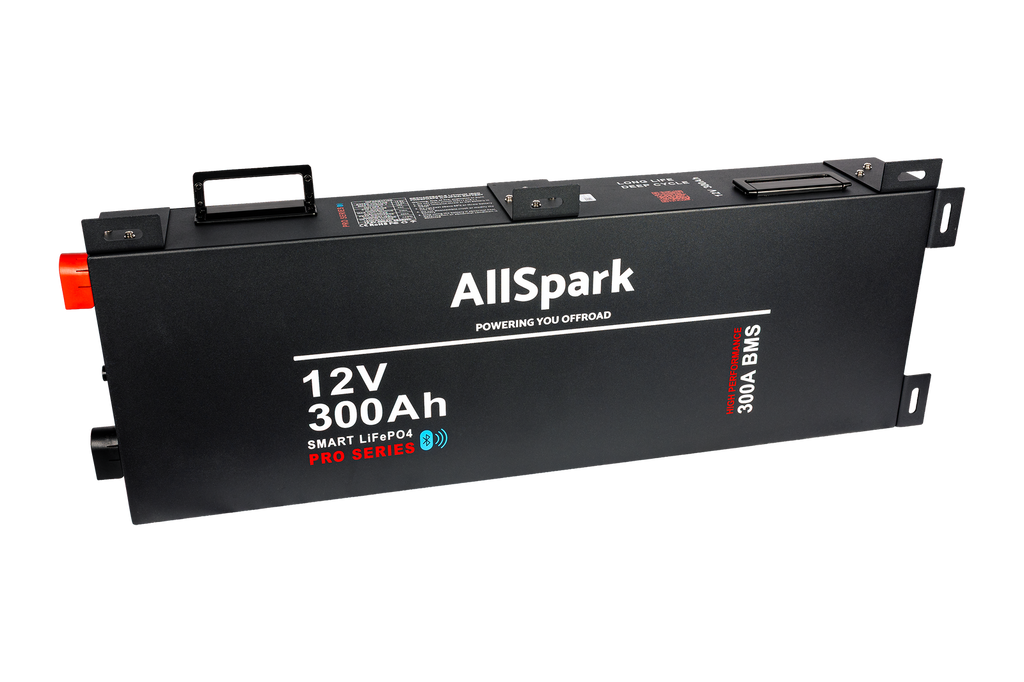

Name: 300Ah Ultraslim Lithium battery with Bluetooth AllSpark - Pro-series 12V
Brand: AllSpark
SKU: AS-30012LIUSLBT
Price: 2999.00 AUD
Availability: InStock

300Ah Ultraslim Lithium battery with Bluetooth AllSpark - Pro-series 12V

$2,999.00

$2,999.00 $0.00

Frequently Bought Together:

REDARC BCDC ALPHA 50A BATTERY CHARGER IP67/69K

$849.00

300Ah Ultraslim Lithium battery with Bluetooth AllSpark - Pro-series 12V

SKU CODE: AS-30012LIUSLBT

In Stock

$2,999.00

$2,999.00 $0.00

REVOLUTIONIZE YOUR POWER MANAGEMENT WITH BLUETOOTH TECHNOLOGY

Advanced cell technology with compact cells and casing
Bluetooth Integration
Tapped connection point for external venting
High Current Output - 300A Continuous
Advanced BMS
Ultra Slimline Aluminum Case
Prismatic Cells
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Description

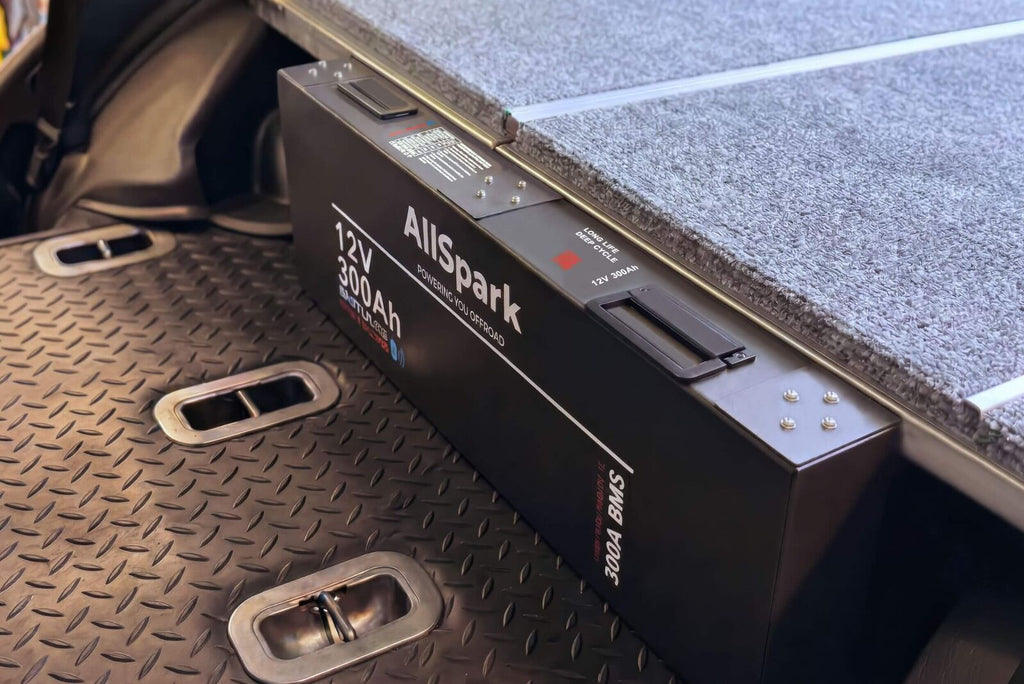

BIG POWER, SLIM FIT, COMPLIANT INSTALL - 300AH ULTRA SLIM LITHIUM BATTERY BY ALLSPARK

The AllSpark 12V 300Ah Ultra Slim is a high-capacity LiFePO4 battery for serious off-grid users. A massive 300Ah of power housed in a slim profile that fits along the side of canopy drawers, under a bench seat, or beside a fridge. And a built-in vent that meets AS/NZS 3001.2:2022 for safe installation inside the living area of a caravan, motorhome or camper.

Brand-new A-Grade prismatic cells, a solid-state BMS, integrated Bluetooth monitoring, and a vent that makes for easy installation - all fully IEC 62619 certified with a 7-year full replacement warranty.

Designed, developed and tested in Australia by Offroad Living.

Warranty

7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

Bluetooth Integration: Connect to a smart device to monitor performance, track usage data, and receive alerts.

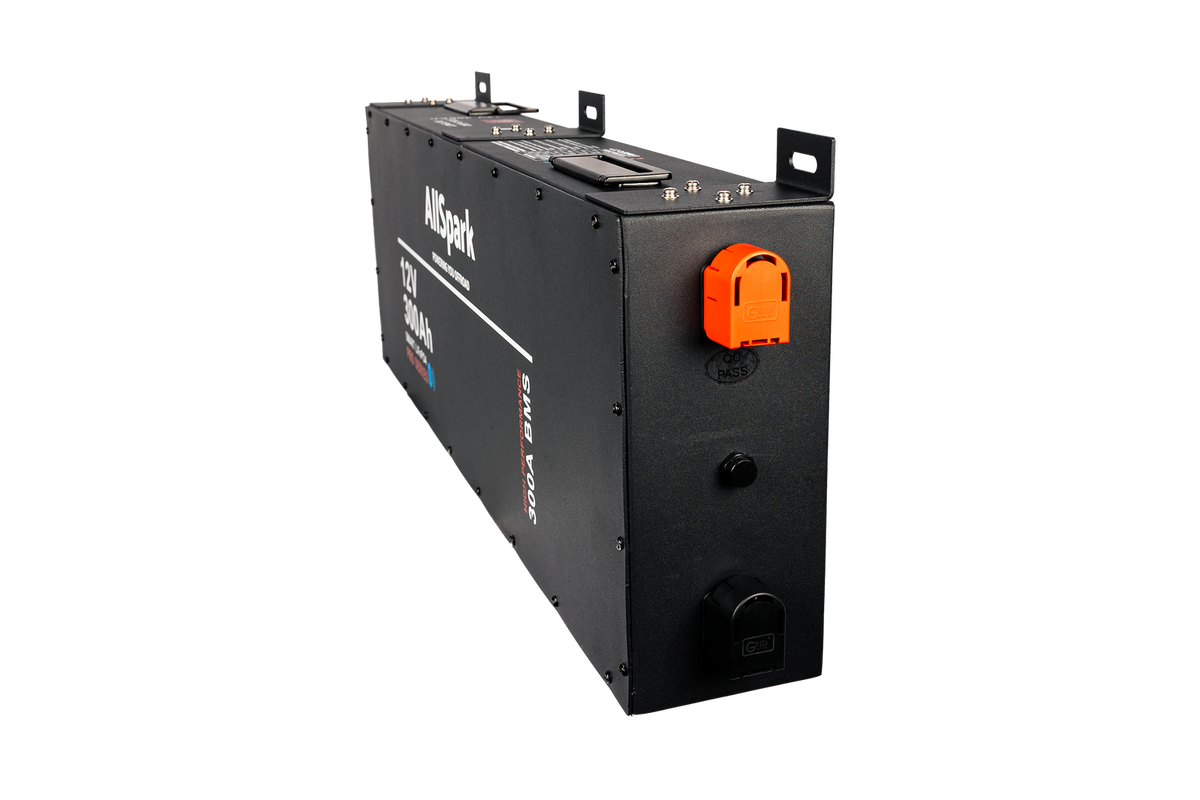

Side Terminals & integrated vent
High Current Output: Provides 300 Amps continuous and 600 Amps peak for high-demand applications.
Advanced BMS: Offers comprehensive protections ensuring unmatched reliability and long lifespan.
Slimline Aluminum Case: Features a durable, easy-to-install design suitable for rugged conditions.
Prismatic Cells: Guarantees superior performance and longevity.
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Specifications

SKU	AS-10012LTUSBT	AS-12100SLIMBT	AS-12150SLIMBT	AS-12200SLIMBT	AS-30012LISLBT	AS-30012LIUSLBT
Battery Level Specifications
Capacity Amp Hours (C5)	100		150	200	300
Watt Hours	1,280		1,920	2,560	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	100		150	200	300
Recommended Charge Current (A)*	30–50			50	100
Charge Profile	CC/CV
Max Inverter Size (W — per single battery)	2,500				3,000
Max Continuous Discharge (A)	200				300
Peak Discharge — 5 secs (A)	500				600
Charge Cycles¹ (residual capacity ≥85%) @ 80% Depth of Discharge @ 60% Depth of Discharge @ 40% Depth of Discharge	> 3,200+¹ > 4,200+ > 5,000+
Optimum Charge Temperature (°C)	< 45
Operating Temperature Range (°C)	-20 to +60
Storage Temperature Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	635 x 60 x 260	400 x 120 x 200	400 x 120 x 250	400 x 120 x 300	400 x 160 x 300	767 x 112 x 260
Case Material	Ultraslim Aluminium	Slimline Aluminium				Ultraslim Aluminium
Weight (kg)	13	12	18	21	31	31
IP Rating	NOT WATERPROOF — INTERNAL USE ONLY
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Cell Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET Protection)	≤20mΩ

Notes* Recommended charge current for best cell longevity. ¹ Cycle life independently laboratory tested at 0.2C₅ discharge rate and 0.2C charge rate up to 5,000 cycles at a controlled temperature of 25°C. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3,000 cycles. In real-world conditions, users will experience a range of temperature, current and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

SKUAS-10012LTUSBT

Battery Level Specifications
Capacity Amp Hours (C5)	100
Watt Hours	1,280
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	100
Recommended Charge Current (A)*	30–50
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 5 secs (A)	500
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	635 x 60 x 260
Case Material	Ultraslim Aluminium
Weight (kg)	13
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-12100SLIMBT

Battery Level Specifications
Capacity Amp Hours (C5)	100
Watt Hours	1,280
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	100
Recommended Charge Current (A)*	30–50
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 5 secs (A)	500
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	400 x 120 x 200
Case Material	Slimline Aluminium
Weight (kg)	12
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-12150SLIMBT

Battery Level Specifications
Capacity Amp Hours (C5)	150
Watt Hours	1,920
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	150
Recommended Charge Current (A)*	30–50
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 5 secs (A)	500
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	400 x 120 x 250
Case Material	Slimline Aluminium
Weight (kg)	18
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-12200SLIMBT

Battery Level Specifications
Capacity Amp Hours (C5)	200
Watt Hours	2,560
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	200
Recommended Charge Current (A)*	50
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 5 secs (A)	500
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	400 x 120 x 300
Case Material	Slimline Aluminium
Weight (kg)	21
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-30012LISLBT

Battery Level Specifications
Capacity Amp Hours (C5)	300
Watt Hours	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	300
Recommended Charge Current (A)*	100
Charge Profile	CC/CV
Max Inverter Size (W)	3,000
Max Continuous Discharge (A)	300
Peak Discharge — 5 secs (A)	600
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	400 x 160 x 300
Case Material	Slimline Aluminium
Weight (kg)	31
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

SKUAS-30012LIUSLBT

Battery Level Specifications
Capacity Amp Hours (C5)	300
Watt Hours	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) 30 mins (A)	300
Recommended Charge Current (A)*	100
Charge Profile	CC/CV
Max Inverter Size (W)	3,000
Max Continuous Discharge (A)	300
Peak Discharge — 5 secs (A)	600
Charge Cycles¹ ≥85% capacity @ 80% DoD	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	-20 to +60
Storage Temp Range (°C)	-40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Dimensions incl. Handles (mm)	767 x 112 x 260
Case Material	Ultraslim Aluminium
Weight (kg)	31
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target (V)	3.65 ± 0.025
Cell Balance Current (mA)	35 ± 5
Over Discharge LV Protection (V)	2.5 ± 0.025
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ± 0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ± 0.0625
Over Charge Release	Auto Below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (μS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

⚠ Not waterproof — internal use only

Downloads

Android App on Google Play Store

Apple App on Apple App Store

IEC 62619 Certification

FAQS

Q: Is this battery certifed for use in Caravans?

A: Yes - AllSpark batteries are not only compliant, but are actually "Tested" and "Certified" for compliance with IEC 62616 standards (see downloads for certificate). Many sellers of LiFePO4 batteries in Australia claim to be "compliant" with the IEC 62616 standards, but have never actually had them tested or hold any certification for this compliance. Self claiming compliance with a standard without 3rd party certification is not only misleading, but is fraudulant advertising practices.

Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.

Q: Can I install my AllSpark Slimline Battery on it's side?

A: Yes - you can install all AllSpark slimlines batteries on their side.

Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 0% (10.5V or less), it will enter Low voltage protection mode. This will disconnect all loads and the battery and terminal voltage will show as 0-3V. When in LV protection mode, the BMS disconnects power to the battery terminals. To release it you simply open the AllSpark Bluetooth App on your smart device, turn the discharge function back to ON and let your charger take over. Most other brands need a "jump start" or external charger input or parallel connection to wake it up. AllSpark Lithium batteries are much smarter and simpler to wake up for charging. Note: if you don't have a charge source ready, it will go back to sleep again after a short time to protect the cells until you are ready to re-charge.

Q: Will a 300Ah lithium battery run my fridge overnight?

A: Yes - and that’s exactly what it’s designed for, running fridges and appliances confidently so you don't have to think about power. One of the most common off-grid failure stories in Australia is “fridge + overnight = flat battery” . With 300Ah of usable LiFePO4 capacity, this battery is built to comfortably run large 12V fridges, plus LED lighting and device charging, without waking up to a low-voltage scramble.

Q: Can a single 300Ah battery run a 3000W inverter?

A: Yes - this 300Ah lithium battery delivers 300A continuous output (600A peak), allowing it to run a 12V 3000W inverter. That means induction cooktops, kettles, air fryers, coffee machines and even caravan air conditioners are realistic loads — not “wishful thinking” loads. Multiple appliances can be run together as long as total draw stays within inverter limits.

Q: Do I need a DC/DC charger with a 300Ah lithium battery?

A: We always recommend using a DCDC charger. DCDC chargers help keep your batteries topped up whilst driving, which is especially important when the sun isn't shining.

Q: Is lithium safe in caravans and 4WD setups?

A: Yes - LiFePO4 batteries are a very different chemistry than those lithium batteries you see causing fires and spontaneously combusting. The are designed with multiple protection systems and are not capable of thermal runaway - meaning, they will burn (just as an AGM, Calcium, Lead Acid etc), but they aren't capable of starting a chain reaction themselves. As with any electrical system, correct installation and charging practices are critical, because it won't be the lithium battery that starts a fire, it'll be the dodgy wiring, cheap circuit protection or loose connections.
