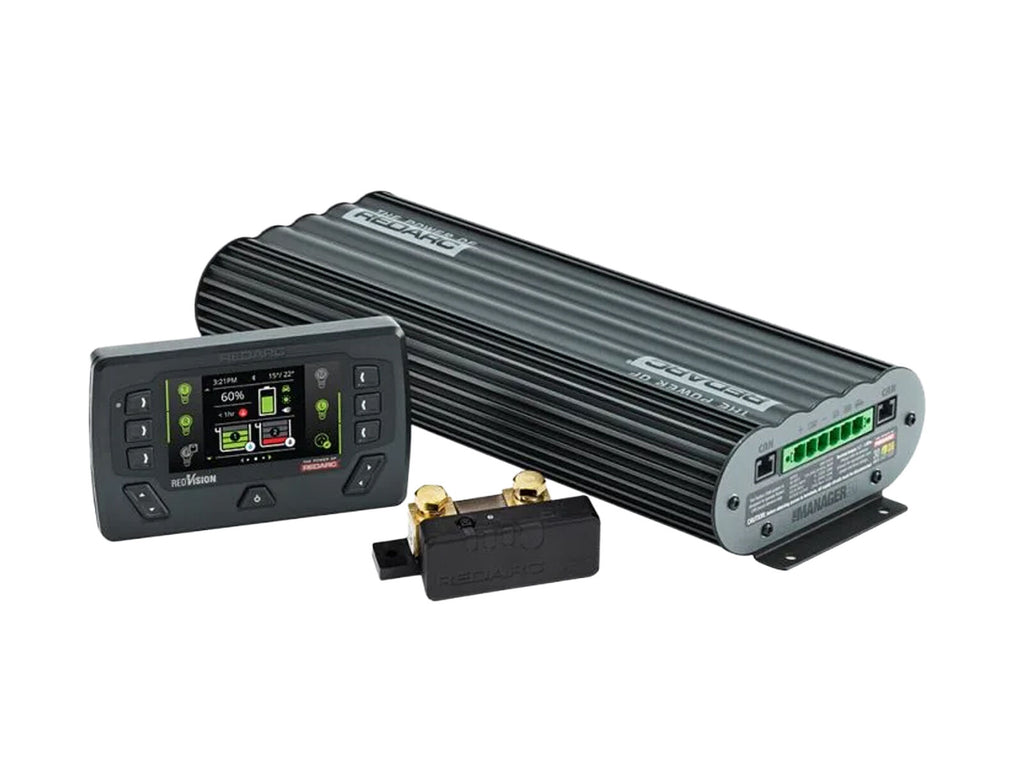

Redarc Manager 30 - BMS1230S4R with REDVISION display

ALL-IN-ONE COMPLETE BATTERY MANAGEMENT SYSTEM

REDARC’s Manager30 Battery Management System is the complete battery management system that’s in control and knows how to keep secondary batteries fully charged.

The Manager30 operates like six separate products in one, it charges an auxiliary battery from the vehicle while on the move, it’s a 240V charger, a solar regulator, battery isolator and load disconnect controller, all with remote monitoring through the RedVision screen or app.

Whether you’re charging lead acid, gel, calcium, AGM or lithium (LiFePO4) batteries, the Manager30 represents a complete DC to DC charging and battery maintenance solution. If you’re charging one auxiliary battery or more, the Manager30 will ensure they’re always fully charged, providing peace of mind when you’re on the road.

Developed with ease of installation in mind, the Manager30 is compatible with all vehicles and alternator systems, including variable voltage alternators.

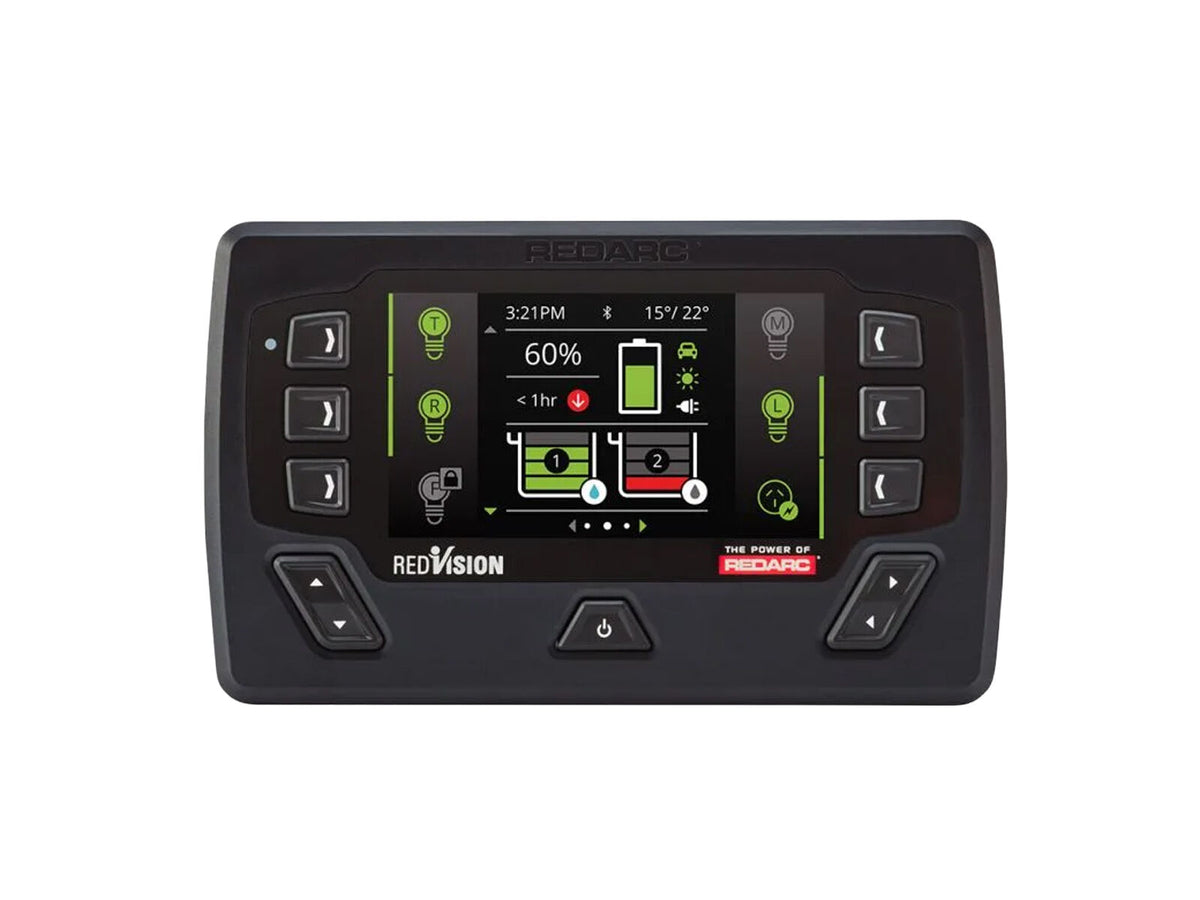

REDVISION MONITOR

REDARC’s Manager30 comes with the RedVision display designed to show live battery information, charge status and critical system information while charging is in progress.

With this display, you can customise charging settings and monitor the power source in real time, keeping you in full control.

The display can be surface mounted on a wall or recessed (into the dashboard of a vehicle for example). The display also allows a Bluetooth connection to your smartphone via the RedVision App, which provides the same data and control available on the display all in the palm of your hand.

BATTERY MONITORING

The Manager30 now includes REDARC’s Smart Battery Monitor, so you can leave your power worries behind and focus on what matters.

With unrivalled accuracy, Bluetooth connectivity range and easy monitoring, the Smart Battery Monitor can be trusted to give you the right information, wherever your adventure takes you.

CHARGING LITHIUM BATTERIES

While lithium batteries (LiFePO4) are becoming a popular choice due to their improved storage capacity relative to size and weight, they do require specific charging conditions in order to operate correctly and the battery must have an in-built cell management system. REDARC have designed a charging profile within The Manager30 to complement these in-built systems making it perfect for pairing with ALLSPARK LITHIUM BATTERIES.

GREEN POWER PRIORITY

The Manager30 is designed to charge secondary batteries from multiple sources simultaneously. With REDARC’s Green Power Priority™ built-in, the Manager30 will prioritise solar input when available, minimising the load on your alternator and saving fuel. This means your gear can run without skipping a beat whether you’re driving down the highway, parked up at camping or soaking up the sun.

The Manager30’s built-in Maximum Power Point Tracking (MPPT) solar regulator allows the Manager to deliver the maximum amount of solar power from portable solar panels, even during low light conditions.

FEATURES

• Multi-Stage AC-DC Battery Charger
• Multi-Stage DC to DC Charger
• Maximum Power Point Tracking Solar Regulator
• 4.3” coloured RedVision display
• Smartphone monitoring via Bluetooth 5.1 technology
• Dual Battery Isolator
• Load Disconnect Controller
• Super quiet operation
• Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
• Tested to mains power safety standards in Australia

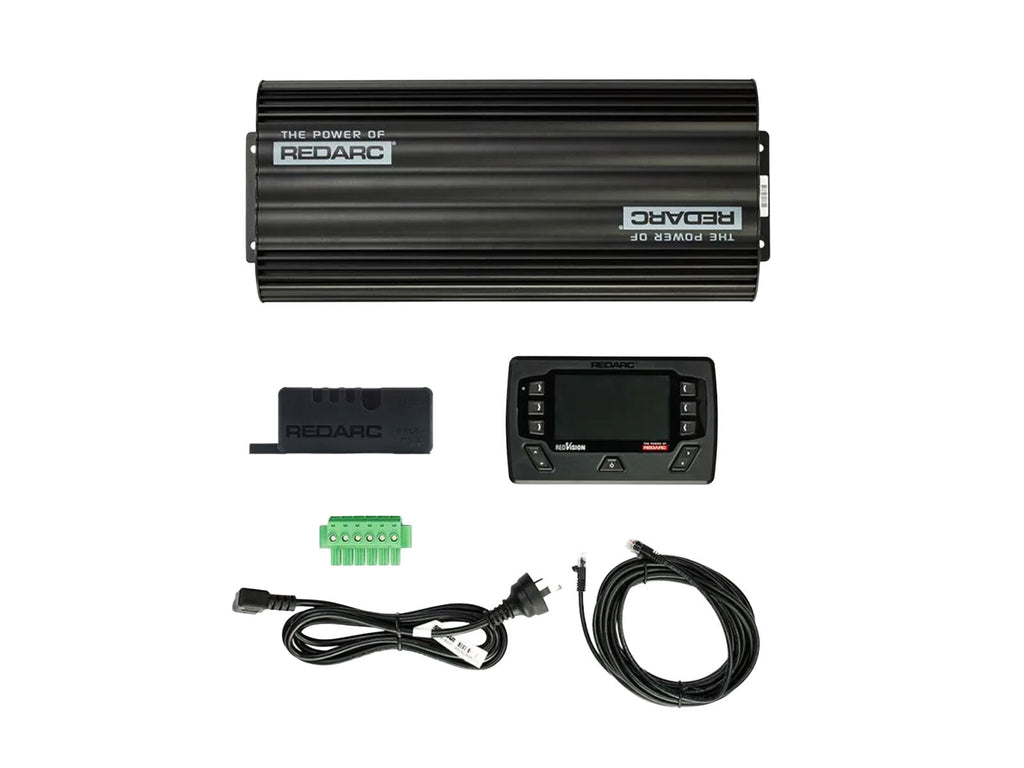

WHATS IN THE BOX

• 1 x Redarc Manager 30 - BMS1230S4R-AU with REDVISION display
