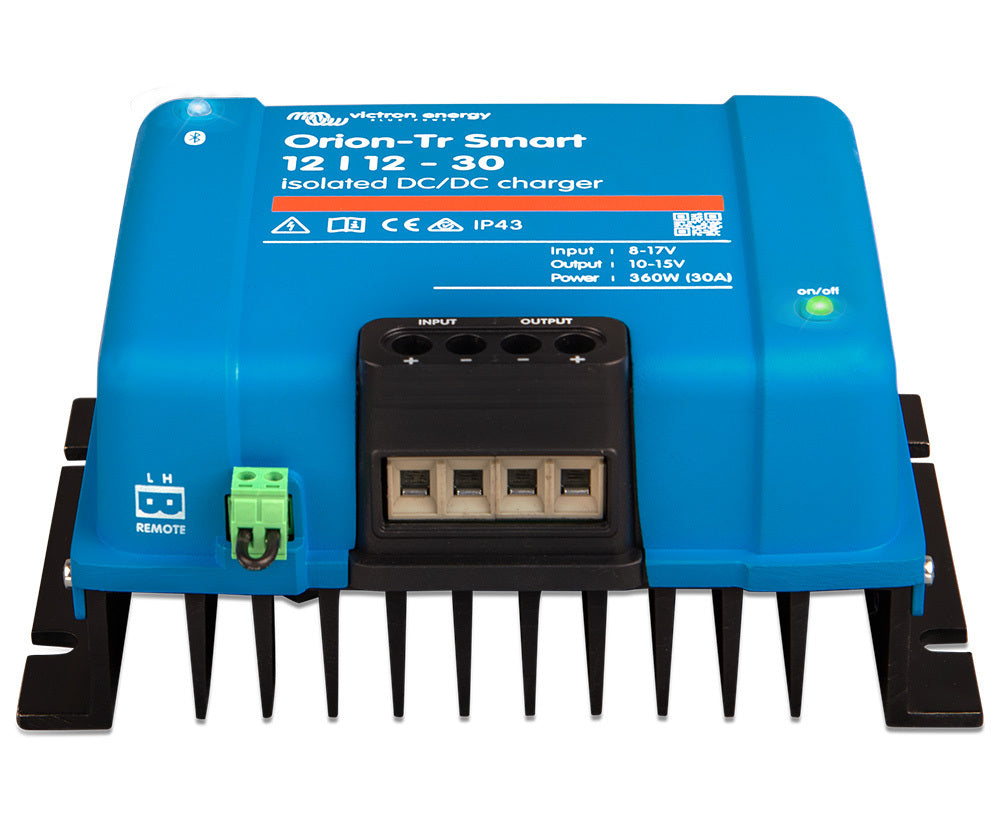

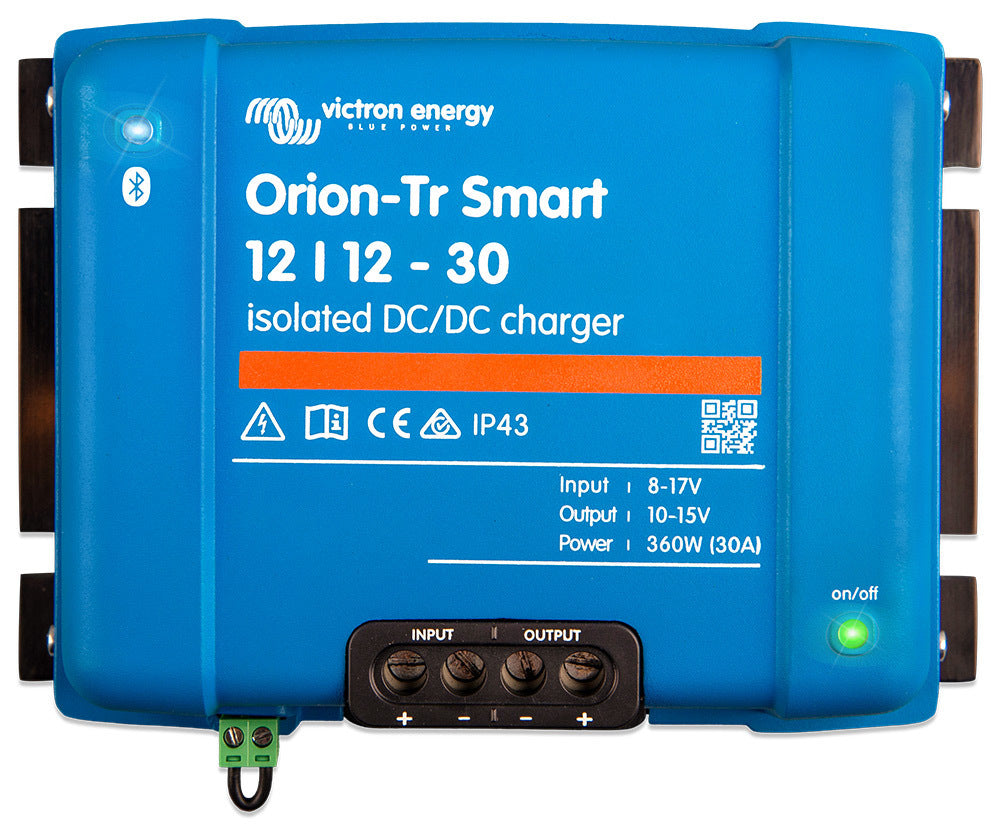

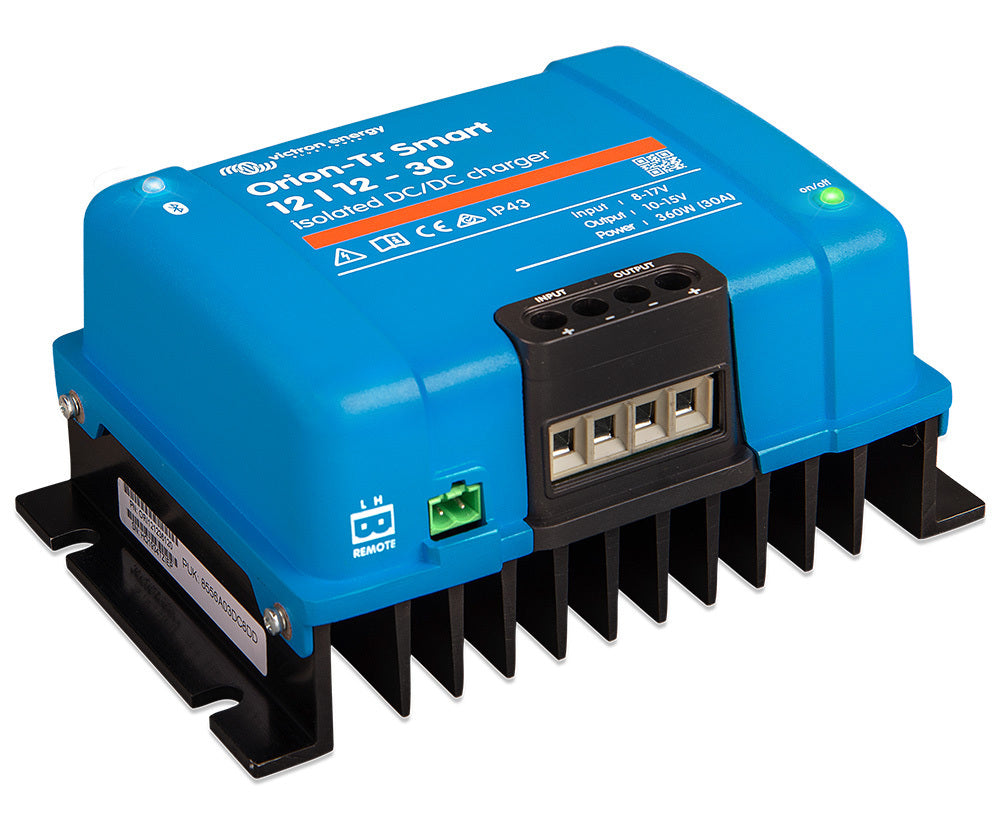

Victron Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger

$315.00

$315.00 $0.00

Victron Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger

Name: Victron Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC charger
Brand: Victron
SKU: ORI121236120
Price: 315.00 AUD
Availability: InStock

SKU CODE: ORI121236120

Pre-Order

$315.00

$315.00 $0.00

ADVANCED CHARGING SOLUTION FOR SMART VEHICLES

Bluetooth Enabled
Adaptive Charging
Smart Alternator Compatibility
High Temperature Protection

Description

ADVANCED CHARGING SOLUTION FOR SMART VEHICLES

Elevate your vehicle's power management with the Victron Orion-Tr Smart 12/12-30A isolated DC-DC charger. Ideal for modern vehicles with Euro 5 and Euro 6 smart alternators, this charger ensures a controlled and complete battery charge, enhancing the performance of both service and starter batteries. With built-in Bluetooth connectivity, you can seamlessly monitor and adjust settings via the VictronConnect app, ensuring optimal performance with ease.

Engineered for precision, the Orion-Tr Smart charger features a configurable 3-stage charge algorithm and smart alternator compatibility, offering adaptive charging for both lead-acid and lithium batteries. Whether navigating through rugged terrains or cruising on smooth highways, remain confident that your vehicle's batteries are protected and fully charged.

BLUETOOTH ENABLED

Effortlessly monitor and configure your DC-DC charger with the VictronConnect app. This feature provides real-time access to data, warnings, and firmware updates—all from your smartphone or tablet.

ADAPTIVE CHARGING

Experience intelligent charging with the adaptive 3-stage charge algorithm, which adjusts based on battery type and discharge levels. This ensures maximum efficiency and battery longevity for both deep and shallow discharges.

SMART ALTERNATOR COMPATIBILITY

Designed for Euro 5 and Euro 6 engines, this charger detects engine activity to prevent unwanted battery discharge. It offers precise control with adjustable battery settings.

HIGH TEMPERATURE PROTECTION

The charger automatically reduces output current at elevated temperatures, protecting your system from overheating and ensuring continuous, reliable performance.

WHAT'S IN THE BOX

1 x Victron Orion-Tr Smart 12/12-30A (360W) Isolated DC-DC Charger
Preassembled DC connection cables

Warranty

5 YEAR MANUFACTURERS WARRANTY

Features

Bluetooth Enabled: Easily manage settings and updates via the VictronConnect app.
Adaptive Charging: Efficient 3-stage algorithm tailored for lead-acid and lithium batteries.
Smart Alternator Compatibility: Protects against unwanted discharge in modern vehicles.
High Temperature Protection: Automatically reduces output to prevent overheating

Specifications

PRODUCT SPECIFICATIONS - VICTRON ORION DCDC ISOLATED

MODEL		Victron Orion-Tr Smart 12/12-30A (360W) Isolated
Input voltage range		10-17 V
Under voltage shut down		7 V
Under voltage restart		7.5V
Nominal output voltage		12.2V
Output voltage adjust range		10-15 V
Output voltage tolerance		+/- 0.2 V
Output noise		2 mV rms
Cont. output current at nominal output voltage and 40 °C		30A
Max. output current (10 s) at nominal output voltage minus 20 %		40A
Short circuit output current		60A
Cont. output power at 25 °C		430W
Cont. output power at 40 °C		360W
Efficiency		87%
No load input current		< 80 mA
Standby current		Less than 1 mA
Can be used as power supply		Yes, output voltage can be set with Bluetooth
Galvanic isolation		200 VDC between input, output and case
Operating temperature range		-20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity		Max. 95 % non-condensing
DC connection		Screw terminals
Maximum cable cross-section		16 mm² (AWG6)
Weight		12 V input and/or 12 V output models: 1,8 kg (3 lb) Other models: 1,6 kg (3.5 lb)
Dimensions (HxWxD)		130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
Protection category		IP43 (electronic components), IP22 (connection area)
Standards	Safety	EN 60950
	Emission / Immunity	EN 61000-6-3, EN 55014-1
	Immunity	EN 61000-6-2, EN 61000-6-1, EN 55014-2
	Automotive Directive	ECE R10-5
1) If set to nominal or lower than nominal, the output voltage will remain stable within the specified input voltage range (buck-boost function). If the output voltage is set higher than nominal by a certain percentage, the minimum input voltage at which the output voltage remains stable (does not decrease) increases by the same percentage. Note 1: The VictronConnect App will not display current in or current out. Note 2: The Orion-Tr Smart is not equipped with a VE.Direct port.

FAQS

Q: What size cable and circuit breaker do I need for installation?

A: You will need a 40A and 50A Circuit Breaker or Fuses for installation, along with between 2B&S and 6B&S sized cable, depending on the length required. Please see the table over here to see the recommended size for different cable lengths.
