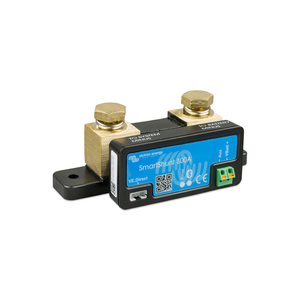

Victron Smart Shunt 300A with Bluetooth

$119.00

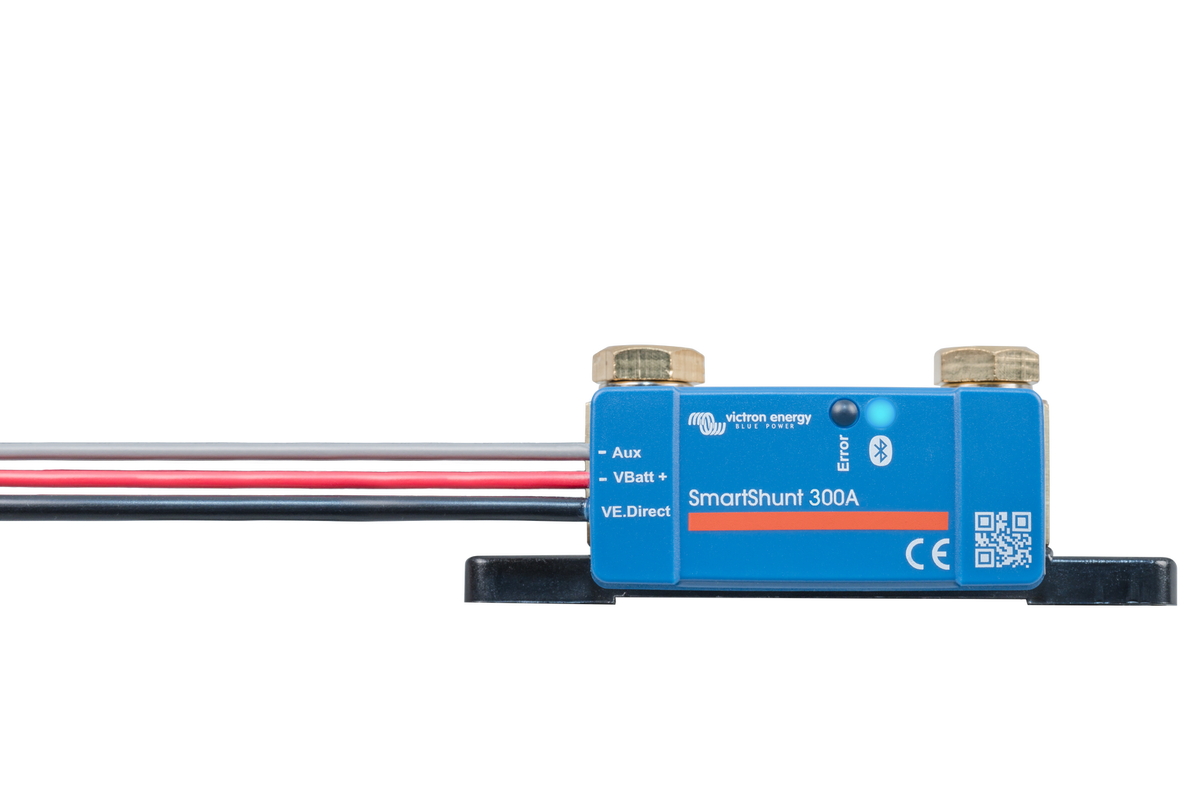

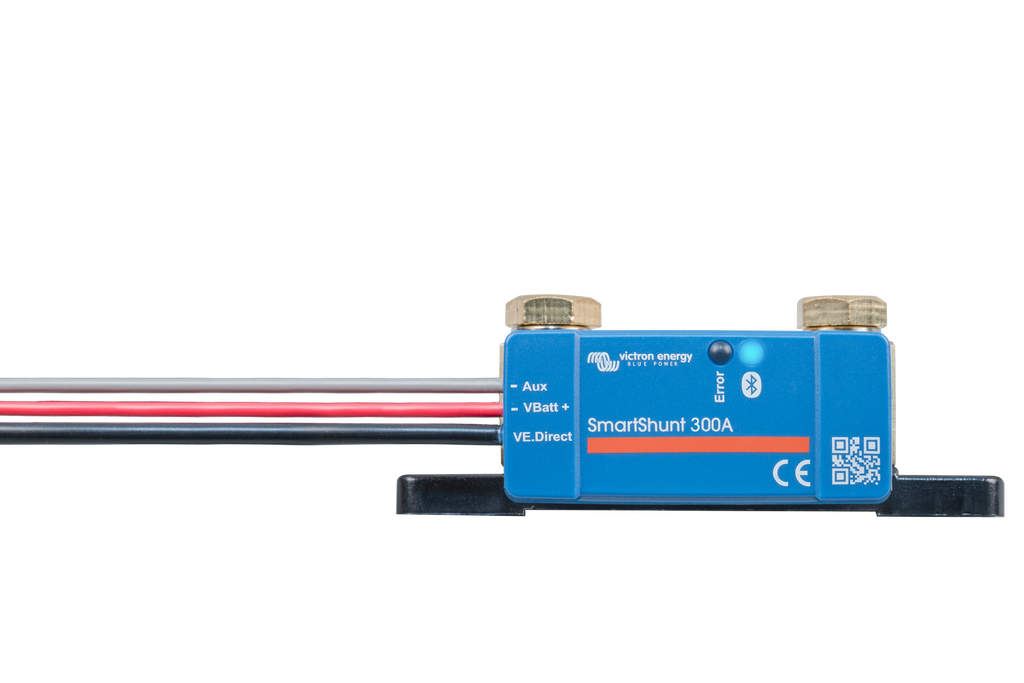

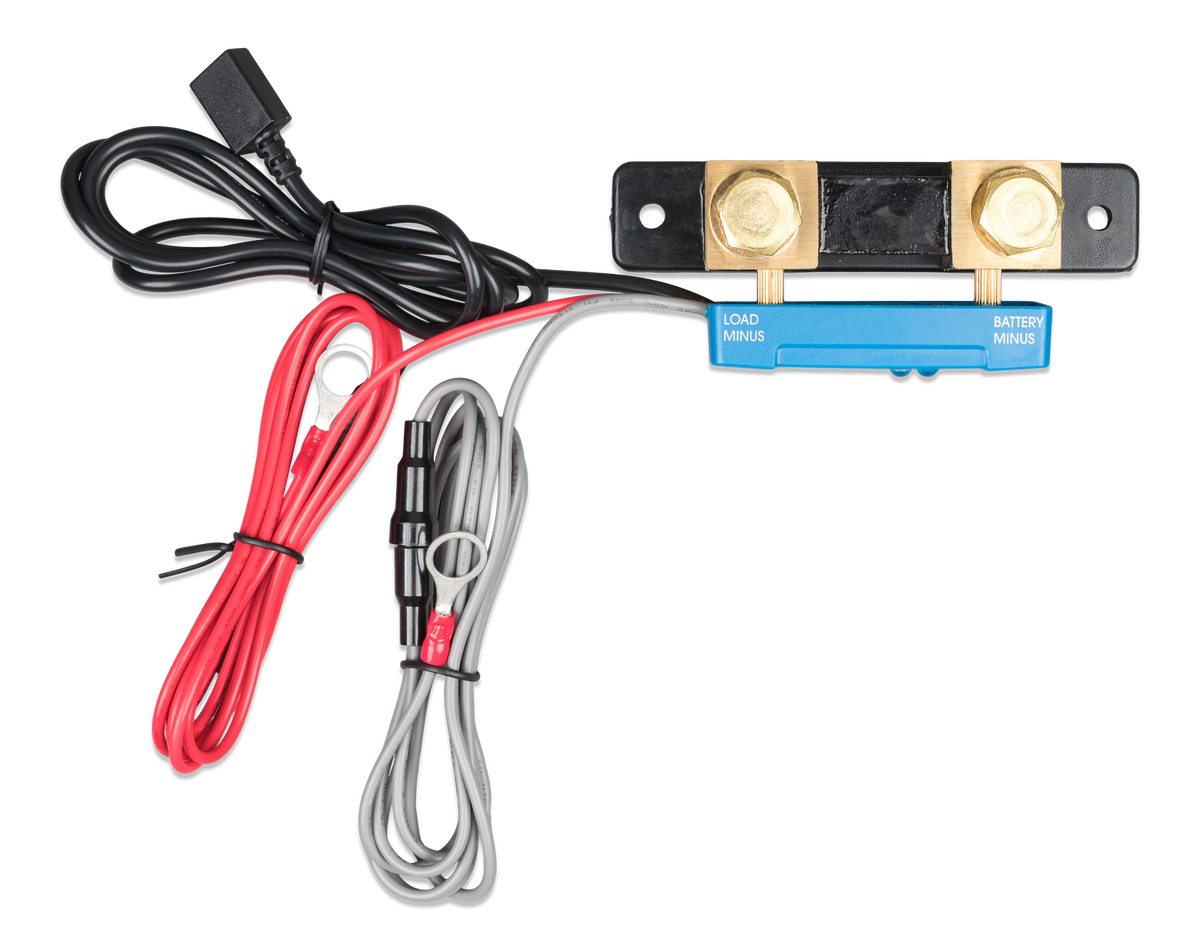

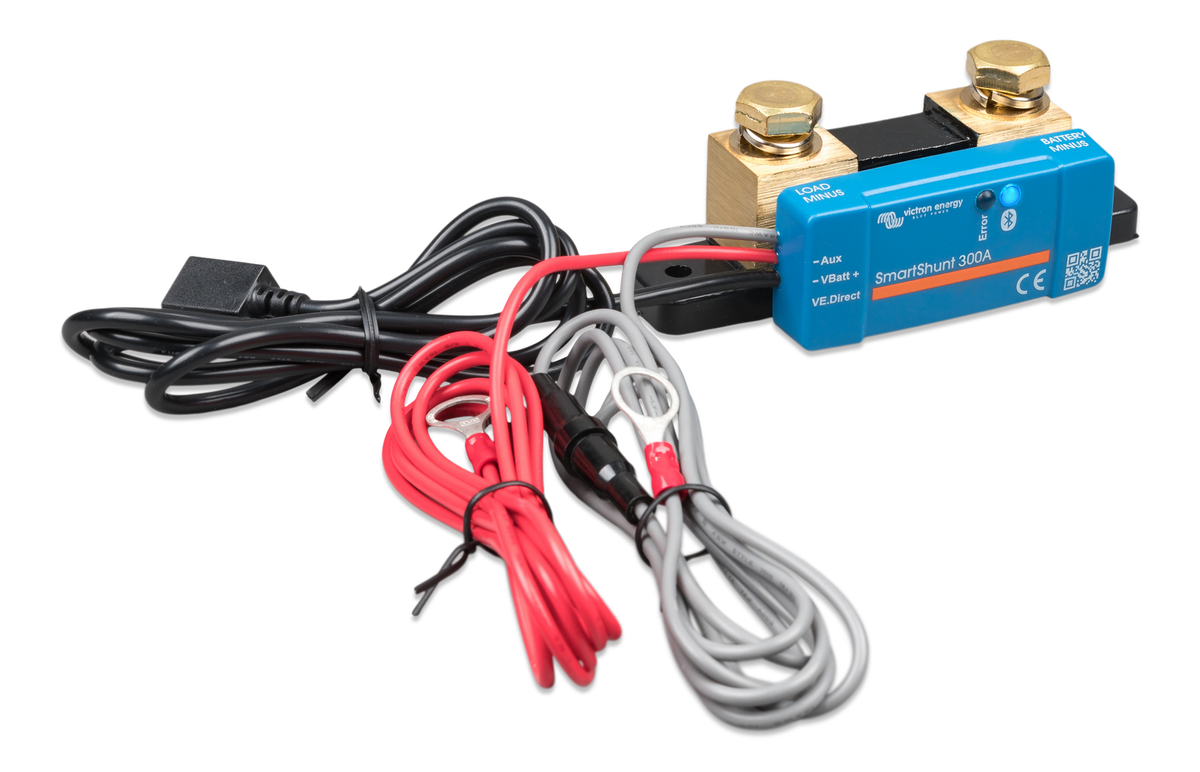

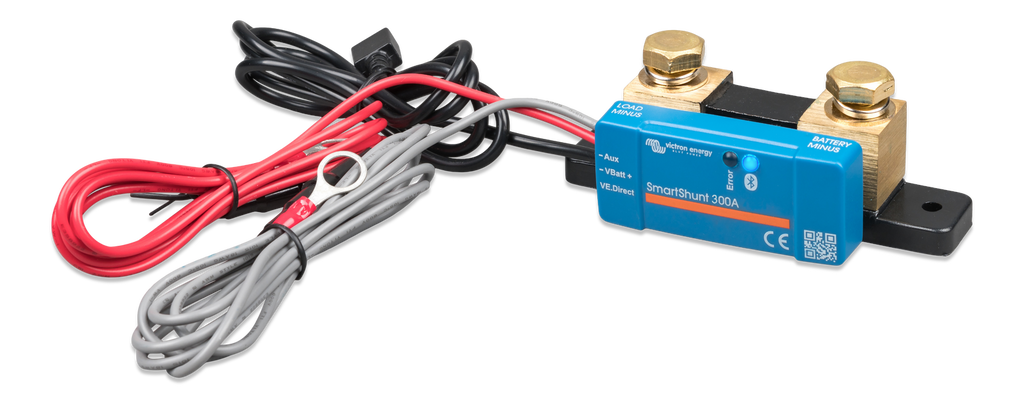

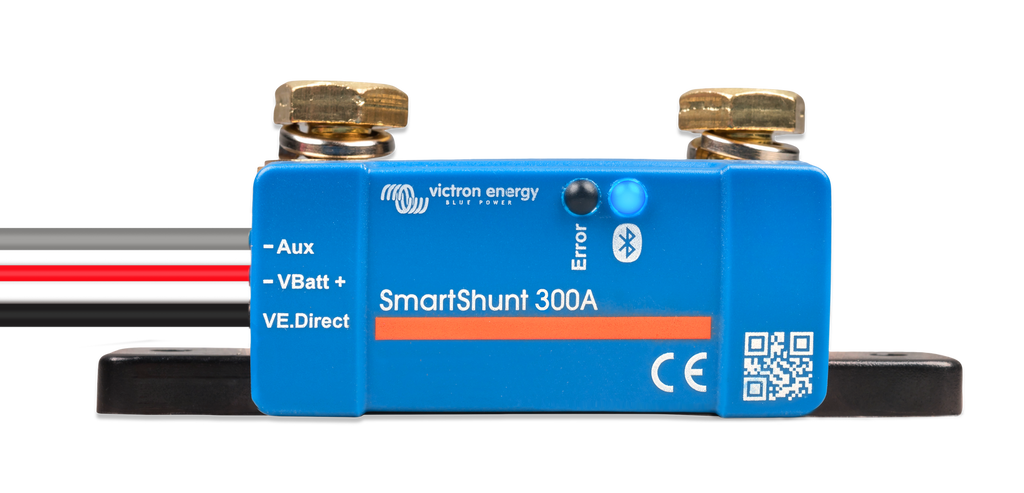

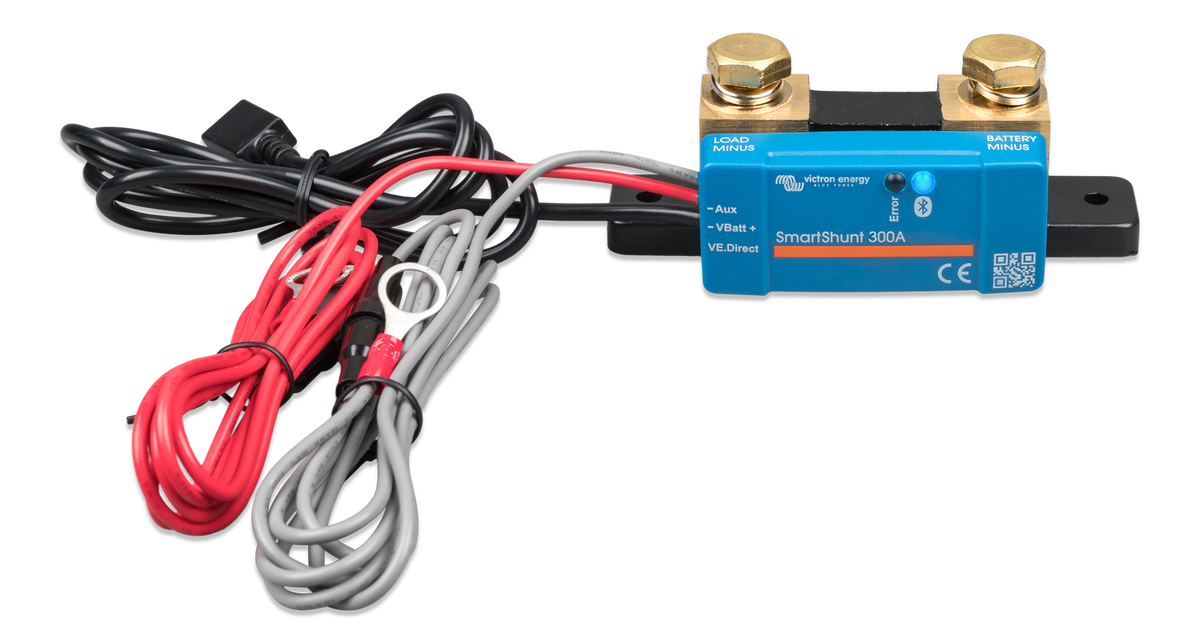

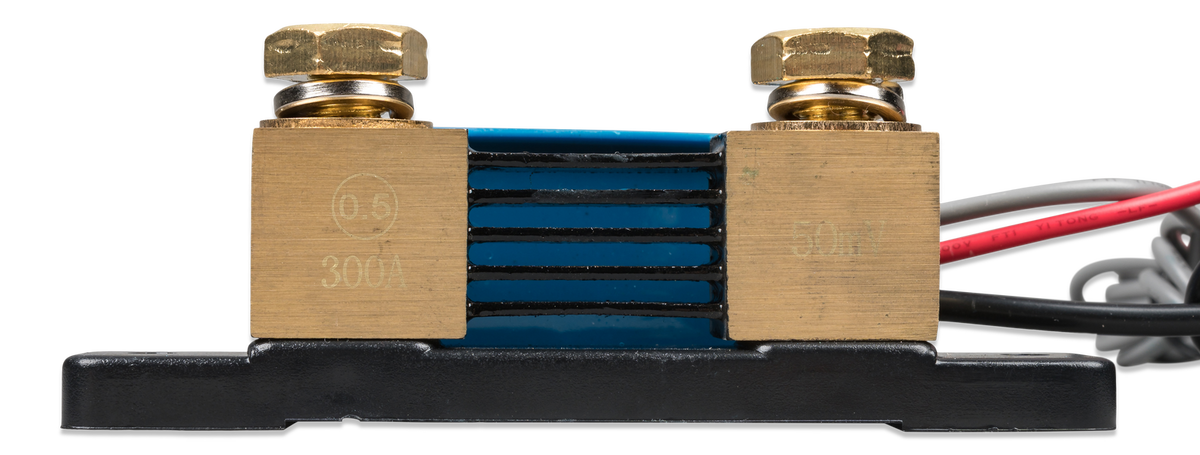

Victron Smart Shunt 300A Battery Monitor with Bluetooth IP65 Waterproof

Name: Victron Smart Shunt 300A Battery Monitor with Bluetooth IP65 Waterproof
Brand: Victron
SKU: SHU065130050
Price: 119.00 AUD
Availability: InStock

SKU CODE: SHU065130050

Pre-Order

$119.00

$119.00 $0.00

ALL IN ONE, WATERPROOF BLUETOOTH BATTERY MONITOR

Bluetooth compatible
IP65 Waterproof
View historical data
Monitor your battery
GX Device compatible via a DE direct cable

Description

ALL IN ONE, WATERPROOF BLUETOOTH BATTERY MONITOR

The Victron IP65 300A SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display.

The IP65 SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

WHATS IN THE BOX

1 x Victron Smart Shunt 300A IP65 Battery Monitor

Features

Bluetooth compatible - monitor via your smart device using VictronConnect
IP65 Waterproof - able to be installed externally
View historical data - kept for up to 45 days
Monitor your battery - measures battery voltage and current, calculates state of charge and time to go
GX Device compatible via a DE direct cable

Specifications

PRODUCT SPECIFICATIONS - VICTRON SMART SHUNTS

SKU	M.VIC-BMVSH500	M.VIC-BMVSH1000	VIC-IP65SS
Supply voltage range (VDC)	6.5 - 70
Current Draw	<1mA
Input voltage range, auxillary battery (VDC)	6.5 - 70
Battery capacity (Ah)	1 - 9999
Operating Temperature Range (^oC)	-40 to 50
Measures coltage of second battery, or temperature, or midpoint	Yes
Temperature measurement range (^oC)	-20 to 50
VE. Direct communication Port	Yes
Resolution and Accuracy
Current (A)	±0.01
Voltage (V)	±0.01
Amp hours (Ah)	±0.01
State of charge (0-100%) (%)	±0.01
Time to go (min)	±1
Temperature (if optional temperature sensor connected) (^oC)	±1 (0-50)
Accuracy of current measurement (%)	±0.4
Offset (mA)	Less than 20	Less than 40	Less than 20
Accuracy of voltage measurement (%)	±0.3
Dimensions (H x W x D mm)	46 x 120 x 54	68 x 168 x 75	46 x 120 x 54
Shunt connection bolts	M10
Protection category	IP21		IP65
Stored Trends
Data Stored	Battery voltage, current, state of charge % as well as the Aux input (Battery temperature, or midpoint deviation, or starter battery voltage)
Number of days trends data is stored	46

Downloads

Product data sheet Battery Settings

FAQS

Q: What settings do I need for a lithium battery?

A: The "Battery Capacity" section is variable depending on what size battery you have, but all other settings should be as displayed in the settings sheet in the downloads section, unless advised otherwise.

If you have any questions about the setup or need help with the app, please give us a call on 08 6205 6868.
