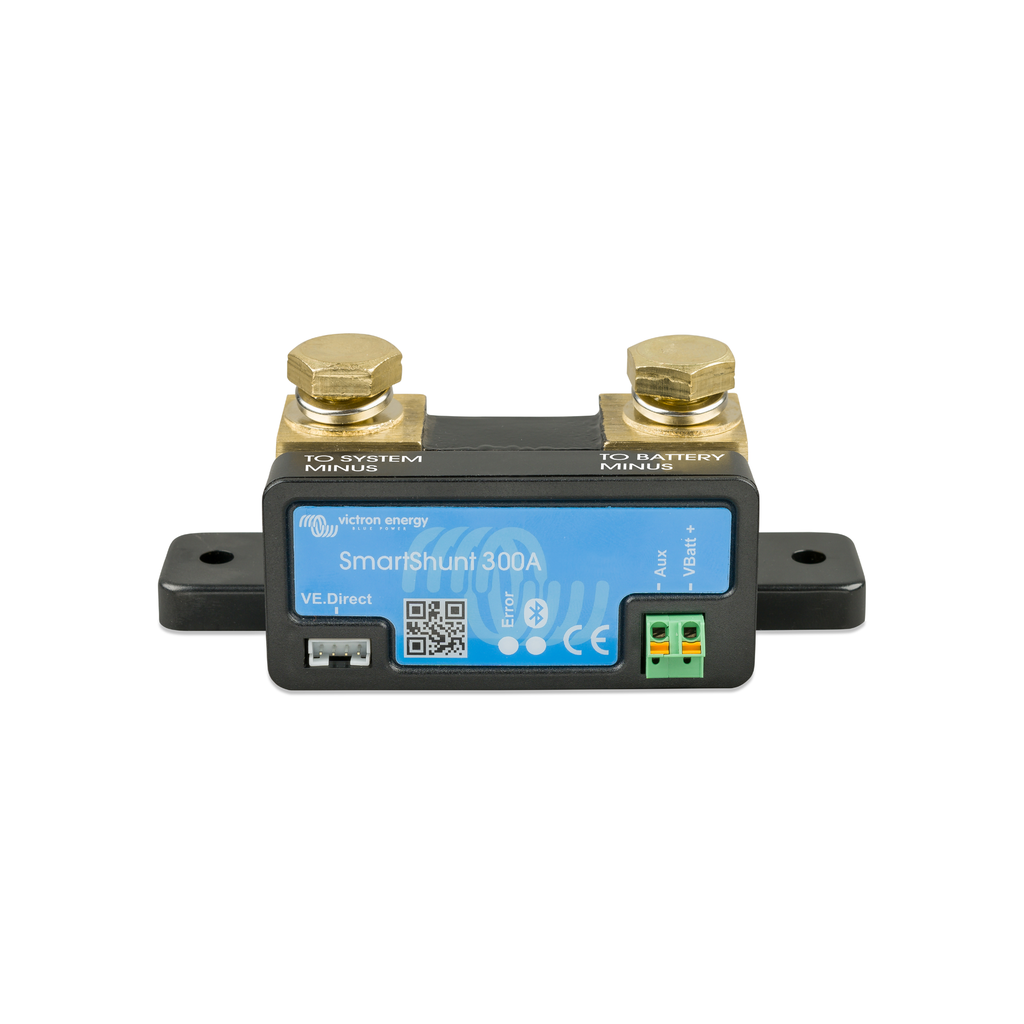

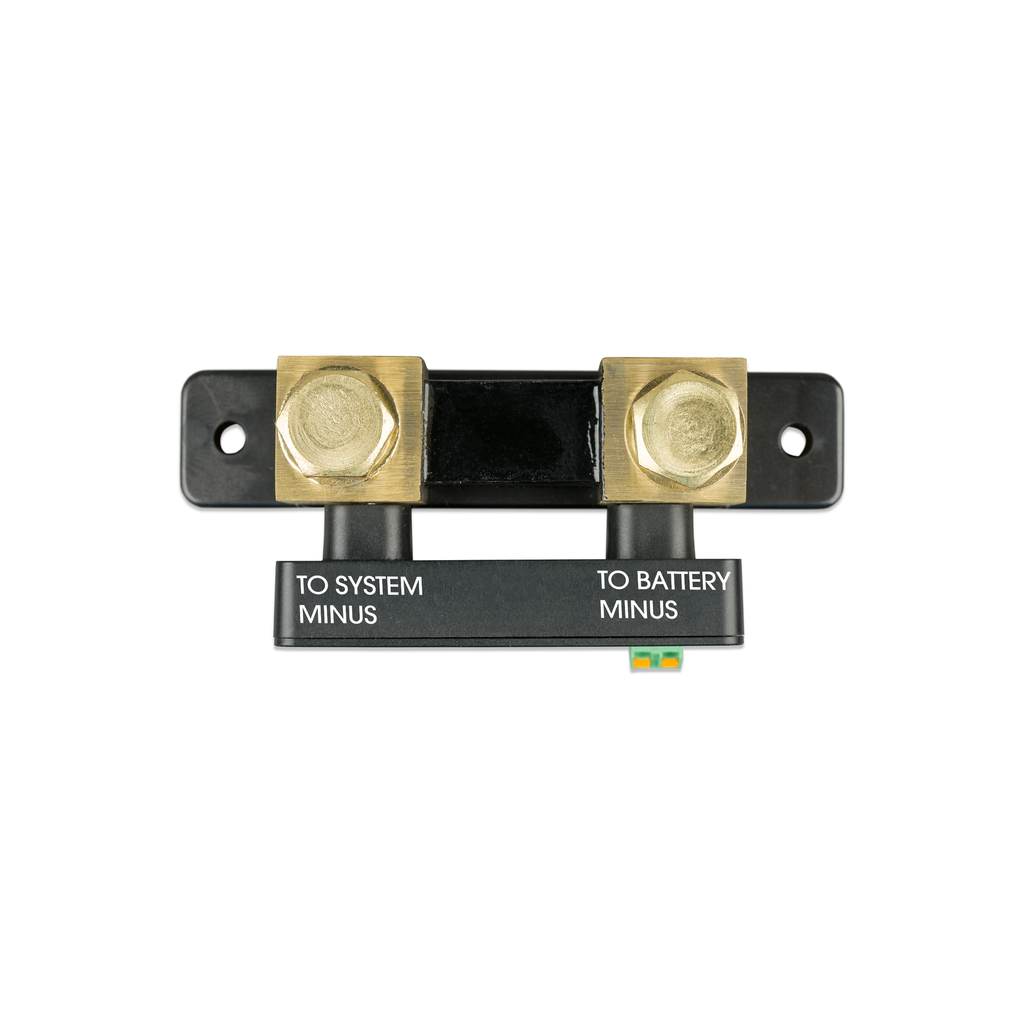

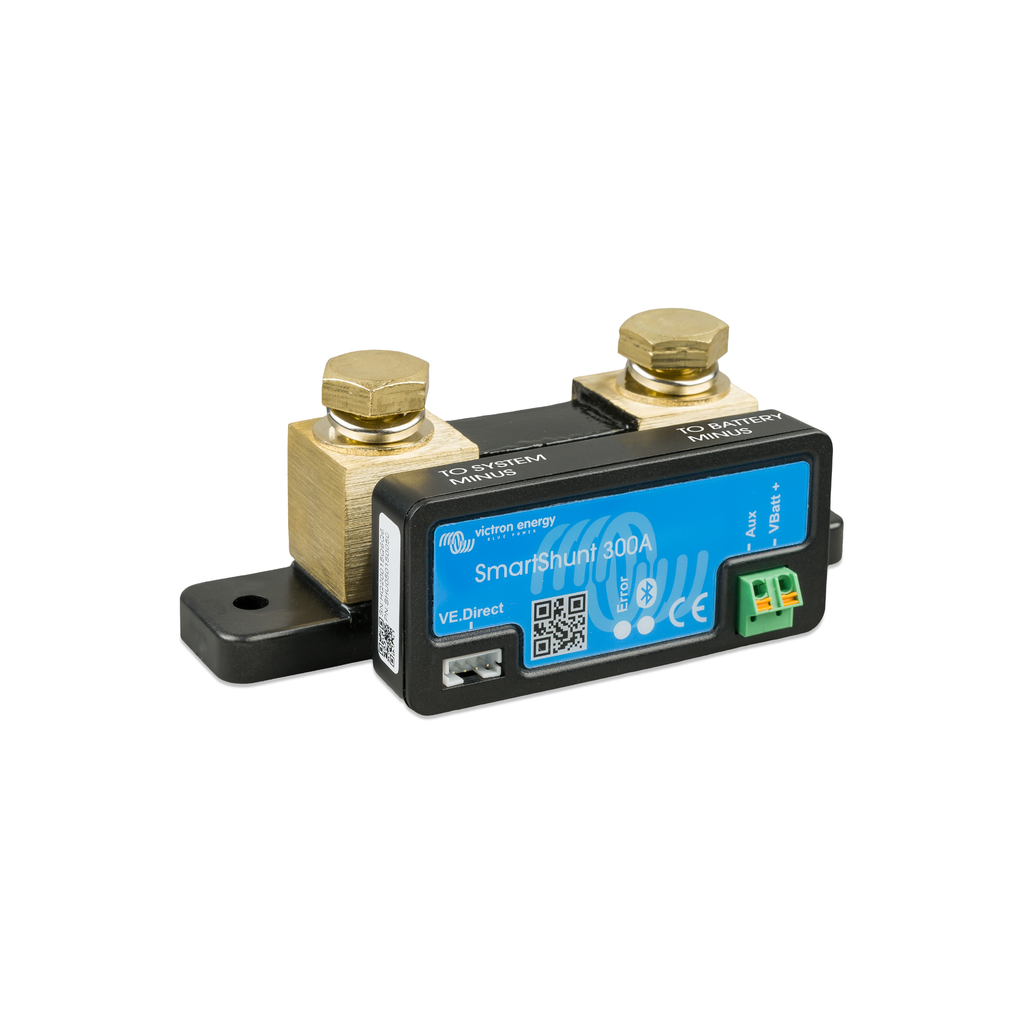

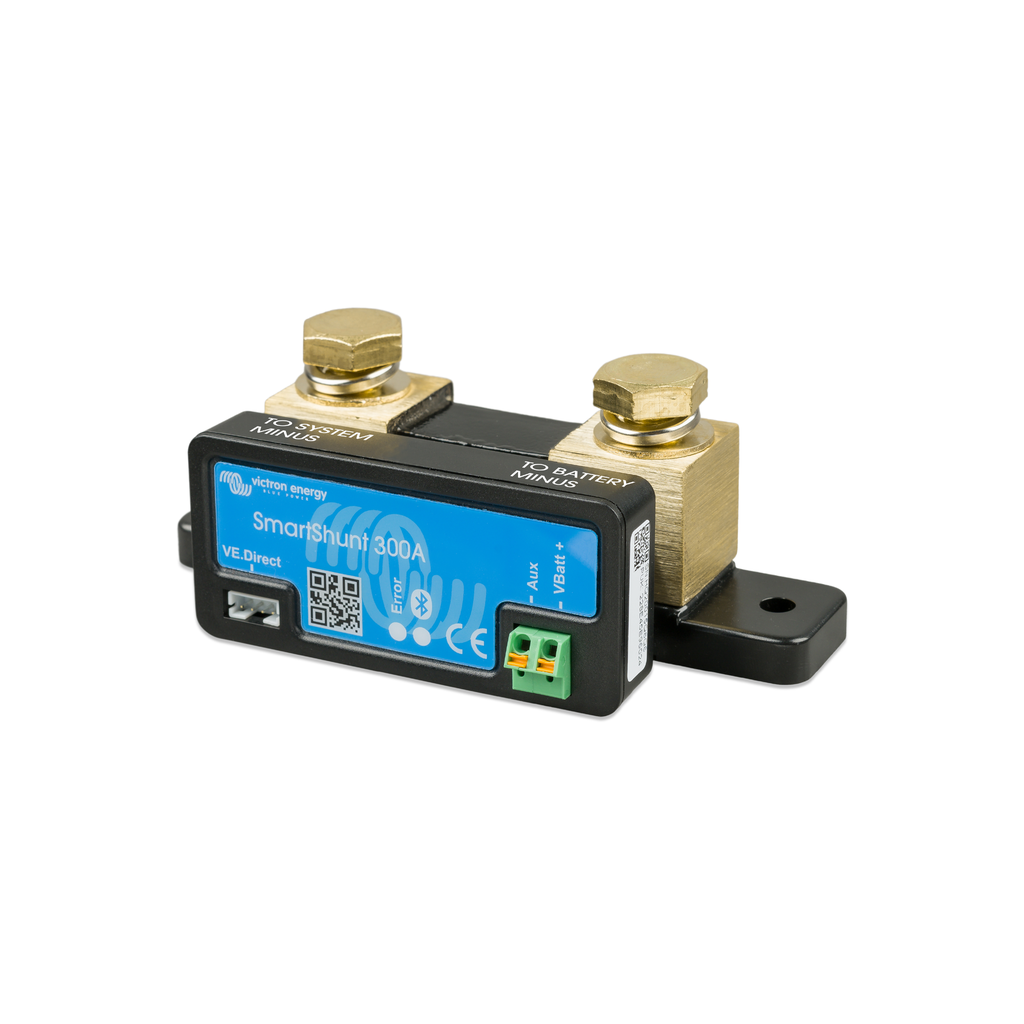

Victron Smart Shunt 300A with Bluetooth
Frequently Bought Together:
Victron Smart Shunt 300A with Bluetooth
Description
ALL IN ONE, BLUETOOTH BATTERY MONITOR
Â
The Smart Shunt is an all-in-one battery monitor, only without a display. Your phone acts as a display.
The Smart Shunt connects via Bluetooth to the Victron Connect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively, the Smart Shunt can be connected and be read by a GX device. Connection to the Smart Shunt is made via a VE.Direct cable.
The Smart Shunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted. The Smart Shunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.
Â

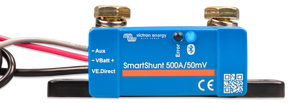

The Smart Shunt is available in 300A, 500A, 1000A and 2000A.
Â
WHATS IN THE BOX
- 1 x Victron Smart Shunt 300A Bluetooth Battery Monitor
Specifications
PRODUCT SPECIFICATIONS - VICTRON 300A SMART SHUNT with Bluetooth
| SKU | SHU050130050 |
|
Supply Voltage Range |
6.5-70V DC |
|
Current Draw |
< 1mA |
|
Input Voltage Range, Auxiliary Battery |
6.5-70V DC |
|
Battery Capacity (Ah) |
1 - 9999Ah |
|
Operating Temperature Range |
-40 +50°C |
|
Temperature Measurement Range |
-20 +50°C |
|
VE.Direct Communication Port |
Yes |
|
Resolution & Accuracy |
|
|
Current |
± 0.01 A |
|
Volatge |
± 0.01 V |
|
Amp Hours |
± 0.1 Ah |
|
State of Charge (0-100%) |
± 0.1% |
|

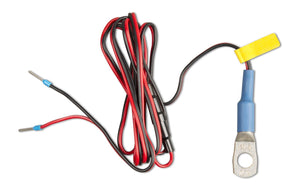

Temperature (if an optional temperature sensor is connected) |
± 1 °C (0 – 50 °C) |
|
Accuracy of Current Measurement |
± 0.4% |
|
Accuracy of Voltage Measurement |
± 0.3% |
|
Offset |
Less than 20mA |
|
Installation & Dimensions |
|
|
Protection Category |
IP21 |
|
Shunt Connection Bolts |
M8 |
|
Dimensions |
44 x 120 x 44mm |
