Name: 100W Solar Panel Glass AllSpark
Brand: AllSpark
SKU: AS-100SPGLG2
Price: 179.00 AUD
Availability: InStock

100W Solar Panel Glass AllSpark

$179.00

$179.00 $0.00

Frequently Bought Together:

6mm Twin Core Red & Black with black sheath

$7.00

Victron Smart Solar MPPT Charge Controller 75/10 with Bluetooth

$99.00

MC4 Connectors - Pair - 6mm2

$7.50

100W Solar Panel Glass AllSpark

SKU CODE: AS-100SPGLG2

In Stock

$179.00

$179.00 $0.00

THE ALLSPARK SOLAR PANEL RANGE HAS BEEN DESIGNED AND DEVELOPED IN AUSTRALIA TO THE HIGHEST SPECIFICATIONS

Premium quality A grade monocrystalline cells
Minimum 22.8% efficiency
Excellent temperature tolerance
Made with high optical quality glass
Fitted with durable black aluminum frames
Service life of 25 years and a 10 YEAR WARRANTY

Description

BUILT TO OUTPERFORM AND OUTLAST THE COMPETITION

A dependable 100W solar panel is often all it takes to keep a single battery topped up on a weekend trip, but is equally at home in a string or panels for a larger system. The AllSpark 100W Glass Solar Panel uses A-Grade monocrystalline cells with a minimum efficiency of 22.8%, so this solar panel 100W delivers serious output that leaves the competition in the dust.

Built with an anodised aluminium frame, IEC 61701 salt mist certified for coastal environments, and backed by a 10-year manufacturer's warranty and 30-day money-back guarantee, it's a 100 watt solar panel built to the same standard as every AllSpark panel - giving you confidence, no matter where you're adventure takes you.

High-efficiency cells that perform in real Australian heat

The difference between a rated watt and a delivered watt often comes down to how well a panel handles temperature. The AllSpark 100W solar panel operates across -40°C to 85°C with a power temperature coefficient of -0.38%/°C - meaning this 100 watt solar panel holds its output longer in conditions that cause cheaper cells to drop quickly.

The combination of 22.8% minimum efficiency and strong temperature tolerance means more consistent charging when you need it most.

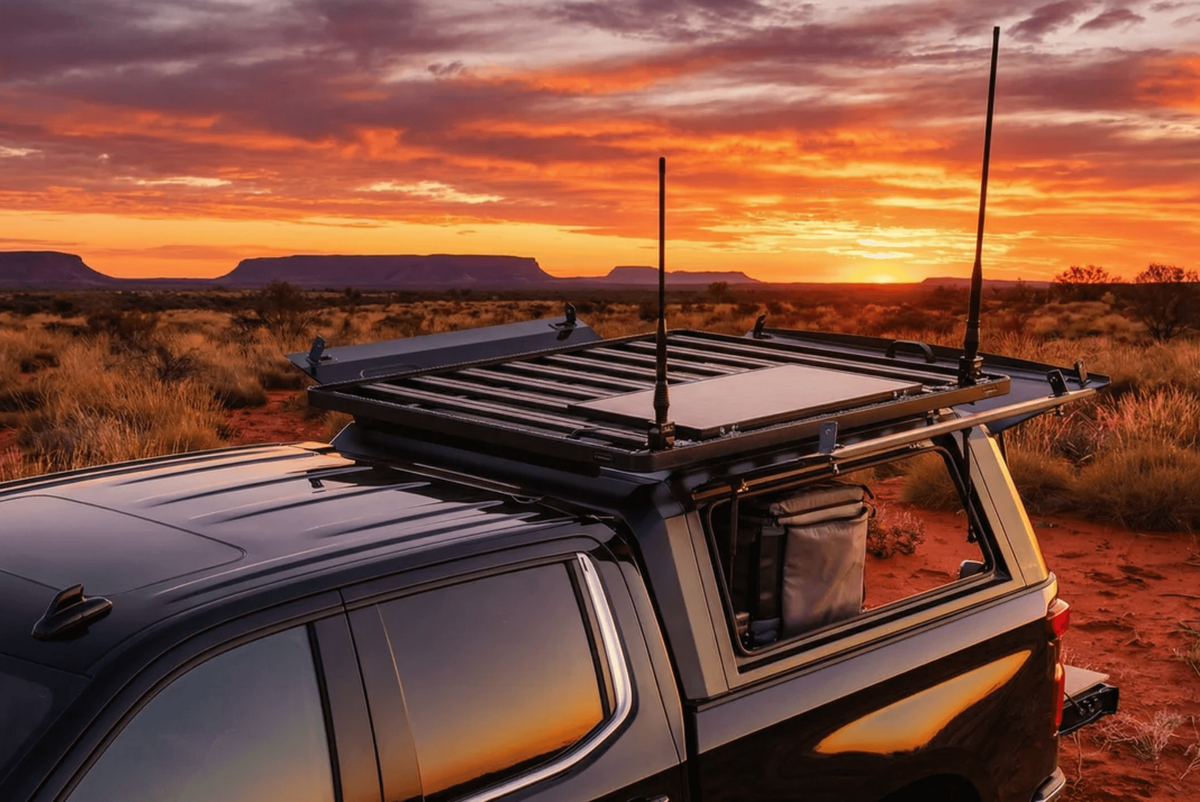

[Photo courtesy of Wild Touring]

Salt mist certified - because our coastal lifestyle is hard on gear

A solar panel 100W left on a beach-going rig will face conditions that expose cheap construction fast.

AllSpark's 100W panel uses anodised aluminium framing, is IEC 61701 salt mist certified, and is rated for both coastal and marine environments. The 10-year warranty reflects the build & the confidence behind it.

10-year warranty. 30-day returns. Zero worries.

Confidence in a product shows in how it's backed. The AllSpark 100W carries a 10-year manufacturer's warranty and a 30-day money-back guarantee - the same cover offered across the entire AllSpark solar range.

With a 25-year design life, it's not built to be a temporary solution. Buy it once, run it for the long term.

[Photo courtesy of Wild Touring]

Straightforward four-step install, built for the road

AllSpark's optional mounting brackets make fitting a 100W solar panel clean and straightforward. Available in 430mm or 580mm lengths from $39 a pair, they're made from black anodised aluminium and designed to handle the vibration of offroad travel.

Align, drill, rivet, secure — four steps to a weatherproof install on any roof rack or caravan roof.

WHATS IN THE BOX

1 x AllSpark 100W 12V Glass Solar Panel
90cm cables
MC4 connectors for easy installation
10A MC4 Solar Fuse

Warranty

10 YEAR MANUFACTURERS REPLACEMENT WARRANTY!
30 DAY MONEY BACK GUARANTEE!

Features

10 YEAR PRODUCT WARRANTY & Service life of 25 years - a testament to their high quality construction and durability
Premium quality A grade monocrystalline cells
Minimum 22.8% efficiency meaning more power for their size compared to other glass panel brands
Excellent temperature tolerance outperforming other glass panels in high temperature conditions.
Made with high optical quality glass optimizing light transmission to the cells.
Fitted with durable black aluminum frames, 90 cm cables, and MC4 connectors for easy installation.

Specifications

SKU	AS-70SPGL	AS-100SPGLG2	AS-135SPGLG2	AS-170SPGL	AS-200SPGLG2	AS-135SPGL-24	AS-200SPGL-24
Electrical Specifications
Maximum Power (Pmax)	70W	100W	135W	170W	200W	135W	200W
Open-Circuit Voltage (Voc)	24.5V	24.0V		21.8V	24.0V	48.0V	48.0V
Voltage at Pmax (Vmp)	20.9V	20.5V		18.6V	20.5V	41.0V	41.0V
Short-Circuit Current (Isc)	3.52A	5.12A	6.91A	9.60A	10.24A	3.46A	5.12A
Current at Pmax (Imp)	3.35A	4.88A	6.59A	9.14A	9.76A	3.30A	4.88A
Cell Efficiency	22.8%
Maximum System Voltage	600V DC (IEC)	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power Temperature Coefficient	−0.38%/˚C
Voltage Temperature Coefficient	−0.36%/˚C
Current Temperature Coefficient	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1100 × 375 × 30	1030 × 520 × 30	1040 × 680 × 35	1355 × 680 × 35	1500 × 680 × 35	1040 × 680 × 35	1500 × 680 × 35
Weight (kg)	3.75	6.2	8.0	8.4	10.94	8.0	10.94
Output Cable	1 × diode + 900mm/4mm² cable + MC4 compatible	2 × diodes + 900mm/4mm² cable + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Years (Service Life 25 Years)

SKUAS-70SPGL

Electrical Specifications
Maximum Power (Pmax)	70W
Open-Circuit Voltage (Voc)	24.5V
Voltage at Pmax (Vmp)	20.9V
Short-Circuit Current (Isc)	3.52A
Current at Pmax (Imp)	3.35A
Cell Efficiency	22.8%
Maximum System Voltage	600V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1100 × 375 × 30
Weight (kg)	3.75
Output Cable	1 × diode + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-100SPGLG2

Electrical Specifications
Maximum Power (Pmax)	100W
Open-Circuit Voltage (Voc)	24.0V
Voltage at Pmax (Vmp)	20.5V
Short-Circuit Current (Isc)	5.12A
Current at Pmax (Imp)	4.88A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1030 × 520 × 30
Weight (kg)	6.2
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-135SPGLG2

Electrical Specifications
Maximum Power (Pmax)	135W
Open-Circuit Voltage (Voc)	24.0V
Voltage at Pmax (Vmp)	20.5V
Short-Circuit Current (Isc)	6.91A
Current at Pmax (Imp)	6.59A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1040 × 680 × 35
Weight (kg)	8.0
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-170SPGL

Electrical Specifications
Maximum Power (Pmax)	170W
Open-Circuit Voltage (Voc)	21.8V
Voltage at Pmax (Vmp)	18.6V
Short-Circuit Current (Isc)	9.60A
Current at Pmax (Imp)	9.14A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1355 × 680 × 35
Weight (kg)	8.4
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-200SPGLG2

Electrical Specifications
Maximum Power (Pmax)	200W
Open-Circuit Voltage (Voc)	24.0V
Voltage at Pmax (Vmp)	20.5V
Short-Circuit Current (Isc)	10.24A
Current at Pmax (Imp)	9.76A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1500 × 680 × 35
Weight (kg)	10.94
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-135SPGL-24

Electrical Specifications
Maximum Power (Pmax)	135W
Open-Circuit Voltage (Voc)	48.0V
Voltage at Pmax (Vmp)	41.0V
Short-Circuit Current (Isc)	3.46A
Current at Pmax (Imp)	3.30A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1040 × 680 × 35
Weight (kg)	8.0
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-200SPGL-24

Electrical Specifications
Maximum Power (Pmax)	200W
Open-Circuit Voltage (Voc)	48.0V
Voltage at Pmax (Vmp)	41.0V
Short-Circuit Current (Isc)	5.12A
Current at Pmax (Imp)	4.88A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1500 × 680 × 35
Weight (kg)	10.94
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

FAQS

Q: What size solar controller do I need for this panel?

A: On it's own, this panel needs a minimum 15A solar controller. We recommend the Victron 75/10 (if installing in a waterproof area), or the EP Ever Tracer (if wanting a waterproof option).

Q: Can I use this in a 24V system?

A: To use in a 24V system you will need to purchase two panels and wire them in series.

Q: Are the frames suitable for beach or coastal use?

A: Yes. The anodised aluminium frames are IEC 61701 salt mist certified, independently tested for resistance to coastal and marine environments.

Q: Will I get full wattage from my panel at all times?

A: The wattage on solar panels is measured in lab conditions on a light table which produces 1000 watts/m² at 25^oC (these are global standard testing conditions (STC)). The amount of power produced by your solar panel in real-life conditions will be dependent on the amount of solar radiation being received by the panel at any given time, the temperature, air quality, angle of sun etc.

You can check your location's solar radiation values online on a number of websites, one example is over here. In general terms, the amount of solar radiation you are receiving at any given time (as a ratio) is an approximation of how much power you should be receiving from your panel. For example, if the radiation is 750 watts/m²(which is 3/4 of the light table at 1000watts/m²), then you potentially can receive approximately approximately 101.25W out of a 135W panel (3/4 x 135W) at that particular time of the day (assuming your angle to the sun is correct and enivornmental conditions are optimal, ie. there is no shade/cloud, no smoke/haze/pollution, temperature isn't too high (as solar output reduces at higher temperatures) etc).
