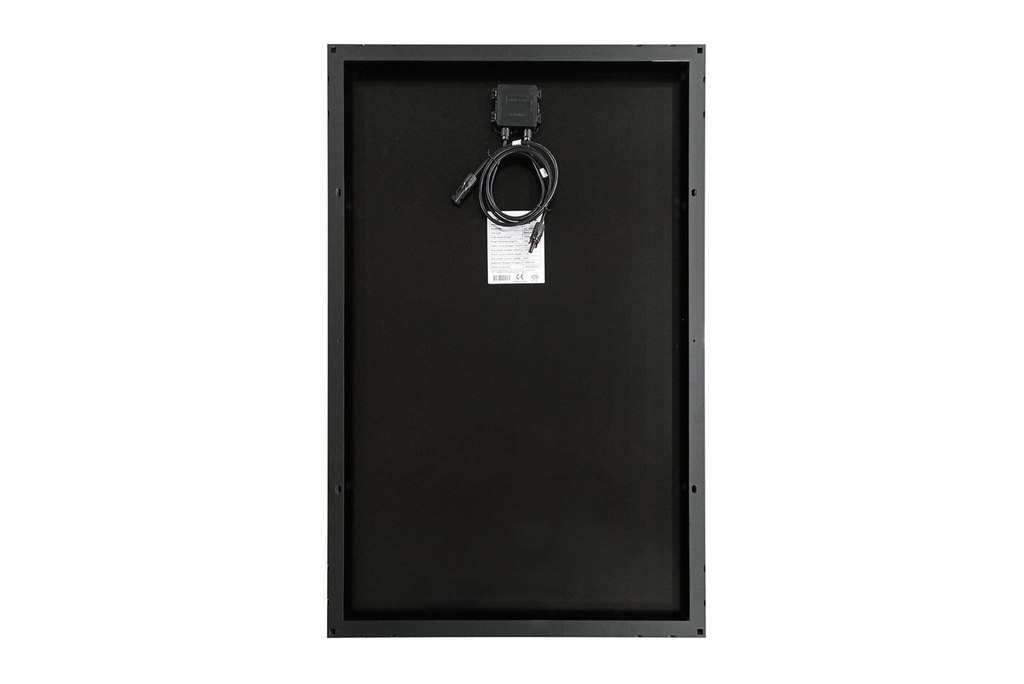

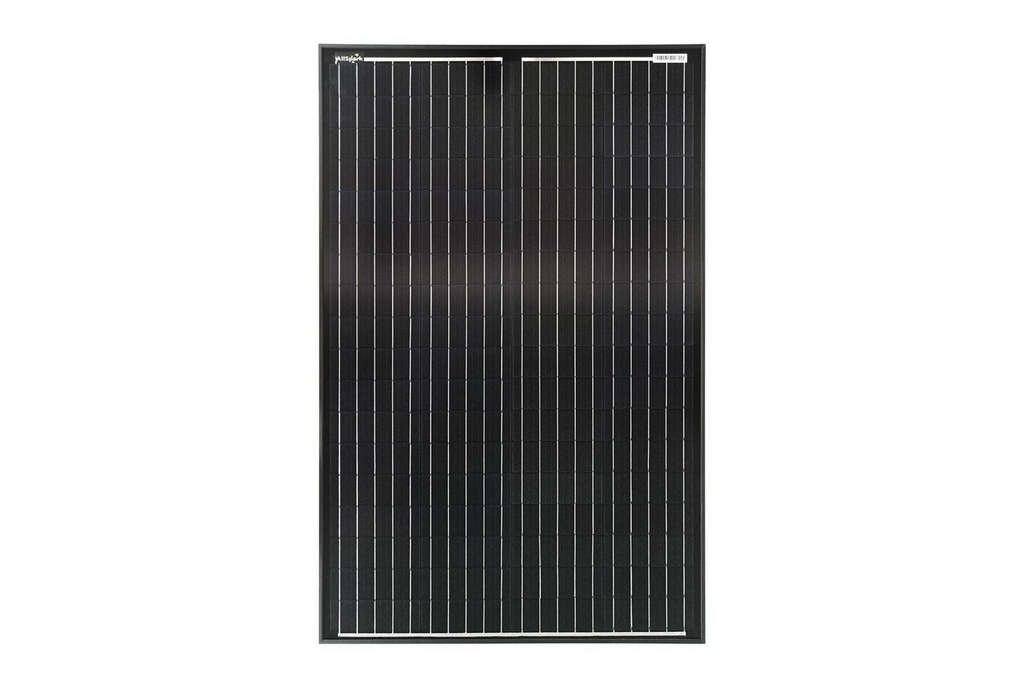

Name: 170W Solar Panel Glass AllSpark
Brand: AllSpark
SKU: AS-170SPGL
Price: 259.00 AUD
Availability: InStock

170W Solar Panel Glass AllSpark

$259.00

$259.00 $0.00

Frequently Bought Together:

6mm Twin Core Red & Black with black sheath

$7.00

AllSpark Circuit Breakers - Surface Mount 20A

$49.00

Victron Smart Solar MPPT Charge Controller 75/15 With Bluetooth

$109.00

MC4 Connectors - Pair - 6mm2

$7.50

AllSpark Solar Panel mounting bracket 580MM (PAIR)

$39.00

170W Solar Panel Glass AllSpark

SKU CODE: AS-170SPGL

In Stock

$259.00

$259.00 $0.00

THE ALLSPARK SOLAR PANEL RANGE HAS BEEN DESIGNED AND DEVELOPED IN AUSTRALIA TO THE HIGHEST SPECIFICATIONS

Premium quality A grade monocrystalline cells
Minimum 22.8% efficiency
Excellent temperature tolerance
Made with high optical quality glass
Fitted with durable black aluminum frames
Service life of 25 years and a 10 YEAR WARRANTY

Description

DESIGNED TO HANDLE OUR HARSH AUSTRALIAN CONDITIONS

The AllSpark 170W Solar Panel is built using A-Grade monocrystalline cells with a minimum 22.8% efficiency rating, meaning more real-world wattage from a single panel than most comparable 170W solar panels on the market.

Designed in Australia for Australian conditions - extreme heat, corrugated tracks, and coastal salt air included - and backed by a 10-year manufacturer's warranty plus a 30-day money-back guarantee.

The AllSark 170 watt solar panel earns its place on any serious touring setup.

High efficiency - even when the Aussie sun turns up the heat

Panels mounted on a roof in outback conditions can easily hit 70°C+. Most panels shed output fast in that environment. AllSpark's 170W cells operate across -40°C to 85°C with a power temperature coefficient of -0.38%/°C, holding closer to rated wattage in real heat than budget panels can manage.

AllSpark 170W solar panels use highly efficient solar cells which carry a -0.38%/°C power temperature coefficient and operate from -40°C to 85°C. That means that the 22.8% cell efficiency holds up closer to real-world conditions than most competing solar panels in high temperature conditions.

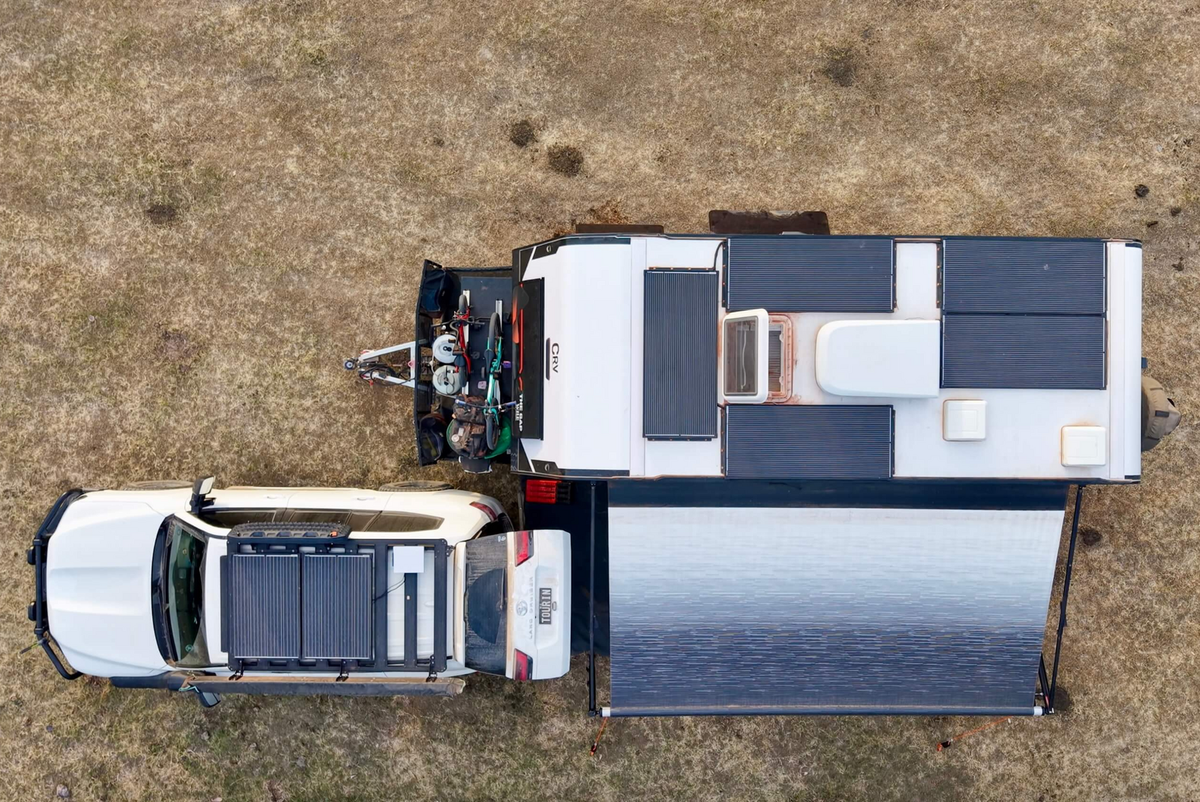

[Photo courtesy of Wild Touring]

Anodised aluminium frame - coastal and marine rated

Salt air is unforgiving on poorly built solar hardware. Zinc-plated brackets rust, coatings lift, and fasteners fail - often within the first year.

AllSpark 170W panels are framed in anodised aluminium, IEC 61701 salt mist certified, and rated for coastal and marine environments. The 10-year warranty isn't a marketing line - it reflects the build quality behind it.

Buy with confidence - 10 year warranty, 30 days to return

The AllSpark 170W is backed by a 10-year manufacturer's warranty and a 30-day money-back guarantee. With a 25-year design life, these 170 watt solar panels are built to outlast the adventures you're planning - not just the warranty period.

If something isn't right, you're protected from day one.

[Photo courtesy of Wild Touring]

Four clear steps to a secure, weatherproof install

AllSpark's optional mounting brackets take the guesswork out of fitting a 170W solar panel to your rig. Available in 430mm or 580mm, from $39 a pair, they're manufactured from black anodised aluminium for durability.

Align flush with the panel frame, drill, rivet using the included large flange rivets, then bond and bolt to your roof surface. Designed for adventure - road-tested for offroad vibration.

WHATS IN THE BOX

1 x AllSpark 170W 12V Glass Solar Panel
90cm cables
MC4 connectors for easy installation
15A MC4 Solar Fuse

Warranty

10 YEAR MANUFACTURERS REPLACEMENT WARRANTY!
30 DAY MONEY BACK GUARANTEE!

Features

Premium quality A grade monocrystalline cells
Minimum 22.8% efficiency meaning more power for their size compared to other glass panel brands
Excellent temperature tolerance outperforming other glass panels in high temperature conditions.
Made with high optical quality glass optimizing light transmission to the cells.
Fitted with durable black aluminum frames, 90 cm cables, and MC4 connectors for easy installation.
Service life of 25 years and a 10 YEAR WARRANTY - a testament to their high quality construction and durability

Specifications

SKU	AS-70SPGL	AS-100SPGLG2	AS-135SPGLG2	AS-170SPGL	AS-200SPGLG2	AS-135SPGL-24	AS-200SPGL-24
Electrical Specifications
Maximum Power (Pmax)	70W	100W	135W	170W	200W	135W	200W
Open-Circuit Voltage (Voc)	24.5V	24.0V		21.8V	24.0V	48.0V	48.0V
Voltage at Pmax (Vmp)	20.9V	20.5V		18.6V	20.5V	41.0V	41.0V
Short-Circuit Current (Isc)	3.52A	5.12A	6.91A	9.60A	10.24A	3.46A	5.12A
Current at Pmax (Imp)	3.35A	4.88A	6.59A	9.14A	9.76A	3.30A	4.88A
Cell Efficiency	22.8%
Maximum System Voltage	600V DC (IEC)	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power Temperature Coefficient	−0.38%/˚C
Voltage Temperature Coefficient	−0.36%/˚C
Current Temperature Coefficient	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1100 × 375 × 30	1030 × 520 × 30	1040 × 680 × 35	1355 × 680 × 35	1500 × 680 × 35	1040 × 680 × 35	1500 × 680 × 35
Weight (kg)	3.75	6.2	8.0	8.4	10.94	8.0	10.94
Output Cable	1 × diode + 900mm/4mm² cable + MC4 compatible	2 × diodes + 900mm/4mm² cable + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Years (Service Life 25 Years)

SKUAS-70SPGL

Electrical Specifications
Maximum Power (Pmax)	70W
Open-Circuit Voltage (Voc)	24.5V
Voltage at Pmax (Vmp)	20.9V
Short-Circuit Current (Isc)	3.52A
Current at Pmax (Imp)	3.35A
Cell Efficiency	22.8%
Maximum System Voltage	600V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1100 × 375 × 30
Weight (kg)	3.75
Output Cable	1 × diode + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-100SPGLG2

Electrical Specifications
Maximum Power (Pmax)	100W
Open-Circuit Voltage (Voc)	24.0V
Voltage at Pmax (Vmp)	20.5V
Short-Circuit Current (Isc)	5.12A
Current at Pmax (Imp)	4.88A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1030 × 520 × 30
Weight (kg)	6.2
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-135SPGLG2

Electrical Specifications
Maximum Power (Pmax)	135W
Open-Circuit Voltage (Voc)	24.0V
Voltage at Pmax (Vmp)	20.5V
Short-Circuit Current (Isc)	6.91A
Current at Pmax (Imp)	6.59A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1040 × 680 × 35
Weight (kg)	8.0
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-170SPGL

Electrical Specifications
Maximum Power (Pmax)	170W
Open-Circuit Voltage (Voc)	21.8V
Voltage at Pmax (Vmp)	18.6V
Short-Circuit Current (Isc)	9.60A
Current at Pmax (Imp)	9.14A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1355 × 680 × 35
Weight (kg)	8.4
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-200SPGLG2

Electrical Specifications
Maximum Power (Pmax)	200W
Open-Circuit Voltage (Voc)	24.0V
Voltage at Pmax (Vmp)	20.5V
Short-Circuit Current (Isc)	10.24A
Current at Pmax (Imp)	9.76A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1500 × 680 × 35
Weight (kg)	10.94
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-135SPGL-24

Electrical Specifications
Maximum Power (Pmax)	135W
Open-Circuit Voltage (Voc)	48.0V
Voltage at Pmax (Vmp)	41.0V
Short-Circuit Current (Isc)	3.46A
Current at Pmax (Imp)	3.30A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1040 × 680 × 35
Weight (kg)	8.0
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-200SPGL-24

Electrical Specifications
Maximum Power (Pmax)	200W
Open-Circuit Voltage (Voc)	48.0V
Voltage at Pmax (Vmp)	41.0V
Short-Circuit Current (Isc)	5.12A
Current at Pmax (Imp)	4.88A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1500 × 680 × 35
Weight (kg)	10.94
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

FAQS

Q: What size solar controller do I need for this panel?

A: On it's own, this panel needs a minimum 15A solar controller. We recommend the Victron 75/1 5 (if installing in a waterproof area), or the EP Ever Tracer (if wanting a waterproof option).

Q: Can I use this in a 24V system?

A: To use in a 24V system you will need to purchase two panels and wire them in series.

Q: Are the frames suitable for beach or coastal use?

A: Yes. The anodised aluminium frames are IEC 61701 salt mist certified, independently tested for resistance to coastal and marine environments.

Q: Will I get full wattage from my panel at all times?

A: The wattage on solar panels is measured in lab conditions on a light table which produces 1000 watts/m² at 25^oC (these are global standard testing conditions (STC)). The amount of power produced by your solar panel in real-life conditions will be dependent on the amount of solar radiation being received by the panel at any given time, the temperature, air quality, angle of sun etc.

You can check your location's solar radiation values online on a number of websites, one example is over here. In general terms, the amount of solar radiation you are receiving at any given time (as a ratio) is an approximation of how much power you should be receiving from your panel. For example, if the radiation is 750 watts/m²(which is 3/4 of the light table at 1000watts/m²), then you potentially can receive approximately approximately 101.25W out of a 135W panel (3/4 x 135W) at that particular time of the day (assuming your angle to the sun is correct and enivornmental conditions are optimal, ie. there is no shade/cloud, no smoke/haze/pollution, temperature isn't too high (as solar output reduces at higher temperatures) etc).
