Charging Station Kit

Charging Station Kit

SKU CODE: AS-BUNDLE17
In Stock
$161.50
Sale price  $161.50 Regular price
  • 2 outlet 3 pin Australian standard double GPO
  • Double Pole switched to comply with AS/NZS3001:2023
  • Individual switches for each outlet
  • 10A resettable over current protection circuit breaker
  • 2m IEC plug - 4m cable optional purchase available
  • Flush mounted sleek design
  • Dual 2.4A USB Socket
  • PD100W Type C USB + QC 3.0 36W USB A Socket
  • DC Cig Socket

Description

POWER WHERE YOU NEED IT. CHARGE EVERYTHING. TIDY SETUP.

You've got a decent system - battery, solar, inverter sorted. But the charging situation is a mess. Cords trailing across the floor, one socket in the wrong spot, phone balanced on top of something trying to reach the only USB port. It works, but it's not what you pictured.

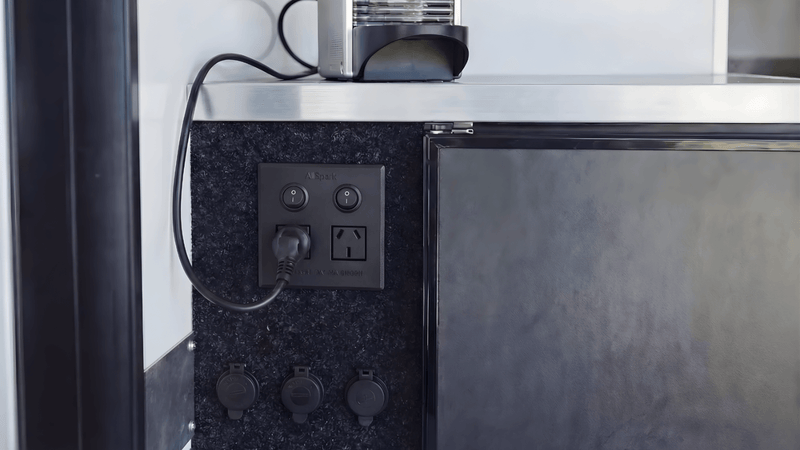

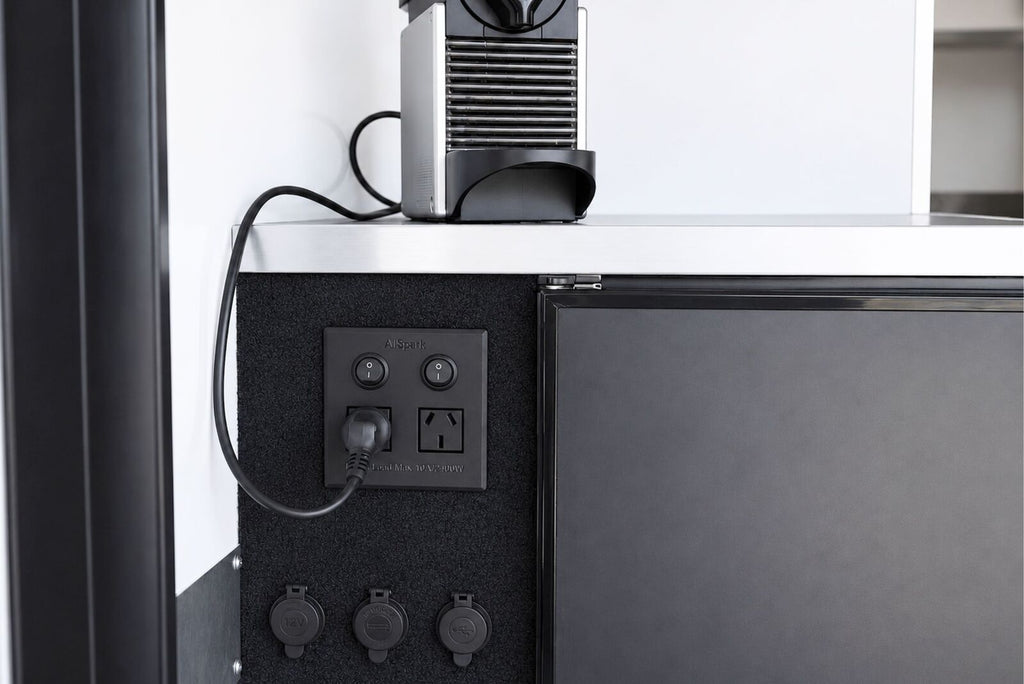

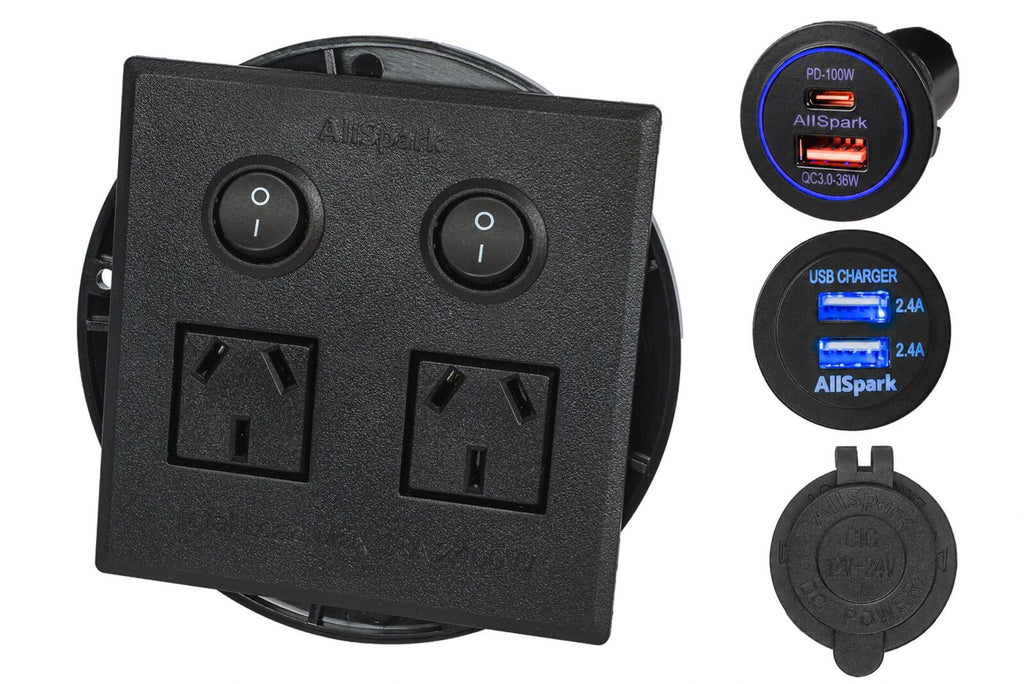

The Charging Station Kit brings it all together in one clean setup: a Dual Plug & Play flush mount power board for your 240V appliances, a cig socket for 12V accessories, a dual USB for phones and tablets, and a PD100W socket for the heavy hitters - Starlink Mini, drones, laptops, fast-charge devices. Four connection points, one tidy install, everything exactly where you need it.

Charging Station Kit

Save $$$ - no electrician required

A standard 240V power point - the kind you'd find on a wall at home - has to be installed by a licensed electrician. Full stop.

If you install one yourself and there's ever a fire or an insurance claim, that's exactly the kind of thing an insurer will use to avoid paying out. It's not a risk worth taking.

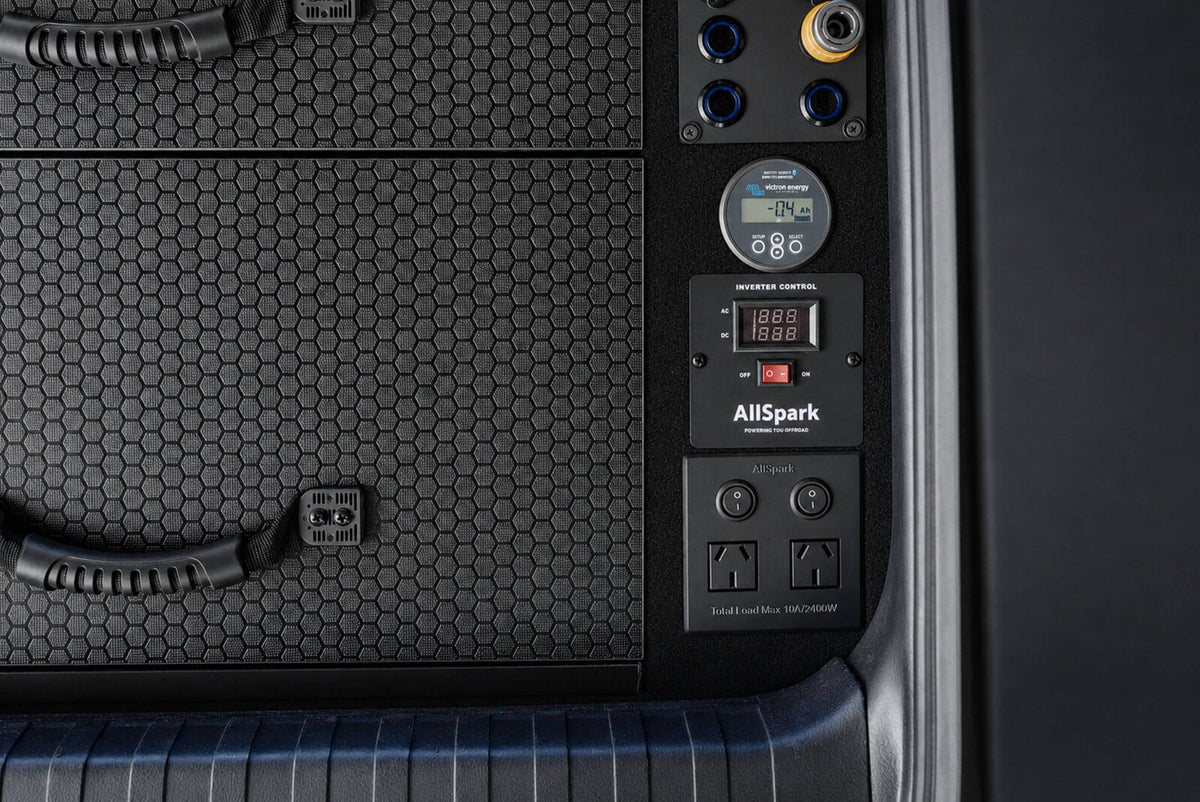

The AllSpark Dual Plug & Play Power Board is different. It plugs directly into your existing inverter via a standard lead - no hardwiring, no sparky required, fully legal to install yourself.

A hole saw, a screwdriver, and an hour. That's it.

Charging Station Kit

The socket that does more than you'd expect

The AllSpark PD100W socket is a standout in this kit. It's a dual socket, one PD100W USB-C port and one QC3.0 36W USB-A port in a single flush-mount unit.

The USB-C side delivers up to 100W, which means it'll run a Starlink Mini, rapid-charge a laptop, or top up a drone battery without breaking a sweat. The USB-A side handles quick-charge for phones and tablets simultaneously.

Charging Station Kit

Need lighting too? Plug straight into the sockets you just installed.

Add on the AllSpark LED Light Bar Kit for easy Plug & Play lighting - four red/white LED strips powered via USB-C - which means they plug directly into the PD100W socket that's now mounted in your setup.

No extra wiring, no separate power supply, no hunting for somewhere to connect them. Wireless remote with dimmer, IP65 waterproof, ultra-low power draw, and a 2-year warranty. If you're fitting out a canopy or van and want lighting sorted in the same install, it's the obvious next step - the socket for it is already there.

Charging Station Kit

Support from people who know this gear inside out

AllSpark products are designed and developed in-house, which means when you call or email with an install question, you're talking to someone who actually knows how these products work together - not someone reading from a script.

Whether you're planning your setup before you buy, working through an install question, or troubleshooting something in the field, the team is available during business hours to help.

No scripts, no "refer to the manual."

Warranty

1 Year Warranty

Features

  • 2 outlet 3 pin Australian standard double GPO
  • Double Pole switched to comply with AS/NZS3001:2023
  • Individual switches for each outlet
  • 10A resettable over current protection circuit breaker
  • 2m IEC plug - 4m cable optional purchase available
  • Flush mounted sleek design
  • Dual 2.4A USB Socket
  • PD100W Type C USB + QC 3.0 36W USB A Socket
  • DC Cig Socket

Specifications

AS-DUALPPAllSpark Dual Power Point (240V)
Electrical
Power 10A Max / 2400W Max
Voltage 230–240V @ 50Hz
Over Current Protection 10A push button resettable circuit breaker
Input Socket IEC 14 10A socket on body
Power Cord Plug Type IEC 13 10A right angle cord
Cord Length 2m
Physical
Dimensions (Front Plate) 100mm x 100mm
Securing Ring Diameter 115mm
Body Depth 56mm
Mounting Hole cutout size 90–92mm
Minimum Clearance Required 116mm rear width to install collar
Mounting Surface Thickness 1–30mm
Material Flame Retardant PC
Certifications
Electrical Safety SAA No: SAA-241106-EA
RCM Compliance RCM240927927
Standards AS/NZS 3000:2018, AS/NZS 3001:2022, AS/NZS 3100:2022, AS/NZS 3105:2014+A1:2017, AS/NZS 3111, AS/NZS 3112:2017+A1:2021, AS/NZS 3120, AS/NZS 3121, AS/NZS 3133:2020, AS/NZS 3191, AS/NZS 60227.4 & 5, AS/NZS 60320.1
AS-CIGSOCKBLKAllSpark 12V Cigarette Socket (Black)
Electrical
Nominal Voltage 12V/24V DC
Peak Voltage 36V Max
Max Amps 10A
Idle Power Draw Nil
Rubber Socket IP IP65
Terminals Copper/Nickel plated 1/4" (6.3mm)
Electrical Protection Nil (fuse cable at source)
Physical
Operating Temperature -20°C to +80°C
Socket Body Diameter 28.8mm
Mounting Hole Size 29.2mm (min)
AS-DUAL24USBBLKBLUAllSpark Dual USB Socket (Black/Blue LED)
Specifications
Specifications Please refer to product page for full specifications.
AS-PD100WBLKLEDAllSpark 100W USB-C PD Charger Panel (Black/Blue LED)
Electrical
USB Type Type C PD100W + Type A QC 3.0
Number of USB Ports 2
Nominal Input Voltage 12V/24V DC
Operating Input Voltage 9V–30V DC (max)
Peak Voltage 32V DC max (3–4s)
USB Type-A Output QC 3.0 (5V–12V, Max: 36W)
USB Type-C PD100W Output Output: 5V–20V, 100W Max
USB Type-C Output Detail (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A)
Physical
LED Backlight Yes – Blue
Idle Power Current 5mA
Life 5000 operating cycles
Sealing IP65
Terminals Copper/nickel plating 1/4" (6.3mm)
Operating Temperature -20 to 85°C
Panel Mount Hole Diameter 29.2mm (min)
Protection
Over Voltage Protection Yes
Over Current Protection Yes
Over Temperature Protection Yes
Short Circuit Protection Yes
Reverse Polarity Protection Yes
