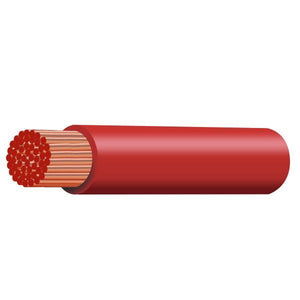

0B&S Single Core Red Battery Cable
0B&S Single Core Red Battery Cable
$32.00

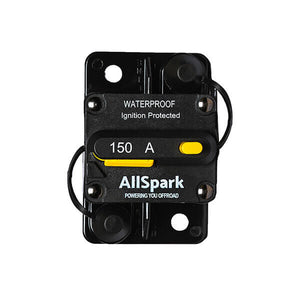

AllSpark Circuit Breakers - Surface Mount 150A
AllSpark Circuit Breakers - Surface Mount 150A
$49.00

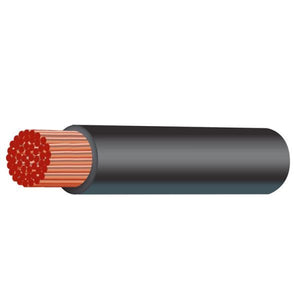

0B&S Single Core Black Battery Cable
0B&S Single Core Black Battery Cable
$32.00
2 Outlet Power Board | Flush Mount | Black | Plug & Play GPO | AllSpark
2 Outlet Power Board | Flush Mount | Black | Plug & Play GPO | AllSpark
$89.00

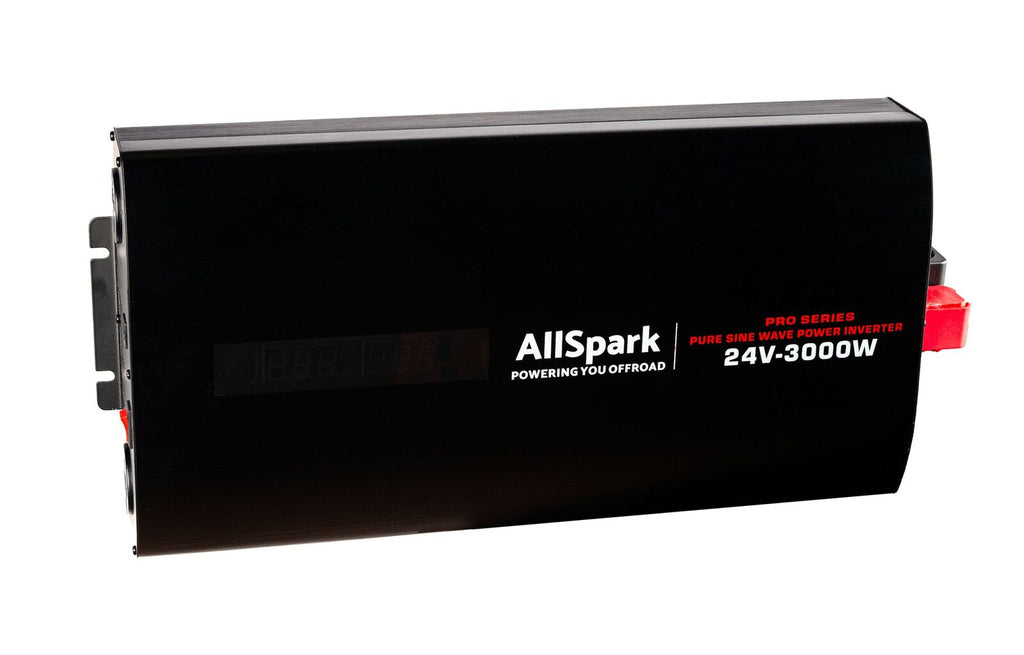

AllSpark 24V 3000 Watt PRO series Pure Sine Wave Inverter

AllSpark 24V 3000 Watt PRO series Pure Sine Wave Inverter

SKU CODE: AS-300024PSWPRO
In Stock
$869.00
$869.00 $0.00

THE ALLSPARK PRO SERIES PURE SINE WAVE INVERTERS ARE HIGH QUALITY INVERTERS FOR POWERING YOUR SENSITIVE 240V APPLIANCES

  • Slimline anodized aluminium housing
  • Dual digital display
  • Remote switching panel
  • Dual 3 pin Australian sockets
  • Intelligent brushless cooling fans and >90% efficiency
  • Extensive protection systems
  • Very low no load draw
  • Optional AllSpark Plug & Play Flush Mount GPO
  • Manufactured for Australian conditions
  • 3 Year Warranty

Description

YOUR 24V BUILD FINALLY HAS AN INVERTER WORTHY OF EVERYTHING BEHIND IT.



If your rig runs a 24V battery system, the AllSpark Pro Series 24v 3000w inverter gives you the full-sized 240V power output your setup deserves.



Delivering a continuous 3000W with a 6000W surge, this 3000w inverter 24v handles everything from induction cooktops and air conditioning to power tools and simultaneous multi-appliance use. Built into a slimline anodised aluminium chassis with a remote LCD switching panel, dual Australian sockets, and comprehensive protection systems - it's engineered for the long haul.



 Backed by a 3-year warranty and 30-day money-back guarantee.



AllSpark 24V 3000 Watt PRO series Pure Sine Wave Inverter

Real 3000W - On a 24V System That Earns It

24V systems are chosen for a reason - lower current draw, longer cable runs, better efficiency. This 24v inverter 3000w honours that investment with a genuine 3000W continuous output and a 6000W peak surge for motor-heavy loads.

No confusing VA ratings, or stated wattage that only performs for a limited time - no performance footnotes, just honest, sustained power output matched to your battery setup.

AllSpark 24V 3000 Watt PRO series Pure Sine Wave Inverter

System-Wide Protection on a 24V Setup

A high-output inverter on a 24V system carries significant energy, and that makes protection critical.

The AllSpark 24v 3000w inverter includes thermal cutoff, over current shutdown, short circuit and reverse polarity safeguards, and high/low voltage detection. Both the unit and your battery bank are shielded from fault conditions that could cause costly damage in the field.

AllSpark 24V 3000 Watt PRO series Pure Sine Wave Inverter

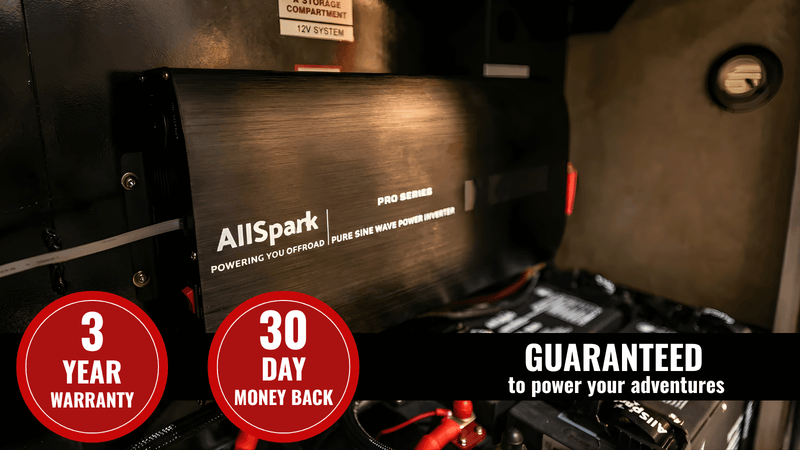

3-Year Warranty. 30 Day Money Back Guarantee.

Installing a 3000W inverter into a built-out 24V system is a significant commitment.

The AllSpark Pro Series removes the risk - with a 30-day money-back guarantee so you can test it in your real-world setup, and a full 3-year manufacturer's warranty for long-term peace of mind.

AllSpark 24V 3000 Watt PRO series Pure Sine Wave Inverter

3000W Capability, Just 0.4A at Idle

High-capacity inverters can be surprisingly wasteful when nothing is running.

At 0.4A no-load draw (less power than making a cuppa), the AllSpark 3000w inverter 24v won’t drain your battery while on standby.

A critical consideration for extended off-grid stays when power is the last thing you want to worry about.

AllSpark 24V 3000 Watt PRO series Pure Sine Wave Inverter

Air Conditioning, Cooking, Tools - All at Once

3000W of continuous output means real comfort and capability: run a roof-top air conditioner, induction cooktop, microwave, or multiple power tools without compromise.

The dual Australian 3-pin sockets and remote LCD panel let you run and control your 240V appliances from wherever is most convenient in your caravan, camper or off-grid cabin.

AllSpark 24V 3000 Watt PRO series Pure Sine Wave Inverter

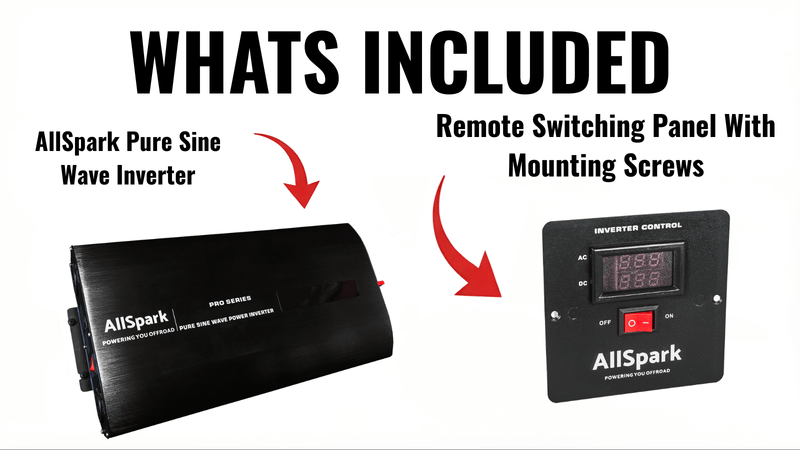

WHATS IN THE BOX

  • 1 x AllSpark 24V 3000 Watt Pure Sine Wave Inverter
  • 1 x remote switching panel with mounting screws

Warranty

3 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

  • Slimline anodized aluminium housing - ultra compact, durable design
  • Dual digital display - monitor voltages to ensure power stability
  • Remote switching panel - convenient on/off and monitoring
  • Dual 3 pin Australian sockets
  • Intelligent brushless cooling fans and >90% efficiency - designed for harsh Australian conditions
  • Extensive protection systems - ensuring longevity and reliability
  • Very low no load draw - just 0.4A when idle so it wont drain your battery
  • Manufactured for Australian conditions
  • 3 Year Warranty

Specifications

Model 12V 1000W 12V 2000W 12V 2500W 24V 3000W
Electrical
Input Voltage 12V 24V
Input Voltage Range 9–15VDC 9.6–15VDC 19.2–30VDC
Idle Current 0.2A 0.8A 0.4A
Efficiency >95% >92%

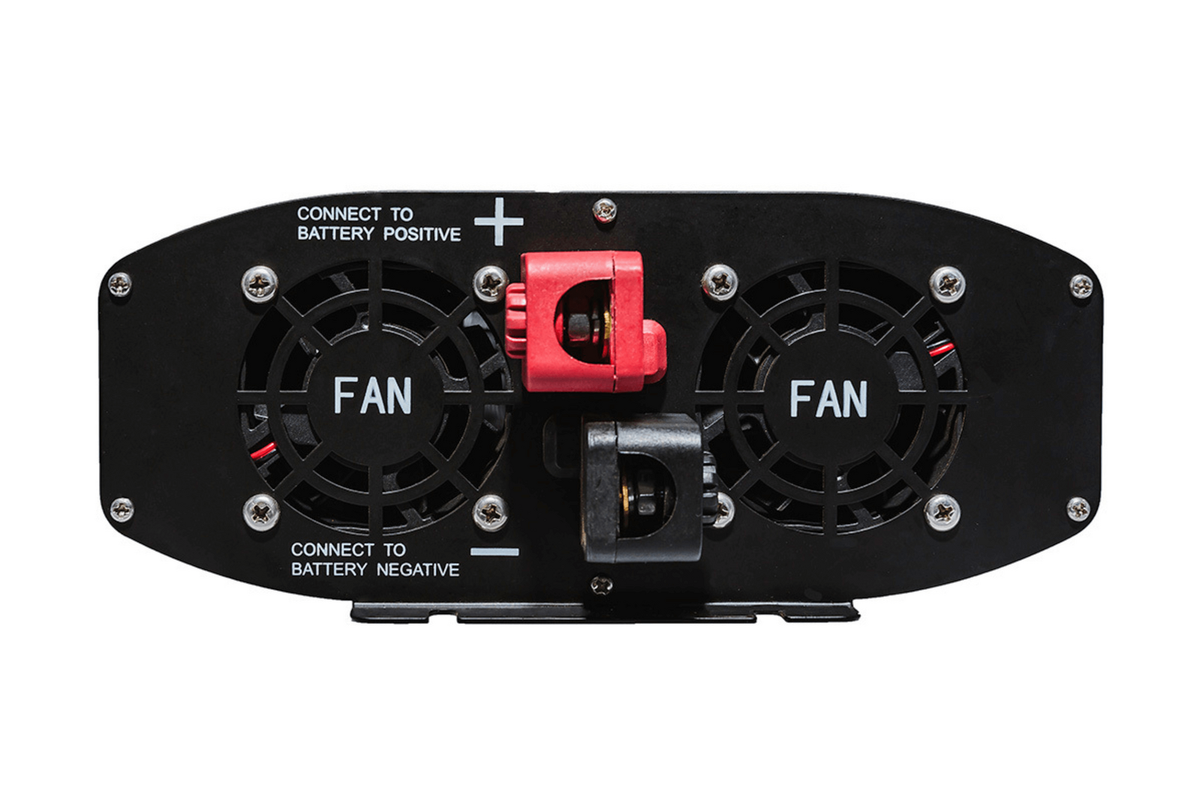

Input Connector M8 Red and Black DC Input Terminals
AC Output
Output Voltage 230V Australian Standard
Continuous Power 1000W 2000W 2500W 3000W
Surge Power 2000W 4000W 5000W 6000W
Output Frequency 50Hz +/-0.2%
Output Receptacle 1 Ă— Australian Std 3 pin socket 2 Ă— Australian Std 3 pin sockets
Protection
DC Under Voltage Protection 9.0V 10V +/-0.5VDC 20V +/-0.5VDC
DC Over Voltage Protection 15.0V 15V +/-0.5VDC 30V +/-0.5VDC
Overload CPU controlled auto shutdown
DC Polarity Reverse Fuse Protection
Short Circuit / Over Heat CPU controlled auto shutdown
Audible Alarm Input DC under/over voltage, fault, over current, over temperature
Cooling Intelligent brushless cooling fan Twin intelligent brushless cooling fans
Display and Indicator
Indicator Green LED (normal) / Red LED (fault/protection)
LCD Display Display input and output voltages LCD Display AC Output & DC Input Voltages, Error/Fault Codes, on/off switch
Remote Switch Panel N/A LCD Display AC Output & DC Input Voltages, Error/Fault Codes, on/off switch
Installation Requirements
Circuit Breaker (A) 100 200 250 150
Cable Size B&S — up to 2m 4 0 00 2
Cable Size B&S — 2–4m 2 00 000 0
Physical
Case High Quality Anodized Aluminium (Black)
Dimensions (LĂ—WĂ—H mm) 280 Ă— 160 Ă— 90 395 Ă— 220 Ă— 92 470 Ă— 220 Ă— 92
Weight (kg) 3.6 4.6 (inc. remote) 5.4 (inc. remote)
Model12V 1000W
Electrical
Input Voltage 12V
Input Voltage Range 9–15VDC
Idle Current 0.2A
Efficiency >95%
Input Connector M8 Red and Black DC Input Terminals
AC Output
Output Voltage 230V Australian Standard
Continuous Power 1000W
Surge Power 2000W
Output Frequency 50Hz +/-0.2%
Output Receptacle 1 Ă— Australian Std 3 pin socket
Protection
DC Under Voltage Protection 9.0V
DC Over Voltage Protection 15.0V
Overload CPU controlled auto shutdown
DC Polarity Reverse Fuse Protection
Short Circuit / Over Heat CPU controlled auto shutdown
Audible Alarm Input DC under/over voltage, fault, over current, over temperature
Cooling Intelligent brushless cooling fan
Display and Indicator
Indicator Green LED (normal) / Red LED (fault/protection)
LCD Display Display input and output voltages
Remote Switch Panel N/A
Installation Requirements
Circuit Breaker (A) 100
Cable Size B&S — up to 2m 4
Cable Size B&S — 2–4m 2
Physical
Case High Quality Anodized Aluminium (Black)
Dimensions (LĂ—WĂ—H mm) 280 Ă— 160 Ă— 90
Weight (kg) 3.6
Model12V 2000W
Electrical
Input Voltage 12V
Input Voltage Range 9.6–15VDC
Idle Current 0.8A
Efficiency >90%
Input Connector M8 Red and Black DC Input Terminals
AC Output
Output Voltage 230V Australian Standard
Continuous Power 2000W
Surge Power 4000W
Output Frequency 50Hz +/-0.2%
Output Receptacle 2 Ă— Australian Std 3 pin sockets
Protection
DC Under Voltage Protection 10V +/-0.5VDC
DC Over Voltage Protection 15V +/-0.5VDC
Overload CPU controlled auto shutdown
DC Polarity Reverse Fuse Protection
Short Circuit / Over Heat CPU controlled auto shutdown
Audible Alarm Input DC under/over voltage, fault, over current, over temperature
Cooling Twin intelligent brushless cooling fans
Display and Indicator
Indicator Green LED (normal) / Red LED (fault/protection)
LCD Display / Remote Switch Panel LCD Display AC Output & DC Input Voltages, Error/Fault Codes, on/off switch
Installation Requirements
Circuit Breaker (A) 200
Cable Size B&S — up to 2m 0
Cable Size B&S — 2–4m 00
Physical
Case High Quality Anodized Aluminium (Black)
Dimensions (LĂ—WĂ—H mm) 395 Ă— 220 Ă— 92
Weight (kg) 4.6 (inc. remote)
Model12V 2500W
Electrical
Input Voltage 12V
Input Voltage Range 9.6–15VDC
Idle Current 0.8A
Efficiency >90%
Input Connector M8 Red and Black DC Input Terminals
AC Output
Output Voltage 230V Australian Standard
Continuous Power 2500W
Surge Power 5000W
Output Frequency 50Hz +/-0.2%
Output Receptacle 2 Ă— Australian Std 3 pin sockets
Protection
DC Under Voltage Protection 10V +/-0.5VDC
DC Over Voltage Protection 15V +/-0.5VDC
Overload CPU controlled auto shutdown
DC Polarity Reverse Fuse Protection
Short Circuit / Over Heat CPU controlled auto shutdown
Audible Alarm Input DC under/over voltage, fault, over current, over temperature
Cooling Twin intelligent brushless cooling fans
Display and Indicator
Indicator Green LED (normal) / Red LED (fault/protection)
LCD Display / Remote Switch Panel LCD Display AC Output & DC Input Voltages, Error/Fault Codes, on/off switch
Installation Requirements
Circuit Breaker (A) 250
Cable Size B&S — up to 2m 00
Cable Size B&S — 2–4m 000
Physical
Case High Quality Anodized Aluminium (Black)
Dimensions (LĂ—WĂ—H mm) 470 Ă— 220 Ă— 92
Weight (kg) 5.4 (inc. remote)
Model24V 3000W
Electrical
Input Voltage 24V
Input Voltage Range 19.2–30VDC
Idle Current 0.4A
Efficiency >90%
Input Connector M8 Red and Black DC Input Terminals
AC Output
Output Voltage 230V Australian Standard
Continuous Power 3000W
Surge Power 6000W
Output Frequency 50Hz +/-0.2%
Output Receptacle 2 Ă— Australian Std 3 pin sockets
Protection
DC Under Voltage Protection 20V +/-0.5VDC
DC Over Voltage Protection 30V +/-0.5VDC
Overload CPU controlled auto shutdown
DC Polarity Reverse Fuse Protection
Short Circuit / Over Heat CPU controlled auto shutdown
Audible Alarm Input DC under/over voltage, fault, over current, over temperature
Cooling Twin intelligent brushless cooling fans
Display and Indicator
Indicator Green LED (normal) / Red LED (fault/protection)
LCD Display / Remote Switch Panel LCD Display AC Output & DC Input Voltages, Error/Fault Codes, on/off switch
Installation Requirements
Circuit Breaker (A) 150
Cable Size B&S — up to 2m 2
Cable Size B&S — 2–4m 0
Physical
Case High Quality Anodized Aluminium (Black)
Dimensions (LĂ—WĂ—H mm) 470 Ă— 220 Ă— 92
Weight (kg) 5.4 (inc. remote)

Downloads

AllSpark Pro Series Inverter Manual

FAQS

Q: Do I need circuit protection for installation?

A: Yes, you will need a 150A circuit breaker for installation with a minimum cable size of 2B&S cable (32mm²).



Q: What will it run?

A: Our AllSpark 3000 Watt Pure Sine Wave Inverter will run continuously at 3000 watts unlike some cheap brands that claim they can, but struggle to provide half that output.

Any 240v device that you can plug in at home will run on this Inverter.

  •  Coffee machine - generally around 1300-1600w
  • Microwave - 800 - 1800w
  • Kettles - up to 2000w
  • Toaster - 800w to as high as 2000w
  • Laptops - most run between 60w and 180w
  • Hair Dryer - up to 2000w
  • Air conditioner - caravan AC's are generally around 1400-1600w
  • Any other 240v devices - Anything you need that's under 2000w - drones, cameras, computers, IT equipment, cordless tool chargers etc.



Q: Will this run my microwave?

A: YES - The AllSpark PRO series 24V 3000/6000W Pure Sine Wave Inverter will run at 3000w continuous output until the battery goes flat and 6000w as a start-up wattage.

Microwaves have 2 key numbers to take into account - the watts of cooking power, eg. many caravan microwaves are 800W, and the total input power, which is the total power that the microwave consumes from your battery.

Whilst it may have 800W of cooking power, it still uses more power to spin the turn table, run the control panel, internal light and fan etc, which makes up the rest of the power consumption. So before sizing an inverter, you need to check the input power (not the cooking watts) which is more likely 1200w for a 800w cooking power model.

For many microwaves there is 30-50% more to get to the input power above the cooking power. You may need to check your manual or online for the full specifications of your microwave.



Q: What do i need for installation?

A: We recommend installing one of our AllSpark 150 Amp manual reset circuit breakers between the inverter and battery connections and a master battery isolation switch.

Don't know how to hook it up? Need sizing advice or custom cabling? Drop us a line and Jas can help tailor a solution to suit your needs.

A minimum of 2 B&S cable (with a preferred maximum cable length of 1.5m to ensure voltage drop is kept within acceptable limits - longer cables must increase the gauge of cable to overcome voltage drop) should be used along with the installation of a 150A manual reset circuit breaker or mega fuse.



Q: Does this have an automatic AC transfer switch?

A: No, this inverter does not have an automatic changeover switch. You can get an external changeover switch installed. Please be aware that in Australia this work is legally classified as electrical work and, according to electrical regulations, it is a legal requirement to have a licensed 240V electrician to install a for you.



Error Codes -
E1 - Beep once a time Battery low voltage protection - Turn off the load, and then charge the battery.

E2 -  Beep twice a time Battery over voltage protection - Turn off the inverter, discharge the battery to reduce the battery voltage.

E3 - 4 beeps a time Over heat protection Disconnect the load from the inverter, connect it to the inverter again after the inverter cools down.

E4 - No alarm Communication error -  Contact Offroad Living

E11 - Continuous beep Short circuit protection Disconnect the load, check the wiring of both the inverter and the load appliance

E12 - 3 beeps a time Overload protection Reduce the load power capacity.

E13 - No alarm Under high voltage Contact Offroad Living

E14 -  No alarm Over high voltage Contact Offroad Living

E15 - No alarm Driver error Contact Offroad Living

Reviews

PRODUCTS YOU MIGHT LIKE
