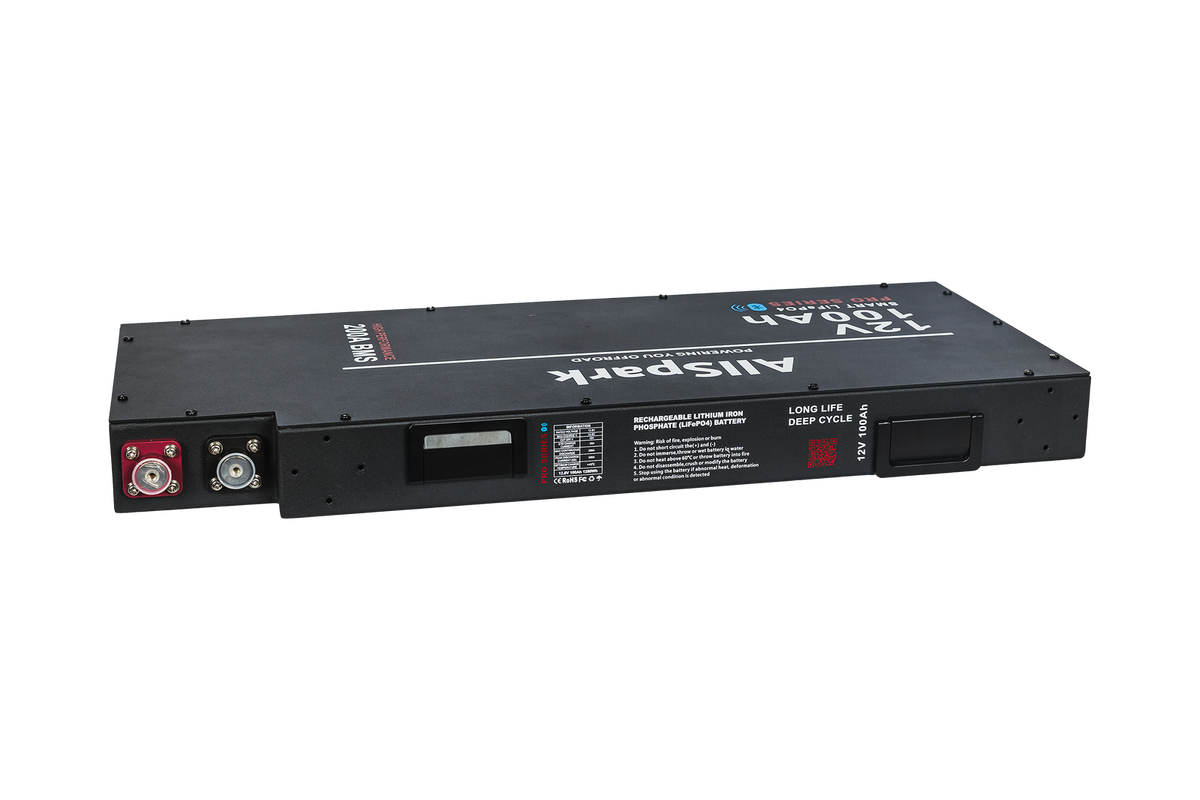

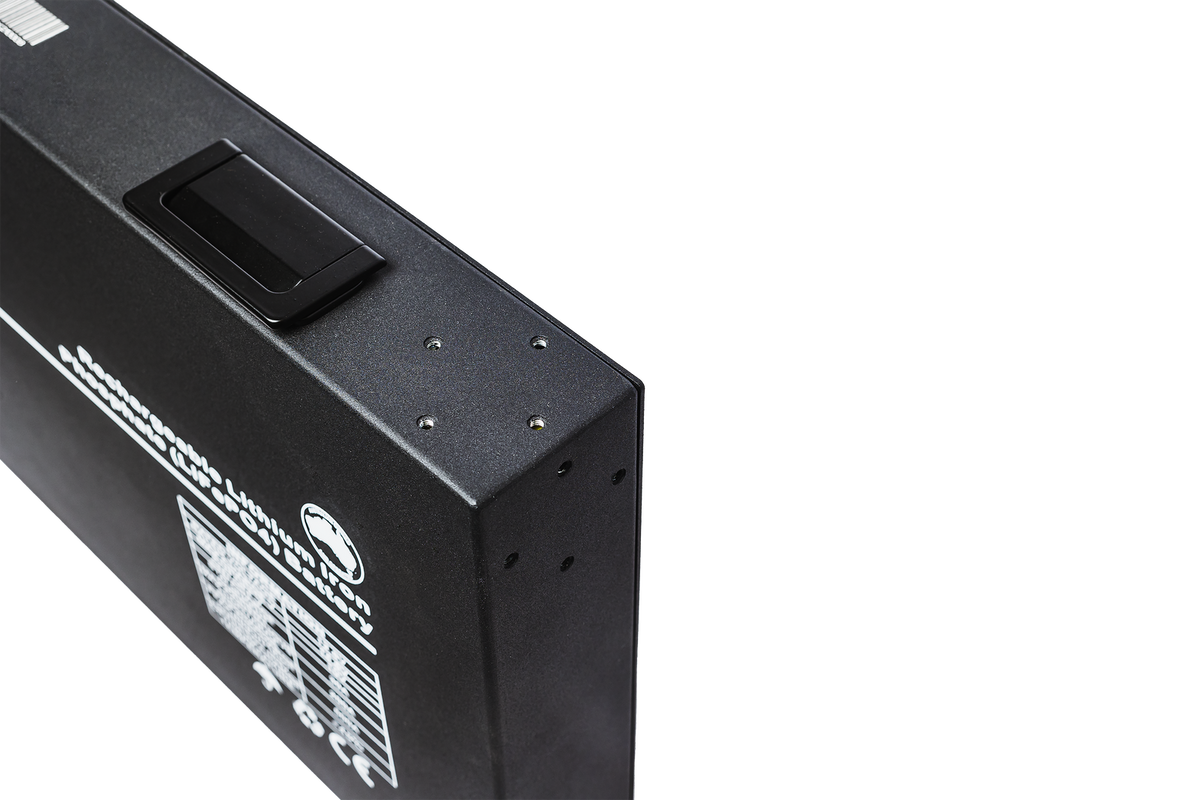

100ah Lithium Battery Ultra Slim 12V with Bluetooth
$1,399.00
Sale price
$1,399.00
Regular price
$0.00
Skip to product information
Frequently Bought Together:

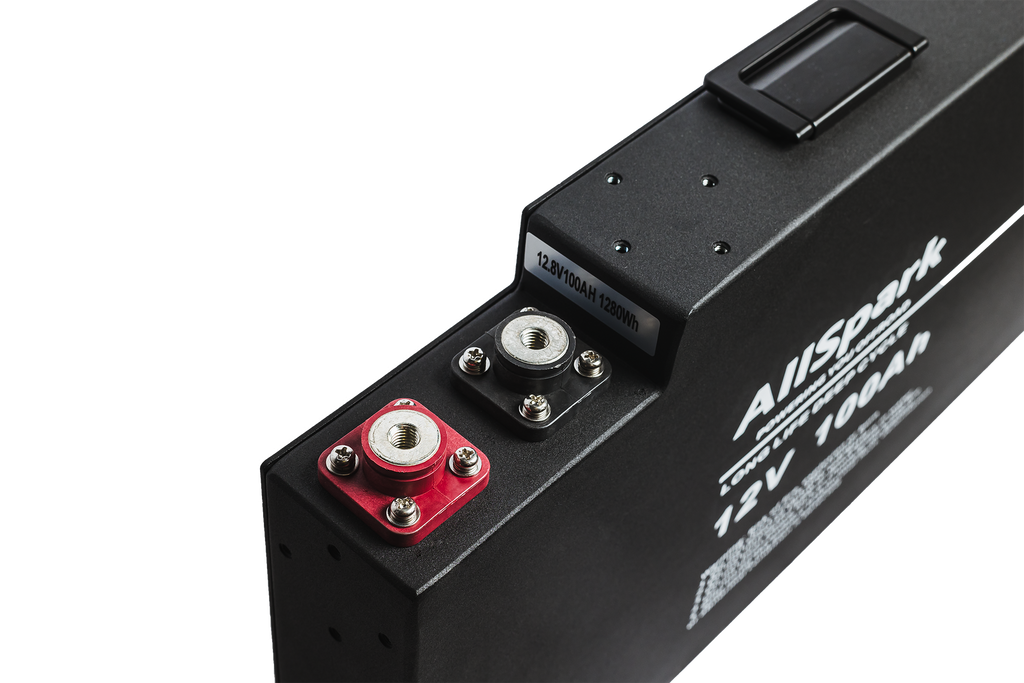

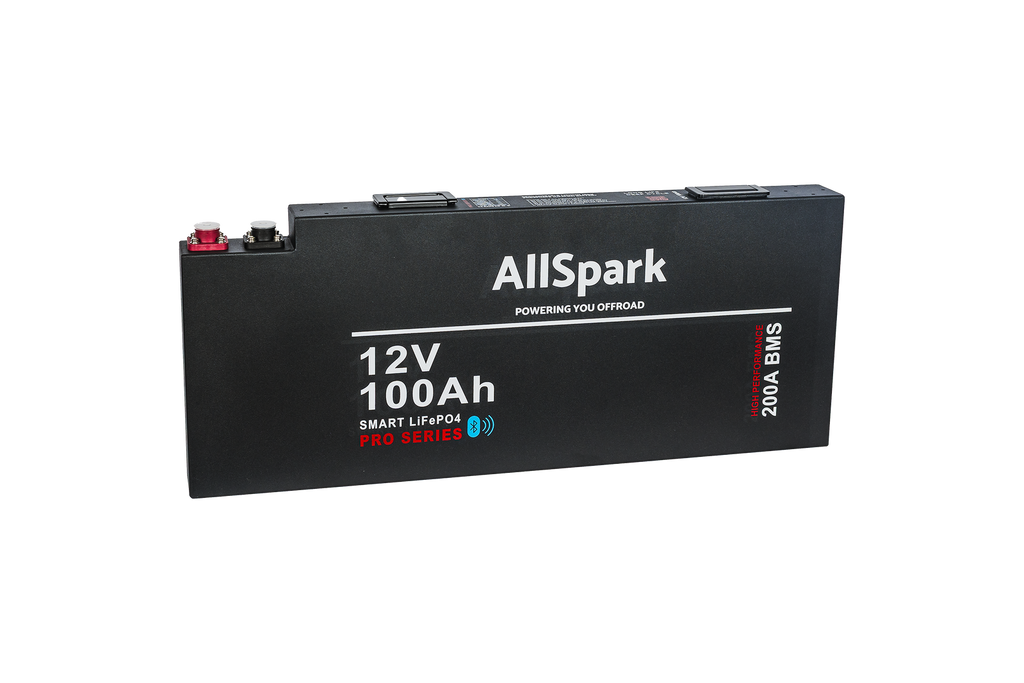

100ah Lithium Battery Ultra Slim 12V with Bluetooth
SKU CODE: AS-10012LTUSBT
In Stock
$1,399.00
Sale price
$1,399.00
Regular price
$0.00
Description

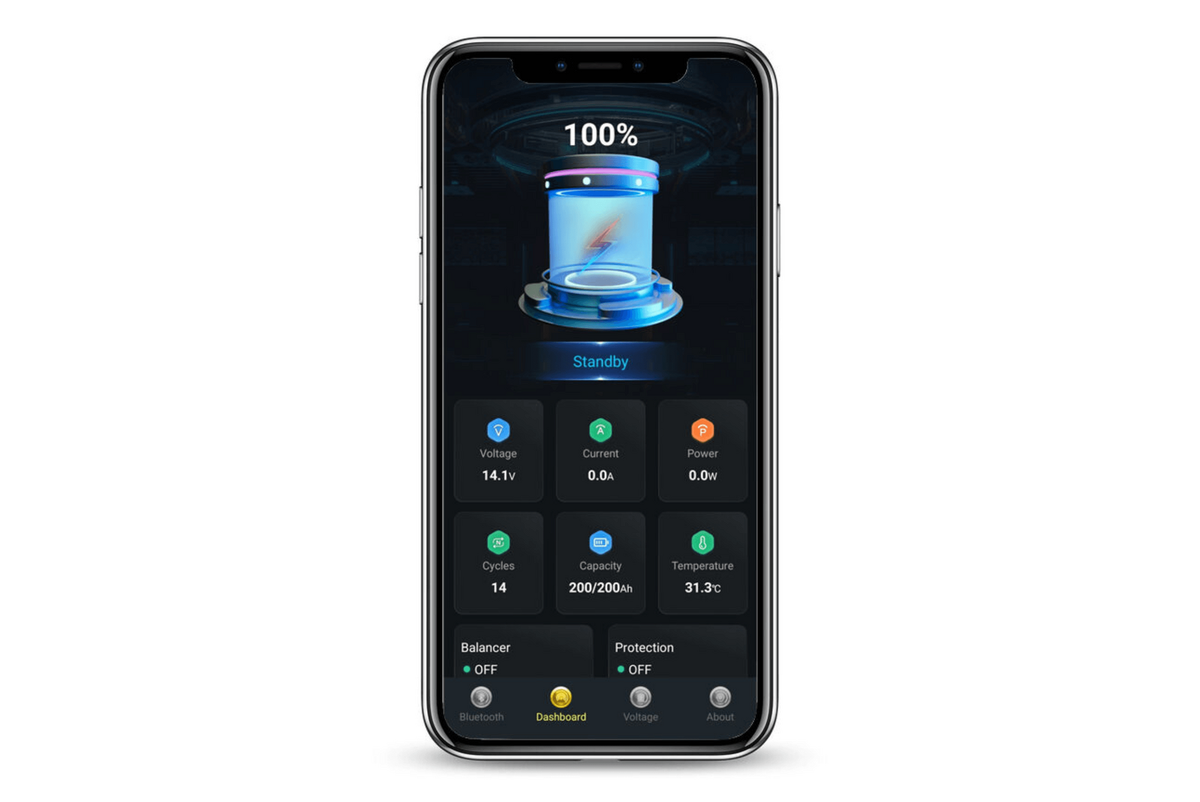

FIT ANYWHERE WITH ULTIMATE CONTROL - ULTRA SLIM LITHIUM BATTERY BY ALLSPARK
The AllSpark 12V 100Ah is an ultra slim lithium battery built for Australian off-grid life - genuine capacity, real-world protection, ultimate monitoring control, and a compact form factor that fits where standard batteries won't.
If you've been let down by battery claims that didn't hold up on the road, this is a different kind of battery. Built with brand-new A-Grade prismatic cells, a solid-state BMS and Bluetooth monitoring included, it delivers power you can actually count on - on corrugated outback tracks, in 40-degree heat, hundreds of kilometres from the nearest town.
IEC 62619 certified. 7-year full replacement warranty. Designed, developed and tested by us, here in Australia by Offroad Living.
Warranty
Features
Specifications
| SKU | AS-10012LTUSBT | AS-12100SLIMBT | AS-12150SLIMBT | AS-12200SLIMBT | AS-30012LISLBT | AS-30012LIUSLBT |
| Battery Level Specifications | ||||||
| Capacity Amp Hours (C5) | 100 | 150 | 200 | 300 | ||
| Watt Hours | 1,280 | 1,920 | 2,560 | 3,840 | ||
| Rated Voltage (V) | 12.8 | |||||
| Max Charge Voltage (V) | 14.6 | |||||
| Recommended Float Voltage (V) | 13.6 | |||||
| Low Voltage Cutoff (V) | 10 | |||||
| Rapid Charge Current (1C) for 30 mins (A) | 100 | 150 | 200 | 300 | ||
| Recommended Charge Current (A)* | 30–50 | 50 | 100 | |||
| Charge Profile | CC/CV | |||||
| Max Inverter Size (W — per single battery) | 2,500 | 3,000 | ||||
| Max Continuous Discharge (A) | 200 | 300 | ||||
| Peak Discharge — 5 secs (A) | 500 | 600 | ||||
| Charge Cycles¹ (residual capacity ≥85%) @ 80% Depth of Discharge @ 60% Depth of Discharge @ 40% Depth of Discharge | > 3,200+¹ > 4,200+ > 5,000+ | |||||
| Optimum Charge Temperature (°C) | < 45 | |||||
| Operating Temperature Range (°C) | -20 to +60 | |||||
| Storage Temperature Range (°C) | -40 to +125 | |||||
| Max Series Voltage (V) | 24 | |||||
| Max Batteries in Parallel | Unlimited | |||||

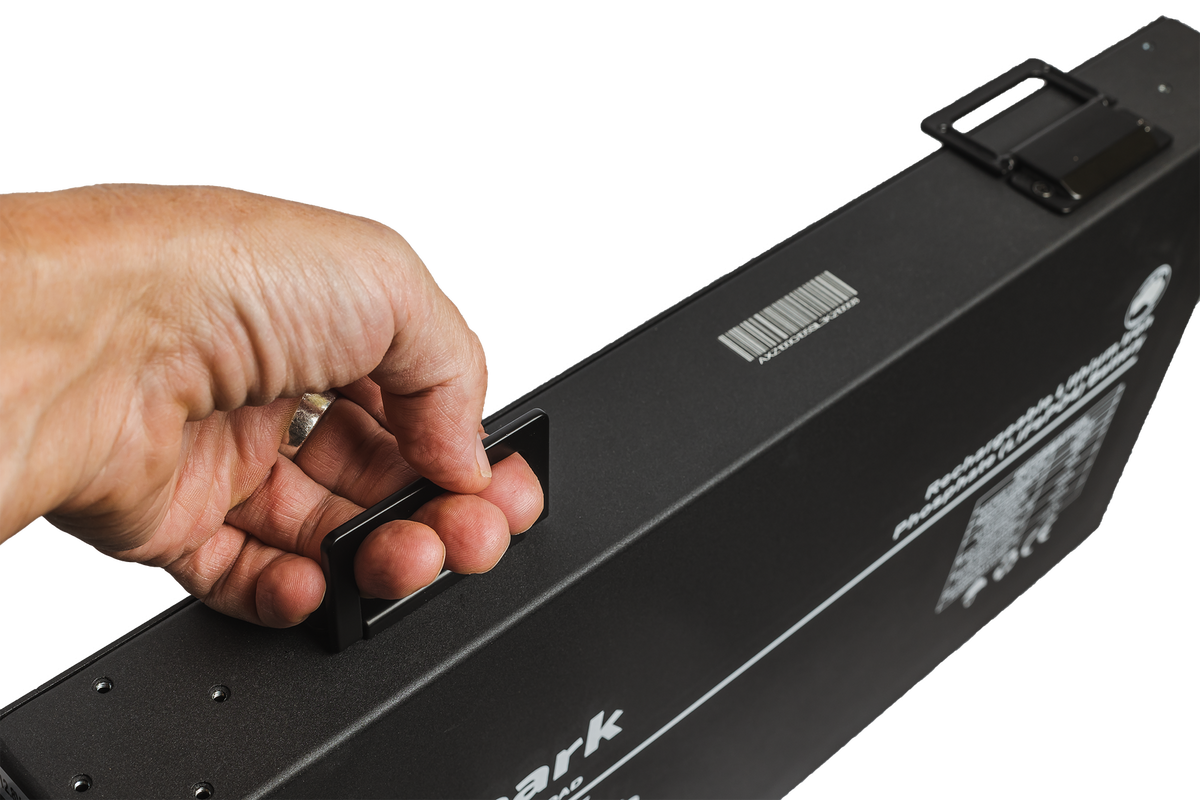

| Dimensions incl. Handles (mm) | 635 x 60 x 260 | 400 x 120 x 200 | 400 x 120 x 250 | 400 x 120 x 300 | 400 x 160 x 300 | 767 x 112 x 260 |
| Case Material | Ultraslim Aluminium | Slimline Aluminium | Ultraslim Aluminium | |||
| Weight (kg) | 13 | 12 | 18 | 21 | 31 | 31 |
| IP Rating | NOT WATERPROOF — INTERNAL USE ONLY | |||||
| Cell Level Specification | ||||||
| Cell Type | Prismatic | |||||
| Cell Connection | 4S1P | |||||
| Cell Capacity | 3.2V @ 100Ah | |||||
| Cell Casing | Nickel Plated Steel | |||||
| Cell Balancing Target (V) | 3.65 ± 0.025 | |||||
| Cell Balance Current (mA) | 35 ± 5 | |||||
| Cell Over Discharge LV Protection (V) | 2.5 ± 0.025 | |||||
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ | |||||
| Over Charge Cutoff (V) | 3.75 ± 0.025 | |||||
| Over Charge Detection Delay (secs) | 1–1.6 | |||||
| Over Charge Release (V) | 3.6 ± 0.0625 | |||||
| Over Charge Release | Auto Below Release Voltage | |||||
| Over Current Detection (1) (A) | 220 | |||||
| Over Current Detection Delay (1) (secs) | 10 | |||||
| Over Current Detection (2) (A) | 500 | |||||
| Over Current Detection Delay (2) (secs) | 5 | |||||
| Over Current Release | Remove Load — Auto Release | |||||
| Short Circuit Protection | External Short | |||||
| Short Circuit Detection Delay (μS) | 200–400 | |||||
| Short Circuit Recovery | Remove Load — Auto Release | |||||
| Internal Resistance (MOSFET Protection) | ≤20mΩ | |||||
Notes* Recommended charge current for best cell longevity. ¹ Cycle life independently laboratory tested at 0.2C₅ discharge rate and 0.2C charge rate up to 5,000 cycles at a controlled temperature of 25°C. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3,000 cycles. In real-world conditions, users will experience a range of temperature, current and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.
SKUAS-10012LTUSBT
| Battery Level Specifications | |
| Capacity Amp Hours (C5) | 100 |
| Watt Hours | 1,280 |
| Rated Voltage (V) | 12.8 |
| Max Charge Voltage (V) | 14.6 |
| Recommended Float Voltage (V) | 13.6 |
| Low Voltage Cutoff (V) | 10 |
| Rapid Charge Current (1C) 30 mins (A) | 100 |
| Recommended Charge Current (A)* | 30–50 |
| Charge Profile | CC/CV |
| Max Inverter Size (W) | 2,500 |
| Max Continuous Discharge (A) | 200 |
| Peak Discharge — 5 secs (A) | 500 |
| Charge Cycles¹ ≥85% capacity @ 80% DoD | > 3,200+ |
| Charge Cycles @ 60% DoD | > 4,200+ |
| Charge Cycles @ 40% DoD | > 5,000+ |
| Optimum Charge Temp (°C) | < 45 |
| Operating Temp Range (°C) | -20 to +60 |
| Storage Temp Range (°C) | -40 to +125 |
| Max Series Voltage (V) | 24 |
| Max Batteries in Parallel | Unlimited |
| Dimensions incl. Handles (mm) | 635 x 60 x 260 |
| Case Material | Ultraslim Aluminium |
| Weight (kg) | 13 |
| Cell Level Specification | |
| Cell Type | Prismatic |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 100Ah |
| Cell Casing | Nickel Plated Steel |
| Cell Balancing Target (V) | 3.65 ± 0.025 |
| Cell Balance Current (mA) | 35 ± 5 |
| Over Discharge LV Protection (V) | 2.5 ± 0.025 |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 ± 0.025 |
| Over Charge Detection Delay (secs) | 1–1.6 |
| Over Charge Release (V) | 3.6 ± 0.0625 |
| Over Charge Release | Auto Below Release Voltage |
| Over Current Detection (1) (A) | 220 |
| Over Current Detection Delay (1) (secs) | 10 |
| Over Current Detection (2) (A) | 500 |
| Over Current Detection Delay (2) (secs) | 5 |
| Over Current Release | Remove Load — Auto Release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (μS) | 200–400 |
| Short Circuit Recovery | Remove Load — Auto Release |
| Internal Resistance (MOSFET) | ≤20mΩ |
⚠ Not waterproof — internal use only
SKUAS-12100SLIMBT
| Battery Level Specifications | |
| Capacity Amp Hours (C5) | 100 |
| Watt Hours | 1,280 |
| Rated Voltage (V) | 12.8 |
| Max Charge Voltage (V) | 14.6 |
| Recommended Float Voltage (V) | 13.6 |
| Low Voltage Cutoff (V) | 10 |
| Rapid Charge Current (1C) 30 mins (A) | 100 |
| Recommended Charge Current (A)* | 30–50 |
| Charge Profile | CC/CV |
| Max Inverter Size (W) | 2,500 |
| Max Continuous Discharge (A) | 200 |
| Peak Discharge — 5 secs (A) | 500 |
| Charge Cycles¹ ≥85% capacity @ 80% DoD | > 3,200+ |
| Charge Cycles @ 60% DoD | > 4,200+ |
| Charge Cycles @ 40% DoD | > 5,000+ |
| Optimum Charge Temp (°C) | < 45 |
| Operating Temp Range (°C) | -20 to +60 |
| Storage Temp Range (°C) | -40 to +125 |
| Max Series Voltage (V) | 24 |
| Max Batteries in Parallel | Unlimited |
| Dimensions incl. Handles (mm) | 400 x 120 x 200 |
| Case Material | Slimline Aluminium |
| Weight (kg) | 12 |
| Cell Level Specification | |
| Cell Type | Prismatic |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 100Ah |
| Cell Casing | Nickel Plated Steel |
| Cell Balancing Target (V) | 3.65 ± 0.025 |
| Cell Balance Current (mA) | 35 ± 5 |
| Over Discharge LV Protection (V) | 2.5 ± 0.025 |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 ± 0.025 |
| Over Charge Detection Delay (secs) | 1–1.6 |
| Over Charge Release (V) | 3.6 ± 0.0625 |
| Over Charge Release | Auto Below Release Voltage |
| Over Current Detection (1) (A) | 220 |
| Over Current Detection Delay (1) (secs) | 10 |
| Over Current Detection (2) (A) | 500 |
| Over Current Detection Delay (2) (secs) | 5 |
| Over Current Release | Remove Load — Auto Release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (μS) | 200–400 |
| Short Circuit Recovery | Remove Load — Auto Release |
| Internal Resistance (MOSFET) | ≤20mΩ |
⚠ Not waterproof — internal use only
SKUAS-12150SLIMBT
| Battery Level Specifications | |
| Capacity Amp Hours (C5) | 150 |
| Watt Hours | 1,920 |
| Rated Voltage (V) | 12.8 |
| Max Charge Voltage (V) | 14.6 |
| Recommended Float Voltage (V) | 13.6 |
| Low Voltage Cutoff (V) | 10 |
| Rapid Charge Current (1C) 30 mins (A) | 150 |
| Recommended Charge Current (A)* | 30–50 |
| Charge Profile | CC/CV |
| Max Inverter Size (W) | 2,500 |
| Max Continuous Discharge (A) | 200 |
| Peak Discharge — 5 secs (A) | 500 |
| Charge Cycles¹ ≥85% capacity @ 80% DoD | > 3,200+ |
| Charge Cycles @ 60% DoD | > 4,200+ |
| Charge Cycles @ 40% DoD | > 5,000+ |
| Optimum Charge Temp (°C) | < 45 |
| Operating Temp Range (°C) | -20 to +60 |
| Storage Temp Range (°C) | -40 to +125 |
| Max Series Voltage (V) | 24 |
| Max Batteries in Parallel | Unlimited |
| Dimensions incl. Handles (mm) | 400 x 120 x 250 |
| Case Material | Slimline Aluminium |
| Weight (kg) | 18 |
| Cell Level Specification | |
| Cell Type | Prismatic |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 100Ah |
| Cell Casing | Nickel Plated Steel |
| Cell Balancing Target (V) | 3.65 ± 0.025 |
| Cell Balance Current (mA) | 35 ± 5 |
| Over Discharge LV Protection (V) | 2.5 ± 0.025 |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 ± 0.025 |
| Over Charge Detection Delay (secs) | 1–1.6 |
| Over Charge Release (V) | 3.6 ± 0.0625 |
| Over Charge Release | Auto Below Release Voltage |
| Over Current Detection (1) (A) | 220 |
| Over Current Detection Delay (1) (secs) | 10 |
| Over Current Detection (2) (A) | 500 |
| Over Current Detection Delay (2) (secs) | 5 |
| Over Current Release | Remove Load — Auto Release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (μS) | 200–400 |
| Short Circuit Recovery | Remove Load — Auto Release |
| Internal Resistance (MOSFET) | ≤20mΩ |
⚠ Not waterproof — internal use only
SKUAS-12200SLIMBT
| Battery Level Specifications | |
| Capacity Amp Hours (C5) | 200 |
| Watt Hours | 2,560 |
| Rated Voltage (V) | 12.8 |
| Max Charge Voltage (V) | 14.6 |
| Recommended Float Voltage (V) | 13.6 |
| Low Voltage Cutoff (V) | 10 |
| Rapid Charge Current (1C) 30 mins (A) | 200 |
| Recommended Charge Current (A)* | 50 |
| Charge Profile | CC/CV |
| Max Inverter Size (W) | 2,500 |
| Max Continuous Discharge (A) | 200 |
| Peak Discharge — 5 secs (A) | 500 |
| Charge Cycles¹ ≥85% capacity @ 80% DoD | > 3,200+ |
| Charge Cycles @ 60% DoD | > 4,200+ |
| Charge Cycles @ 40% DoD | > 5,000+ |
| Optimum Charge Temp (°C) | < 45 |
| Operating Temp Range (°C) | -20 to +60 |
| Storage Temp Range (°C) | -40 to +125 |
| Max Series Voltage (V) | 24 |
| Max Batteries in Parallel | Unlimited |
| Dimensions incl. Handles (mm) | 400 x 120 x 300 |
| Case Material | Slimline Aluminium |
| Weight (kg) | 21 |
| Cell Level Specification | |
| Cell Type | Prismatic |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 100Ah |
| Cell Casing | Nickel Plated Steel |
| Cell Balancing Target (V) | 3.65 ± 0.025 |
| Cell Balance Current (mA) | 35 ± 5 |
| Over Discharge LV Protection (V) | 2.5 ± 0.025 |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 ± 0.025 |
| Over Charge Detection Delay (secs) | 1–1.6 |
| Over Charge Release (V) | 3.6 ± 0.0625 |
| Over Charge Release | Auto Below Release Voltage |
| Over Current Detection (1) (A) | 220 |
| Over Current Detection Delay (1) (secs) | 10 |
| Over Current Detection (2) (A) | 500 |
| Over Current Detection Delay (2) (secs) | 5 |
| Over Current Release | Remove Load — Auto Release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (μS) | 200–400 |
| Short Circuit Recovery | Remove Load — Auto Release |
| Internal Resistance (MOSFET) | ≤20mΩ |
⚠ Not waterproof — internal use only
SKUAS-30012LISLBT
| Battery Level Specifications | |
| Capacity Amp Hours (C5) | 300 |
| Watt Hours | 3,840 |
| Rated Voltage (V) | 12.8 |
| Max Charge Voltage (V) | 14.6 |
| Recommended Float Voltage (V) | 13.6 |
| Low Voltage Cutoff (V) | 10 |
| Rapid Charge Current (1C) 30 mins (A) | 300 |
| Recommended Charge Current (A)* | 100 |
| Charge Profile | CC/CV |
| Max Inverter Size (W) | 3,000 |
| Max Continuous Discharge (A) | 300 |
| Peak Discharge — 5 secs (A) | 600 |
| Charge Cycles¹ ≥85% capacity @ 80% DoD | > 3,200+ |
| Charge Cycles @ 60% DoD | > 4,200+ |
| Charge Cycles @ 40% DoD | > 5,000+ |
| Optimum Charge Temp (°C) | < 45 |
| Operating Temp Range (°C) | -20 to +60 |
| Storage Temp Range (°C) | -40 to +125 |
| Max Series Voltage (V) | 24 |
| Max Batteries in Parallel | Unlimited |
| Dimensions incl. Handles (mm) | 400 x 160 x 300 |
| Case Material | Slimline Aluminium |
| Weight (kg) | 31 |
| Cell Level Specification | |
| Cell Type | Prismatic |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 100Ah |
| Cell Casing | Nickel Plated Steel |
| Cell Balancing Target (V) | 3.65 ± 0.025 |
| Cell Balance Current (mA) | 35 ± 5 |
| Over Discharge LV Protection (V) | 2.5 ± 0.025 |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 ± 0.025 |
| Over Charge Detection Delay (secs) | 1–1.6 |
| Over Charge Release (V) | 3.6 ± 0.0625 |
| Over Charge Release | Auto Below Release Voltage |
| Over Current Detection (1) (A) | 220 |
| Over Current Detection Delay (1) (secs) | 10 |
| Over Current Detection (2) (A) | 500 |
| Over Current Detection Delay (2) (secs) | 5 |
| Over Current Release | Remove Load — Auto Release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (μS) | 200–400 |
| Short Circuit Recovery | Remove Load — Auto Release |
| Internal Resistance (MOSFET) | ≤20mΩ |
⚠ Not waterproof — internal use only
SKUAS-30012LIUSLBT
| Battery Level Specifications | |
| Capacity Amp Hours (C5) | 300 |
| Watt Hours | 3,840 |
| Rated Voltage (V) | 12.8 |
| Max Charge Voltage (V) | 14.6 |
| Recommended Float Voltage (V) | 13.6 |
| Low Voltage Cutoff (V) | 10 |
| Rapid Charge Current (1C) 30 mins (A) | 300 |
| Recommended Charge Current (A)* | 100 |
| Charge Profile | CC/CV |
| Max Inverter Size (W) | 3,000 |
| Max Continuous Discharge (A) | 300 |
| Peak Discharge — 5 secs (A) | 600 |
| Charge Cycles¹ ≥85% capacity @ 80% DoD | > 3,200+ |
| Charge Cycles @ 60% DoD | > 4,200+ |
| Charge Cycles @ 40% DoD | > 5,000+ |
| Optimum Charge Temp (°C) | < 45 |
| Operating Temp Range (°C) | -20 to +60 |
| Storage Temp Range (°C) | -40 to +125 |
| Max Series Voltage (V) | 24 |
| Max Batteries in Parallel | Unlimited |
| Dimensions incl. Handles (mm) | 767 x 112 x 260 |
| Case Material | Ultraslim Aluminium |
| Weight (kg) | 31 |
| Cell Level Specification | |
| Cell Type | Prismatic |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 100Ah |
| Cell Casing | Nickel Plated Steel |
| Cell Balancing Target (V) | 3.65 ± 0.025 |
| Cell Balance Current (mA) | 35 ± 5 |
| Over Discharge LV Protection (V) | 2.5 ± 0.025 |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 ± 0.025 |
| Over Charge Detection Delay (secs) | 1–1.6 |
| Over Charge Release (V) | 3.6 ± 0.0625 |
| Over Charge Release | Auto Below Release Voltage |
| Over Current Detection (1) (A) | 220 |
| Over Current Detection Delay (1) (secs) | 10 |
| Over Current Detection (2) (A) | 500 |
| Over Current Detection Delay (2) (secs) | 5 |
| Over Current Release | Remove Load — Auto Release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (μS) | 200–400 |
| Short Circuit Recovery | Remove Load — Auto Release |
| Internal Resistance (MOSFET) | ≤20mΩ |
⚠ Not waterproof — internal use only
Notes* Recommended charge current for best cell longevity. ¹ Cycle life independently laboratory tested at 0.2C₅ discharge rate and 0.2C charge rate up to 5,000 cycles at a controlled temperature of 25°C. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3,000 cycles. In real-world conditions, users will experience a range of temperature, current and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.
Downloads
FAQS
Reviews
PRODUCTS YOU MIGHT LIKE
