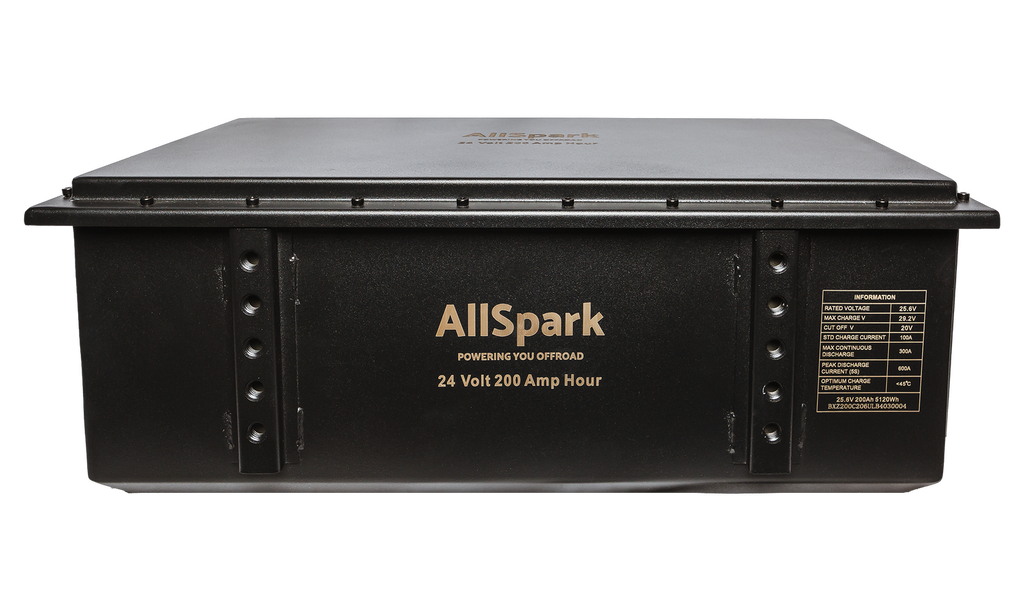

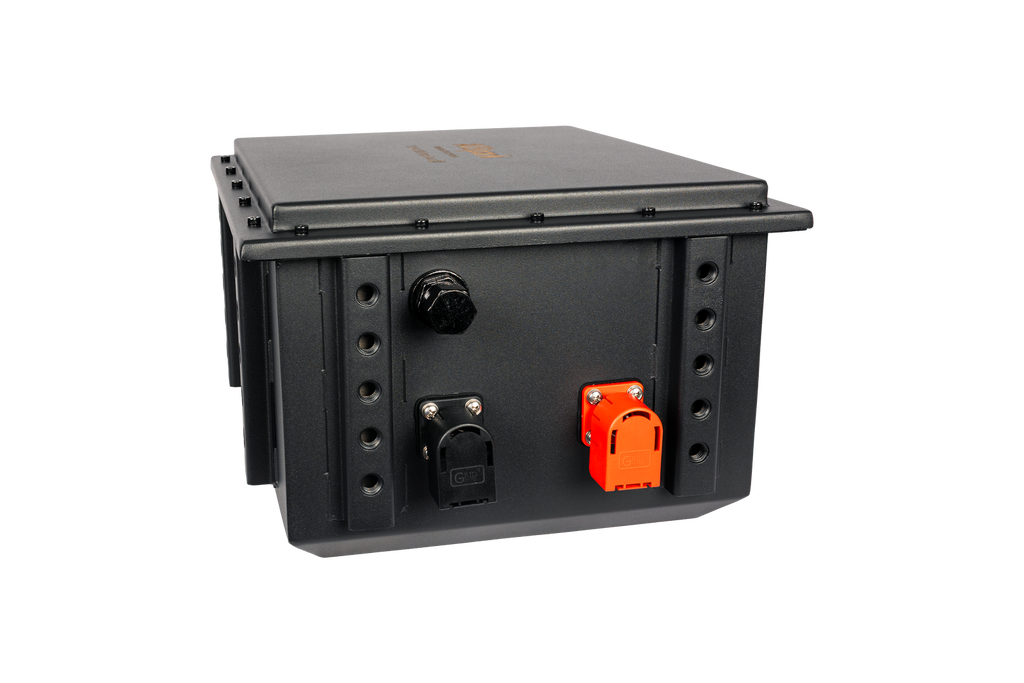

Name: 200Ah 24V Lithium Battery Waterproof Chassis Mount Bluetooth IP67
Brand: AllSpark
SKU: AS-20024LICMBT
Price: 4339.00 AUD
Availability: InStock

200Ah 24V Lithium Battery Waterproof Chassis Mount Bluetooth IP67

Out of stock due to popular demand. Pre-Order now for next shipment due late Sept 2026

$4,339.00

$4,339.00 $0.00

Frequently Bought Together:

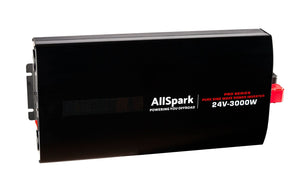

AllSpark 24V 3000 Watt PRO series Pure Sine Wave Inverter

$869.00

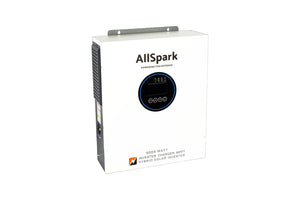

AllSpark - 24V 5000 Watt Hybrid Inverter + 160A ACDC Charger + 160A MPPT with Auto Transfer

$1,295.00

200Ah 24V Lithium Battery Waterproof Chassis Mount Bluetooth IP67

SKU CODE: AS-20024LICMBT

In Stock

Out of stock due to popular demand. Pre-Order now for next shipment due late Sept 2026

$4,339.00

$4,339.00 $0.00

ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES IN AUSTRALIA

New 2025 cell technology with compact cells and casing
Bluetooth Integration
Water proof chassis mount case IP67
Exclusive Solid state BMS
Highest quality premium A grade prismatic cells
Greater than 3000 cycles @ 80% DoD
Power a 4000W Inverter from a SINGLE BATTERY
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Description

YOUR 24V BUILD DESERVES A BATTERY BOX AS TOUGH AS THE TRACKS YOU'RE HEADING TO

The AllSpark 200Ah 24V is a chassis mounted battery box purpose-built for caravans, motorhomes, and off-road builds running 24V electrical systems. IP67 rated, IEC 62619 certified as a complete assembled unit, and built from powder-coated stainless steel, it's engineered to handle corrugated outback tracks, creek crossings, and extreme Australian temperatures without missing a beat.

Designed by Offroad Living in Australia, this battery box for caravans integrates full Bluetooth monitoring directly through the BMS - so you get accurate cell-level data, charge history, and real-time state of charge, all on your phone at no extra cost.

If you're searching for battery boxes for a caravan build and need a 24V solution that's compliant, protected, and built for the long haul, this is where the search ends.

Sits Above the Frame - Your Clearance Stays Intact

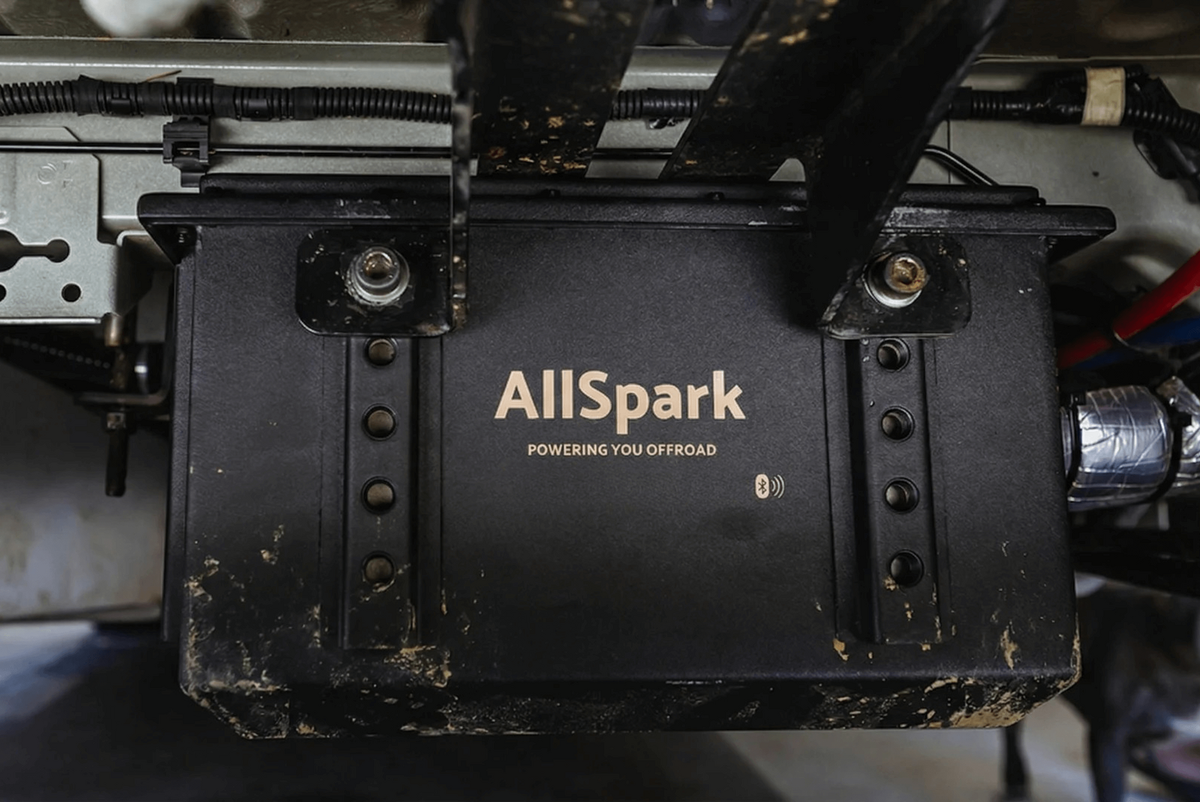

The AllSpark 24V chassis mounted battery box is designed to mount above the frame's lowest point - not hang below it. Typical battery boxes drop below the chassis rails and reduce your clearance on the tracks that matter most.

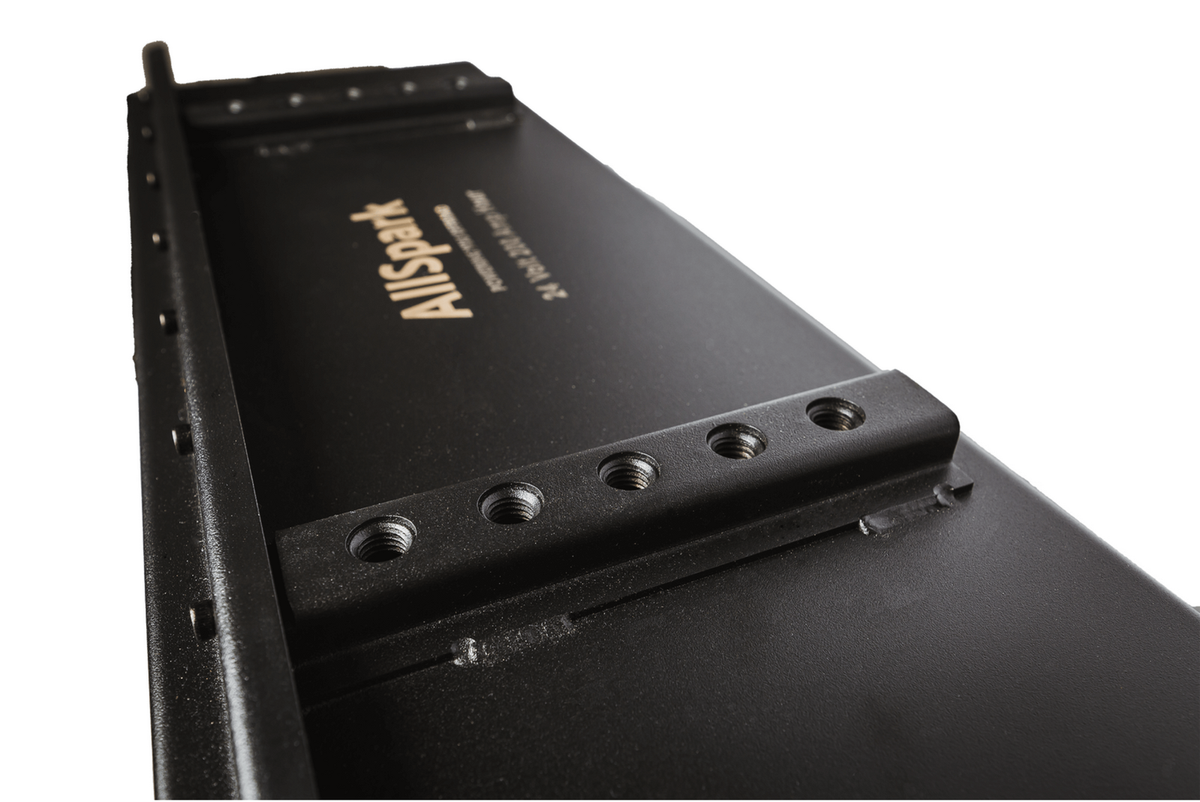

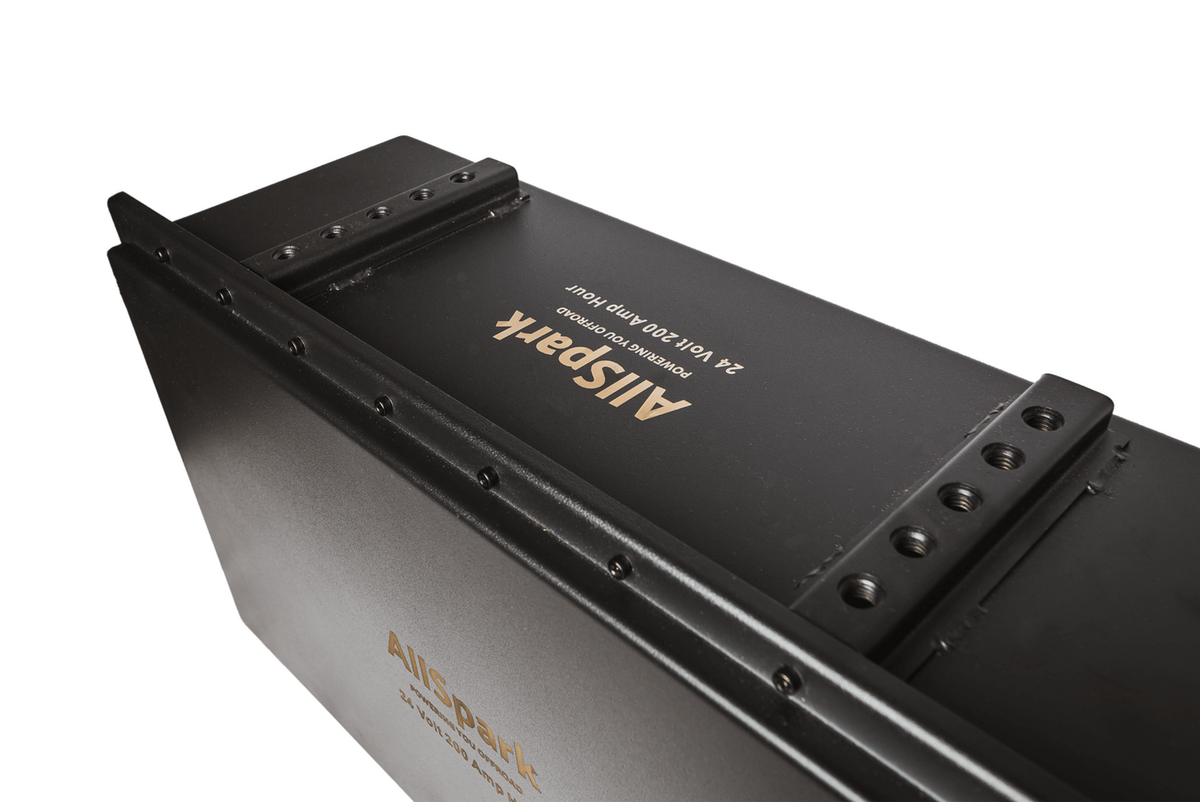

With AllSpark, the built-in mounting points allow for it to be installed securely above the frames lowest point, so the frame remains the lowest point, and you keep every millimetre of the clearance your build was designed around.

Full Battery Certification - Not Just the Components

IEC 62619 certification on the cells alone doesn't mean the complete battery is safe or compliant. AllSpark batteries are independently tested and certified as complete assembled units - cells, BMS, housing, workmanship - the lot.

For piece of mind and reliability - it's the stamp of approval you've been looking for.

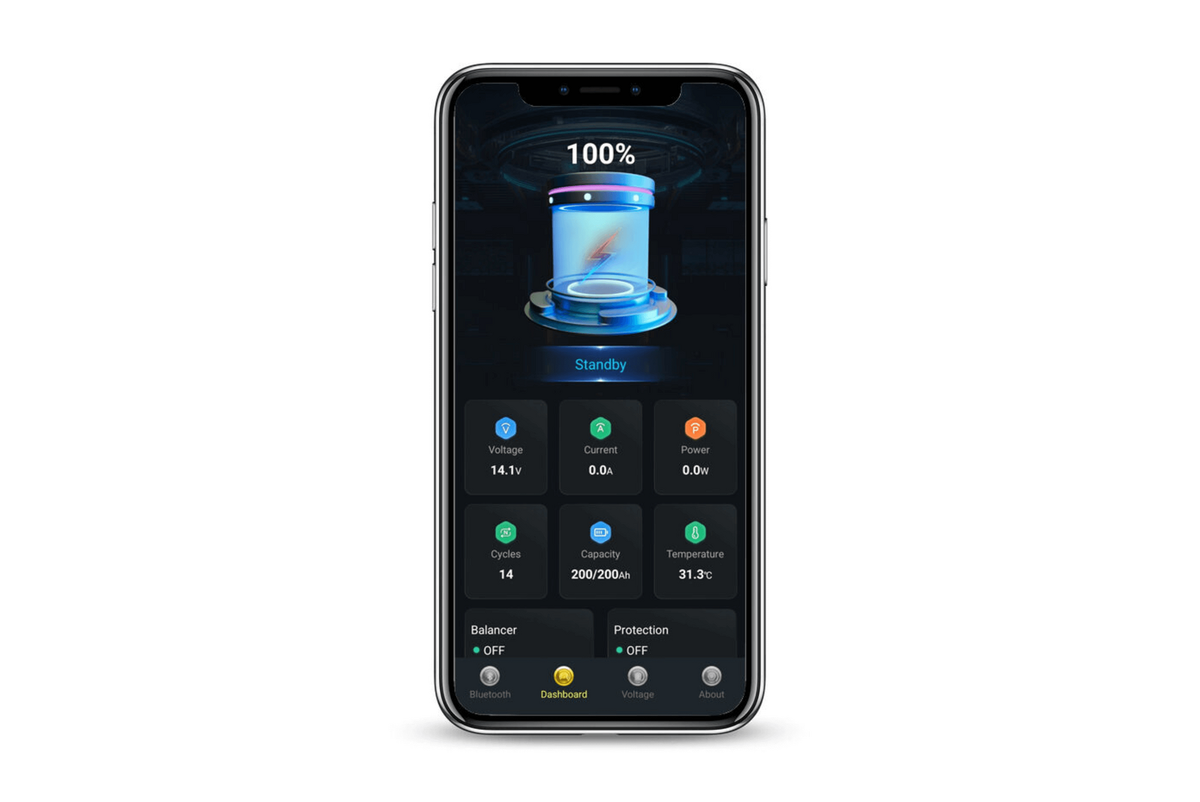

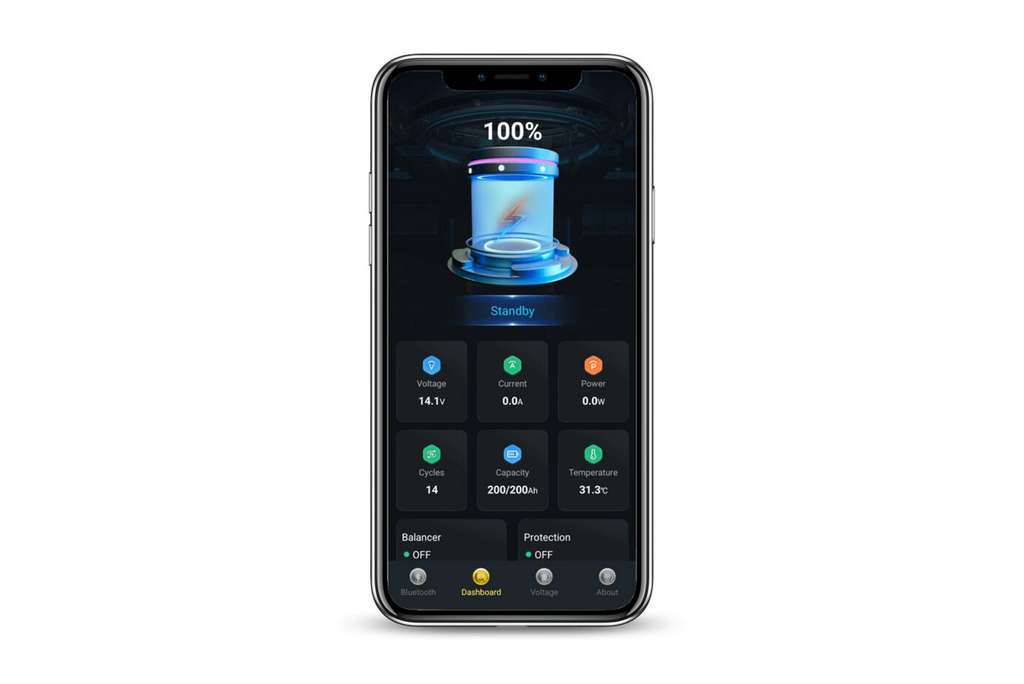

Real-Time Battery Data - Already Included

External battery monitors add cost, complexity, and installation time. AllSpark's Bluetooth monitoring is integrated directly with the BMS and included in the price.

State of charge, individual cell voltages, current in/out, cycle count, and charge history - all visible on your phone, all drawing on data that an external shunt monitor simply cannot access.

24V BMS Protection - Automatic and Comprehensive

Mounted under a caravan, this battery will face high ambient temperatures, vibration, and the occasional water crossing.

The AllSpark BMS provides full automatic protection: high and low temperature (-20°C to +60°C), over-voltage, under-voltage, over-current, short circuit, and reverse polarity. Cell balancing runs automatically, extending the life of every cell in the pack without any input from you.

24V Power Means More From Your Inverter

Running a 24V system unlocks higher inverter efficiency and lower cable losses across the board. The AllSpark 200Ah 24V delivers the continuous current output to run a 5000W inverter from a single battery - putting serious appliances like induction cooktops, aircon, and high-draw tools well within reach.

Built with A-Grade prismatic cells rated at 200A continuous and 500A peak, the power output stays consistent under load.

WHATS IN THE BOX

1 x AllSpark Bluetooth 24V 200ah powder coated stainless steel cased LiFePO4 battery with vent
M8 terminal bolts (2 length bolts) + nut covers

Warranty

7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

Advanced cell technology with compact cells and casing
Bluetooth Integration: Connect to a smart device to monitor performance, track usage data, and receive alerts.
Water proof IP67 chassis mount case
Powder coated stainless steel construction
Exclusive Solid state BMS designed and developed by Offroad Living
Highest quality premium grade prismatic cells resistance matched, long battery life and no voltage sag with a 20 year design life
Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
Power a 4000W Inverter from a SINGLE BATTERY for high power devices including coffee machines, air conditioners, toasters and kettles
Rapid charge
Designed to handle high vibration, dusty and wet environments
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Specifications

SKU	AS-20012LICMBT	AS-30012LICMBT	AS-40012LICMBT	AS-20024LICMBT	AS-10048BATLI200500CM
Battery Level Specifications
Capacity Amp Hours (C5)	200	300	400	200	100
Watt Hours	2560	3840	5120
Rated Voltage (V)	12.8			25.6	51.2
Max Charge Voltage (V)	14.6			29.2	58.4
Recommended Float Voltage (V)	13.6			27.2	54.4
Low Voltage Cutoff (V)	10			20	40
Rapid Charge Current (1C) for 30 mins (A)	100			100
Recommended Charge Current (A)*	50–80	50–120	80–150	50–80	30–50
Charge Profile	CC/CV
Max Inverter Size (W — per single battery)	2500	3000		4000	5000
Max Continuous Discharge (A)	200	300		200	200
Peak Discharge — 10 secs (A)	500	600		500	500
Charge Cycles @ 80% DoD^# (≥85% residual capacity) @ 60% DoD @ 40% DoD	> 3200+^# > 4200+ > 5000+
Optimum Charge Temperature (˚C)	< 45
Operating Temperature Range (˚C)	−20 to +60
Storage Temperature Range (˚C)	−40 to +125
Max Series Voltage	Parallel connection only — series not permitted
Max Batteries in Parallel	4
Dimensions incl. Mounts (mm)	350 × 300 × 200	400 × 300 × 200	550 × 300 × 200
Case Material	Powder coated stainless steel — with threaded vent pipe fitting and cap
Terminals	2 × M8 Bolted Terminals (1 × Red Positive, 1 × Black Negative)
Weight (kg)	25	36.5	51.3
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P		4S2P	8S1P	16S1P
Cell Capacity	3.2V @ 200Ah	3.2V @ 300Ah	3.2V @ 200Ah		3.2V @ 100Ah
Cell Casing	Nickel plated steel
Cell Balancing Target (V)	3.65 ±0.025
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025
Over Discharge Release	Apply charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025		3.65 ±0.025	3.75 ±0.025	3.65 ±0.025
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625
Over Charge Release Method	Auto below release voltage
Over Current Detection (1) (A)	220	330		220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500	600		500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove load — auto release
Short Circuit Protection	External short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove load — auto release
Internal Resistance (MOSFET Protection)	≤20mΩ

Notes* Recommended charge current is for best cell longevity. ^# Cycle life independently laboratory tested at 0.25C discharge and 0.25C charge rate to 5000 cycles at 25°C controlled temperature. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3000 cycles. In real-world conditions, users will experience a range of temperature, current, and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

SKUAS-20012LICMBT

Battery Level Specifications
Capacity (C5)	200Ah
Watt Hours	2560Wh
Rated Voltage	12.8V
Max Charge Voltage	14.6V
Recommended Float	13.6V
Low Voltage Cutoff	10V
Rapid Charge (1C/30min)	100A
Recommended Charge*	50–80A
Charge Profile	CC/CV
Max Inverter Size	2500W
Max Continuous Discharge	200A
Peak Discharge (10s)	500A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	350 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	25kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.75 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	220A
OCD Delay (1)	10s
Over Current Det. (2)	500A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

SKUAS-30012LICMBT

Battery Level Specifications
Capacity (C5)	300Ah
Watt Hours	3840Wh
Rated Voltage	12.8V
Max Charge Voltage	14.6V
Recommended Float	13.6V
Low Voltage Cutoff	10V
Rapid Charge (1C/30min)	100A
Recommended Charge*	50–120A
Charge Profile	CC/CV
Max Inverter Size	3000W
Max Continuous Discharge	300A
Peak Discharge (10s)	600A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	400 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	36.5kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 300Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.75 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	330A
OCD Delay (1)	10s
Over Current Det. (2)	600A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

SKUAS-40012LICMBT

Battery Level Specifications
Capacity (C5)	400Ah
Watt Hours	5120Wh
Rated Voltage	12.8V
Max Charge Voltage	14.6V
Recommended Float	13.6V
Low Voltage Cutoff	10V
Rapid Charge (1C/30min)	100A
Recommended Charge*	80–150A
Charge Profile	CC/CV
Max Inverter Size	3000W
Max Continuous Discharge	300A
Peak Discharge (10s)	600A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	550 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	51.3kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S2P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.65 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	330A
OCD Delay (1)	10s
Over Current Det. (2)	600A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

SKUAS-20024LICMBT

Battery Level Specifications
Capacity (C5)	200Ah
Watt Hours	5120Wh
Rated Voltage	25.6V
Max Charge Voltage	29.2V
Recommended Float	27.2V
Low Voltage Cutoff	20V
Rapid Charge (1C/30min)	100A
Recommended Charge*	50–80A
Charge Profile	CC/CV
Max Inverter Size	4000W
Max Continuous Discharge	200A
Peak Discharge (10s)	500A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	550 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	51.3kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	8S1P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.75 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	220A
OCD Delay (1)	10s
Over Current Det. (2)	500A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

SKUAS-10048BATLI200500CM

Battery Level Specifications
Capacity (C5)	100Ah
Watt Hours	5120Wh
Rated Voltage	51.2V
Max Charge Voltage	58.4V
Recommended Float	54.4V
Low Voltage Cutoff	40V
Rapid Charge (1C/30min)	100A
Recommended Charge*	30–50A
Charge Profile	CC/CV
Max Inverter Size	5000W
Max Continuous Discharge	200A
Peak Discharge (10s)	500A
Cycles @ 80% DoD^#	> 3200+
Cycles @ 60% DoD	> 4200+
Cycles @ 40% DoD	> 5000+
Optimum Charge Temp	< 45˚C
Operating Temp Range	−20 to +60˚C
Storage Temp Range	−40 to +125˚C
Max Series Voltage	Parallel only
Max Batteries in Parallel	4
Dimensions incl. Handles	550 × 300 × 200mm
Case Material	Powder coated stainless steel
Terminals	2 × M8 Bolted
Weight	51.3kg
IP Rating	IP67
Cell Level Specification
Cell Type	Prismatic
Cell Connection	16S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel plated steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current	35 ±5mA
OD LV Protection	2.5 ±0.025V
Over Discharge Release	Apply 10.5V+ & 1A+
Over Charge Cutoff	3.65 ±0.025V
OC Detection Delay	1–1.6s
Over Charge Release	3.6 ±0.0625V
OC Release Method	Auto below release voltage
Over Current Det. (1)	220A
OCD Delay (1)	10s
Over Current Det. (2)	500A
OCD Delay (2)	5s
Over Current Release	Remove load — auto
Short Circuit Protection	External short
SC Detection Delay	200–400µS
SC Recovery	Remove load — auto
Internal Resistance	≤20mΩ

Downloads

Android App on Google Play Store

Apple App on Apple App Store

IEC 62619 Certification

24v 200ah Chassis mount drawing

FAQS

Q: I have received my battery, how do I turn it on and connect the Bluetooth?

A: Download the AllSpark App (see the Downloads section in your battery's listing, or enter "AllSpark" into the Google Play Store or the Apple App Store), then ensure your "location services" and bluetooth is turned on. You will see your battery appear in the list under "Bluetooth" - click on here, this will take you to the Dashboard screen. Scroll to the bottom and turn the Charge Switch and Discharge Switch on as required.

Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.

Q: What is Current In/Out Net Value?

A: The Net Value is all the charge sources minus all the loads

Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 0% (21V or less), it will enter Low voltage protection mode. This will disconnect all loads and the battery and terminal voltage will show as 0-3V. When in LV protection mode, the BMS disconnects power to the battery terminals. To release it you simply open the AllSpark Bluetooth App on your smart device, turn the discharge function back to ON and let your charger take over. Most other brands need a "jump start" or external charger input or parallel connection to wake it up. AllSpark Lithium batteries are much smarter and simpler to wake up for charging. Note: if you don't have a charge source ready, it will go back to sleep again after a short time to protect the cells until you are ready to re-charge.

Q: Can I link another 200ah to give me 400ah? Or more?

A: Yes - these batteries can be connected in parallel using the second connector to double your amp hour capacity. The maximum that can be connected in parallel is 4 batteries. The batteries should be within a few months of each other in age to ensure optimal performance and longevity.

Q: Is this battery certifed for use in Caravans?

A: Yes - AllSpark batteries are not only compliant, but are actually "Tested" and "Certified" for compliance with IEC 62616 standards (see downloads for certificate). Many sellers of LiFePO4 batteries in Australia claim to be "compliant" with the IEC 62616 standards, but have never actually had them tested or hold any certification for this compliance. Self claiming compliance with a standard without 3rd party certification is not only misleading, but is fraudulant advertising practises.
