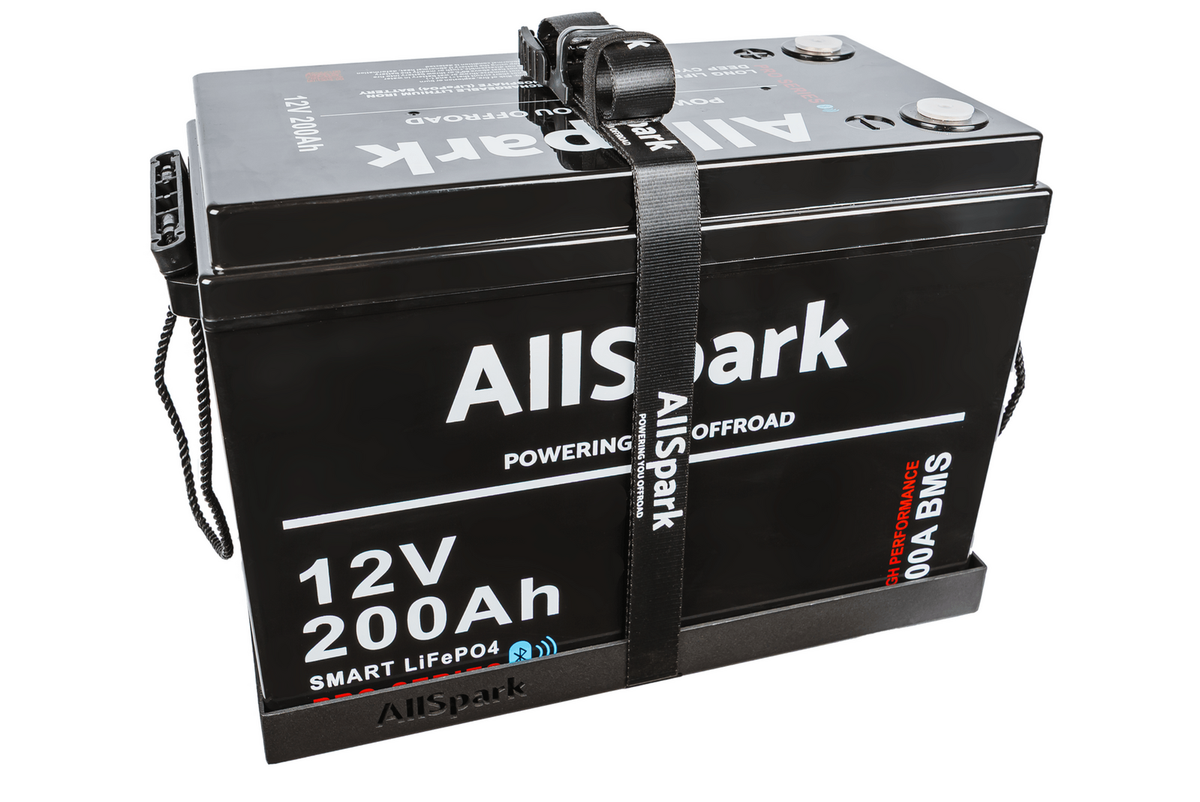

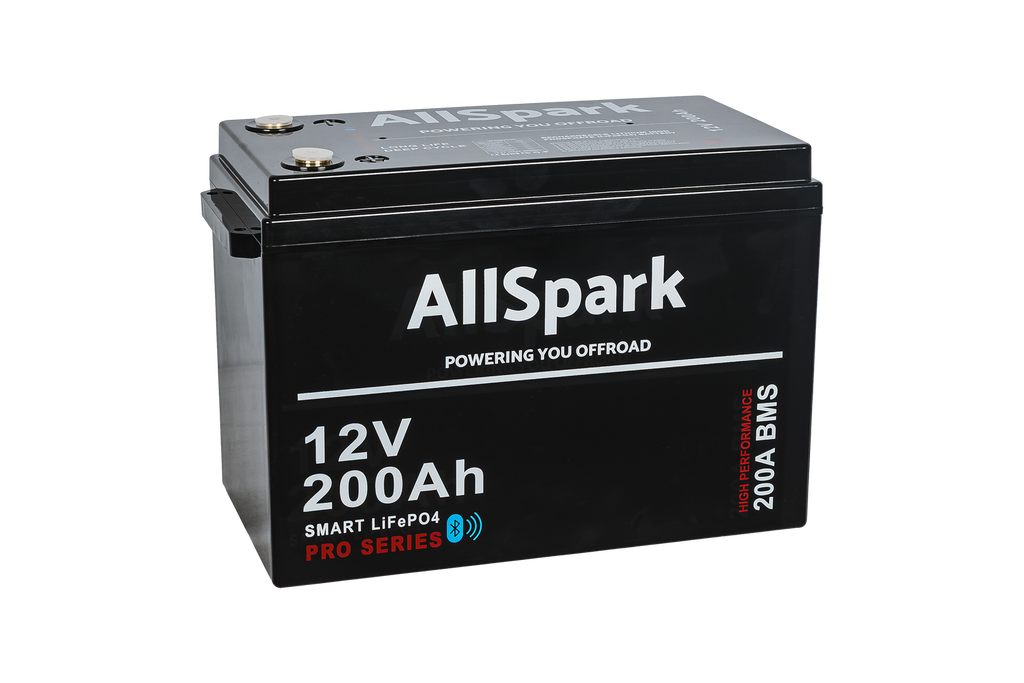

Name: 200ah Lithium Battery 12V AllSpark with Bluetooth IP65
Brand: AllSpark
SKU: AS-20012LIABSBT
Price: 2299.00 AUD
Availability: InStock

200ah Lithium Battery 12V AllSpark with Bluetooth IP65

$2,299.00

$2,299.00 $0.00

Frequently Bought Together:

Victron Blue Smart IP22 12/30A Single Output with bluetooth

$249.00

AllSpark Battery Tray - Suits 12v 200/300ah & 24v 100ah ABS Gen 2 Ultra compact Batteries

$69.00

200ah Lithium Battery 12V AllSpark with Bluetooth IP65

SKU CODE: AS-20012LIABSBT

In Stock

$2,299.00

$2,299.00 $0.00

ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES IN AUSTRALIA

The most compact ABS Case 200Ah Lithium battery on the market

New 2025 cell technology with compact cells and casing
Bluetooth Integration
Highest quality premium A grade prismatic cells
Greater than 3000 cycles @ 80% DoD
Power a 2500W Inverter from a SINGLE BATTERY
Unlimited Parallel connection
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Description

BUILT TO HANDLE OUR HARSH AUSTRALIAN CONDITIONS

The AllSpark 200Ah lithium battery is built for serious off-grid power in real Australian conditions. Designed and developed in Australia by Offroad Living, this 12V 200Ah LiFePO4 battery delivers high current output, advanced solid-state BMS protection, and built-in Bluetooth monitoring, without the need for expensive external monitors.

Whether you’re running a 2500W inverter in your canopy, powering a caravan setup, or heading deep into corrugated outback tracks, this battery is engineered to handle vibration, heat and heavy loads. With A-Grade prismatic cells, laser welded busbars and full internal protection systems, it’s designed to give you reliable power, and visibility over it, wherever you travel.

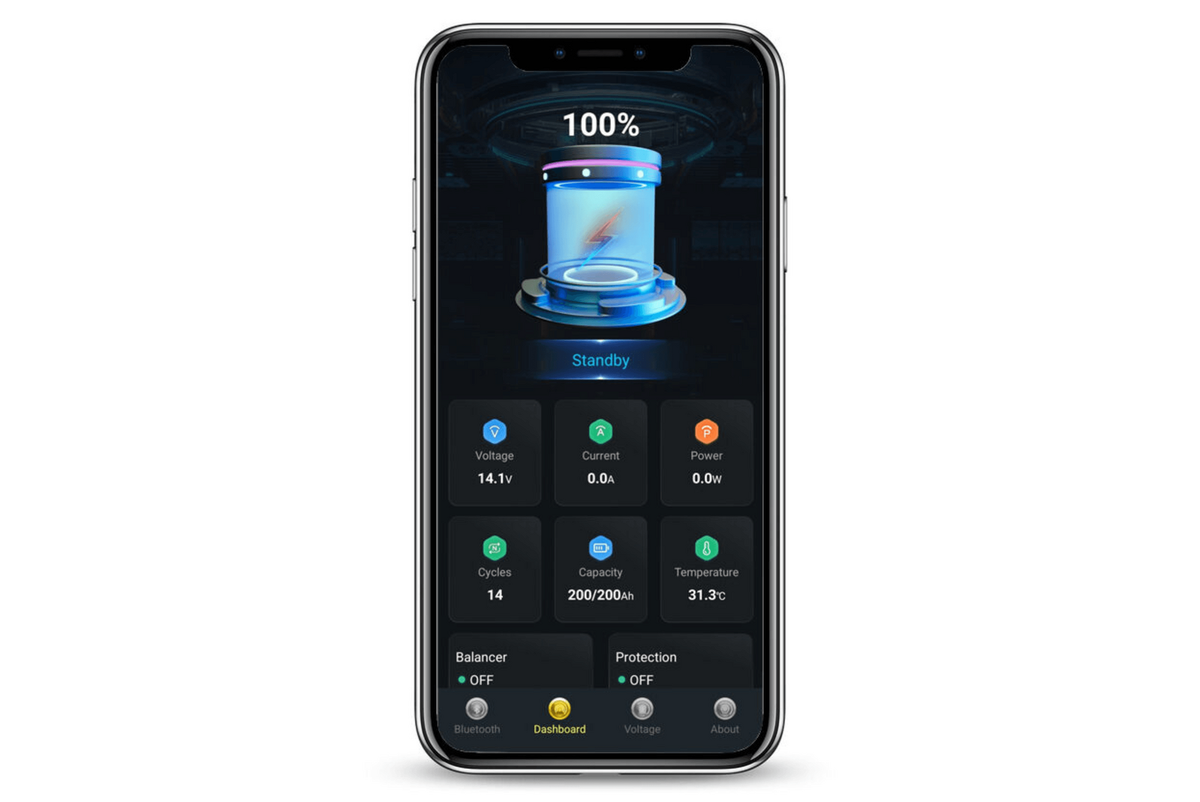

Built-In Bluetooth Monitoring (No Extra Cost)

One of the most common frustrations in off-grid setups is not knowing your real state of charge until it's too late. Voltage alone is a poor indicator for LiFePO4, and an external monitor adds $200+ plus installation, then has to cycle a few times before you get accurate data. The AllSpark has Bluetooth monitoring built directly into the BMS and is accurate from the start - at no extra cost.

You'll be able to keep an eye on:

State of charge, voltage & current tracking
Individual cell monitoring
Lifetime history tracking
On/off charge & discharge control (no need for an additional Master Switch)

Accurate data direct from the BMS - no guesswork, no add-ons.

Built for Australian Heat & Extremes

Batterie's that shut down in 40°C heat aren't just inconvenient, they can strand you.Operating from -20°C to +60°C, this 200Ah lithium battery is designed to handle harsh outback heat and cold mornings without shutting down.

High/low temperature protection
High/low voltage protection
Short circuit & reverse polarity protection
Automatic cell balancing

When conditions turn extreme, your battery protects itself and your system.

Built for roads that destroy ordinary batteries

Corrugated outback tracks are brutally effective at shaking loose connections and cracking internal welds - failures you often won't discover until you're already at camp with a dead battery.

The AllSpark Pro Series is vibration-tested to ensure it is corrugation-proof, and laser-welded with over 1 inch of weld per busbar connection. Dust and water resistant, shock-proof, and heat-tolerant - because out here, "probably fine" isn't good enough. Backed by a 7-year warranty and real Aussie technical support.

Runs a 2500W Inverter on One Battery

The AllSpark's 200A continuous BMS and 500A peak means you can run a 2500W inverter from a single battery - powering all your household appliances, from a kettle to an induction cooktop, even your caravan air conditioner without breaking a sweat.

Easily handles the high power draws of appliances, including:

Kettles
Toasters
Induction cooktops
Air fryers

Two fridges, appliances, devices - one battery

At Offroad Living, we recommend having two days of capacity in your batteries without relying on solar or DCDC input, because cloudy days and non-driving days happen. A couple of fridges (one fridge, one freezer) plus some everyday appliances is a solid real-world example for the kind of setup that is suited to a single AllSpark 200ah Lithium Battery.

Need more? These batteries support unlimited parallel connections, so adding capacity as your setup grows is straightforward. Not sure how many batteries your rig needs? Get in touch and we'll help you size it right.

We put them to the test - Fully IEC 62619 Certified

With lithium battery caravan regulations in Australia tightening, certification claims matter more than ever. Many batteries are either uncertified, tested only at the component level, or labelled "compliant" - meaning they believe they meet the standard, but haven't actually proven it.

All AllSpark batteries are IEC 62619 certified as complete, assembled units — cells, BMS, and build quality included — independently verified.

Certified. Not just compliant.

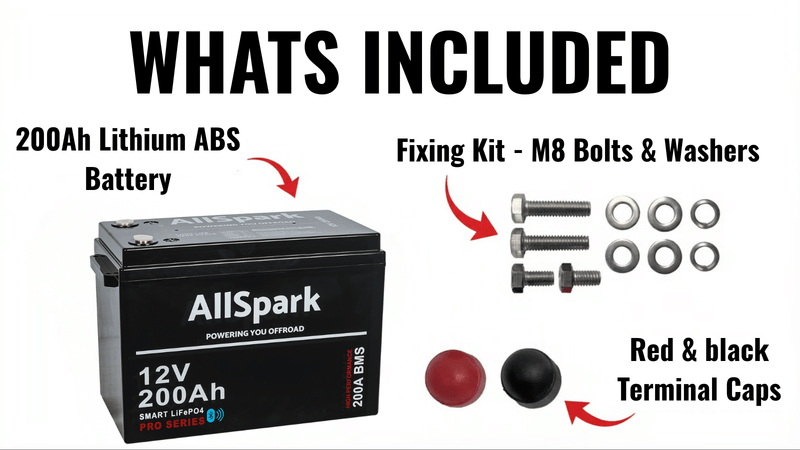

What's in the box:

200Ah lithium ABS battery

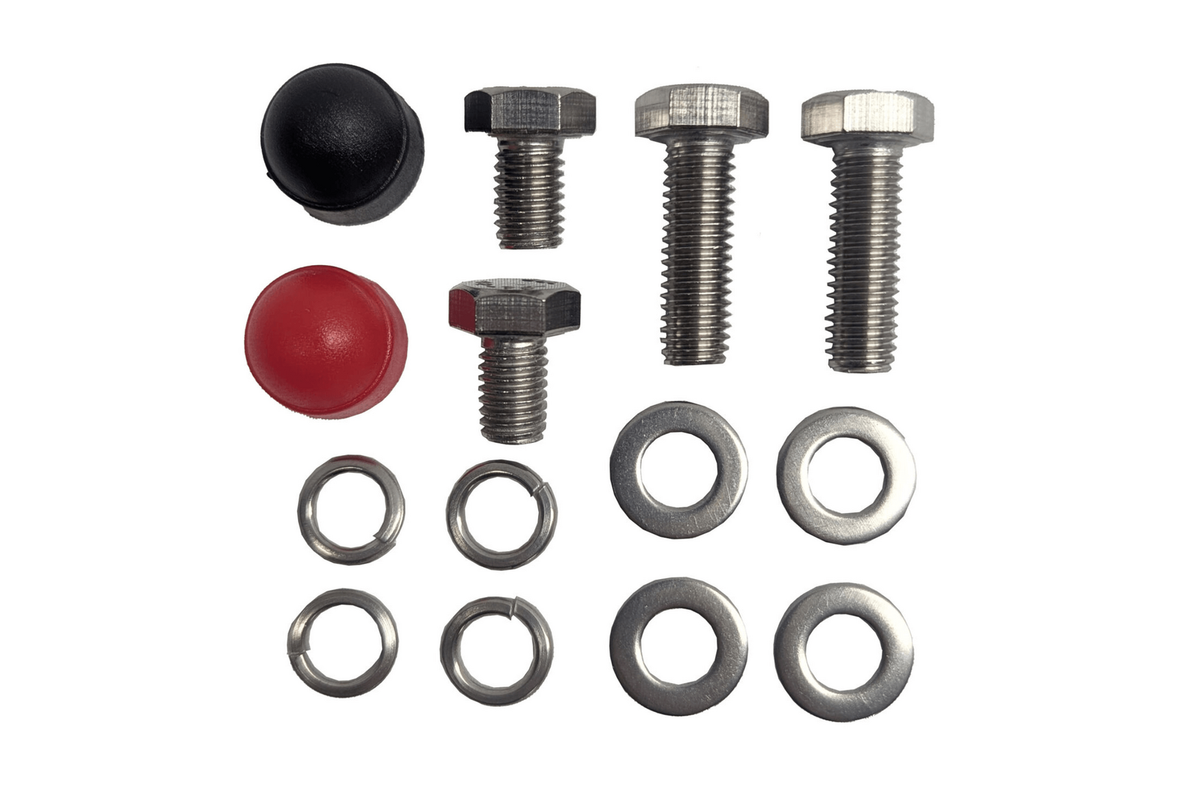

M8 bolts & washers fixing kit
Red & black terminal caps

Warranty

7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

Advanced cell technology with compact cells and casing
Bluetooth Integration: Connect to a smart device to monitor performance, track usage data, and receive alerts
Exclusive Solid state BMS designed and developed by Offroad Living
Highest quality premium grade prismatic cells - resistance matched, long battery life and no voltage sag with a 20 year design life
Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
Power a 2500W Inverter from a SINGLE BATTERY - for high power devices including coffee machines, air conditioners, toasters and kettles
Rapid charge - ability to charge in 2 hours
Unlimited Parallel connection or series to 24v max
Equivalent usable capacity to a 320ah AGM but weighs only 21kg
Designed to handle high vibration environments
IEC 62619 Certified to meet AS/NZS 3001:2022 requirements
7 Year Warranty

Specifications

SKU	AS-12100PRIMEBT	AS-20012LIABSBT	AS-30012LIABSBT
Battery Level Specifications
Capacity Amp Hours (C5)	100	200	300
Watt Hours	1,280	2,560	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	100	200	300
Recommended Charge Current (A)*	20–40	50–80	50–150
Charge Profile	CC/CV
Max Inverter Size (W — per single battery)	1,000	2,500	3,000
Max Continuous Discharge (A)	100	200	300
Peak Discharge — 10 secs (A)	200	500	600
Charge Cycles @ 80% DoD# (residual capacity ≥85%) @ 60% DoD @ 40% DoD	> 3,200+# > 4,200+ > 5,000+
Optimum Temperature During Charging (°C)	< 45
Operating Temperature Range (°C)	−20 to +60
Storage Temperature Range (°C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (L × W × H mm)	229 × 138 × 208 (+4mm for terminals)	340 × 190 × 247 (+5mm for terminals)	340 × 190 × 247 (+5mm for terminals)
Case Footprint Dimensions (L × W × H mm)	224 × 134 × 208	340 × 183 × 247
Case Material	ABS Plastic
Weight (kg)	9.5	21	26
IP Rating	IP65
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah	3.2V @ 200Ah	3.2V @ 300Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	N/A	220	330
Over Current Detection Delay (1) (secs)	N/A	10
Over Current Detection (2) (A)	200	500
Over Current Detection Delay (2) (secs)	10	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET Protection)	≤20mΩ

Notes* Recommended charge current is for best cell longevity. # Cycle life independently laboratory tested at 0.25C discharge and 0.25C charge rate, up to 5,000 cycles at 25°C controlled temperature. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3,200 cycles. In real-world conditions, users will experience a range of temperature, current and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

SKUAS-12100PRIMEBT

Battery Level Specifications
Capacity Amp Hours (C5)	100
Watt Hours	1,280
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	100
Recommended Charge Current (A)*	20–40
Charge Profile	CC/CV
Max Inverter Size (W)	1,000
Max Continuous Discharge (A)	100
Peak Discharge — 10 secs (A)	200
Charge Cycles @ 80% DoD#	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	−20 to +60
Storage Temp Range (°C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (mm)	229 × 138 × 208 (+4mm terminals)
Case Footprint (mm)	224 × 134 × 208
Case Material	ABS Plastic
Weight (kg)	9.5
IP Rating	IP65
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 100Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	N/A
Over Current Detection Delay (1) (secs)	N/A
Over Current Detection (2) (A)	200
Over Current Detection Delay (2) (secs)	10
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

SKUAS-20012LIABSBT

Battery Level Specifications
Capacity Amp Hours (C5)	200
Watt Hours	2,560
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	200
Recommended Charge Current (A)*	50–80
Charge Profile	CC/CV
Max Inverter Size (W)	2,500
Max Continuous Discharge (A)	200
Peak Discharge — 10 secs (A)	500
Charge Cycles @ 80% DoD#	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	−20 to +60
Storage Temp Range (°C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (mm)	340 × 190 × 247 (+5mm terminals)
Case Footprint (mm)	340 × 183 × 247
Case Material	ABS Plastic
Weight (kg)	21
IP Rating	—
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 200Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	220
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

SKUAS-30012LIABSBT

Battery Level Specifications
Capacity Amp Hours (C5)	300
Watt Hours	3,840
Rated Voltage (V)	12.8
Max Charge Voltage (V)	14.6
Recommended Float Voltage (V)	13.6
Low Voltage Cutoff (V)	10
Rapid Charge Current (1C) for 30 mins (A)	300
Recommended Charge Current (A)*	50–150
Charge Profile	CC/CV
Max Inverter Size (W)	3,000
Max Continuous Discharge (A)	300
Peak Discharge — 10 secs (A)	600
Charge Cycles @ 80% DoD#	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	−20 to +60
Storage Temp Range (°C)	−40 to +125
Max Series Voltage (V)	24
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (mm)	340 × 190 × 247 (+5mm terminals)
Case Footprint (mm)	340 × 183 × 247
Case Material	ABS Plastic
Weight (kg)	—
IP Rating	—
Cell Level Specification
Cell Type	Prismatic
Cell Connection	4S1P
Cell Capacity	3.2V @ 300Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 10.5V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	330
Over Current Detection Delay (1) (secs)	10
Over Current Detection (2) (A)	500
Over Current Detection Delay (2) (secs)	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

Downloads

USER MANUAL

IEC 62619 Certification

Android App on Google Play Store

Apple App on Apple App Store

FAQS

Q: I have received my battery, how do I turn it on and connect the Bluetooth?

A: Download the AllSpark App (see the Downloads section in your battery's listing, or enter "AllSpark" into the Google Play Store or the Apple App Store), then ensure your "location services" and bluetooth is turned on. You will see your battery appear in the list under "Bluetooth" - click on here, this will take you to the Dashboard screen. Scroll to the bottom and turn the Charge Switch and Discharge Switch on as required.

Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.

Q: What is Current In/Out Net Value?

A: The Net Value is all the charge sources minus all the loads.

Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 0% (10.5V or less), it will enter Low voltage protection mode. This will disconnect all loads and the battery and terminal voltage will show as 0-3V. When in LV protection mode, the BMS disconnects power to the battery terminals. To release it you simply open the AllSpark Bluetooth App on your smart device, turn the discharge function back to ON and let your charger take over. Most other brands need a "jump start" or external charger input or parallel connection to wake it up. AllSpark Lithium batteries are much smarter and simpler to wake up for charging. Note: if you don't have a charge source ready, it will go back to sleep again after a short time to protect the cells until you are ready to re-charge.

Q: Is this battery certifed for use in Caravans?

A: Yes - AllSpark batteries are not only compliant, but are actually "Tested" and "Certified" for compliance with IEC 62616 standards (see downloads for certificate). Many sellers of LiFePO4 batteries in Australia claim to be "compliant" with the IEC 62616 standards, but have never actually had them tested or hold any certification for this compliance. Self claiming compliance with a standard without 3rd party certification is not only misleading, but is fraudulant advertising practises.

Q: Will this work with my existing solar and DC-DC charger setup?

A: In most cases, yes, provided your charger has a LiFePO4 charge profile. Most modern MPPT solar controllers and DCDC chargers do. Check your charger settings before connecting. If you need help determining if your system is compatible, contact the Offroad Living team.

Q: Can I add more batteries later as my power needs grow?

A: The 200ah AllSpark Pro-Series battery supports unlimited parallel connections, and so you can add to your system. However, we do not recommend adding in extra batteries to a system if it is more than 6-12 months apart in age (depending on usage). If you're unsure if your battery system is too far apart in age please contact us for assistance.
