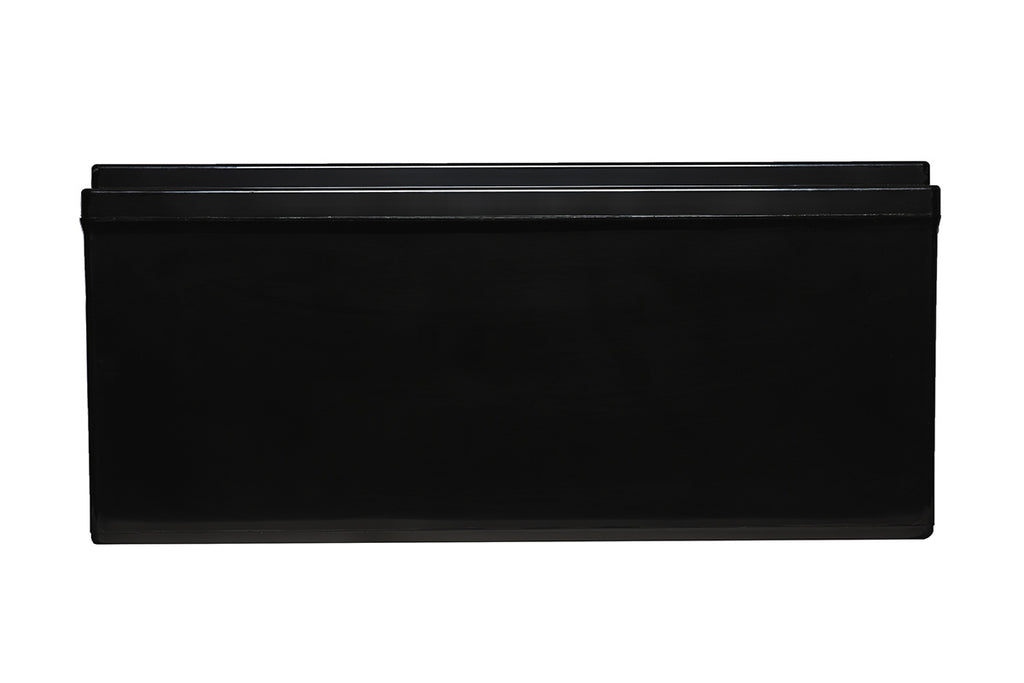

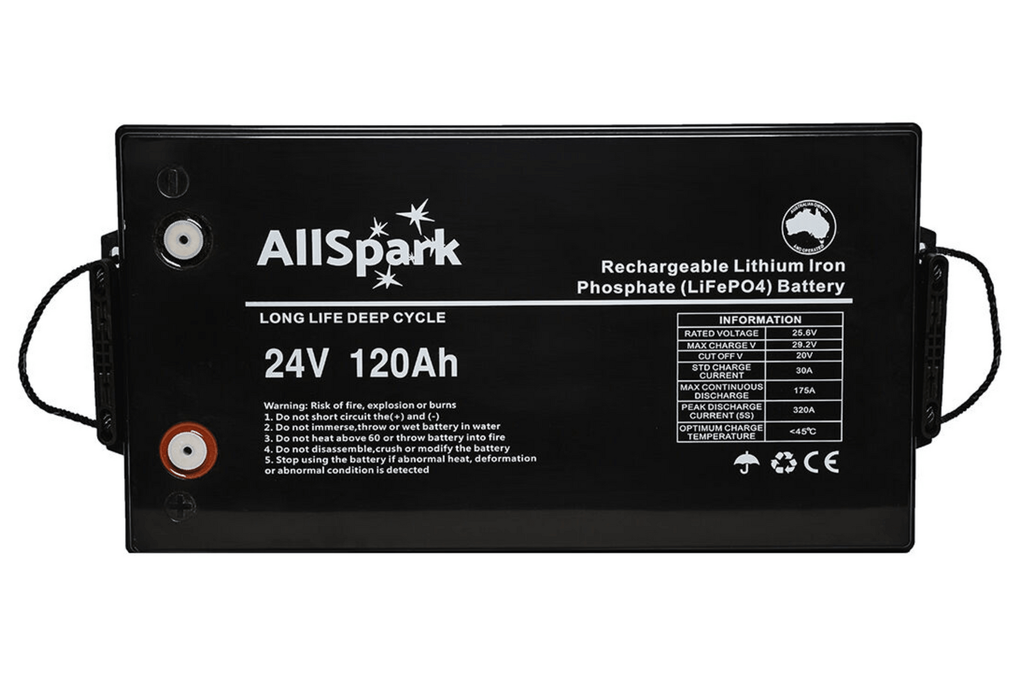

120ah 24V Lithium Battery AllSpark IP65

Sold out due to popular demand - stock expected mid September - Preorder now

$2,299.00

$2,299.00 $0.00

Frequently Bought Together:

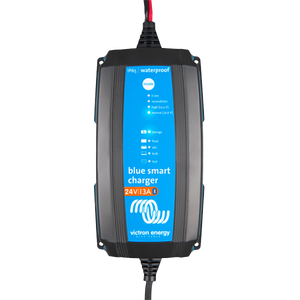

Victron Blue Smart IP65 Battery Charger 24V 13A AC TO DC CHARGER

$378.00

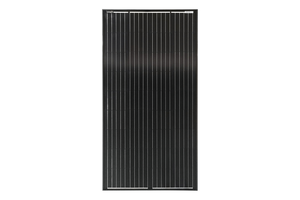

24V 200W Solar Panel Glass AllSpark

$349.00

120ah 24V Lithium Battery AllSpark IP65

Name: 120ah 24V Lithium Battery AllSpark IP65
Brand: AllSpark
SKU: AS-12024BATLI175320
Price: 2299.00 AUD
Availability: InStock

SKU CODE: AS-12024BATLI175320

Pre-Order

Sold out due to popular demand - stock expected mid September - Preorder now

$2,299.00

$2,299.00 $0.00

ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES IN AUSTRALIA

Exclusive Solid state BMS
Highest quality premium grade prismatic cells
Greater than 3000 cycles @ 80% DoD
Power a 4000W Inverter from a SINGLE BATTERY
Unlimited Parallel connection
7 Year Warranty

Description

ALLSPARK LITHIUM BATTERIES ARE THE HIGHEST SPECIFICATION LITHIUM BATTERIES ON THE AUSTRALIAN MARKET

Equipped with an exclusive advanced, next generation solid state Battery Management System (BMS) that protects your battery from damage due to extremes of Current, Voltage and Temperature and ensures correctly balanced cells. Designed to handle high vibrations experienced in the Aussie outback corrugations or marine environments.

We use only the highest quality new internal components and new large format prismatic cells, ensuring optimal balancing of each cell for maximum longevity and ultimate performance.

BATTERY

ABS Case with fold out carry handles for ease of installation
Optional lightweight powder coast aluminium tie down tray & cam buckles straps made specifically for your AllSpark battery

CELLS

AllSpark Batteries are only manufactured using brand new, premium quality A-Grade large format prismatic cells. The have market leading high current ratings and very long life expectancy.

All AllSpark Battery LiFePO4 cells are 3.2V connected in series in banks of 4, 8, 12 or 16 to achieve 12, 24, 36 or 48V. With cell continuous discharge ratings of 2-3C and peak output of up to 5C, you can be assured of a high performing battery to meet your high current demands.

Cell interconnecting Busbars are multi pass lazer welded with more than 1" of weld per busbar connection to make them bullet proof on corrugations

Each AllSpark Prismatic cell has integrated safety mechanism to protect your vehicle in the extremely unlikely event of a cell fault

High Pressure safety release vents that will open to release excess energy
Internal Cell fusing
Flame retardant Electrolyte

BATTERY MANAGEMENT SYSTEM (BMS)

Extensive Protection Systems to ensure the highest performance, longevity and reliability to keep you powered offroad longer

Low Voltage Protection
High Voltage Protection
Over Current Discharge Protection
Over Current Charge Protection
Low Temperature Protection
High Temperature Protection
Automatic Cell Balancing
Short Circuit Protection
Reverse Polarity Protection

WHATS IN THE BOX

1 X 24 Volt 120ah ABS Case LiFePO4 battery
Fixing kit - 2 lengths of M8 bolts, flat and spring washers
Red/Black Terminal caps

Warranty

7 YEAR MANUFACTURERS REPLACEMENT WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

Exclusive Solid state BMS designed and developed by Offroad Living
Highest quality premium grade prismatic cells - resistance matched, long battery life and no voltage sag with a 20 year design life
Greater than 3000 cycles @ 80% DoD before reaching 85% of original capacity
Power a 4000W Inverter from a SINGLE BATTERY - for high power devices including coffee machines, air conditioners, toasters and kettles
Rapid charge - ability to charge in 2 hours
Unlimited Parallel connection or series to 48v max
Equivalent usable capacity to a 385ah 12 Volt AGM but weighs only 28kg
Designed to handle high vibration environments
7 Year Warranty

Specifications

SKU	AS-10024BATLI200500	AS-12024BATLI175320	AS-20024BATLI200500
Battery Level Specifications
Capacity Amp Hours (C5)	100	120	200
Watt Hours	2,560	3,072	5,120
Rated Voltage (V)	25.6
Max Charge Voltage (V)	29.2
Recommended Float Voltage (V)	27.2
Low Voltage Cutoff (V)	20
Rapid Charge Current (1C) for 30 mins (A)	100	120	200
Recommended Charge Current (A)*	50	30–50	50–80
Charge Profile	CC/CV
Max Inverter Size (W — per single battery)	4,000
Max Continuous Discharge (A)	200	175	200
Peak Discharge — 10 secs (A)	500	320	500
Charge Cycles @ 80% DoD# (residual capacity ≥85%) @ 60% DoD @ 40% DoD	> 3,200+# > 4,200+ > 5,000+
Optimum Temperature During Charging (°C)	< 45
Operating Temperature Range (°C)	−20 to +60
Storage Temperature Range (°C)	−40 to +125
Max Series Voltage (V)	48
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (L × W × H mm)	367 × 190 × 247 (+5mm for terminals)	520 × 265 × 220 (+3mm for terminals)	520 × 265 × 220 (+3mm for terminals)
Case Footprint Dimensions (L × W × H mm)	340 × 183 × 247	487 × 262 × 220	487 × 262 × 220
Case Material	ABS Plastic
Weight (kg)	21	28	42
IP Rating	IP65
Cell Level Specification
Cell Type	Prismatic
Cell Connection	8S1P
Cell Capacity	3.2V @ 100Ah	3.2V @ 120Ah	3.2V @ 200Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 21V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	220	N/A	220
Over Current Detection Delay (1) (secs)	10	N/A	10
Over Current Detection (2) (A)	500	320	500
Over Current Detection Delay (2) (secs)	5	10	5
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET Protection)	≤20mΩ

Notes* Recommended charge current is for best cell longevity. # Cycle life independently laboratory tested at 0.25C discharge and 0.25C charge rate, up to 5,000 cycles at 25°C controlled temperature. Electronic logs recorded during testing show residual capacity in excess of 85% of nameplate C5 capacity after 3,200 cycles. In real-world conditions, users will experience a range of temperature, current and voltage conditions which may affect actual battery performance over its life. Lower depths of discharge and high continuous charge/discharge rates will reduce overall cycle life.

SKUAS-12024BATLI175320

Battery Level Specifications
Capacity Amp Hours (C5)	120
Watt Hours	3,072
Rated Voltage (V)	25.6
Max Charge Voltage (V)	29.2
Recommended Float Voltage (V)	27.2
Low Voltage Cutoff (V)	20
Rapid Charge Current (1C) for 30 mins (A)	120
Recommended Charge Current (A)*	30–50
Charge Profile	CC/CV
Max Inverter Size (W)	4,000
Max Continuous Discharge (A)	175
Peak Discharge — 10 secs (A)	320
Charge Cycles @ 80% DoD#	> 3,200+
Charge Cycles @ 60% DoD	> 4,200+
Charge Cycles @ 40% DoD	> 5,000+
Optimum Charge Temp (°C)	< 45
Operating Temp Range (°C)	−20 to +60
Storage Temp Range (°C)	−40 to +125
Max Series Voltage (V)	48
Max Batteries in Parallel	Unlimited
Overall Dimensions incl. Handles (mm)	520 × 265 × 220 (+3mm terminals)
Case Footprint (mm)	487 × 262 × 220
Case Material	ABS Plastic
Weight (kg)	28
IP Rating	IP65
Cell Level Specification
Cell Type	Prismatic
Cell Connection	8S1P
Cell Capacity	3.2V @ 120Ah
Cell Casing	Nickel Plated Steel
Cell Balancing Target	3.65 ±0.025V
Cell Balance Current (mA)	35 ±5
Cell Over Discharge LV Protection (V)	2.5 ±0.025V
Over Discharge Release	Apply Charge 21V+ & 1A+
Over Charge Cutoff (V)	3.75 ±0.025V
Over Charge Detection Delay (secs)	1–1.6
Over Charge Release (V)	3.6 ±0.0625V
Over Charge Release	Auto below Release Voltage
Over Current Detection (1) (A)	N/A
Over Current Detection Delay (1) (secs)	N/A
Over Current Detection (2) (A)	320
Over Current Detection Delay (2) (secs)	10
Over Current Release	Remove Load — Auto Release
Short Circuit Protection	External Short
Short Circuit Detection Delay (µS)	200–400
Short Circuit Recovery	Remove Load — Auto Release
Internal Resistance (MOSFET)	≤20mΩ

Downloads

USER MANUAL

FAQS

Q: How do I store my AllSpark LiFePO4 battery?

A: If you plan to have your batteries in storage for extended periods of time, disconnect/isolate any loads or parasitic power consumers. Charge/Discharge battery to 80% State of Charge. Battery can then be stored for up to 12 months. If storing for longer, re-charge to 80% SoC every 6-12 months.

Q: What do I do if my AllSpark LiFePO4 battery goes flat?

A: If you discharge your battery to 20.0V, it will go into Low voltage protection mode. This will disconnect all loads and the battery voltage will show as 0V. When in LV protection, the BMS disconnects power to the battery terminals. To release it from protection, you must provide 21V+ and 1A to the battery to "Wake up" the BMS.

Special note - many DCDC chargers and Solar controllers cannot wake up a LiFePO4 battery from LV protection if they don't have a power supply mode. To overcome this, most AC to DC chargers have a power supply mode or you can use a portable jump starter pack or any other battery connected in parallel for a few secs to wake it up. Then you normal chargers can take over the charging funtion.

Q: Does this battery comply with Australia/New Zealand Standards? Can I install them inside my caravan?

A: Yes and yes! Please see here for all the information you need to know about complying with the updated AS/NZS 3001.2:2022 standards.
