SMART, PRE-WIRED 12V POWER — READY TO INSTALL STRAIGHT OUT OF THE BOX

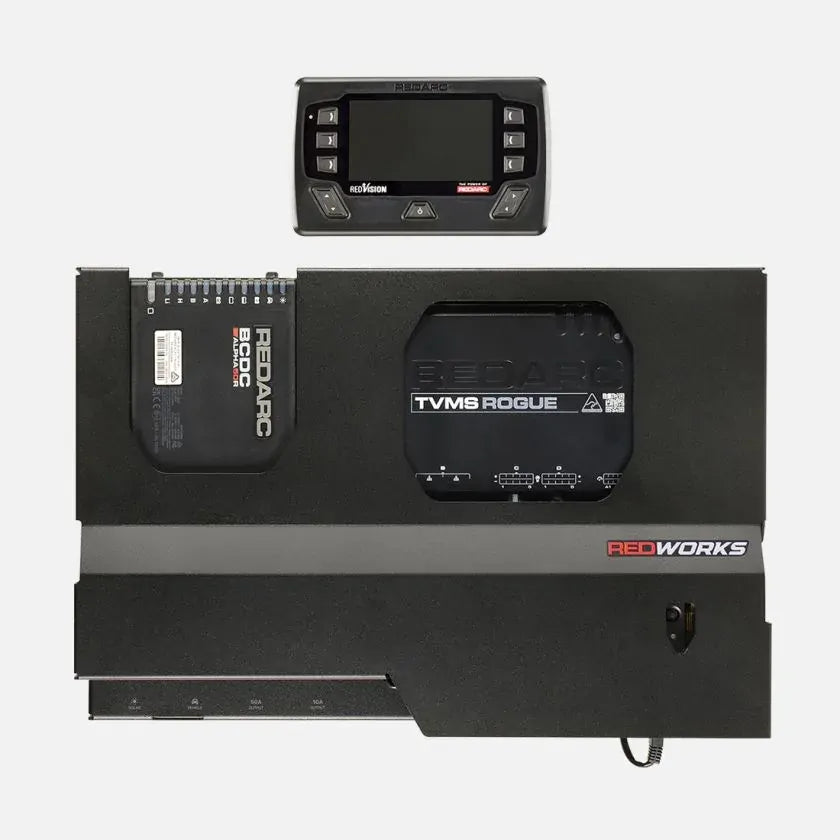

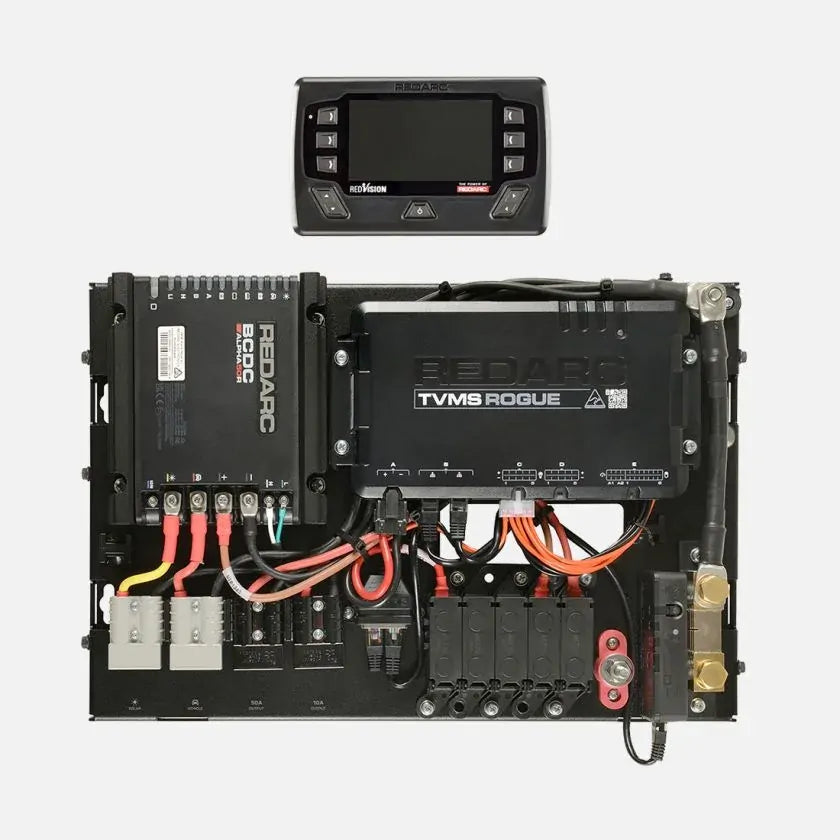

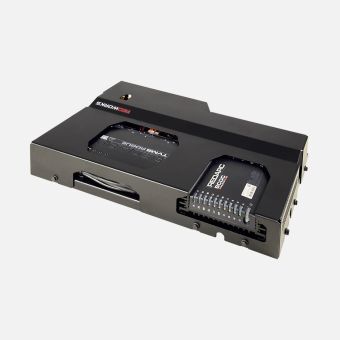

Engineered for travellers who want complete control, the REDWorks Pioneer50 is an integrated, pre-wired dual battery system that combines intelligent charging, advanced battery management and intuitive control in one compact panel. Designed and manufactured in Australia, it brings together the BCDC Alpha50 R battery manager, TVMS Rogue and RedVision Pro Display so you can monitor and automate your entire 12V setup from your phone or the wired display.

PERSONALISED CONTROL

RedVision is the central hub for all your on-board devices. Control lights, fridges, water pumps and more from your smartphone or the RedVision Pro Display, with programmable, easy-to-understand icons so you can run each device at the touch of a button. The TVMS Rogue adds analogue sensor inputs for real-time state of charge, time remaining and charger performance.

NEVER GET STRANDED

The included BCDC Alpha50 R can recover a flat start battery in just 15 minutes with the push of a button — no jumper leads required. Start Battery Charging uses excess solar to keep your start battery topped up, while the TVMS Rogue's smart, resettable fuses can be reset in seconds via the app or display.

READY-TO-GO POWER

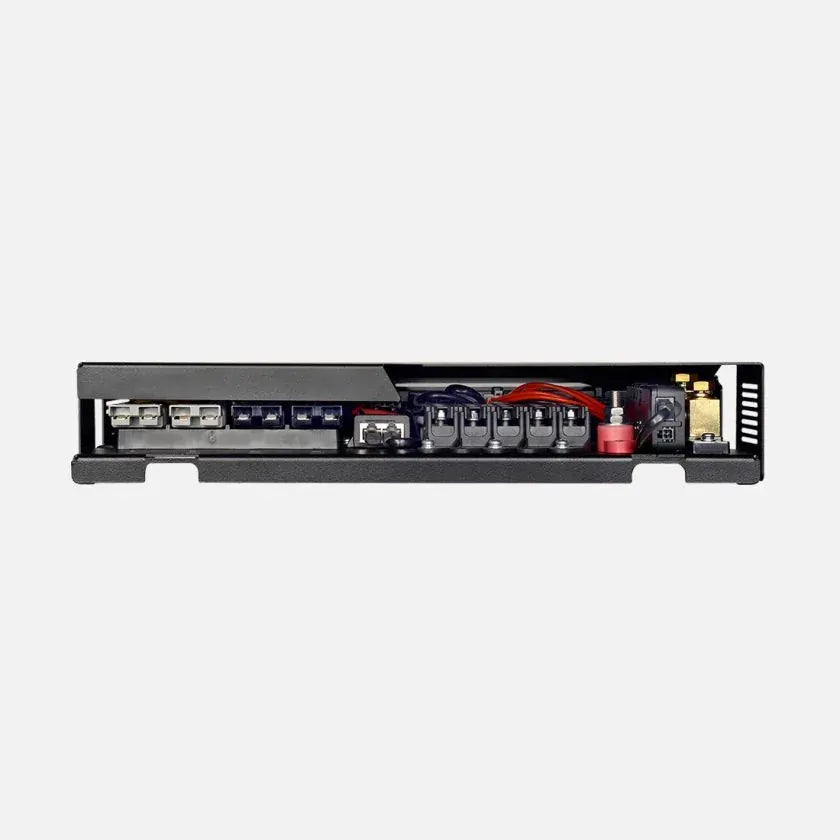

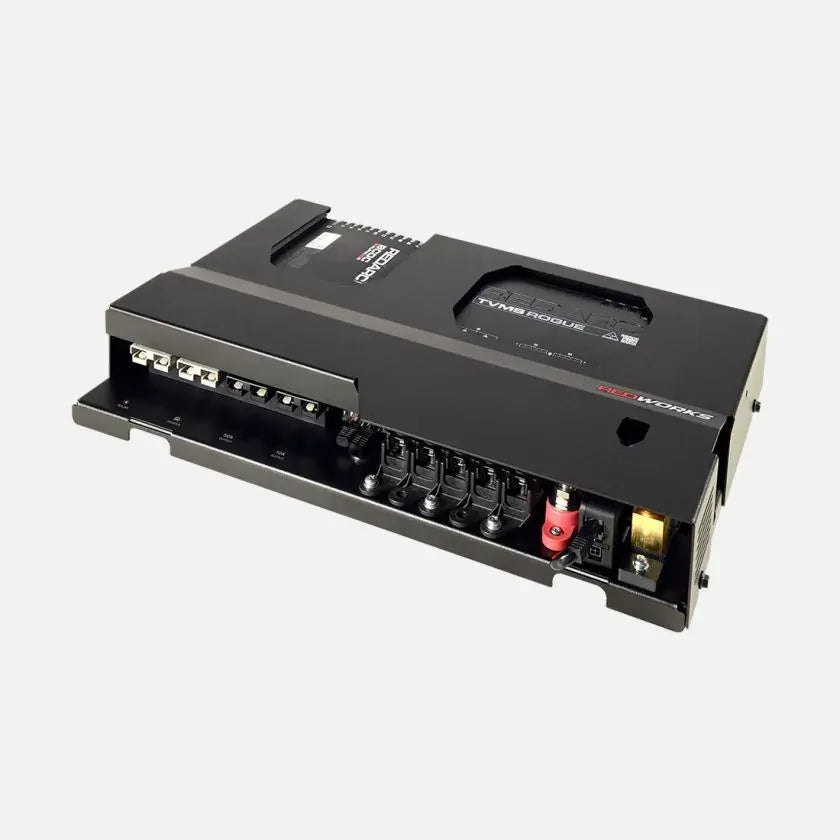

Connect your essentials in seconds with easy-access Anderson™ ports. The 10A Anderson™ SB50 output suits low-power devices such as USB sockets, 12V cigarette sockets, standard fridges, lighting, pumps and awnings. The 50A Anderson™ SB50 output is ideal for high-power devices drawing up to 50A, such as large 12V fridges, compressors or electric jacks.

CHARGE WITH CONFIDENCE

Charge your secondary battery from solar and alternator inputs simultaneously. With Green Power Priority® technology, solar is prioritised for maximum efficiency and reduced alternator load. The BCDC Alpha50 R adjusts its charge mode in real time to suit your battery's needs, and is compatible with all common battery types including lithium and heated lithium. Over-the-air updates and input current limiting make it ideal for hybrid and electric vehicles.

THE PIONEER50 FEATURES

• BCDC Alpha50 R DC Battery Manager
• TVMS Rogue Vehicle Management System
• RedVision Pro Display

WHAT'S IN THE BOX

• 1 x REDWorks Pioneer50 Power Panel (ICMS-017-001)

REDARC recommends installation by a qualified auto electrician or REDNetwork installer. This product may require additional parts to complete installation.
