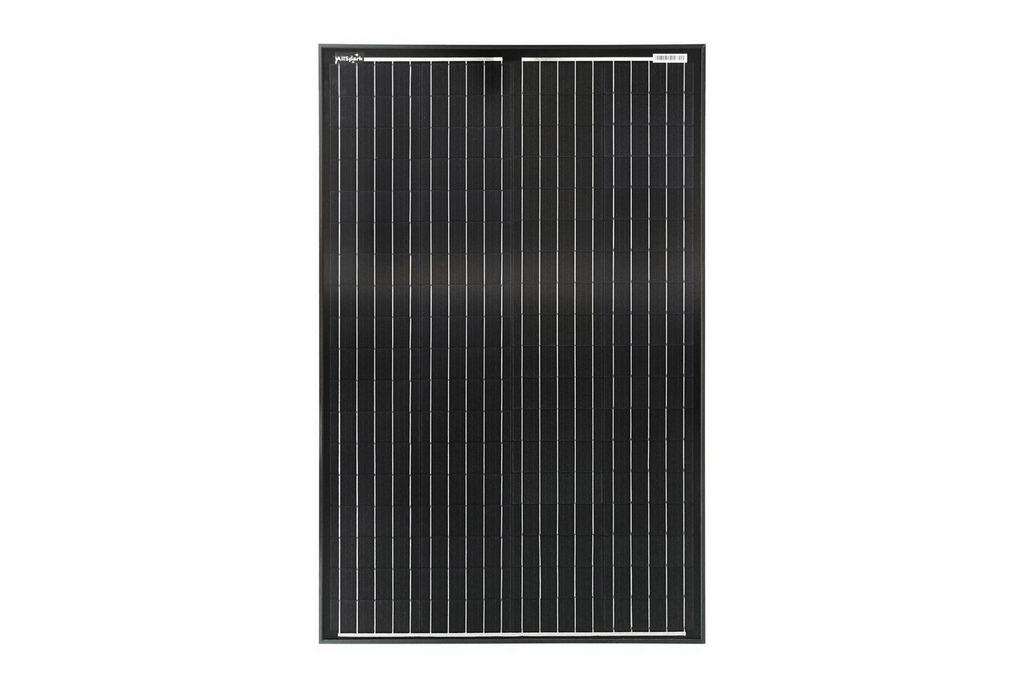

Name: 135W Solar Panel Glass AllSpark
Brand: AllSpark
SKU: AS-135SPGLG2
Price: 219.00 AUD
Availability: InStock

135W Solar Panel Glass AllSpark

$219.00

$219.00 $0.00

Frequently Bought Together:

6mm Twin Core Red & Black with black sheath

$7.00

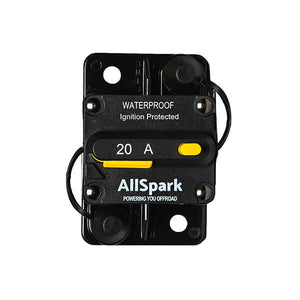

AllSpark Circuit Breakers - Surface Mount 20A

$49.00

Victron Smart Solar MPPT Charge Controller 75/15 With Bluetooth

$109.00

MC4 Connectors - Pair - 6mm2

$7.50

AllSpark Solar Panel mounting bracket 580MM (PAIR)

$39.00

135W Solar Panel Glass AllSpark

SKU CODE: AS-135SPGLG2

In Stock

$219.00

$219.00 $0.00

THE ALLSPARK SOLAR PANEL RANGE HAS BEEN DESIGNED AND DEVELOPED IN AUSTRALIA TO THE HIGHEST SPECIFICATIONS

Premium quality A grade monocrystalline cells
Minimum 22.8% efficiency
Excellent temperature tolerance
Made with high optical quality glass
Fitted with durable black aluminum frames
Service life of 25 years and a 10 YEAR WARRANTY

Description

SALT SPRAY? COSTAL AIR? NO PROBLEM

The AllSpark 135W Solar Panel is built around A-Grade monocrystalline cells with a minimum 22.8% efficiency rating, delivering more usable output per panel than most other small solar panel options at this size.

Developed in Australia with Australian touring in mind, it's one of the most capable small solar panels for 4WD use - handling extreme heat, corrugated tracks, and coastal salt air without compromising performance or longevity.

IEC 61701 salt mist certified, anodised aluminium framed, and covered by a 10-year manufacturer's warranty with a 30-day money-back guarantee.

High-efficiency cells that perform in real Australian heat

For solar panels used on a 4WD roof, operating temperature is a critical real-world factor. Panels can reach extreme temperatures on hot days, and output suffers on cheaper cells.

AllSpark's 135W solar cells carry a power temperature coefficient of -0.38%/°C and operate reliably from -40°C to 85°C. That combination of 22.8% minimum efficiency and strong temperature tolerance means more consistent charging when you need it most.

[Photo courtesy of Wild Touring]

Coastal-grade build on a compact panel - certified to prove it

Small solar panels used on touring rigs cover a lot of ground, including coastlines where salt air is a constant.

AllSpark's 135W uses anodised aluminium framing, is IEC 61701 salt mist certified, and is rated for coastal and marine conditions. Budget options come with zinc-plated hardware and 1-year warranties. AllSpark backs this panel with a 10 year warranty and the certification to match.

Compact panel, full-size warranty and money-back cover

The AllSpark 135W carries the same 10-year manufacturer's warranty and 30-day money-back guarantee as every panel in the range, with a 25-year design life to back it up.

For solar panels for 4WD setups where reliability matters and repairs aren't always easy to arrange, that cover makes a genuine difference - and as a family-owned business, we're hear to answer the phone when you call.

You're not buying a panel and hoping for the best, we'll be there to support you no matter where your adventures take you.

[Photo courtesy of Wild Touring]

Secure mounting option for offroad conditions

Optional AllSpark anodised aluminium mounting brackets (430mm or 580mm, from $39/pair) are made to handle the vibration and punishment that comes with genuine offroad use.

Align flush with the frame, drill 5mm holes, rivet firmly using the supplied large flange rivets, then secure to your roof rack or caravan roof. A clean, weatherproof install that won't work loose on the tracks.

WHATS IN THE BOX

1 x AllSpark 135W 12V Glass Solar Panel
90cm cables
MC4 connectors for easy installation
10A MC4 Solar Fuse

Warranty

10 YEAR MANUFACTURERS REPLACEMENT WARRANTY!
30 DAY MONEY BACK GUARANTEE!

Features

Premium quality A grade monocrystalline cells
Minimum 22.8% efficiency meaning more power for their size compared to other glass panel brands
Excellent temperature tolerance outperforming other glass panels in high temperature conditions.
Made with high optical quality glass optimizing light transmission to the cells.
Fitted with durable black aluminum frames, 90 cm cables, and MC4 connectors for easy installation.
Service life of 25 years and a 10 YEAR WARRANTY - a testament to their high quality construction and durability

Specifications

SKU	AS-70SPGL	AS-100SPGLG2	AS-135SPGLG2	AS-170SPGL	AS-200SPGLG2	AS-135SPGL-24	AS-200SPGL-24
Electrical Specifications
Maximum Power (Pmax)	70W	100W	135W	170W	200W	135W	200W
Open-Circuit Voltage (Voc)	24.5V	24.0V		21.8V	24.0V	48.0V	48.0V
Voltage at Pmax (Vmp)	20.9V	20.5V		18.6V	20.5V	41.0V	41.0V
Short-Circuit Current (Isc)	3.52A	5.12A	6.91A	9.60A	10.24A	3.46A	5.12A
Current at Pmax (Imp)	3.35A	4.88A	6.59A	9.14A	9.76A	3.30A	4.88A
Cell Efficiency	22.8%
Maximum System Voltage	600V DC (IEC)	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power Temperature Coefficient	−0.38%/˚C
Voltage Temperature Coefficient	−0.36%/˚C
Current Temperature Coefficient	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1100 × 375 × 30	1030 × 520 × 30	1040 × 680 × 35	1355 × 680 × 35	1500 × 680 × 35	1040 × 680 × 35	1500 × 680 × 35
Weight (kg)	3.75	6.2	8.0	8.4	10.94	8.0	10.94
Output Cable	1 × diode + 900mm/4mm² cable + MC4 compatible	2 × diodes + 900mm/4mm² cable + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Years (Service Life 25 Years)

SKUAS-70SPGL

Electrical Specifications
Maximum Power (Pmax)	70W
Open-Circuit Voltage (Voc)	24.5V
Voltage at Pmax (Vmp)	20.9V
Short-Circuit Current (Isc)	3.52A
Current at Pmax (Imp)	3.35A
Cell Efficiency	22.8%
Maximum System Voltage	600V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1100 × 375 × 30
Weight (kg)	3.75
Output Cable	1 × diode + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-100SPGLG2

Electrical Specifications
Maximum Power (Pmax)	100W
Open-Circuit Voltage (Voc)	24.0V
Voltage at Pmax (Vmp)	20.5V
Short-Circuit Current (Isc)	5.12A
Current at Pmax (Imp)	4.88A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1030 × 520 × 30
Weight (kg)	6.2
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-135SPGLG2

Electrical Specifications
Maximum Power (Pmax)	135W
Open-Circuit Voltage (Voc)	24.0V
Voltage at Pmax (Vmp)	20.5V
Short-Circuit Current (Isc)	6.91A
Current at Pmax (Imp)	6.59A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1040 × 680 × 35
Weight (kg)	8.0
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-170SPGL

Electrical Specifications
Maximum Power (Pmax)	170W
Open-Circuit Voltage (Voc)	21.8V
Voltage at Pmax (Vmp)	18.6V
Short-Circuit Current (Isc)	9.60A
Current at Pmax (Imp)	9.14A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1355 × 680 × 35
Weight (kg)	8.4
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-200SPGLG2

Electrical Specifications
Maximum Power (Pmax)	200W
Open-Circuit Voltage (Voc)	24.0V
Voltage at Pmax (Vmp)	20.5V
Short-Circuit Current (Isc)	10.24A
Current at Pmax (Imp)	9.76A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1500 × 680 × 35
Weight (kg)	10.94
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-135SPGL-24

Electrical Specifications
Maximum Power (Pmax)	135W
Open-Circuit Voltage (Voc)	48.0V
Voltage at Pmax (Vmp)	41.0V
Short-Circuit Current (Isc)	3.46A
Current at Pmax (Imp)	3.30A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1040 × 680 × 35
Weight (kg)	8.0
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

SKUAS-200SPGL-24

Electrical Specifications
Maximum Power (Pmax)	200W
Open-Circuit Voltage (Voc)	48.0V
Voltage at Pmax (Vmp)	41.0V
Short-Circuit Current (Isc)	5.12A
Current at Pmax (Imp)	4.88A
Cell Efficiency	22.8%
Maximum System Voltage	1000V DC (IEC)
Output Power Tolerance	±3%
Temperature Coefficients
Power	−0.38%/˚C
Voltage	−0.36%/˚C
Current	+0.07%/˚C
Physical
Dimensions (L×W×H mm)	1500 × 680 × 35
Weight (kg)	10.94
Output Cable	2 × diodes + 900mm/4mm² + MC4 compatible
Operating Temperature	−40˚C to +85˚C
IP Rating	IP65
Certifications	CE, ROHS, FCC, TUV, UL
Warranty	10 Yrs (Service Life 25 Yrs)

FAQS

Q: What size solar controller do I need for this panel?

A: On it's own, this panel needs a minimum 15A solar controller. We recommend the Victron 75/1 5 (if installing in a waterproof area), or the EP Ever Tracer (if wanting a waterproof option).

Q: Can I use this in a 24V system?

A: To use in a 24V system you will need to purchase two panels and wire them in series.

Q: Are the frames suitable for beach or coastal use?

A: Yes. The anodised aluminium frames are IEC 61701 salt mist certified, independently tested for resistance to coastal and marine environments.

Q: Will I get full wattage from my panel at all times?

A: The wattage on solar panels is measured in lab conditions on a light table which produces 1000 watts/m² at 25^oC (these are global standard testing conditions (STC)). The amount of power produced by your solar panel in real-life conditions will be dependent on the amount of solar radiation being received by the panel at any given time, the temperature, air quality, angle of sun etc.

You can check your location's solar radiation values online on a number of websites, one example is over here. In general terms, the amount of solar radiation you are receiving at any given time (as a ratio) is an approximation of how much power you should be receiving from your panel. For example, if the radiation is 750 watts/m²(which is 3/4 of the light table at 1000watts/m²), then you potentially can receive approximately approximately 101.25W out of a 135W panel (3/4 x 135W) at that particular time of the day (assuming your angle to the sun is correct and enivornmental conditions are optimal, ie. there is no shade/cloud, no smoke/haze/pollution, temperature isn't too high (as solar output reduces at higher temperatures) etc).
