AllSpark Circuit Breakers - Flush Mount 25A

Name: AllSpark Circuit Breakers - Flush Mount 25A
Brand: AllSpark
SKU: AS-CB25FM
Price: 49.00 AUD
Availability: InStock

SKU CODE: AS-CB25FM

In Stock

$49.00

$49.00 $0.00

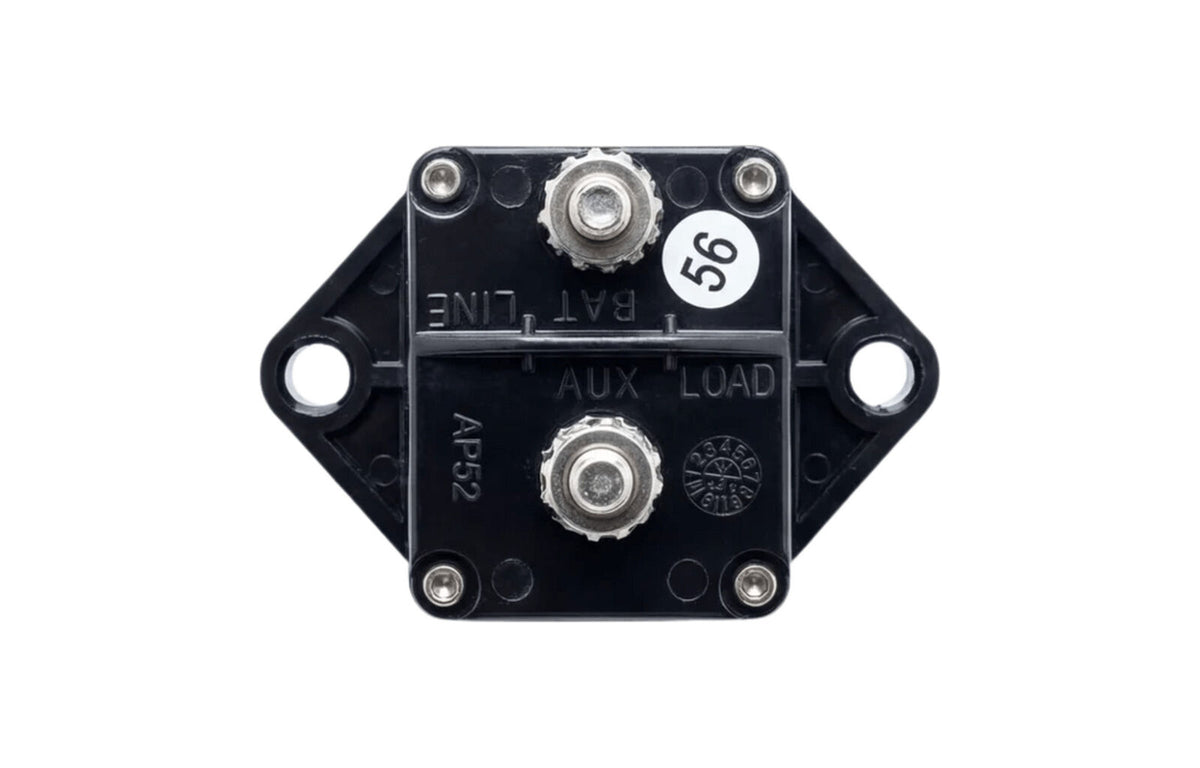

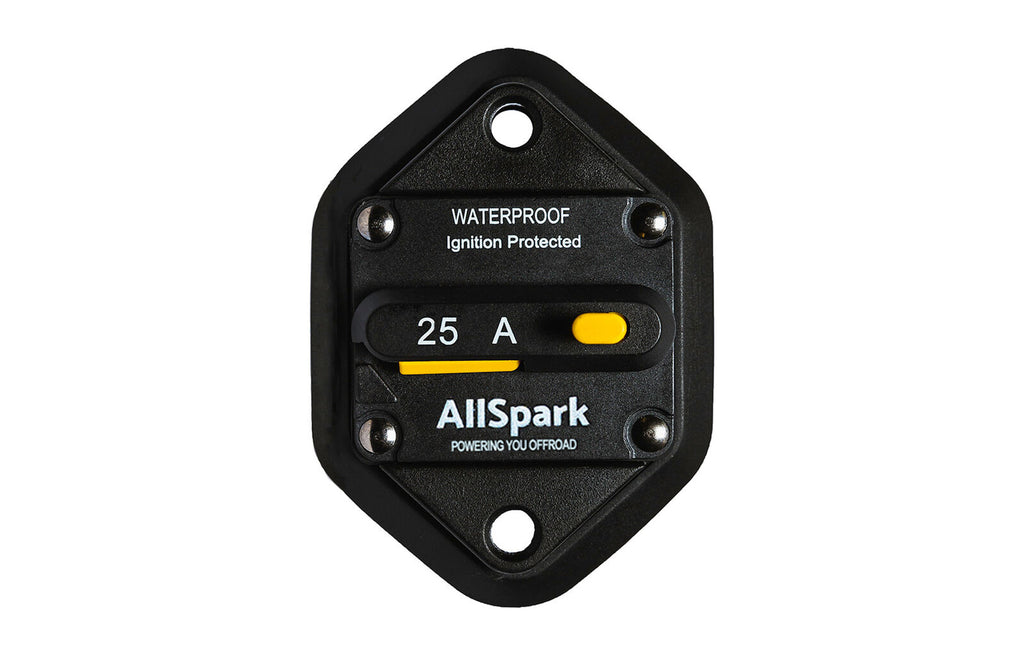

PREMIUM QUALITY, HIGH PERFORMANCE CIRCUIT BREAKERS

Push to trip function
Fully waterproof
Ignition protected
Certified

Description

PREMIUM QUALITY, HIGH PERFORMANCE CIRCUIT BREAKERS YOU CAN RELY ON

AllSpark Circuit breakers are a premium quality, high performance manual reset Circuit Breaker suitable for 12V up to 48V DC circuit protection. All models are resettable and have a manual push to trip function.

Available in 20A, 25A, 30A, 40A, 50A, 60A, 70A, 80A, 100A, 175A and 200A current ratings, you can select the right size to suit your requirements.

All models are fully waterproof with IP67 rating and are ignition protected for use in high moisture and marine environments, including engine bays where fuel vapour ignition risks could be present.

WHATS IN THE BOX

25A AllSpark flush mounted circuit breaker

5 YEAR MANUFACTURERS WARRANTY
30 DAY MONEY BACK GUARANTEE

Features

Push to trip function - allowing for circuits to be open and closed as required
Waterproof - All models have an IP67 rating for use in high moisture and marine environments
Ignition protected - Intrinsically safe (for use in engine bays where fuel vapour maybe present)
Certified - all models are tested and certified to be compliant with ABYC E-11 & SAE J1171 External Ignition Protection and SAE J553 Circuit Breakers

Specifications

Specification Flush Mount Circuit Breakers

Common Specifications — All Ratings

Voltage Range 12–48 VDC

Interrupt Rating 3000A @ 30VDC

Operating Temperature −32˚C to +85˚C

Storage Temperature −34˚C to +149˚C

IP Rating IP67

Materials Black UL-rated 94V0 thermoset plastic. Thermoplastic elastomer stud insulators on covered units with F-style (surface-mount) bases

Termination 1/4-28 threaded studs

Torque Rating 50 in-lbs (5.6N•m) max

Mounting Torque Rating Panel or surface-mount: 50 in-lbs (5.6N•m) max. Threaded insert option: 25 in-lbs (2.8N•m) max

Ring Hole Size 6mm / 1/4"

Per-Rating Specifications

Rating (A) 20 25 30 40 50 60 70 80 100 120 175 200

Min Cable Size 4mm 5mm 6mm 8 B&S 6 B&S 4 B&S 2 B&S 0 B&S

Lug Blue crimps Yellow crimps 6mm 10mm 16mm 25mm 35mm 50mm

SKUAS-CB25FM

Common Specifications
Voltage Range	12–48 VDC
Interrupt Rating	3000A @ 30VDC
Operating Temperature	−32˚C to +85˚C
Storage Temperature	−34˚C to +149˚C
IP Rating	IP67
Termination	1/4-28 threaded studs
Torque Rating	50 in-lbs (5.6N•m) max
Mounting Torque	Panel/surface-mount: 50 in-lbs max. Threaded insert: 25 in-lbs max
Ring Hole Size	6mm / 1/4"
Materials	Black UL-rated 94V0 thermoset plastic
25A Specifications
Min Cable Size	4mm
Lug	Blue crimps

FAQS

Q: How do I know what size I need?

A: Use our Cable Size Calculator. Enter your load, system voltage and cable run length, and it will give you the recommended cable size and the matching circuit breaker rating for your install.

Q: Are these breakers certified?

A: All models are certified to be compliant with SAE J1171 External Ignition Protection and SAE J553 Circuit Breakers. They are manufactured under strict quality management standards and certified to meet the requirements of IATF 16949:2016 and ISO 9001:2015.

You can be assured of buying a quality product that meets the very high standards expected to protect your circuits and vehicle from over excess current damage.

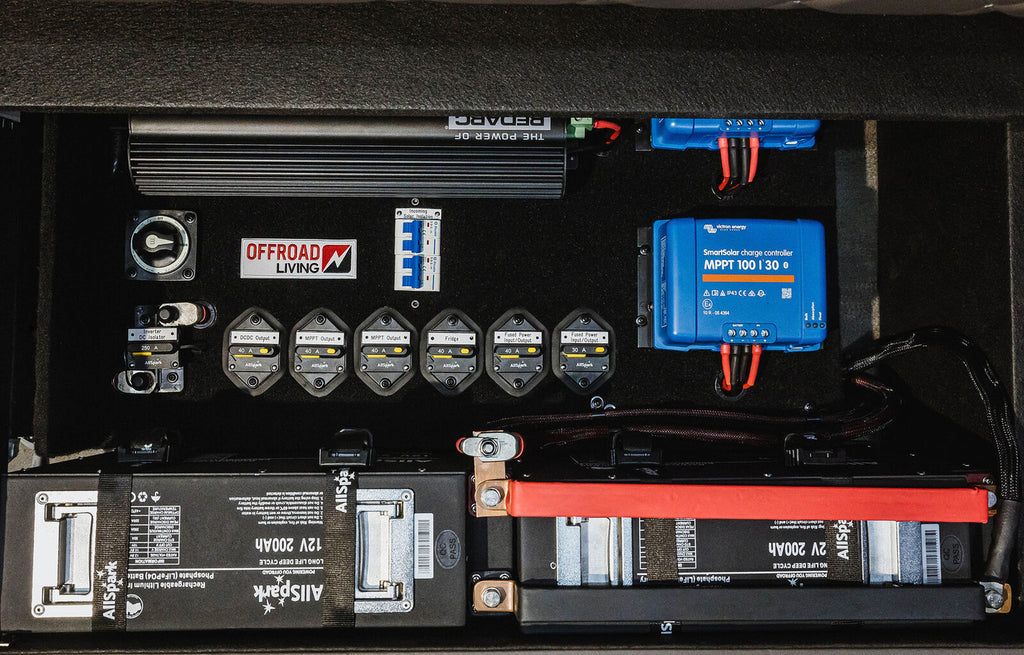

Q: Why would I use flush mounted over surface mounted?

A: Flush mounted circuit breakers provide a neat installation option for when the circuit breaker is being installed on a panel. They are mounted through the panel with the wiring being concealed behind. You need to ensure there is enough room behind the panel for the cabling and unit, please refer to the specifications tab to view dimensions.

Q: What cable size do I need for my circuit breaker?

A: Please refer to the specifications table for the recommended cable size for your circuit breaker.

CABLE, CONDUITS AND LUG SIZING CHART

AWG/B&S	Twin Core			Single Core			Copper Diameter (mm) per core	Surface Area (mm²) per core	Lug size (mm²)
AWG/B&S	Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Current Rating (Amps)	Circuit Protection Max (Amps)	Conduit Size (mm)	Copper Diameter (mm) per core	Surface Area (mm²) per core	Lug size (mm²)
2mm Auto Industry Equivalent	12	7.5	5	13	10	5	1.10	0.56	Red crimps
3mm Auto Industry Equivalent	16	10	5	20	15	5	1.40	1.13	Red/Blue crimps
4mm Auto Industry Equivalent	22	15	7	28	25	5	1.30	1.84	Blue crimps
5mm Auto Industry Equivalent	29	20	10	37	30	5	2.30	2.90	Blue/Yellow crimps
6mm Auto Industry Equivalent	38	30	10	48	40	7	3.10	4.59	Yellow crimp/6mm lug
8 B&S	59	50	13	74	60	7	3.70	7.71	10
6 B&S	82	70	15	103	80	7	5.00	13.50	16
4 B&S	108	100	19	135	100	10	6.10	20.26	25
2 B&S	Single core only			188	150	13	7.90	32.07	35
0 B&S				246	200	13	9.30	49.00	50
00 B&S				292	250	16	11.10	64.15	70
000 B&S				335	300	19	12.40	83.19	95
0000 B&S				399	350	25	13.50	99.27	120
This cable chart is provided for information purposes only. It is based on the published information for Tycab Australia Automotive cables which we use soley.
