AllSpark Socket - PD100W USB-C + QC3.0 USB-A Charger - White no LED

Name: AllSpark Socket - PD100W USB-C + QC3.0 USB-A Charger - White no LED
Brand: AllSpark
SKU: AS-PD100WWH
Price: 49.00 AUD
Availability: InStock

SKU CODE: AS-PD100WWH

In Stock

$49.00

$49.00 $0.00

HIGH QUALITY DUAL USB SOCKET SUITABLE FOR 12V AND 24V DC INSTALLATIONS

1 x PD100W Type C USB
1 x QC 3.0 36W USB A
Charges Starlink Mini, Drones, Laptops, Tablets and Phones
NO LED backlight for dark rooms when sleeping

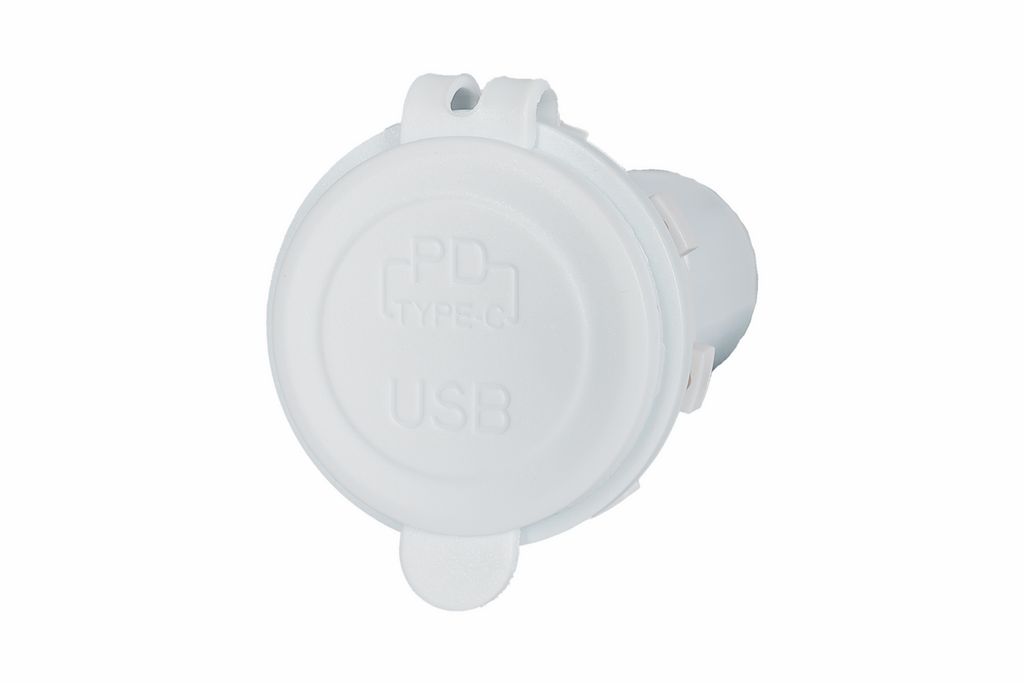

IP65 rubber cover

Description

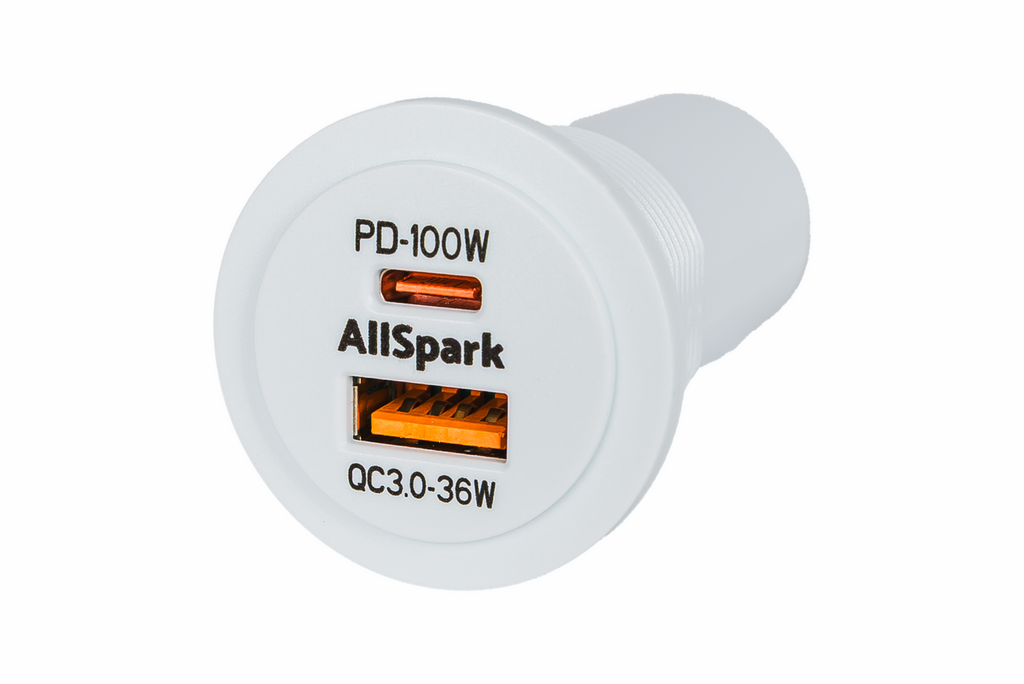

100W USB-C CHARGING IN A WHITE FINISH TO MATCH YOUR CABINETRY

Campervans and caravans built with white joinery deserve hardware that suits the interior, not something that interrupts it. The AllSpark PD100W USB-C and QC3.0 USB-A socket comes in a white body with no LED backlight, so it sits flush and clean in white cabinet doors, overhead lockers and bulkhead panels. Up to 100W from the USB-C port, up to 36W from the Quick Charge 3.0 USB-A port, straight off 12V or 24V DC.

This is the ultimate power supply for your 4wd, caravan or camper. Able to provide a range of output voltages and currents from low powered 5V standard USB devices all the way up to the full 100W or 5A @ 20V. This charger can be used to charge every smart phone and tablet on the market plus laptops up to PD100W, Starlink mini, USB C drone chargers and so much more.

***Please note that due to the high power of this device, the body size exceeds that of standard surface mount housings and as such is suitable for flush mount in cabinets only***

Warranty

2 YEAR WARRANTY

Features

HIGH QUALITY DUAL USB SOCKET SUITABLE FOR 12V AND 24V DC INSTALLATIONS

1 x PD100W Type C USB
1 x QC 3.0 36W USB A
Charges Starlink Mini, Drones, Laptops, Tablets and Phones
NO LED backlight for dark rooms when sleeping
IP65 rubber cover

Specifications

SKU	AS-PD100WBLK	AS-PD100WBLKLED	AS-PD100WWH
Specifications
Colour	Black	Black	White
LED Backlight	No	Yes — Blue	No
USB Type	Type C PD100W + Type A QC 3.0
Number of USB Ports	2
Nominal Input Voltage	12V / 24V DC
Operating Input Voltage	9V–30V DC (max)
Peak Voltage	32V DC max (3–4s)
USB Type-A Output	QC 3.0 (5V–12V, 36W max) 5V/3A · 9V/3A · 12V/3A
USB Type-C PD100W Output	5V–20V, 100W max 5V/3A · 9V/3A · 12V/3A · 15V/3A · 20V/5A
Idle Power Current	0	5mA	5mA
Life	5,000 operating cycles
Sealing	IP65
Terminals	Copper / nickel-plated 1/4" (6.3mm)
Operating Temperature	−20°C to +85°C
Panel Mount Hole Diameter	29.2mm (min)
Over Voltage Protection	Yes
Over Current Protection	Yes
Over Temperature Protection	Yes
Short Circuit Protection	Yes
Reverse Polarity Protection	Yes

SKUAS-PD100WWH

Specifications
Colour	White
LED Backlight	No
USB Type	Type C PD100W + Type A QC 3.0
Number of USB Ports	2
Nominal Input Voltage	12V / 24V DC
Operating Input Voltage	9V–30V DC (max)
Peak Voltage	32V DC max (3–4s)
USB Type-A Output	QC 3.0 (5V–12V, 36W max)
USB Type-C PD100W Output	5V–20V, 100W max
Idle Power Current	5mA
Life	5,000 operating cycles
Sealing	IP65
Terminals	Copper / nickel-plated 1/4" (6.3mm)
Operating Temperature	−20°C to +85°C
Panel Mount Hole Diameter	29.2mm (min)
Over Voltage Protection	Yes
Over Current Protection	Yes
Over Temperature Protection	Yes
Short Circuit Protection	Yes
Reverse Polarity Protection	Yes

Downloads

Drawing PD100w + QC3.0

FAQS

Q: Is the white a true white that matches standard caravan cabinetry?

A: The body and rubber cover are a standard white finish designed to sit against the white laminates and gloss panels used in most Australian caravan and campervan joinery. If you are matching a specific board, hold a sample against it before you cut the panel.

Q: Can it run a Starlink Mini?

A: Yes. The USB-C port delivers up to 100W (5V to 20V, up to 5A at 20V), which is enough to run a Starlink Mini directly from your 12V or 24V DC system with no inverter in the circuit.

Q: Which of the three PD100W sockets suits a campervan?

A: This white no LED version is the one for white internal cabinetry, which covers most campervan and caravan interiors. The black no LED version (AS-PD100WBLK) suits dark internal joinery and sleeping areas. The black blue LED version (AS-PD100WBLKLED) is aimed at canopies, toolboxes and 4WD drawer systems where finding the socket in the dark matters. All three deliver the same 100W USB-C and 36W USB-A output.

Q: How much of the socket sits behind the panel?

A: Enough that you need clear depth behind the cut out. The full dimensions are on the PD100W technical drawing. Check the drawing against your cabinet depth before cutting, particularly in thin overhead lockers.

Q: Do I need an inverter to use this?

A: No, and that is the point. It takes 12V or 24V DC straight from your battery system and delivers USB-C and USB-A output. Any device that charges over USB can plug directly in, with no DC to AC conversion and none of the losses that come with it.

Q: What hole size and voltage range does it need?

A: A minimum 29.2mm flush mount hole, and a fused supply anywhere from 9V to 30V DC (nominal 12V or 24V). Short peaks to 32V are tolerated.
