SKU code: VIC-175W
175W-12V Mono 1485 x 668 x 30mm series 4a
Share This Item:
Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year limited warranty on materials and workmanship.
• Sealed, waterproof, multi-functional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• High power models with pre-wired quick-connect system with MC4 (PV-ST01) connectors.
Product warranty - 5 Years
Warranty on electrical performance - 10 years 90% + 25 years 80% of power output

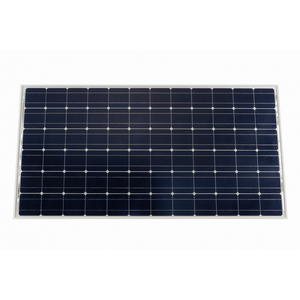

(S.VIC-175M) - Victron Mono solar panel - 175w
- Vmp - 19.4V
- Imp - 9.03A
- Voc - 23.7V
- Isc - 9.89A
- 1485x668x30mm series 4a
