4WD Weekend Warrior
$1,209.60
Sale price
$1,209.60
Regular price
$1,344.00
Skip to product information
Sale
Frequently Bought Together:
4WD Weekend Warrior
SKU CODE: AS-BUNDLE14
In Stock
$1,209.60
Sale price
$1,209.60
Regular price
$1,344.00
Save 10%!
Description
SWAG. FRIDGE. HEAD TORCH. FISHING ROD. DONE, LET'S GO.
You're not building a basecamp - you're heading somewhere the flies outnumber the people for a night or two, maybe three if the fish are biting. One thing that shouldn't be on your mind is whether the fridge is still cold in the morning.

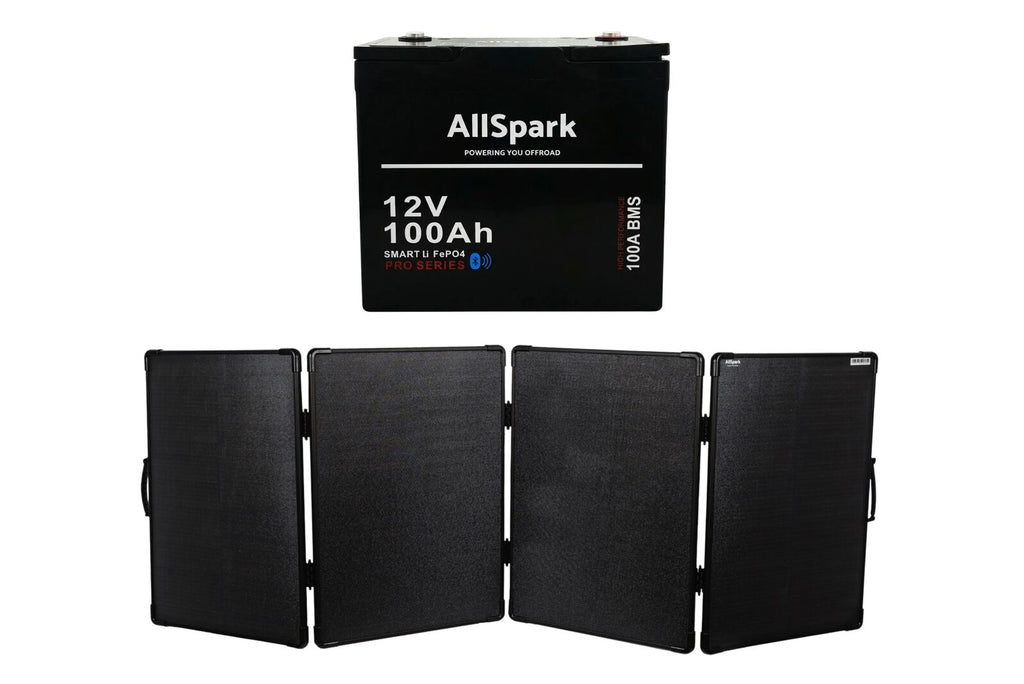

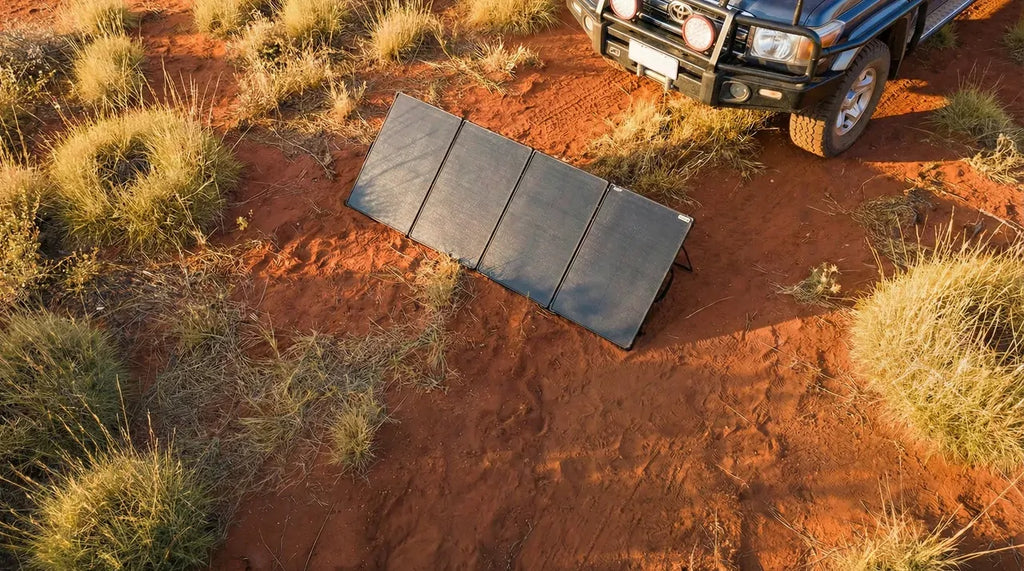

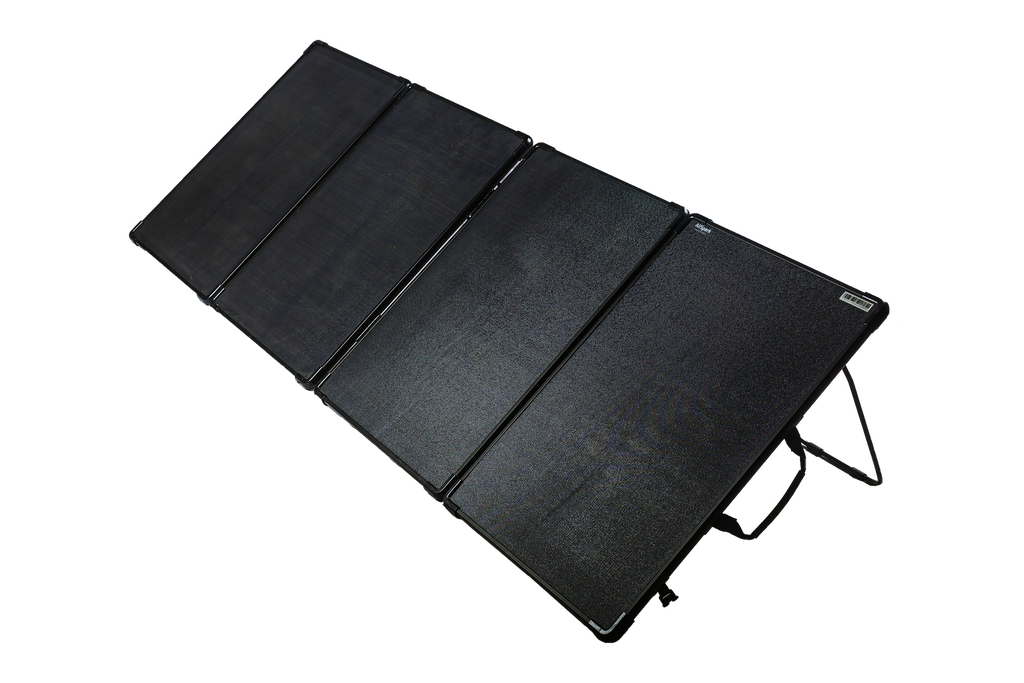

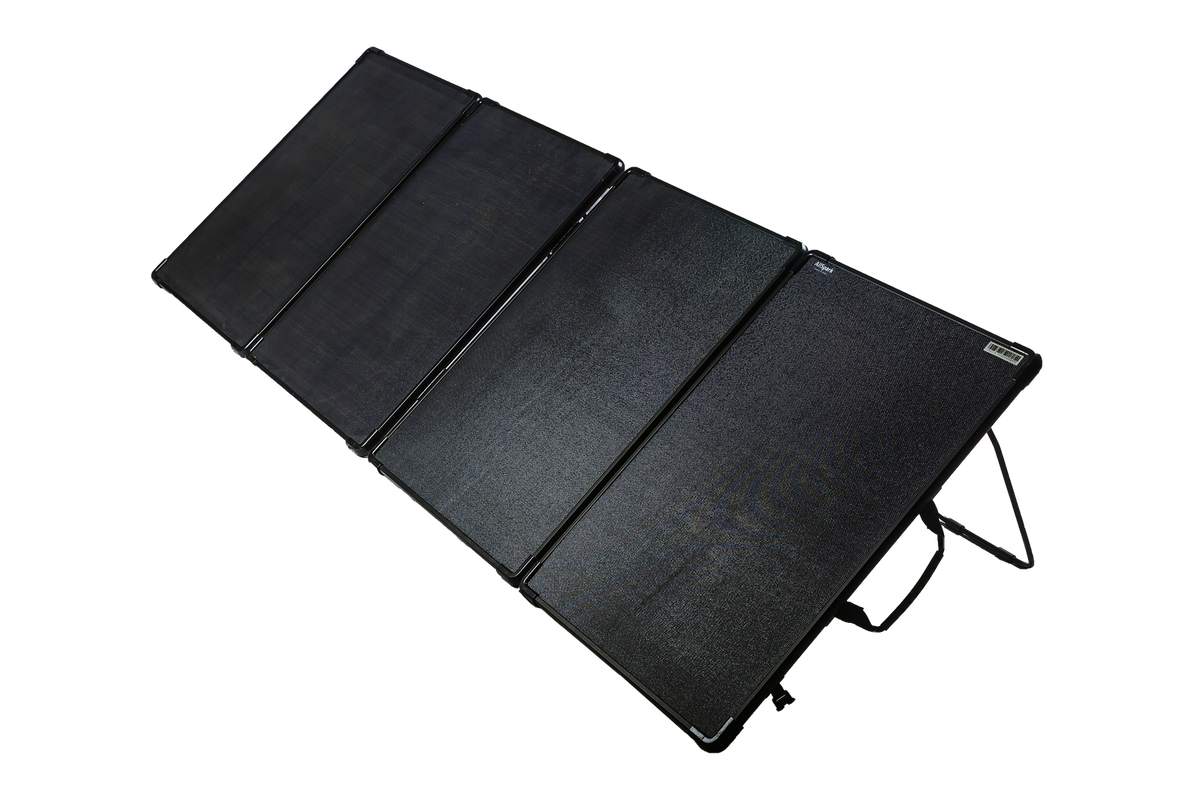

The 4WD Weekend Warrior pairs an AllSpark 100Ah LiFePO4 battery with a 200W Quad Fold solar panel - enough to run a 40-50L fridge for two full days with zero input, with the solar on top as your buffer.
Warranty
Features
Specifications

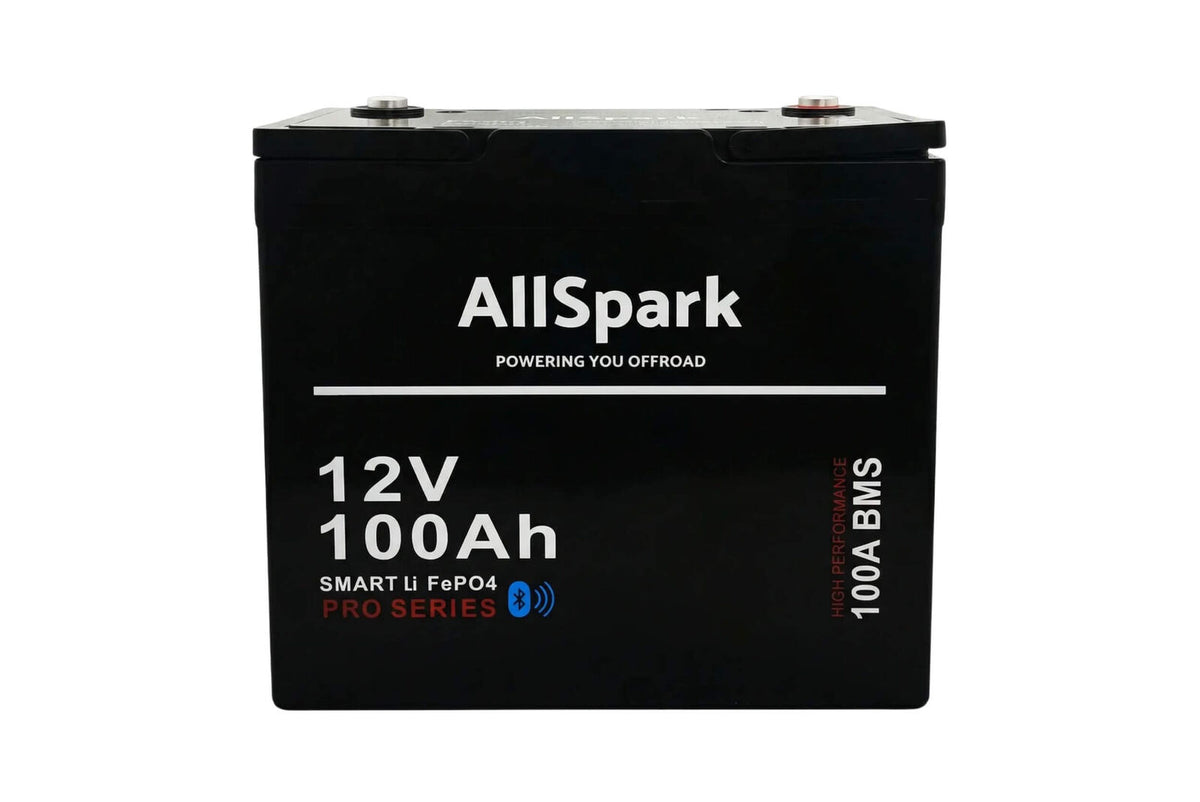

| AS-12100PRIMEBTAllSpark 100Ah 12V LiFePO4 Prime BT Battery | |
| Battery Level | |
| Capacity Amp Hours (C5) | 100Ah |
| Watt Hours | 1,280Wh |
| Rated Voltage (V) | 12.8V |
| Max Charge Voltage (V) | 14.6V |
| Recommended Float Voltage (V) | 13.6V |
| Low Voltage Cutoff (V) | 10V |
| Rapid Charge Current (1C) for 30 mins | 100A |
| Recommended Charge Current (A)* | 20–40A |
| Charge Profile | CC/CV |
| Max Inverter Size (Watts) | 1000W |
| Max Continuous Discharge (A) | 100A |
| Peak Discharge - 10 secs (A) | 200A |
| Cycle Life | |
| Charge Cycles @ 80% DoD (≥85% residual) | > 3200+ |
| @ 60% Depth of Discharge | > 4200+ |
| @ 40% Depth of Discharge | > 5000+ |
| Temperature | |
| Optimum Charging Temp (˚C) | < 45°C |
| Operating Temperature Range (˚C) | -20 to +60°C |
| Storage Temperature Range (˚C) | -40 to +125°C |
| Physical | |
| Max Series Voltage (V) | 24V |
| Max Batteries in Parallel | Unlimited |
| Overall Dimensions (inc Handles mm) | 229 x 138 x 208 (+4mm for terminals) |
| Case Footprint (L x W x H mm) | 224 x 134 x 208 |
| Case Material | ABS Plastic |
| Weight (kg) | 9.5kg |
| IP Rating | IP65 |
| Cell Level | |
| Cell Type | Prismatic LiFePO4 |
| Cell Connection | 4S1P |
| Cell Capacity | 3.2V @ 100Ah |
| Cell Casing | Nickel Plated Steel |
| Cell Balancing Target | 3.65 +/- 0.025V |
| Cell Balance Current (mA) | 35 +/- 5mA |
| Cell Over Discharge LV Protection (V) | 2.5 +/- 0.025V |
| Over Discharge Release | Apply Charge 10.5V+ & 1A+ |
| Over Charge Cutoff (V) | 3.75 +/- 0.025V |
| Over Charge Detection Delay (secs) | 1–1.6s |
| Over Charge Release (V) | 3.6 +/- 0.0625V |
| Over Charge Release | Auto below Release Voltage |
| Over Current Detection (1) (A) | N/A |
| Over Current Detection Delay (1) (secs) | N/A |
| Over Current Detection (2) (A) | 200A |
| Over Current Detection Delay (2) (secs) | 10s |
| Over Current Release | Remove Load – Auto release |
| Short Circuit Protection | External Short |
| Short Circuit Detection Delay (uS) | 200–400uS |
| Short Circuit Recovery | Remove Load – Auto release |
| Internal Resistance (MOSFET) | ≤20mΩ |
| Notes * For best cell longevity. Independently laboratory tested with 0.25C discharge and charge rate up to 5000 cycles at 25°C. Residual capacity >85% after 3200 cycles. | |
| AS200SPFOLDAllSpark 200W Quad Fold Solar Panel | |
| Solar Panel | |
| Maximum Power (Pmax) | 200W |
| Wiring Setup | 4 in parallel |
| Open-Circuit Voltage (Voc) | 26.9V |
| Voltage at Pmax (Vmp) | 22.8V |
| Short-Circuit Current (Isc) | 9.3A |
| Current at Pmax (Imp) | 8.78A |
| Cells Efficiency (%) | 22.4% |
| Maximum System Voltage | 100V |
| Cell Type | A Grade PERC Shingle cells 210mm |
| No. of Cells | 160 (2 rows x 20 cells x 4 panels) |
| Temperature Coefficients | |
| Power Temperature Coefficient | -0.38%/°C |
| Voltage Temperature Coefficient | -0.36%/°C |
| Current Temperature Coefficient | -0.07%/°C |
| Output Power Tolerance | ±3% |
| Operating Temperature | -20℃ ~ 70℃ |
| Physical | |
| Closed Size L x W x D (mm) | 470 x 630 x 90 |
| Unfolded Size H x W x D (mm) | 630 x 1888 x 5 |
| Weight – Panel only | 7.8kg |
| Weight – Panel with 5m cable | 8.65kg |
| Weight – Total with cable and bag | 9.65kg |
| Ingress Protection Rating (IP) | IP68 |
| Warranty | 5 years |
| Included MPPT Controller (75/15) | |
| Battery Voltage Auto Select (V) | 12–24V |
| Rated Charge Current (A) | 15A |
| Nominal PV Power @ 12V (W) | 220W |
| Nominal PV Power @ 24V (W) | 440W |
| Max PV Short Circuit Current (A) | 15A |
| Automatic Load Disconnect | Yes |
| Maximum PV Open Circuit Voltage (V) | 75V |
| Peak Efficiency | 98% |
| Self Consumption (12V / 24V mA) | 25 / 15mA |
| Charge Voltage Absorption (V) | 14.4 / 28.8 (adjustable) |
| Charge Voltage Float (V) | 13.8V / 27.6V (adjustable) |
| Charge Algorithm | Multi stage adaptive |
| Temperature Compensation | -16mV / °C resp. -32mV / °C |
| Max Continuous Load Current (A) | 15A |
| Low Voltage Load Disconnect | 11.1V / 22.2V or 11.8V / 23.6V or Battery Life algorithm |
| Low Voltage Load Reconnect | 13.1V / 26.2V or 14V / 28V or Battery Life algorithm |
| Protection | Battery reverse polarity (fuse) / Output short circuit / Over temperature |
| Operating Temperature | -30 to +60°C (full rated output up to 40°C) |
| Humidity | 95% non-condensing |
| Enclosure / Colour | IP43 (electronics) / IP22 (connection area) – Blue (RAL 5012) |
| Power Terminals | 6mm² / AWG10 |
| Weight (kg) | 0.5kg |
| Dimensions (H x W x D mm) | 100 x 113 x 40 |
| Notes 1a) If more PV power is connected, the controller will limit input power. 1b) The PV voltage must exceed Vbat +5V for the controller to start. 2) A PV array with higher short circuit current may damage the controller. | |
