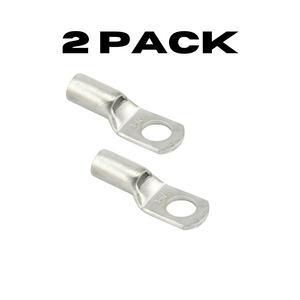

These lugs are made from the highest possible specifications and are electro tin finished. They are made with the highest grade oxygen free copper available, with a conductivity of 99.9%.

Correct wall thickness' to ensure a secure crimp every time.

Manufactured to Australian Dimensions, these lugs comply with the Australian standard and are fully compatible with existing Australian Tooling.

  • Straight or Right Angle lugs available
  • Lugs available for all standard DC cable sizes
  • High quality electro-plated copper lugs
  • High grade oxygen free copper, with 99.9% conductivity by I.A.C.S standards
  • Fully compatible with existing Australian tooling
  • First number is cable size/Second number is hole size in tab

CABLE LUG SIZE CHART

AWG/B&S LUG SIZE (mm2)
2.5mm Auto Industry Equivalent Red crimps
3mm Auto Industry Equivalent Red/Blue crimps
4mm Auto Industry Equivalent Blue crimps
5mm Auto Industry Equivalent Blue/Yellow crimps
6mm Auto Industry Equivalent Yellow crimp/6mm lug
8 B&S 10
6 B&S 16
4 B&S 25
2 B&S 35
0 B&S 50
00 B&S 70
000 B&S 95
0000 B&S 120



Specifications

SKU CL95-02P
Brand AllSpark
Shipping Weight 0.0100kg
Shipping Width 0.010m
Shipping Height 0.010m
Shipping Length 0.010m
Shipping Cubic 0.000001000m3
Unit Of Measure ea
