PROFESSIONAL BATTERY CHARGER WITH BUILT-IN BLUETOOTH



The Blue Smart IP65 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP65 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.



Ultra high efficiency 'green' battery charger: With up to 95% efficiency, these chargers generate up to four times less heat when compared to the industry standard. And once the battery is fully charged, power consumption reduces to 0.5 Watt, some five to ten times better than the industry standard.



Durable, safe and silent:

  • Low thermal stress on the electronic components
  • Protection against ingress of dust, water and chemicals
  • Protection against overheating: the output current will reduce as temperature increases up to 60°C, but the charger will not fail
  • The chargers are totally silent: no cooling fan or any other  moving parts



Reconditioning: A lead-acid battery that has been insufficiently charged or has been left discharged during days or weeks will deteriorate due to sulfation. If caught in time, sulfation can sometimes be partially reversed by charging the battery with low current up to a higher voltage.



Recovery function for fully discharged batteries: Most reverse polarity protected chargers will not recognize, and therefore not recharge a battery which has been discharged to zero or nearly zero  Volts. The Blue Smart IP65 Charger however will attempt to recharge a fully discharged battery with low current and resume normal charging once sufficient voltage has developed across the battery terminals.



The VictronConnect app: Setup, readout and configure your Blue Smart IP65 Charger via your smartphone.   You can display the status of your charger and battery and even control the functions of your charger using the VictronConnect app. On your screen the readout of voltage and current is default available.



Storage mode: Less corrosion of the positive plates STORAGE Even the lower float charge voltage that follows the absorption period will cause grid corrosion. It is therefore essential to reduce the charge voltage even further when the battery remains connected to the charger during more than 48 hours.



Temperature compensated charging: The optimal charge voltage of a lead-acid battery varies inversely with temperature. The Blue Smart IP65 Charger measures ambient temperature during the test phase and compensates for temperature during the charge process. The temperature is measured again when the charger is in low current mode during float or storage. Special settings for a cold or hot environment are therefore not needed.



Li-ion battery mode: The Blue Smart IP65 Charger uses a specific charging algorithm for Li-ion (LiFePO₄) batteries, with automatic Li-ion under voltage protection reset.


WHATS IN THE BOX

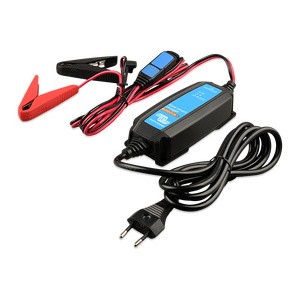

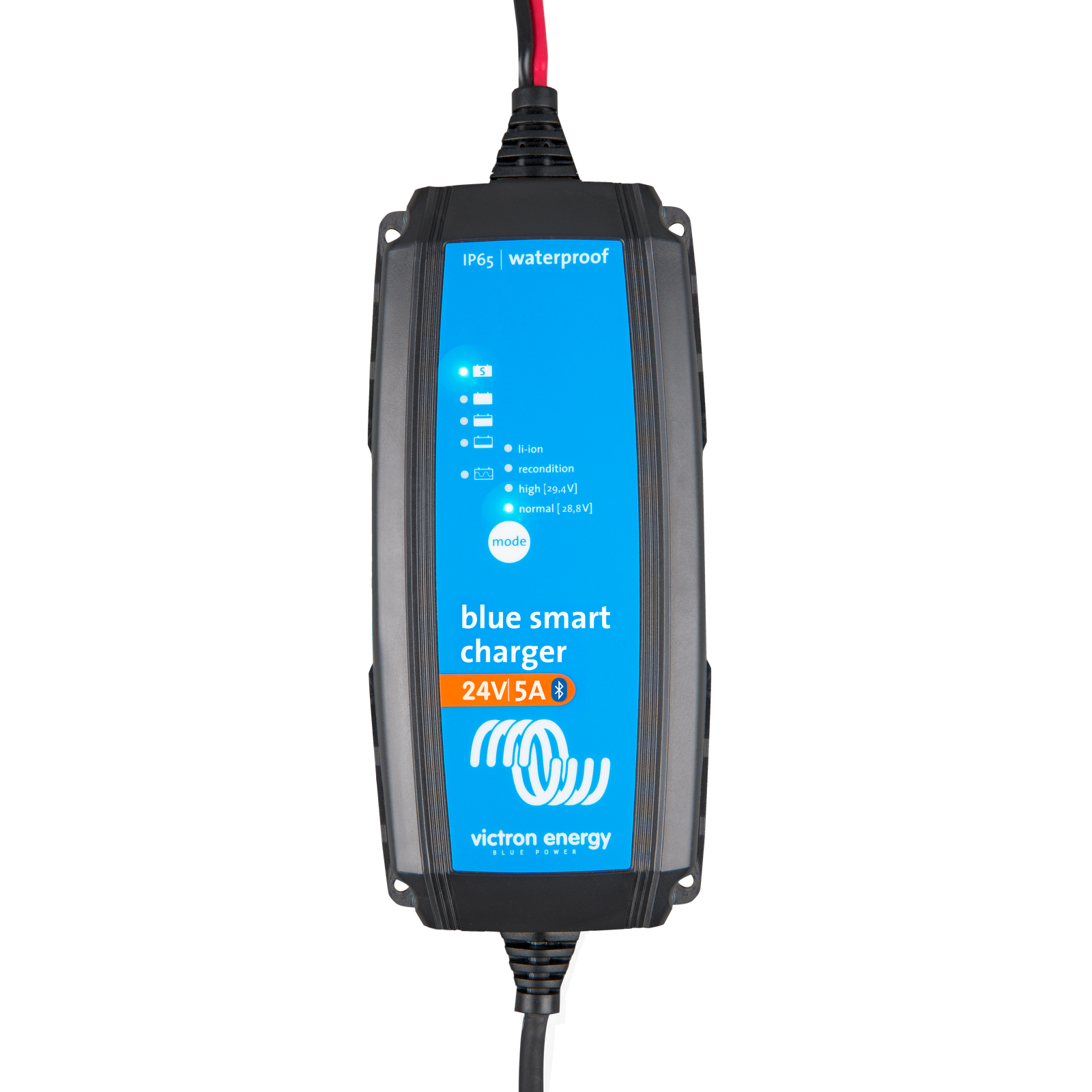

  • 1 x Victron Blue Smart IP65 24V 5A AC to DC Charger
  • 24V Output
  • Water, dust and chemical resistant - can be used in external installations
  • Seven step smart charge algorithm - automatically optimize the charging process relative to the way the battery is being used
  • Recovery of fully discharged ‘dead’ batteries
  • Severe cold performance - down to -30°C
  • Low power mode - able to charge smaller batteries
  • Lithium compatible - Li-ion battery mode
  • In-built Bluetooth - setup and configure, readout of voltage and current by Bluetooth Smart

PRODUCT SPECIFICATIONS - VICTRON BLUE SMART IP65

MODEL 12V 5A 12V 15A 12V 25A 24V 5A 24V 13A
SKU BC.VBPCSIP65125 BC.VBPCSIP651215 BPC122531014 BC.VBPCSIP65245 BPC241331014
Input voltage 230 VAC
Efficiency 94% 95%
Standby power consumption 0.5W
Minimum battery voltage Starts charging from down to 0 V
Charge voltage 'absorption'

Normal: 14.4 V

High: 14.7 V

Li-ion: 14.2 V

Normal: 28.8 V

High: 29.4 V

Li-ion: 28.4 V

Charge voltage 'float'

Normal: 13.8 V

High: 13.8 V

Li-ion: 13.5 V

Normal: 27.6 V

High: 27.6 V

Li-ion: 27.0 V

Charge voltage 'storage'

Normal: 13.2 V

High: 13.2 V

Li-ion: 13.5 V

Normal: 26.4 V

High: 26.4 V

Li-ion: 27.0 V

Charge current 5A 15A 25A 5A 13A
Low current mode 2A 4A 10A 2A 4A
Temperature compensation (lead-acid batteries only)  16 mV/ºC  32 mV/ºC
Power supply mode Yes
Back current drain 0.7 Ah/month (1 mA)
Protection Reverse polarity, Output short circuit, Over temperature
Operating temp. range -40 to +60°C (full rated output up to 30°C) (cables retain flexibility at low temperature)
Humidity (non-condensing) Max 95%
Charge algorithm 7-stage adaptive
 Bluetooth -4dBm, 2402 – 2480 MHz
ENCLOSURE
Battery-connection Black and red cable of 1.5 meter
230V AC-connection Cable of 1.5 meter with CE 7/16, CE 7/17, BS 1363 plug (UK)  or AS/NZS 3112 plug
Protection category  IP65 (splash and dust proof)
Weight 0.9kg 0.9kg 1.9kg 0.9kg 1.9kg
Dimensions (h x w x d mm) 45 x 81 x 182 60 x 105 x 190 75 x 140 x 240  47 x 95 x 190 75 x 140 x 240
STANDARDS
Safety EN 60335-1, EN 60335-2-29
Emission EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity EN 55014-2,EN 61000-6-1, EN 61000-6-2, EN 61000-3-3



Specifications

SKU BC.VBPCSIP65245
Brand Victron
Shipping Weight 0.9100kg
Shipping Width 0.270m
Shipping Height 0.050m
Shipping Length 0.180m
Shipping Cubic 0.002430000m3
Unit Of Measure ea
