YOUR COMPLETE BATTERY MANAGEMENT SYSTEM

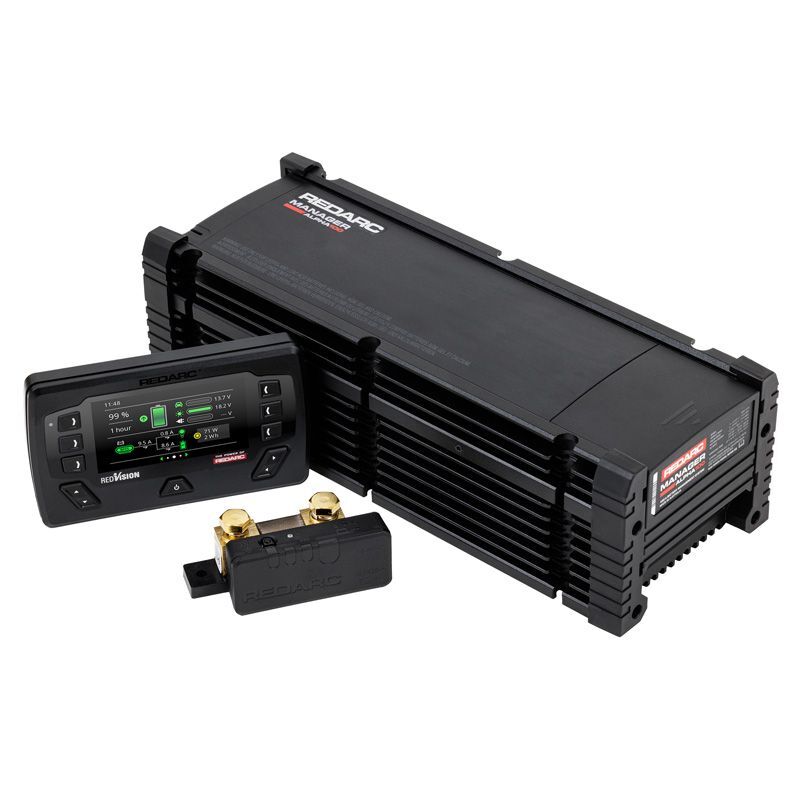

Charge secondary batteries used in recreational vehicles, caravans and camper trailers, with REDARC’s Manager Alpha100 battery management system. Effortlessly power high demand appliances with a combination of DC, AC and solar charging. No matter where your adventures take you, the Alpha100 achieves the best charge for your secondary batteries.



CHARGE

The Manager Alpha100 battery management system is capable of delivering 100A of charge from a combination of available power sources including vehicle (DC), mains (AC) and solar. As the next generation of REDARC’s trusted battery management technology, charge your batteries up to three times faster than the previous Manager30. Meaning you’ve always got the power on hand to charge your batteries faster than you can drain them.



No matter whether you’re driving, plugged in at camp or soaking up the sun, run everything from induction cooktops to fridges and air conditioners without skipping a beat.


The Manager Alpha range is up to 55% smaller and 28% lighter than comparable competitor systems, and maximises your charge capacity while still leaving plenty room for your adventure essentials.



The Manager Alpha100 features a Start Battery Charge function which is able to use excess solar power to keep your start battery charged. As well as a Start Battery Recovery mode to bring flat start batteries back to life.



MONITOR

Featuring REDARC’s innovative RedVision technology and Bluetooth compatibility, keep on top of your charge and battery level information in real time through the included RedVision display and app. It allows you to view state of charge, remaining charge and current flow information and at up to five times more accurate than the leading competitor, you can be sure that “5 hours left” means “5 hours left”.



Incorporating latest Bluetooth 5.1 technology, the Smart Battery Monitor delivers reliability over distances up to 42m so you can stay connected anywhere at camp.



BUILT TOUGH

The Manager Alpha has been tested to the toughest vibration standards in the world and is always ready for adventure. Able to keep charging in the frigid extremes of the highlands or the scorching heat of the outback, it’s made in Australia, so you know it won’t let you down.



FEATURES

  • Simultanous 100A charging from DC, AC and solar power
  • Up to 55% smaller and 20% lighter than comparable systems
  • Start battery back charge and recovery capability
  • RedVision compatibility
  • Bluetooth 5.1 technology
  • 5 times more accurate monitoring than competitors



WHATS IN THE BOX

  • 1 x REDARC MANAGER ALPHA100 WITH REDVISION

2 Year Redarc Warranty

  • Simultanous 100A charging from DC, AC and solar power
  • Up to 55% smaller and 20% lighter than comparable systems
  • Start battery back charge and recovery capability
  • RedVision compatibility
  • Bluetooth 5.1 technology
  • 5 times more accurate monitoring than competitors

PRODUCT SPECIFICATIONS - REDARC MANAGER ALPHA

SKU BMS12050-AU BMS12075-AU BMS12100-AU
Output current (A) 50A 75A 100A
Maximum charging voltage 14.2 - 16.0V (settings dependant)
Solar input voltage 9 - 32V DC
Compatible battery types Gel, AGM, Calcium, Standard Lead Acid,  Lithium (LiFePO4)
Operating temperature -20˚to 60˚C
Main unit dimensions H x W x L 120 x 154 x 400mm
Display unit dimensions H x W x D 178 x 107.5 x 25.5mm
Weight (kg) 5.8 6.0 6.1
Warranty Two Years



PRODUCT SPECIFICATIONS - REDARC REDVISION DISPLAY

SKU DISP4300-RC
Operating temperature –40° to 75°C
Storage temperature –40° to 85°C
Weight 312g
Dimensions 178 x 109 x 25mm



Specifications

SKU BMS12100-AU
Barcode # 9338628006847
Brand REDARC
Shipping Weight 6.1000kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.400m
Shipping Cubic 0.005760000m3
