PROFESSIONAL BATTERY CHARGER WITH BUILT-IN BLUETOOTH



The Blue Smart IP22 Charger is the new professional battery charger with built-in Bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.



Bluetooth Smart Enabled: Allowing you to change settings and install updates as new features become available with the Victron Connect App.

High Efficiency: Up to 94% efficiency, generating up to four times less heat when compared to industry standard, with a no load power drawer of just 0.5W.

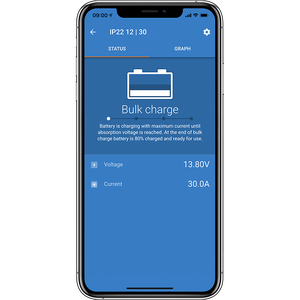

Victron Connect: The Victron Connect App lets you program, as well as get live status and historical information from your Victron products.

Historical Data: View historical data for the last 40 charge cycles, including start and end voltages, time spent in each charging cycle, amp-hours charged, completion status for each charge, and the charge profile used.

Adaptive 6-stage charging algorithm: Features a microprocessor controlled "adaptive" battery management, allowing it to automatically optimize the charging process relative to the way the battery is being used.

Storage Mode:  Provides less maintanance and aging when the battery is not in use. This storage mode will start automatically whenever the battery has not been discharged within the last 24 hours. During Storage Mode, the float voltage is reduced to 2.2V/cell (13.2V for a 12V battery) to minimize gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to "equalize" the battery. The feature prevents stratification of the electrolyte and sulfation, which is the major cause of early battery failure.

Lithium Batteries (LiFePO4): Lithium batteries are charged with a simple BULK / ABSORPTION / FLOAT algorithm.

NIGHT and LOW setting: When in NIGHT or LOW mode the output current is reduced to a maximum of 25% of the nominal output, allowing for the charger to operate in quiet mode. This NIGHT mode will end automatically after 8 hours, whilst the LOW mode can be ended manually.

Over temperature protection: Current will automatically reduce above 50oC.

Eleven LEDs for status indication: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY



WHATS IN THE BOX:

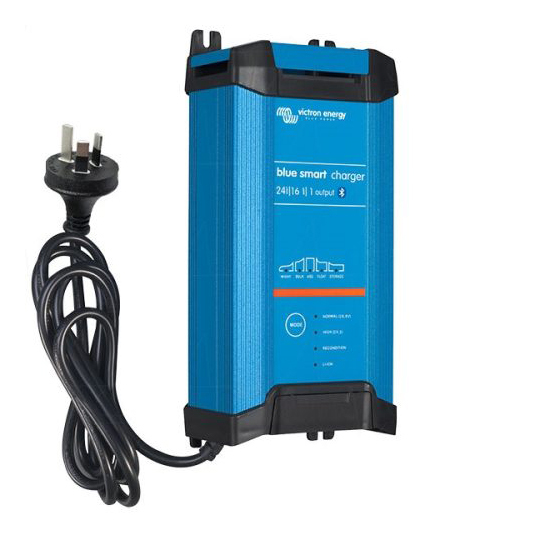

  • 1 x Victron Blue Smart IP22 Charger 24V 16A Single Output

5 YEAR MANUFACTURERS WARRANTY

  • Bluetooth Enabled - allowing for remote monitoring/updating and setting changes
  • High Efficiency - up to 94% efficient, less heat and low no load power drawer
  • Adaptive 6-stage algorithm - automatically optimizes charging
  • Storage Mode - reduces wear on the battery when not in use
  • Specific Lithium Algorithm
  • NIGHT / LOW setting - noiseless operation modes

PRODUCT SPECIFICATIONS - VICTRON BLUE SMART IP22

MODEL 12V Single Output 15A 12V Single Output 30A 12V Triple Output 30A 24V Single Output 16A
Input voltage range 180 – 265 VAC
Charge current, normal mode 15A 30A 30A 16A
Charge current, NIGHT or LOW 7.5A 15A 15A 8A
Efficiency 93% 94%
No load power consumption 0.5W
Frequency 45-65 Hz
Number of outputs  1 3 1
Charge voltage 'absorption'  Normal: 14,4 V     High: 14,7 V     Li-ion: 14,2 V  Normal: 28,8 V     High: 29,4 V     Li-ion: 28,4 V
Charge voltage 'float' Normal: 13,8 V     High: 13,8 V     Li-ion: 13,5 V Normal: 27,6 V     High: 27,6 V     Li-ion: 27,0 V
Charge voltage 'storage'  Normal: 13,2 V     High: 13,2 V     Li-ion: 13,5 V Normal: 26,4 V     High: 26,4 V     Li-ion: 27,0 V
Charge algorithm 6-stage adaptive
Can be used as power supply  Yes
Protection Battery reverse polarity (fuse)          Output short circuit         Over temperature
Operating temp. range  -40 to +60 °C (full rated output up to 40 °C)
Humidity (non-condensing) Max 98 %
ENCLOSURE
Material & Colour  Aluminium (blue RAL 5012)
Battery connection  Screw terminals 16 mm² / AWG6
230 VAC connection     Cable of 1,5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
Protection category IP22
Weight  1,3 kg
Dimensions (h x w x d)  235 x 108 x 65 mm
STANDARDS
Safety EN 60335-1, EN 60335-2-29
Emission EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
Automotive ECE R10-5



Specifications

SKU BC.VBPCSIP222416
Barcode # 8719076052487
Brand Victron
Shipping Weight 1.4500kg
Shipping Width 0.265m
Shipping Height 0.072m
Shipping Length 0.165m
Shipping Cubic 0.003148200m3
Unit Of Measure ea

Download

Will this charge my lithium battery?

Yes, Li-ion batteries are charged with a simple bulk – absorption – float algorithm.



Does it come with an Australian Plug

Yes, the image here shows the universal plug, but all models sold through Offroad Living come with an Australian plug.
