Can You Add a New Lithium Battery to Your Old Ones? (Caravan & 4WD)

Adding a new lithium battery to a caravan or 4WD battery bank

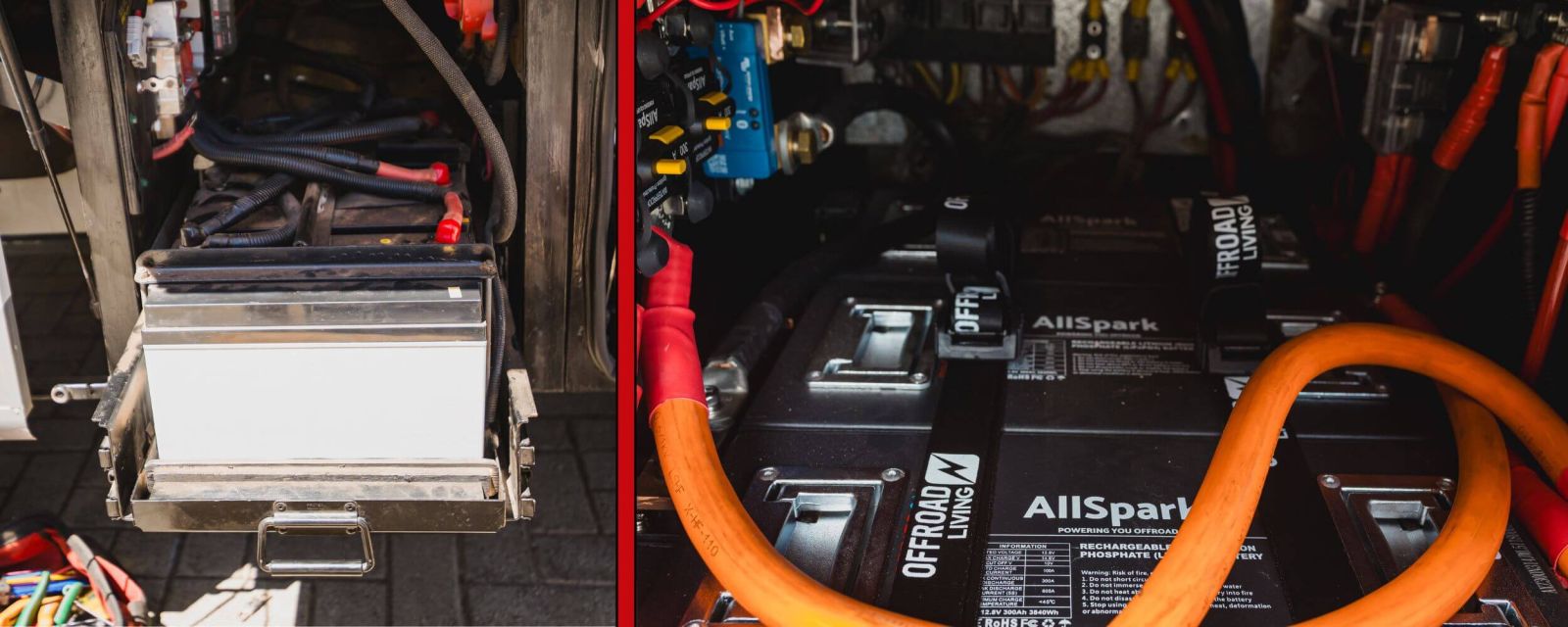

When more capacity was needed, Stealth Electrical started from scratch, fitting out three new AllSpark 300ah Slimline batteries and a Victron charging system - Photo credit Christopher Millen



Thinking about adding another battery onto your caravan or 4WD setup for a bit more time off the grid? It is one of the most common upgrades we get asked about, and one of the easiest to get wrong - especially if you ask the question on Facebook.



Short answer: you should only add a new lithium battery to your existing ones if it matches them in brand, chemistry, capacity, and age. Add a mismatched battery and the new one is dragged down to the level of the weakest battery in the bank, costing you capacity and shortening its life.



KEY TAKEAWAYS

  • ⚡ Match everything: A new battery should be the same brand, chemistry, capacity and within 6 to 12 months of age as the batteries it joins.
  • ⚡ Old plus new fails: A mismatched bank only performs as well as its oldest, weakest battery and can shorten the life of the new one.
  • ⚡ Never mix chemistries: Lithium and AGM have different charging profiles and voltages, and pairing them damages one or both.
  • ⚡ Never mix sizes: A smaller battery wired to a larger one gets force fed while the system tops up the big one.
  • ⚡ Use our Off-Grid System Sizer to get our recommendation for the right battery bank size in seconds.



Your Options: Match, Split, or Start Fresh



If you do add to your bank, the new batteries should be the same brand, chemistry, capacity, and age as the ones already installed. For our AllSpark lithium batteries we recommend staying within 6 to 12 months of age, depending on usage. You have three clean ways forward.



  • Add an identical battery. If your existing battery is recent, buy the same model. A second AllSpark Pro Series 12V 100Ah alongside a few-month-old one gives you a balanced 200Ah bank.
  • Split your system. Run the old battery on a steady load like your fridge (it will need its own DC-DC charger and monitoring), and use the new battery for your inverter and appliances.
  • Start fresh. If the old batteries are too old, or you cannot find the same model, sell them on Marketplace and buy a matched AllSpark lithium battery set sized for your real needs. Two or more new batteries cost more upfront, but less than both batteries ageing out early.



Why Mixing Old and New Batteries Fails



More amp hours means more freedom, but you cannot just drop a fresh battery in next to your old ones and hope for the best. Here is what goes wrong.



  • Capacity matching. Every lithium battery loses a little usable capacity as it ages. Connect a brand new battery in with one that is a few years old and the new one has its performance dragged down to match the old one. Best case, you waste the capacity you just paid for. Worst case, you get charging problems, premature failure and poor output across the bank.
  • Force feeding. Batteries in a bank share charge and load. If one battery is weaker or smaller, the system pushes current into it harder than it should to keep up with the rest, and the excess heat that creates is what wears a battery out early.
  • Shortened life. The bank always behaves like its weakest member. Adding a healthy battery to a tired one does not lift the tired battery up. It pulls the healthy one down.



Never Mix Chemistries

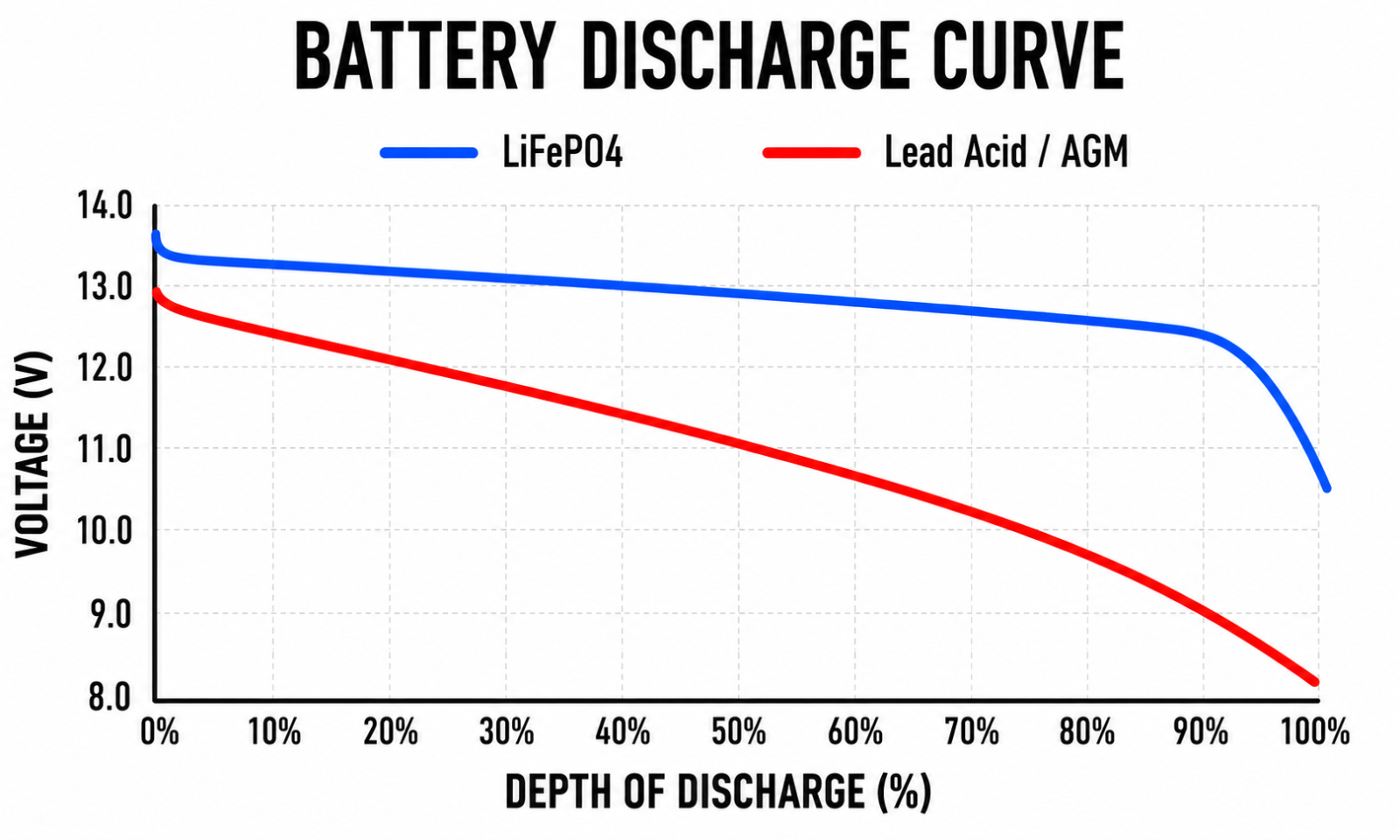

No, you should never mix lithium and AGM batteries in the same bank. Lithium (LiFePO4) and AGM are completely different chemistries, and they sit at different voltages and hold them differently. Lithium stays flat at about 13.2 to 13.3V across most of its capacity and barely sags (which is why voltage meters are essentially useless for lithium batteries), whereas AGM drops steadily as it discharges. Wired in parallel, the bank at the higher voltage constantly pushes current into the other, so the lithium ends up carrying the AGM, which gets overworked while the two chase a state of charge they can never match.





The bigger problem is that no single charging profile keeps both healthy. An AGM wants a sustained float and, on many chargers, periodic equalisation or desulphation stages that pulse 15.3 to 15.7V into the battery. Those same pulses hit the lithium sitting alongside it and push it into high-voltage protection. The battery management system (BMS) goes open circuit, drops the load, then has to reset and start again (some do not auto-reset at all). Anything running off the bank, a fridge especially, can cut out in the process.



The re-bulk voltage is just as awkward. A lead-acid charger typically will not return to bulk until the bank sags to around 12.7 to 12.8V, but a lithium is roughly 70% discharged by the time it reaches that voltage, so it is run close to its limits before it recharges. A proper lithium profile re-bulks at about 13.2V, keeping it topped up.



Set the charger to suit one chemistry and the other is mistreated. The result is two batteries permanently working against each other, both ageing early, with a real risk of damaging one or both. If you want lithium, go fully lithium. Do not mix them.



Never Mix Sizes



Bigger batteries take longer to charge, so a small battery wired alongside a large one is force fed while the system works to top up the big one - bad for the smaller battery, the bank's longevity, and overall performance. Keep every battery in a parallel bank the same capacity. Two matched 100Ah batteries behave predictably. A 100Ah next to a 200Ah does not.



Before You Connect

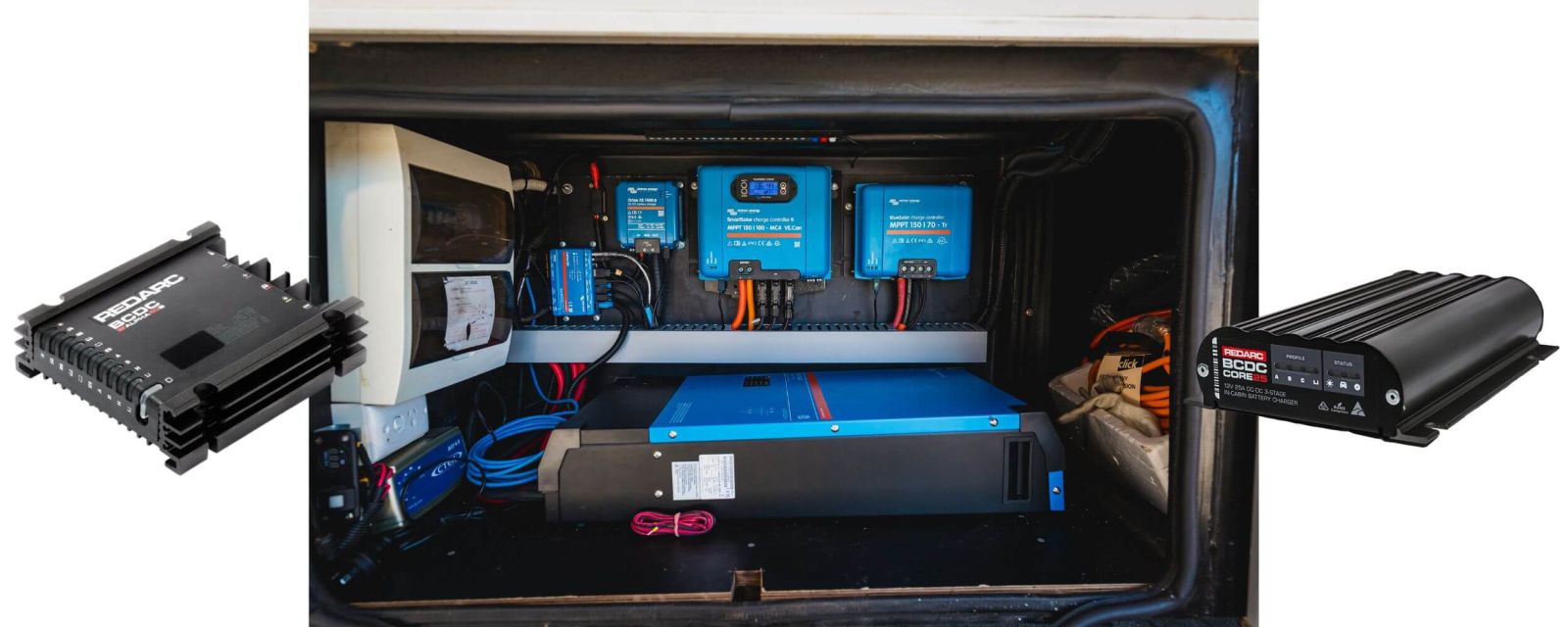

Doubling your bank doubles what your chargers have to refill, so check your DC-DC charger and AC-DC charger have the headroom to replenish it in a reasonable time. And charge both batteries fully, then wait 24 hours to ensure the cells balance, before you connect them in parallel for the first time - joining batteries at very different states of charge sends a large current rushing between them, which is hard on both.

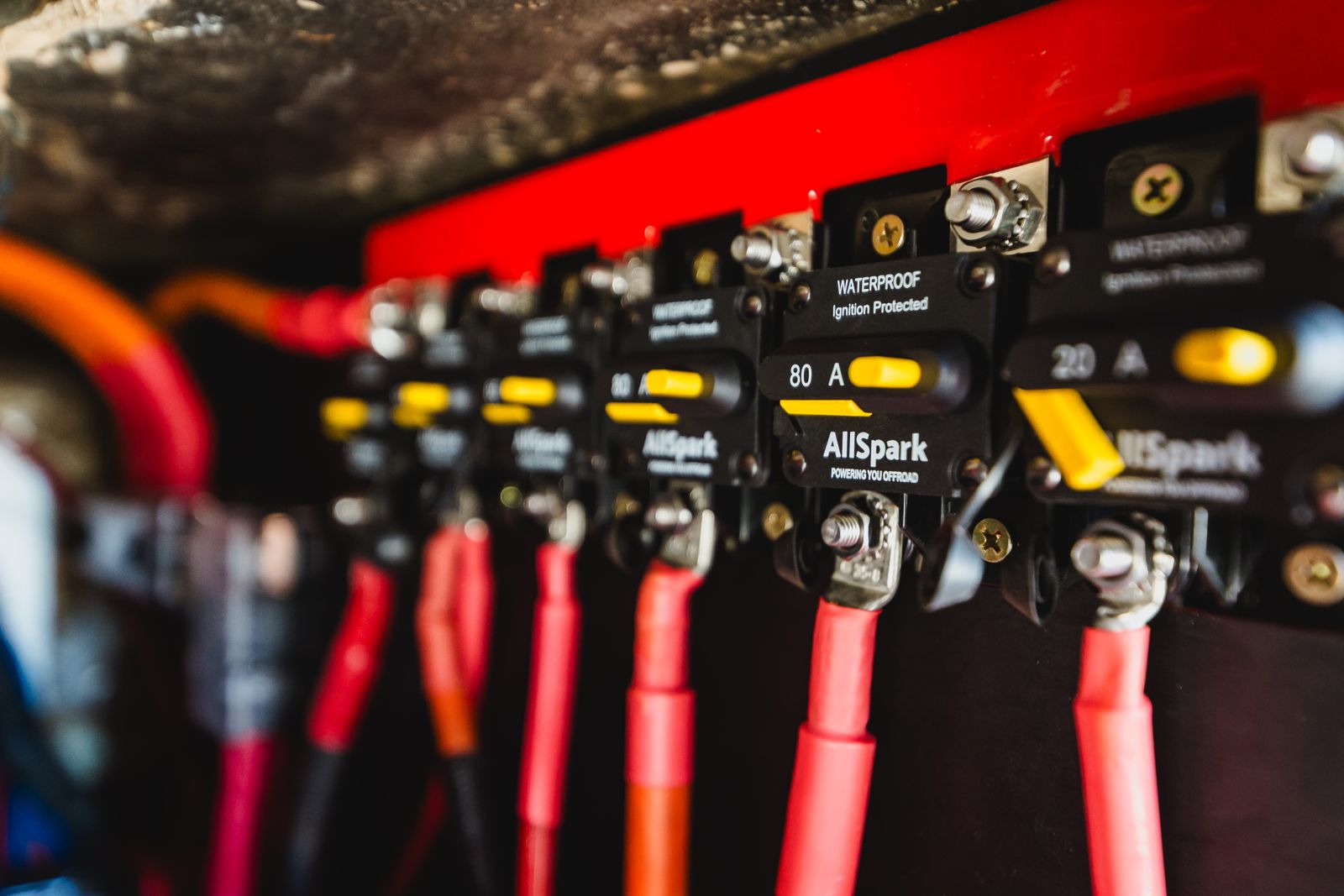

You'll also need to check your circuit protection and cable sizes - undersize either of these and the system won't just work inefficiently, it could result in serious damage - check out our Cable Size & Circuit Protection Calculator for more information.





Need Help?



If you are not 100% sure what is compatible with your current setup, check out our Off-Grid System Sizer, and remember, we are here to help. Send us some photos of your batteries, any usage and age information you have, and what you are trying to achieve, and we will walk you through it.



Get it right the first time, and your future self (and your fridge full of cold beers) will thank you.



Frequently Asked Questions



Can I add a new lithium battery to my old ones?



Only if they are the same brand, capacity, chemistry, and within 6 to 12 months of age. Otherwise, start fresh with a matched set.



Can you mix old and new lithium batteries?



Not reliably. The bank performs to the level of the oldest, weakest battery, which costs you capacity and life.



Can you mix lithium and AGM batteries?



No. They have different charging profiles and voltages and will damage each other if combined.



Can I add a battery of a different size?



No. A smaller battery wired to a larger one gets force fed while the system tops up the big one.



When is it safe to add a second lithium battery?



When it is the same brand, chemistry and capacity, within 6 to 12 months of age, and your charger has the headroom.



Should I just start fresh instead?



Often yes. If the old batteries are over a year old or a different size or brand, a matched set is the safer investment.
